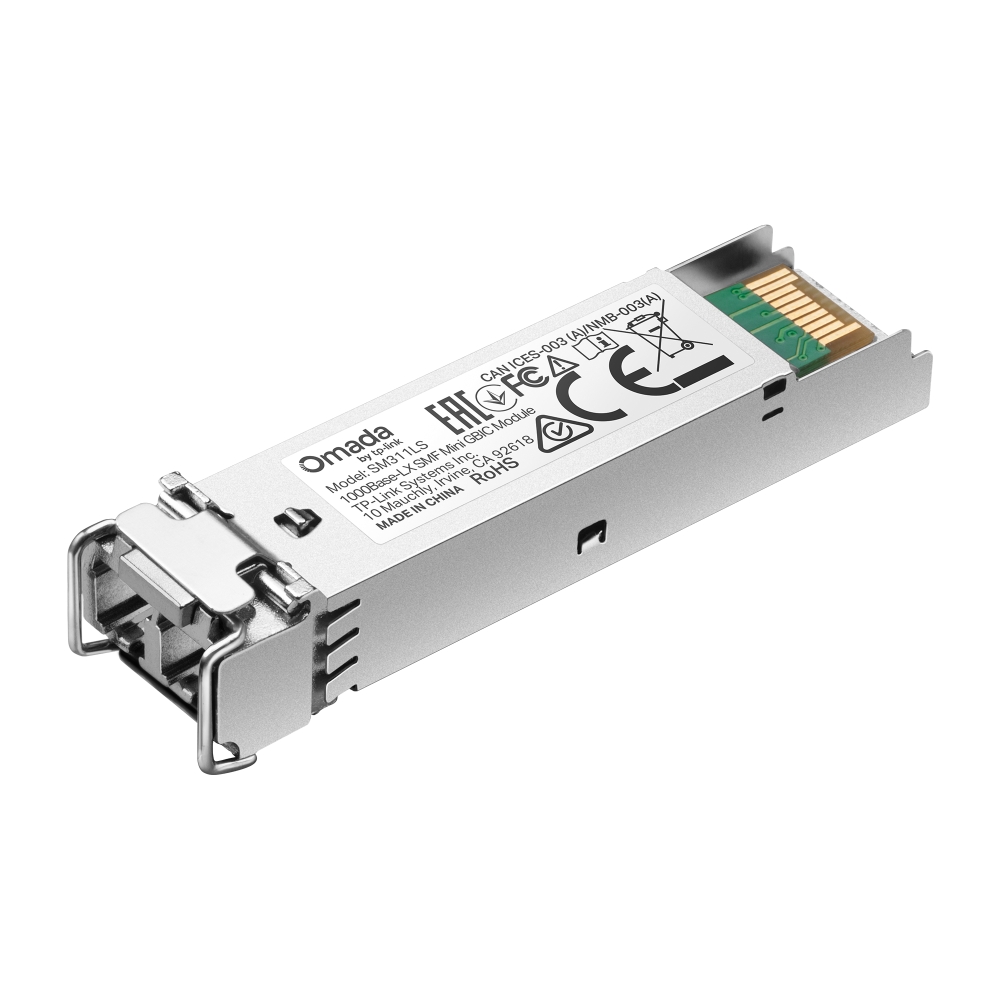

Omada 1000Base-LX SMF Mini GBIC Module
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
What This Product Does
The SM311LS series Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even 20km, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 1310 nm |
| Dimensions ( W x D x H ) | 2.1×0.5×0.5 in（55.4×13.7×12.9 mm） |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Cable | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 20 KM |
| Data Rate | 1.25 Gbps |
| Port Type | LC Duplex |
| Hardware Features | • DDM• SFP-MSA• Hot Swappable |
| Package Content | • SFP Module SM311LS• Installation Guide |
| Environment | Operating Temperature: 0–70 °C (32–158 °F)Storage Temperature: -40–85 °C ( -40–185 °F)Operating Humidity: 10–90% RH, Non-CondensingStorage Humidity: 5–90% RH, Non-Condensing |
