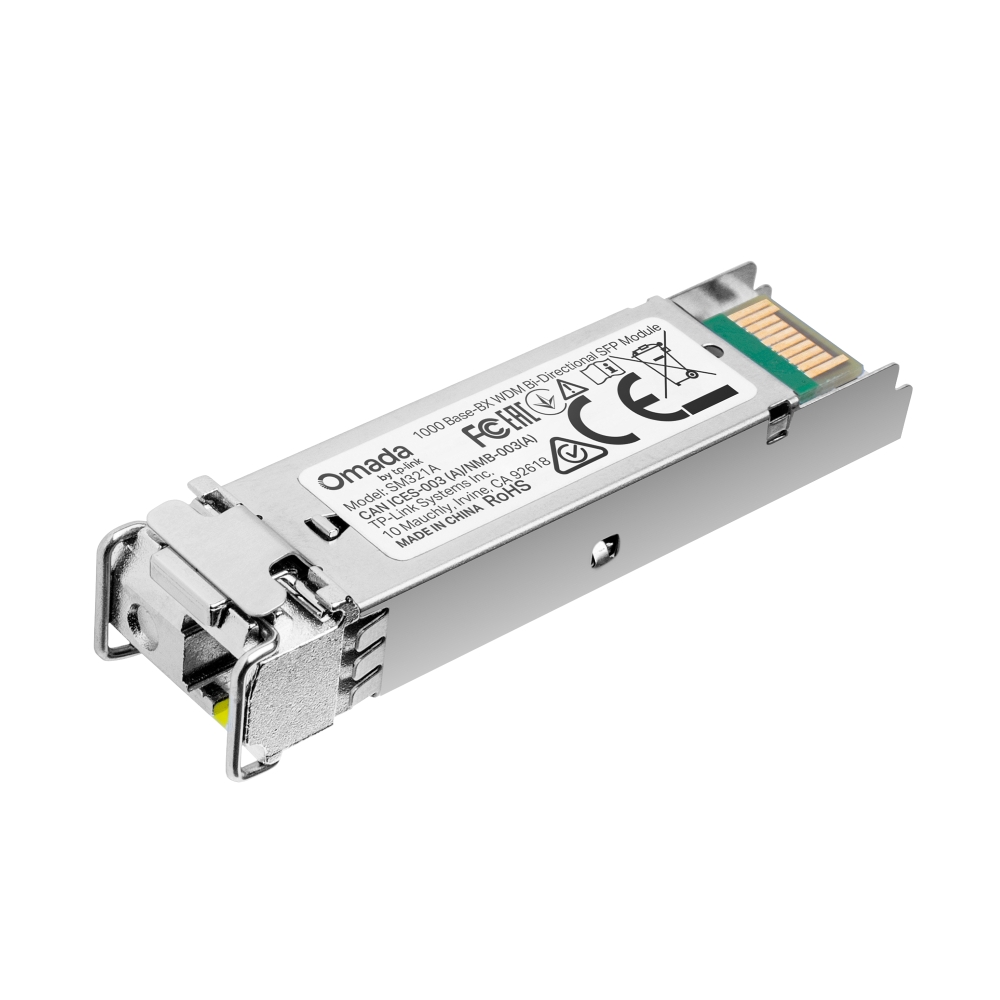

SM321A
Omada 1000Base-BX WDM Bi-Directional SFP Module
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
What This Product Does
SM321A adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with routers, switches and media converters to provide high speed and stability.| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | • TX: 1550 nm • RX: 1310 nm |
| Dimensions ( W x D x H ) | 2.2*0.6*0.5 in (55.4*14.6*12.9 mm) |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Cable | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 20 KM |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Hardware Features | • DDM• SFP-MSA• Hot Swappable |
| Package Content | • SM321A• Installation Guide |
| Environment | • Operating Temperature: 0–70 °C (32–158 °F)• Storage Temperature: -40–85 °C ( -40–185 °F)• Operating Humidity: 10–90% RH, Non-Condensing• Storage Humidity: 5–90% RH, Non-Condensing |
