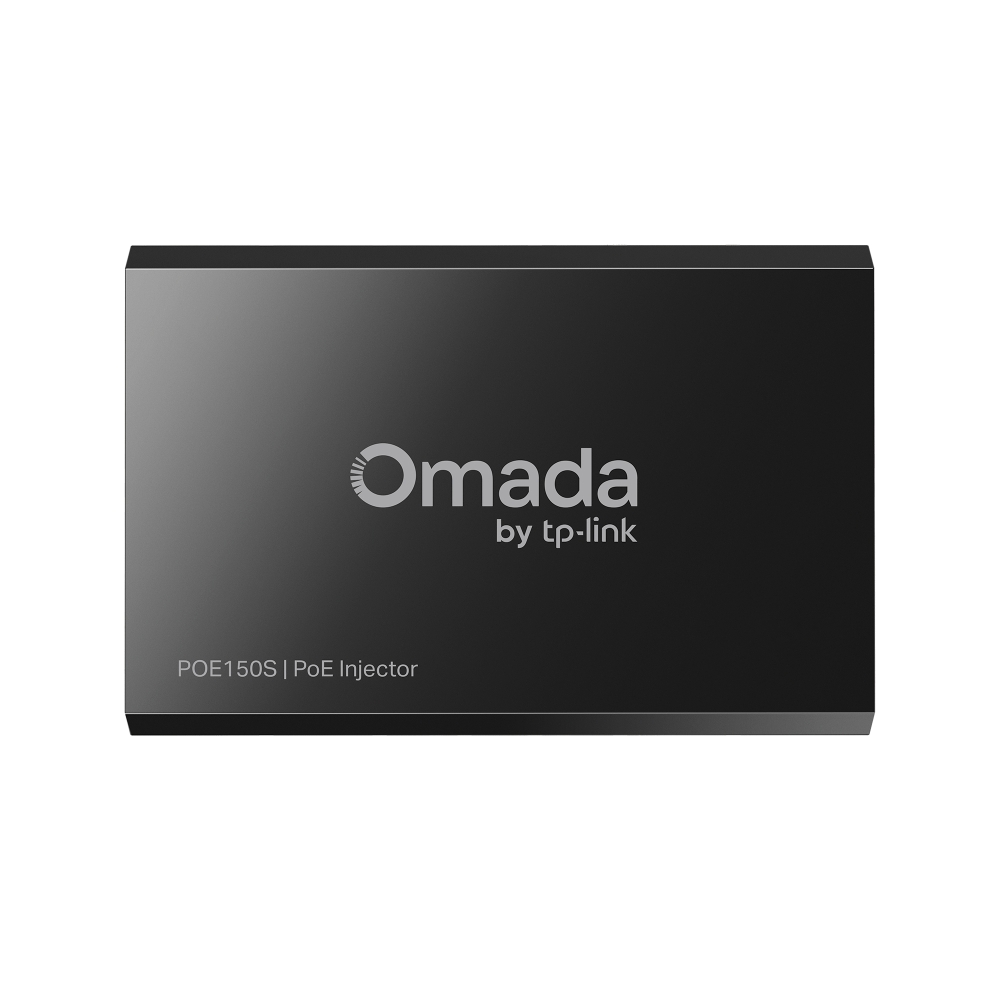

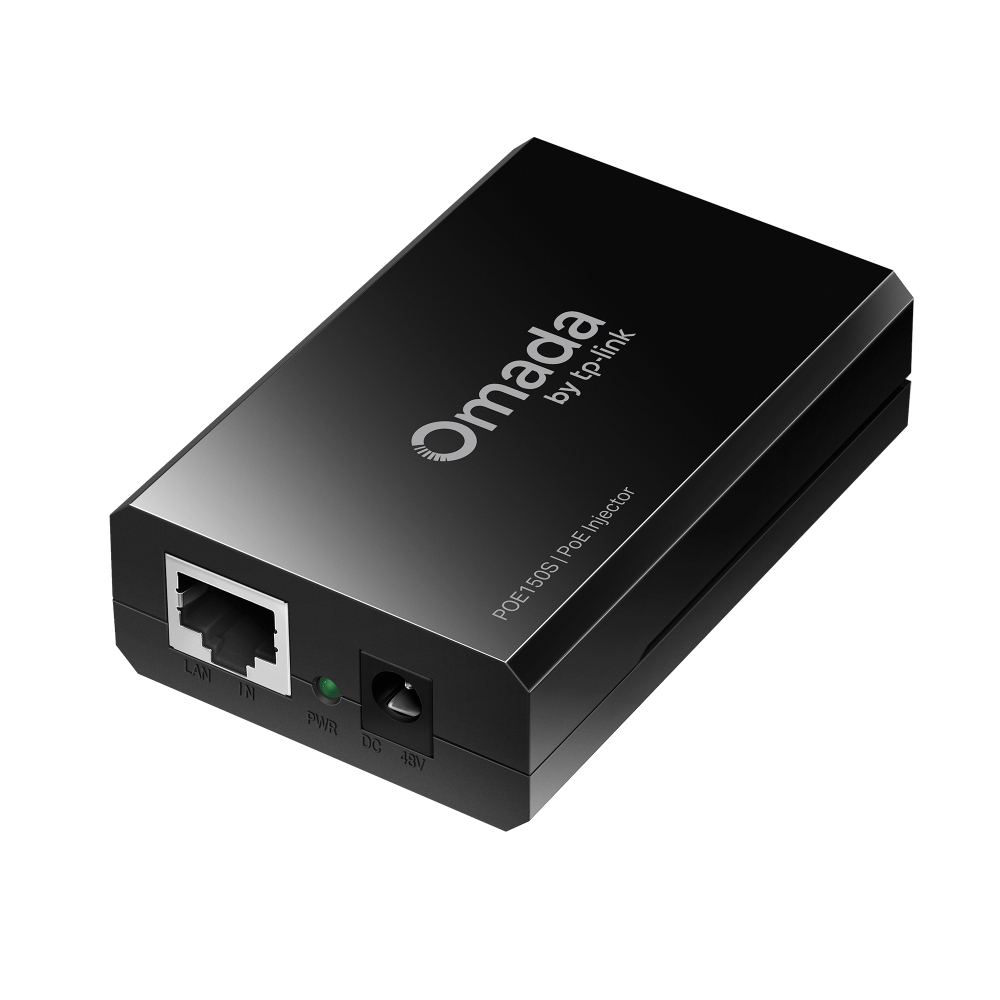

POE150S
Omada PoE Injector
- IEEE 802.3af compliant
- Auto-determine the necessary power requirements
- Gigabit speed support
- Plug-and-Play, no configuration required
What this product does
The The PoE Injector POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
* MCRP100 v2.2 supports MC1400 v4.20, MCRP100 v2.0 supports MC1400 v3.0/v4.0 and FC1420 v1.0, MCRP100 v1.0 supports MC1400 v1.0/2.0.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 10/100/1000/2500 Mbps Auto-Negotiation RJ45 DATA IN port• 10/100/1000/2500 Mbps Auto-Negotiation RJ45 PWR+DATA OUT port |
| Power Supply | 54V/0.56A |
| LED | PWR |
| Dimensions ( W x D x H ) | 110x57x35.7 mm (4.33x2.24x1.41 in) |
| SOFTWARE FEATURES | |
|---|---|
| Basic Function | • Compatible With IEEE 802.3af Compliant PDs• Delivers Power Up To 100 Meters• Auto-determine the necessary power requirements |
| OTHERS | |
|---|---|
| Certification | CE, FCC, BSMI, UL, KC |
| Package Content | • POE150S• Power Adapter• Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
