ER701-5G-Outdoor

New

Omada 5G Outdoor Gateway

5G NR up to 7.01 Gbps (SA)/4.5 Gbps (NSA)*
2× Nano SIM Ensures Business Continuity
1× 2.5G PoE In Port (PoE Adapter Included)
9× internal Cellular Antennas and 1× Internal Wi-Fi Antenna
App-Guided Antenna Alignment for Optimal 5G Performance
Omada SDN for One-Click Setup, Pole/Wall/Window Mounting
Centralized Cloud Management^Δ
IP66 Weatherproof

Learn more about Omada Cloud SDN>

5G NR up to
7.01 Gbps
Effortless App-Guided
Alignment
Enhanced Signal
with 9× High-Gain
Cellular Antennas
1× 2.5G PoE In
Port
2× Nano SIM for
5G NR Failover
Centralized
Management via App
or Web
IP66
Weatherproof
Easy Setup

Empower Your Network with Outdoor 5G — More Convenience, Higher Speed, Better Signal

Delivering blazing-fast, reliable 5G, the Omada ER701-5G-Outdoor brings instant connectivity to areas where wired broadband isn’t practical. It serves as either primary 5G/4G broadband access or an internet backup for indoor gateways. Perfect for remote deployments, temporary sites, and hard-to-wire facilities.

Deliver 5G/4G
Internet
via Ethernet

PoE Support
(Adapter Included)

Omada AP

Omada Switch

Omada
Indoor Gateway

ER701-5G-Outdoor Mounted Outdoors for Enhanced 5G/4G Reception or Backup

Camera

5G/4G

Omada Central
(Cloud-Based)

Internet

Web Browser

Omada App

Up to 7.01 Gbps — Breakthrough Outdoor 5G Performance

Experience ultra-fast 5G with peak download speeds of up to 7.01 Gbps*—46.7× faster than 4G LTE. Powered by Omada’s exclusive Ultra5G technology, Omada ER701-5G-Outdoor delivers one of the fastest 5G connections on the market. Enjoy seamless streaming, instant downloads, and upload speeds of up to 1.25 Gbps. Perfect for sharing videos and live streaming in real time.

Up to
7.01 Gbps

Omada Ultra5G Technology

(R16 Standard+Sub-6 GHz+4 × 4 MIMO)
Omada Ultra5G

7.01 Gbps*
46.7× Faster
than 4G LTE

Ordinary 5G on the Market

≤4 Gbps

4G-LTE Advanced

0.6 Gbps

4G-LTE

0.15 Gbps
- Higher Speed
- Lower Latency

Effortless App-Guided Antenna Alignment for Peak 5G Performance

Simplify installation with real-time signal strength in the Omada app, making it easy to align the 5G outdoor gateway with the nearest tower for optimal performance.

Before Alignment
After Alignment

Unmatched 5G Performance with Advanced Hardware

With 9× high-gain directional internal cellular antennas, ER701-5G-Outdoor guarantees strong, stable 5G signals. Its 2.2 GHz quad-core CPU ensures high-speed processing with ultra-low latency, while the 2.5G PoE port simplifies outdoor deployment by reducing wiring complexity.

9× Internal Cellular Antennas

Quad-Core 2.2 GHz CPU

2.5G PoE In Port

Dual SIM Failover Ensures Uninterrupted Connectivity

In scenarios involving automatic failover mechanisms, backup WAN connections, and various network switching situations, the system ensures your business stays up and running.

SIM1
Active

SIM2
Standby

Normal
SIM1
Fault

SIM2
Active

Fault

Robust Outdoor Design for Long-Lasting Reliability

The fully sealed ER701-5G-Outdoor is dustproof, waterproof, and built to endure prolonged submersion and extreme outdoor conditions.

IP66
Weatherproof
6kV Lightning
Protection
-30 °C to 60 °C
Operating Range
Wind
Resistance

Flexible Mounting Solutions for Easy Setup

Pole Mounting
Wall Mounting
Window Mounting

Easy Management with the Omada App

Seamless provisioning and management through the Omada app, whether via standalone management or Omada centralized management.

5G outdoor

SECURITY
DPI	Deep Packet Inspection
Access Control	Source/Destination IP Based Access Control
Filtering	• Web Group Filtering (only in Standalone Mode) • URL Filtering • Web Security (only in Standalone Mode)
ARP Inspection	• Sending GARP Packets • ARP Scanning (only in Standalone Mode) • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
Interface	1×2.5G RJ45 Port
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset Button
Power Supply	• 802.3at PoE: 42-57V 0.6A • Passive PoE: 48V 0.375A
Flash	4GB eMMC Flash
DRAM	2GB LPDDR4x
LED	System, Network Type, Signal Strength
Dimensions ( W x D x H )	7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm)
Antenna	• 9× internal Cellular antennas • 1× internal Wi-Fi antenna
SIM Slot	1×Dual Nano SIM slot
Mounting	Wall/Pole/Window Mounting
Max. Power Consumption	15.3W (802.3at PoE or Passive PoE)

PERFORMANCE
Concurrent Session	500, 000
New Sessions /Second	6,100

WIRELESS FEATURES
Wireless Speeds	5G NR Speed • SA: Downlink: 7.01 Gbps, Uplink: 1.25 Gbps • NSA: Downlink: 4.5 Gbps, Uplink: 730 Mbps LTE Speed • Downlink: 1.6 Gbps, Uplink: 211 Mbps Wi-Fi Speed • 2.4 GHz: 150 Mbps^†
Wireless	• 802.11n: 6.5 Mbps to 150 Mbps (MCS0-MCS7, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps
Advanced Features	• Wireless Encryption: WPA/WPA2 Personal • SSID: 1 • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Automatic Channel Selection Algorithm • Transmit Power Control: Adjust transmit Power on dBm

BASIC FUNCTIONS
WAN Connection Type	5G/4G/3G
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
Stateful ACL	Yes
Quality of Service	Yes
Bridge VLAN	Yes
SMS	Receive / Send SMS
VLAN	802.1Q VLAN

Advanced Features
Bandwidth Control	IP-based Bandwidth Control
NAT	• Multi-Net NAT • Virtual Server • Port Triggering** • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Routing	• Static Routing • OSPF**
Session Limit	IP-based Session Limit

TRANSMISSION
NAT	• Multi-Net NAT • Virtual Server • Port Triggering (only in Standalone Mode) • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Routing	• Static Routing • OSPF (only in Standalone Mode)
Session Limit	IP-based Session Limit
Bandwidth Control	IP-based Bandwidth Control

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password^△ • Hotspot (Local User / Voucher^△ / SMS^△/ Radius) • External Radius Sever • External Portal Sever • LDAP

Management Features
Omada App	Yes.
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller • Omada App
Cloud Access	Yes.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP
Certification	CE, NCC, BSMI, RoHS

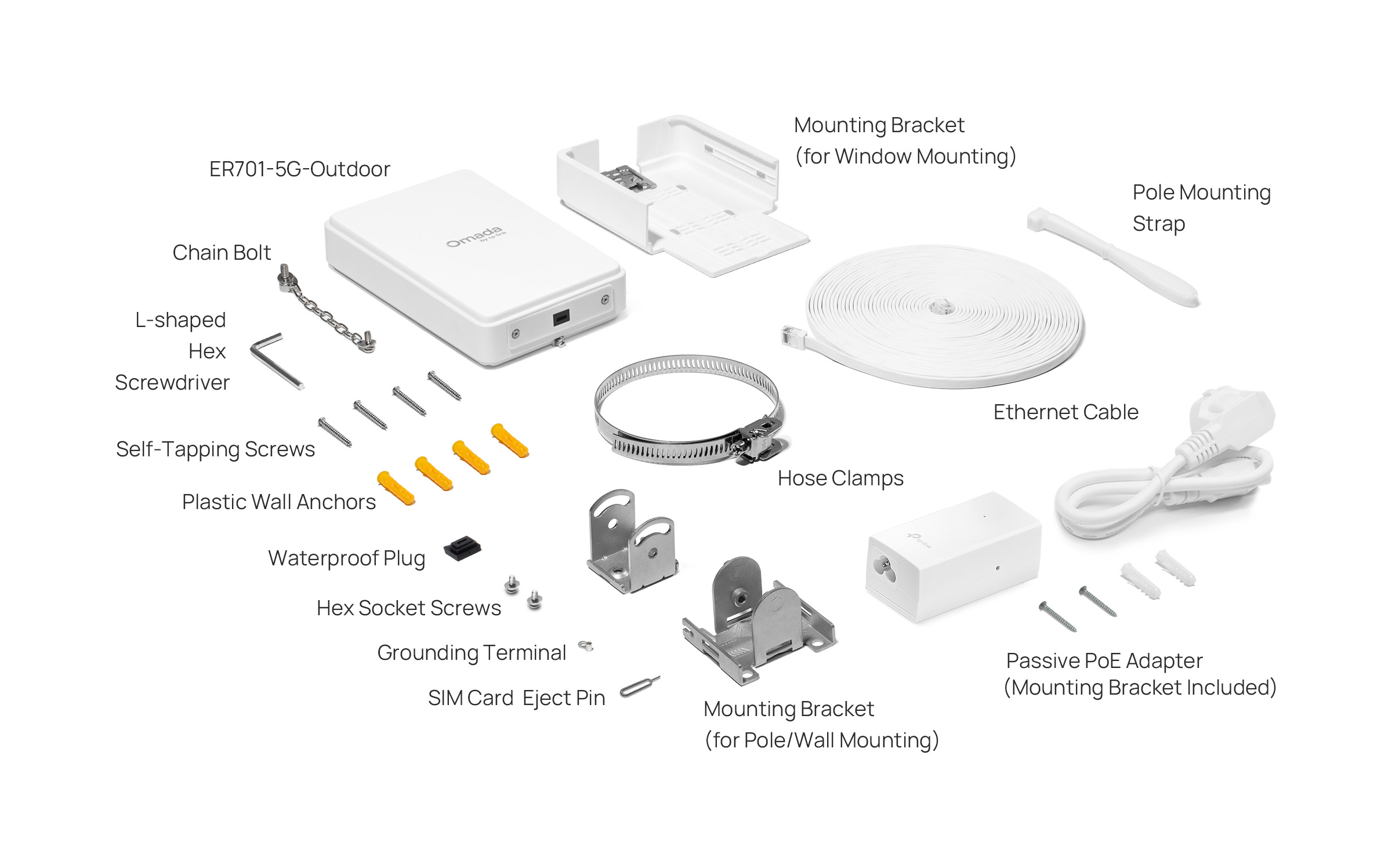

Package Content	• ER701-5G-Outdoor Gateway • Passive PoE Adapter • Mounting Kits • Waterproof kit • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 5% to 95% non-condensing • Storage Humidity: 5% to 90% non-condensing • Surge Protection: 6 kV surge protection

For additional version information, please go to the support page.

*Actual 5G downlink speeds vary between buildings. Factors affecting 5G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.

**These features are supported only in Standalone Mode.

^ΔThese features are supported only in Controller Mode.

^†The Wi-Fi interface is used for local management purposes only.
