Omada 3-in-1 Gigabit VPN Gateway

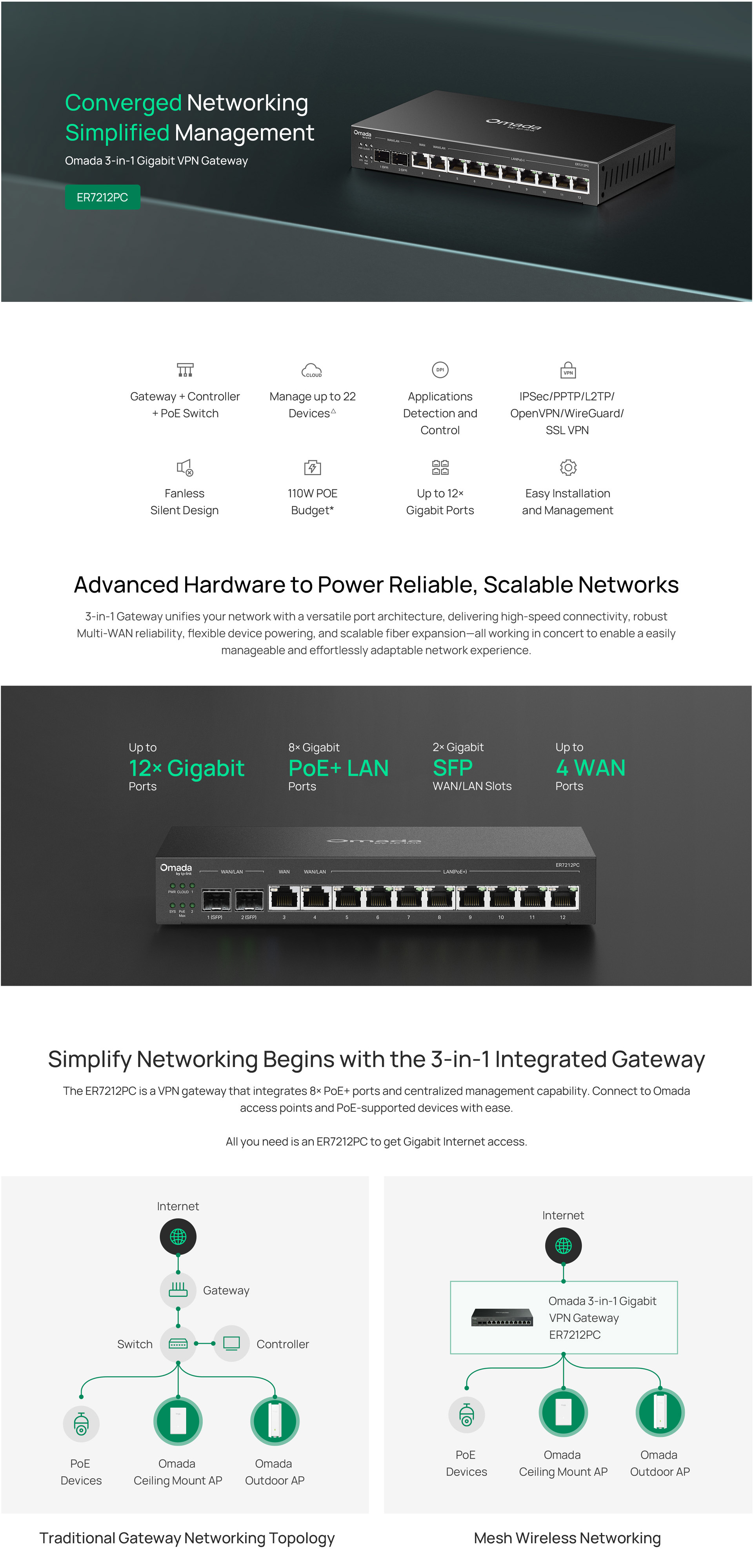

- 3-in-1 Gateway: Integrates 8× PoE+ ports with 110W PoE budget* and centralized management capability. Up to 22 Omada devices (2 gateways, 20 switches and EAPs in total) can be centrally managed.
- Up to 12× Gigabit ports bring high-speed network.
- Up to 4× WAN Ethernet ports for a stable network.

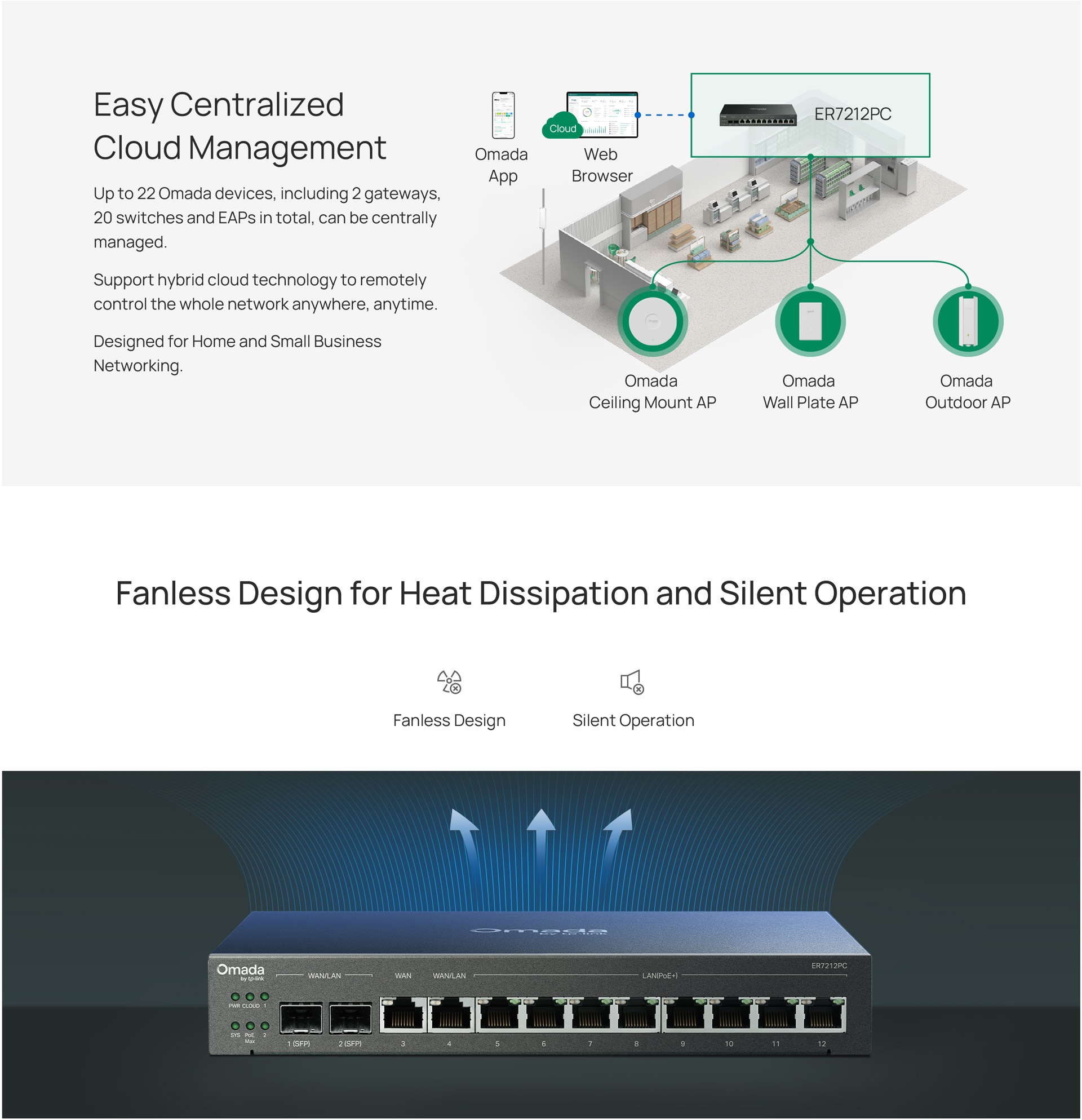

- Centralized Cloud Management: Cloud access and the Omada app for easy management.
- Highly Secure VPN: Supports IPsec VPN / OpenVPN / L2TP / PPTP / WireGuard / SSL VPN.§
- Easy Installation: Compact, fanless design supports flexible mounting options — desktop, wall, or rack (rackmount kit sold separately).
Learn more about Omada Cloud SDN>
DPI Integration: Enhancing Application and Traffic Management
DPI function is a built-in application feature recognition library, supporting many application rules.***
Without DPI
Legal Applications
Suspicious Applications
Illegal Applications
With DPI
Legal Applications
Suspicious Applications
Illegal Applications
It features country/region-based traffic management to finely allocate and regulate available bandwidth for critical applications or application classes while suppressing unnecessary application traffic.
| SECURITY | |
|---|---|
| DPI | Supported by v2 and above:• Deep Packet Inspection• Support 2421 type Applications• Max Throughput (Upload / Download) 942.7Mbps/937.3Mbps |
| Access Control | Source/Destination IP Based Access Control/FQDN |
| Filtering | URL Categoroies and URLs Filtering |
| ARP Inspection | • Sending GARP Packets• IP-MAC Binding• ARP Detection |
| Attack Defense | • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE • 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, SNMP |

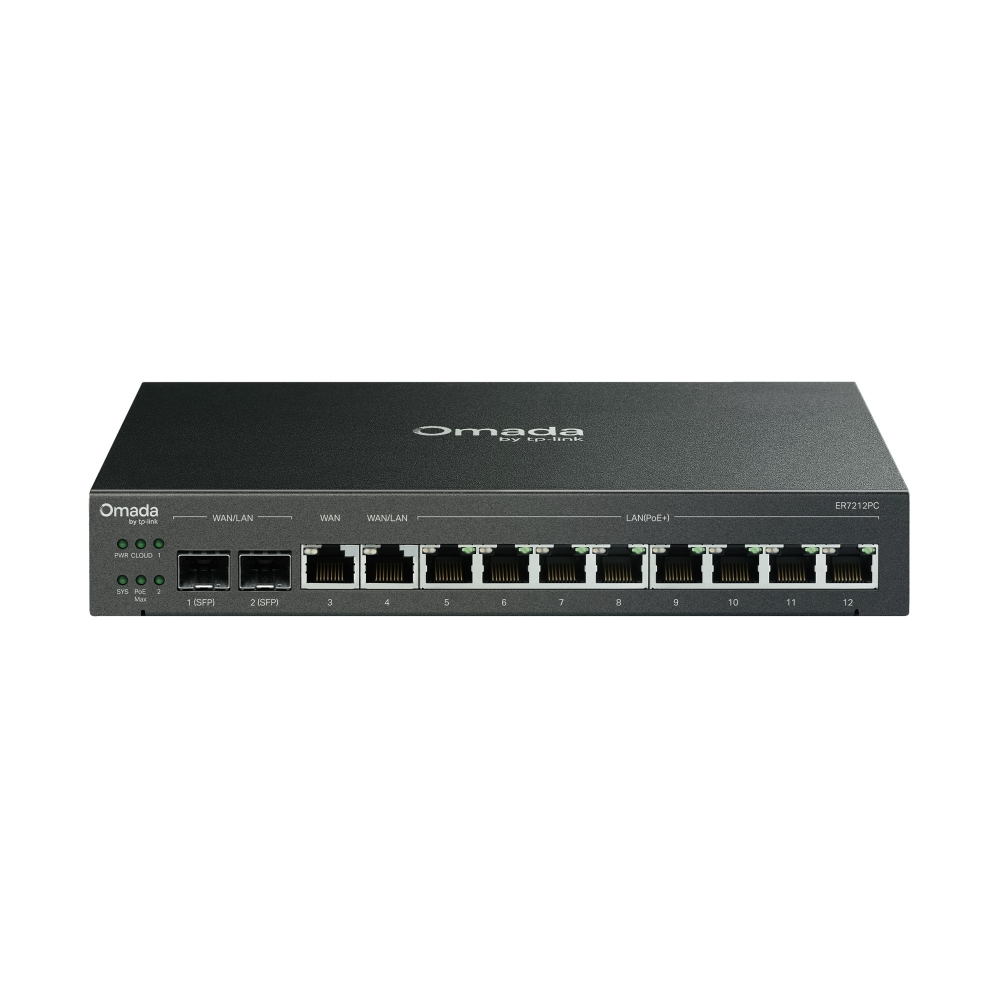

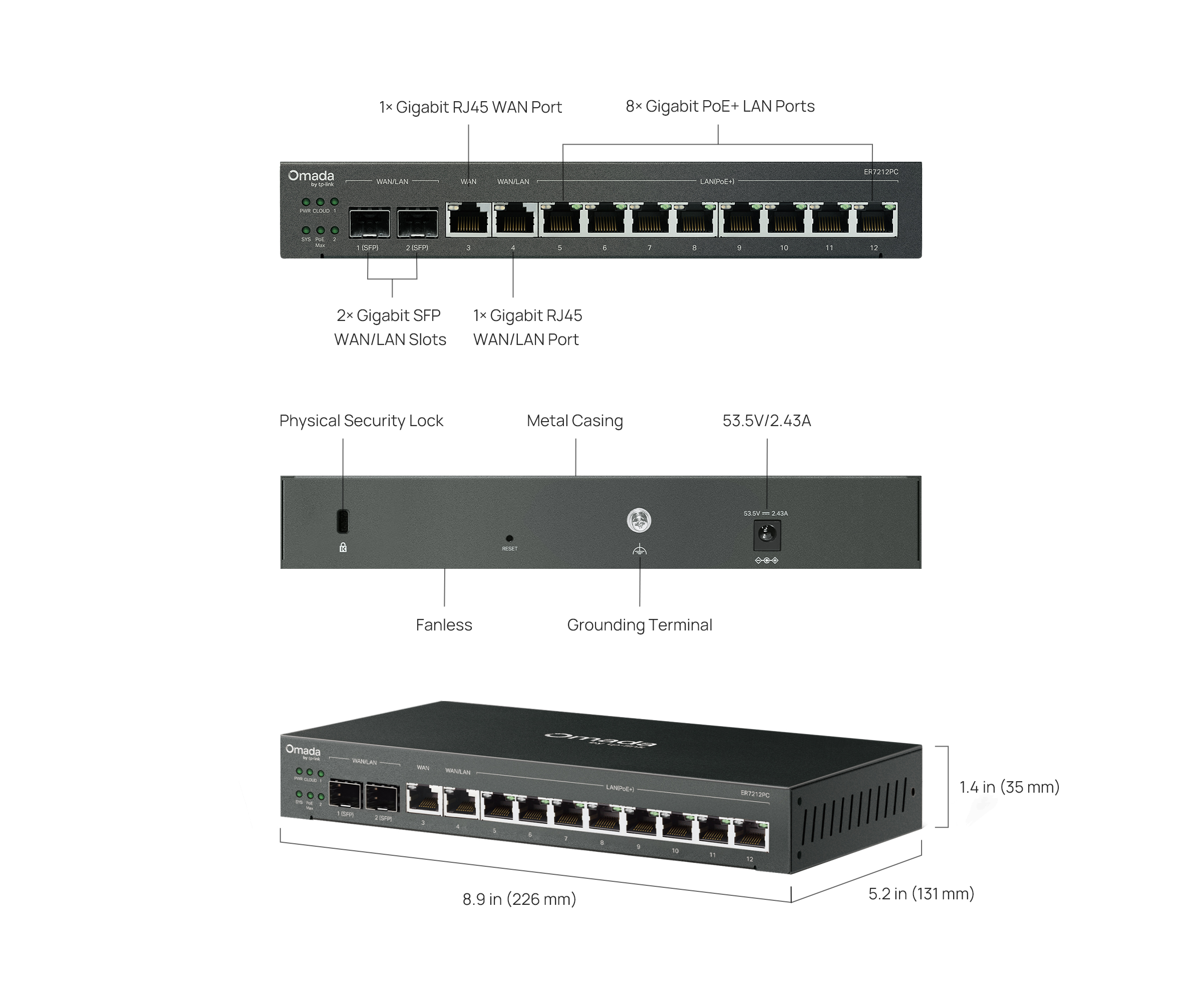

| Interface | • 2 Gigabit SFP WAN/LAN ports**• 1 Gigabit WAN port• 1 Gigabit LAN/WAN port• 8 Gigabit LAN ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)• EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)• EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |

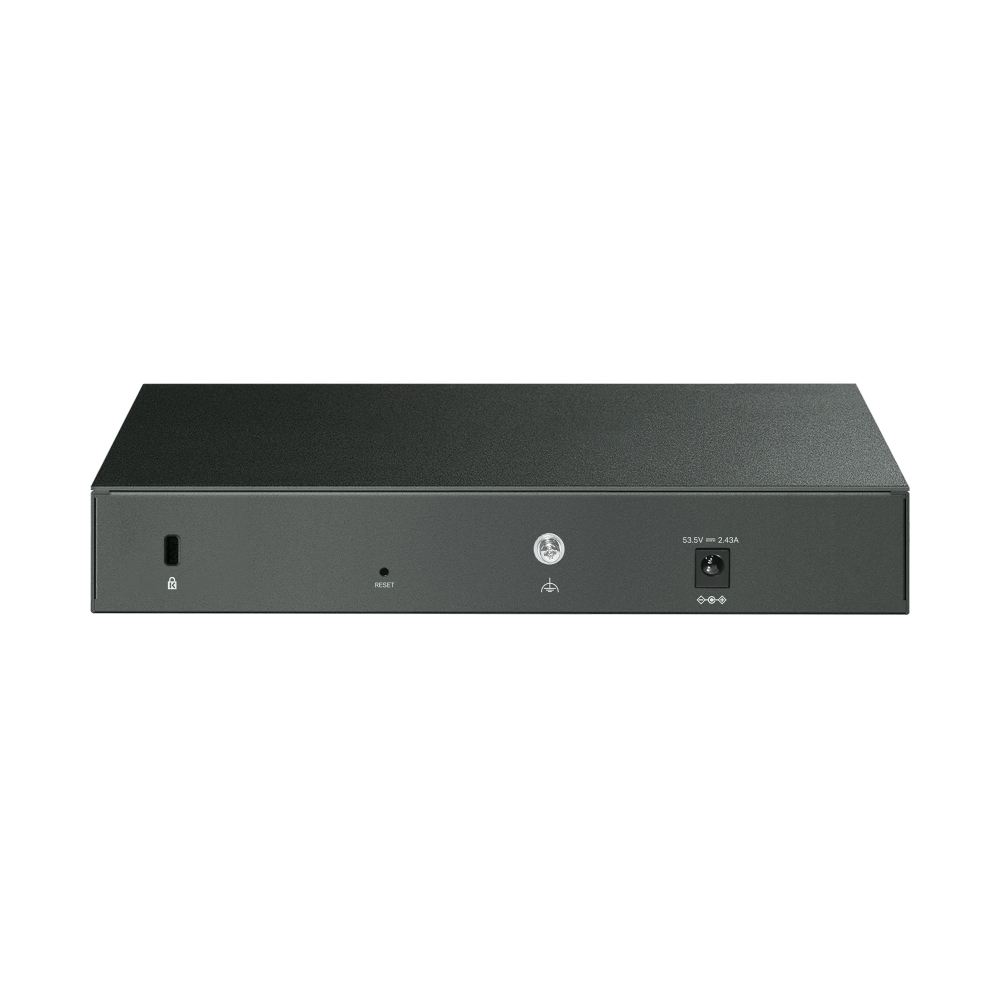

| Power Supply | 53.5VDC/2.43A Adapter |
| PoE Budget | 8 ports PoE+ output, 110 W PoE Budget |
| Flash | 32Mbit Nor+8GB eMMC |
| DRAM | 2 GB DDR4 |
| LED | PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 6kV surge protection |
| Enclosure | Steel |

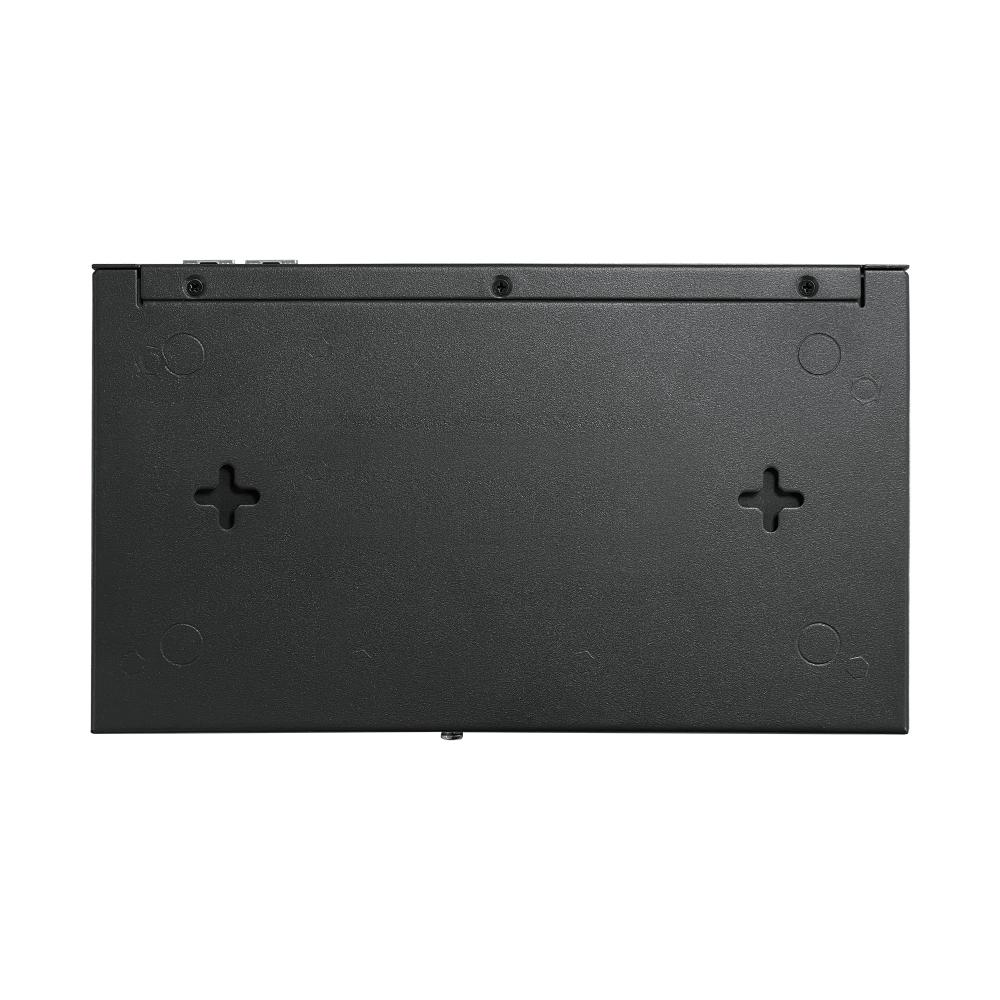

| Mounting | • Desktop• Wall-mount• Rack-mount (rackmount kit sold separately) |
| Max. Power Consumption | 131 W (110 V/60 Hz) (With 110 W PD connected) |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 50,000 |
| New Sessions /Second | 3,800 |
| NAT (Static IP) | 940.2 Mbps / 947.5 Mbps |
| NAT(DHCP) | 947.8 Mbps / 948.6 Mbps |
| NAT(PPPoE) | 943.1 Mbps / 942.6 Mbps |
| NAT (L2TP) | 898.4 Mbps / 915.8 Mbps |
| NAT (PPTP) | 909.7 Mbps / 912.8 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 984.7 Mbps, ESP-SHA2-AES256: 990.5 Mbps, • ESP-SHA384-AES256: 983.9 Mbps, ESP-SHA512-AES256: 985.8 Mbps |
| OpenVPN | 233.1 Mbps |
| L2TP VPN Throughput | • Unencrypted: 1,273.9 Mbps • Encrypted: 851.8 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1293.5 Mbps• Encrypted: 297.1 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,459 pps / 1,453,459 pps |
| 1,518 Byte Packet forwarding rate | 81,272 pps / 81,272 pps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | • Static IP• Dynamic IP• PPPoE• PPTP• L2TP |
| MAC Clone | Modify WAN MAC Address |
| DHCP | • DHCP Server• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP• WAN DHCP 60 |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features | |
|---|---|
| Access Control | • Source/Destination IP Based ACL• Stateful ACL• IPv4/IPv6 ACL• National Based ACL |
| Advanced Routing | • Static Routing• Policy Routing |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance• Application Optimized Routing• Link Backup• Online Detection |
| NAT | • Multi-Net NAT• One-to-One NAT• Port Forwarding• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP• Disable NAT |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| SD-WAN | √ (Only in Controller Mode) |
| SSL VPN | 80 Tunnels |
| IPsec VPN | • 20 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server• PPTP VPN Client (10)• 16 Tunnels• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server• L2TP VPN Client (10)• 16 Tunnels• L2TP over IPSec |
| OpenVPN | • OpenVPN Server• OpenVPN Client (10)• 16 OpenVPN Tunnels• "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | √ |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication• Simple Password• Hotspot (Local User / Voucher/ SMS / Radius)• External Radius Sever• External Portal Sever |
| Management Features | |
|---|---|
| Omada App | Yes. |
| Centralized Management | Management of up to 22 Omada devices（2 gateway，20 switches and EAPs in total） |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)• NTP Synchronize• Port Mirroring• Syslog Support |
| Zero-Touch Provisioning | - |
| Management Features | • Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

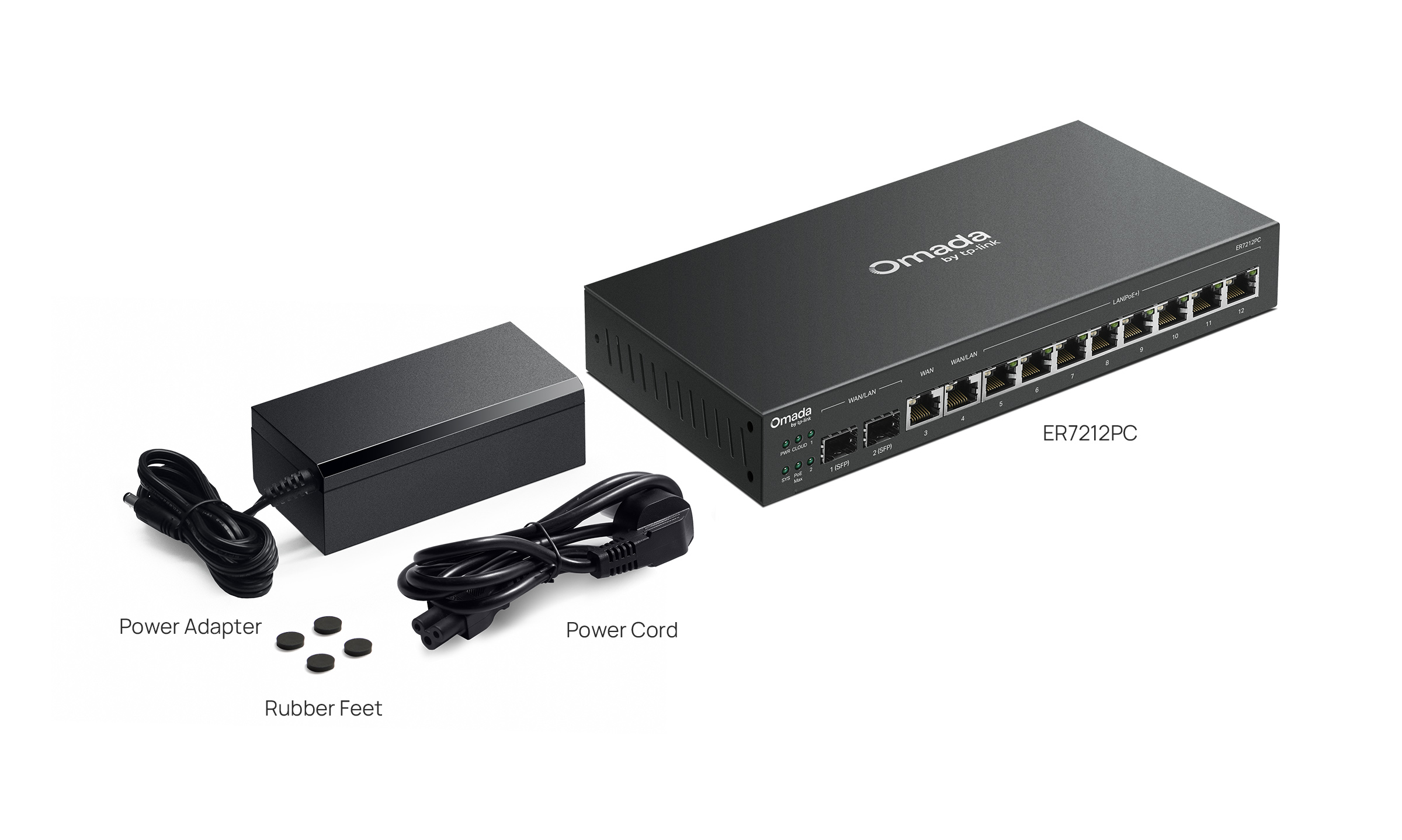

| Package Content | • ER7212PC• Power Adapter• Power Cord• Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: -5 °C to 45 °C• Storage Temperature: -40 °C to 70 °C• Operating Humidity: 10% to 90% non-condensing• Storage Humidity: 5% to 90% non-condensing |
§ER7212PC can work as a VPN client and can connect with up to 10 VPN servers.
△Actual management scale of the Omada Software Controller depends on the PC/server’s hardware specifications.
‡DPI is supported by ER7212PC V2 and above.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The SFP port of ER7212PC does not support direct-attach cable connection, including SM5220-1M (TL-SM5220-1M), SM5220-3M (TL-SM5220-3M), etc.
