ER605

Omada Gigabit VPN Gateway

Integrated into Omada SDN: Zero-Touch Provisioning, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Cloud Management: Cloud access and Omada app for convenience and easy management.*
Five Gigabit Ports: High-speed wired connectivity.
Up to 3 WAN Ethernet Ports: 1 Gigabit WAN port and 2 Gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.^‡
Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 50× OpenVPN, 16× L2TP, and 16× PPTP VPN connections.***
Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

SECURITY
DPI	Deep Packet Inspection Support 2421 type Applications
Access Control	• Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN
DNS Proxy	DNSSEC, DoH, DoT, DNS Override
Filtering	• Web Group Filtering^§ • URL Filtering • Web Security^§
ARP Inspection	• Sending GARP Packets^§ • ARP Scanning^§ • IP-MAC Binding • ARP Detection
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, LLDP

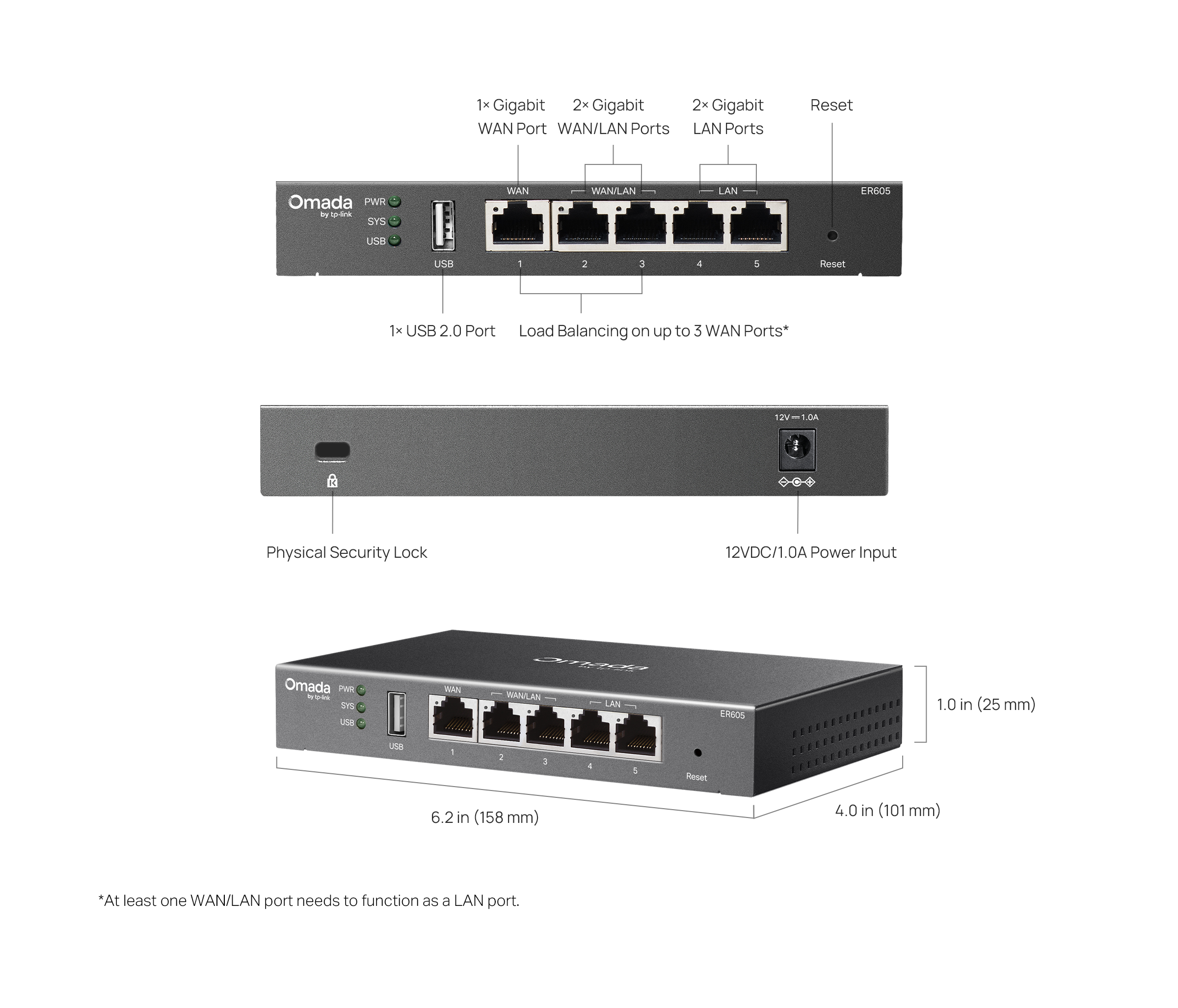

Interface	• 1 Gigabit WAN port • 2 Gigabit LAN/WAN ports • 2 Gigabit LAN ports • 1 USB2.0(supports USB LTE dongle^‡)
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button	Reset Button
Power Supply	External 12V/1A DC Adapter
Flash	128 MB NAND
DRAM	256 MB DDR
LED	PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Mounting	Desktop/Wall-mount
Max. Power Consumption	7.94 W

PERFORMANCE
DPI Throughput	TCP: 944 Mbps; UDP: 940 Mbps
GRE	Unencrypted: 460.97 Mbps Encrypted: 161.83 Mbps
WireGuard VPN Throughput	82.62 Mbps
Concurrent Session	150,000
New Sessions /Second	1,800
NAT (Static IP)	• Upload: 941.64 Mbps • Download: 944.35 Mbps • Bi-Directional: 1775.32 Mbps
NAT(DHCP)	• Upload: 941.23 Mbps • Download: 943.85 Mbps • Bi-Directional: 1782.27 Mbps
NAT(PPPoE)	• Upload: 938.83 Mbps • Download: 940.27 Mbps • Bi-Directional: 1781.77 Mbps
NAT (L2TP)	• Upload: 637.66 Mbps • Download: 502.34 Mbps • Bi-Directional: 657.92 Mbps
NAT (PPTP)	• Upload: 655.36 Mbps • Download: 511.95 Mbps • Bi-Directional: 665.43 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 239.39 Mbps • ESP-SHA256-AES256: 250.94 Mbps • ESP-SHA384-AES256: 31.44 Mbps • ESP-SHA512-AES256: 53.57 Mbps
OpenVPN	15.90 Mbps
L2TP VPN Throughput	• Unencrypted: 558.60 Mbps • Encrypted: 143.60 Mbps
PPTP VPN Throughput	• Unencrypted: 616.33 Mbps • Encrypted: 49.83 Mbps
66 Byte Packet Forwarding Rate	Upload: 1,388,815 pps Download: 1,388,806 pps
1,518 Byte Packet forwarding rate	Upload: 81,067 pps Download: 81,069 pps

BASIC FUNCTIONS
LAN DNS	√
WAN Connection Type	• Static • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN/LAN MAC Address^§
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
Stateful ACL	√
Quality of Service	√
Bridge VLAN	√
mDNS Repeater	√
IPv6	StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing	• Static Routing • Policy Routing • RIP^§ • OSPF^§
Bandwidth Control	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT
Session Limit	IP-based Session Limit

VPN
GRE	√ (Only in Standalone Mode)
SD-WAN	√ (Only in Controller Mode)
IPsec VPN	• 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10) *** • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10) *** • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10)*** • 50 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	√

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password^△ • Hotspot（Local User / Voucher^△/ SMS^△/ Radius^△） • External Radius Sever • External Portal Sever^△ • LDAP^§

Management Features
Omada App	Yes. Requiring the use of Omada Controllers.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Controllers.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize^§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Content	• ER605 • Power Adapter • RJ-45 Ethernet Cable • Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

For additional version information, please go to the support page.

^†LAN MAC Address can be modified only in Standalone Mode.
^‡For the complete compatibility list of 4G/3G modem, go to https://www.omadanetworks.com/en/omada-router/compatibility/
^§These functions are supported only in Standalone Mode.
^△These functions are supported only in Controller Mode.
*These functions requires the use of Omada Controllers.
**At least one WAN/LAN port needs to function as a LAN port.
***For OpenVPN: Each WAN port can connect with up to 10 VPN clients when set up as a VPN server. At the same time, the ER605 can work as a VPN client to connect with up to 10 VPN servers. For PPTP and L2TP VPN: ER605 can work as a VPN client and can connect with up to 10 VPN servers. The total number of OpenVPN tunnels is limited to 50.

Rated specifications are based on test results using the specific software. Device performance may vary as a result of the actual scenario.
