Omada Campus 24-Port Gigabit Stackable L3 Managed Switch with 4× 10G Slots
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical Stacking up to 8 units for built-in redundancy and performance*
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
What This Product Does
Omada SG6428X is a high-performance L3 managed switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 24× Gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG6428X offers a dependable networking solution for SMBs, enterprises, and ISPs.
High-speed Connectivity and Powerful Stacking
24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 8 units of physical stacking* empowers the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM and PIM-SM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app,† SG6428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
| HARDWARE FEATURES | |
|---|---|

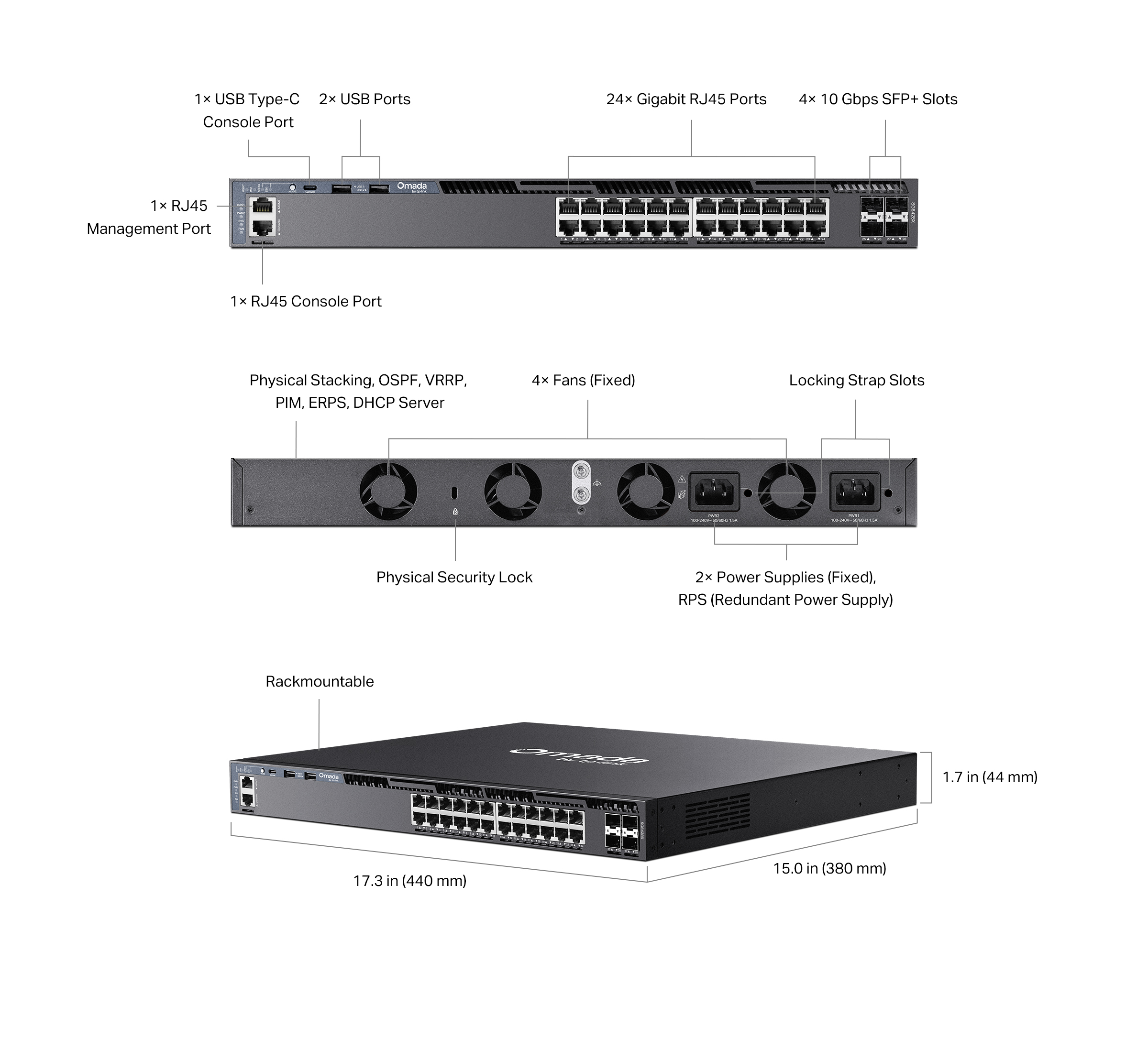

| Interface | • 24× 10/100/1000 Mbps RJ45 Ports• 4× 10G SFP+ Slots• 2× USB 2.0 Ports• 1× RJ45 Console Port• 1× USB Type-C Console Port• 1× RJ45 Management Port |
| Fan Quantity | Four Internal Fixed Fans |
| Power Supply | Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz) |
| Dimensions ( W x D x H ) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
| Mounting | Rackmountable |
| Max. Power Consumption | 28.4 W (220 V/50 Hz) |
| Max Heat Dissipation | 96.91 BTU/hr (220 V/50 Hz) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 128 Gbps per Unit |
| Stacking | • Stacking Number: 8• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)*• Stacking Bandwidth: Up to 80 Gbps (4 stack ports) |
| Packet Forwarding Rate | 95.2 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 3 MB |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Class of Service- 8 Queues of Priority- Port Priority- IEEE 802.1p Priority- DSCP Priority- Queue Min-Bandwidth- Schedule Mode (SP, WRR, SP+WRR)• Bandwidth Control- Rate Limit- Strom Control• User-Defined OUI• Smoother Performance• Action for Flows- QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features | • L3 Interface: 4,094 (IPv4,IPv6)• Static Route: 1,024 IPv4, 512 IPv6• Host Route Table: Max 6,100 entries• IPv4 Network Router Entries: Max 10,240 (shared with IPv6 Network Router entries)• IPv6 Network Router Entries: Max 5,120 (shared with IPv4 Network Router entries)• ECMP• Dynamic ARP: 7,680• ND: 7,680• DHCPv4 Server: Max 512 IP pool• DHCPv4/v6 Relay• VRRPv2/v3• OSPFv2/v3• RIPv1/v2• RIPng• VRF• PIM-SM/PIM-DM/PIM-SSM• IGMPv1/v2/v3, IGMP Groups: 2048• PBR |
| L2 and L2+ Features | • LACP / Static LAG• STP / RSTP / MSTP / STP Security• ERPS• Port Isolation• Loopback Detection• Port Security• Sticky MAC• 802.3x Flow Control• Port Mirror• RSPAN• LLDP• LLDP-MED• Multicast- IGMP Snooping- MLD Snooping- Multicast VLAN Registration (MVR)- Max Multicast Table: 4K (IPv4, IPv6)- Fast Leave- IGMP Snooping Querier- MLD Snooping Querier- Multicast Filtering- Unknown Multicast Discard |
| Advanced Features | • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features:• 802.3ah Ethernet Link OAM• L2PT (Layer 2 Protocol Tunneling)• Device Link Detect Protocol (DLDP)• DDM• sFlow• PPPoE ID Insertion |
| VLAN | • 802.1Q VLAN(802.1q): 4K VLANs• MAC VLAN: 200 entries• Protocol VLAN (IEEE 802.1v)- 16 Protocol VLAN Templates- 12 Protocol VLAN Groups• QinQ(VLAN VPN): 256 entries• Private VLAN• GVRP |
| Security | • IP-MAC-Port Binding-1,024 Entries- ARP Scanning- Manual Binding- DHCP Snooping• IPv6-MAC-Port Binding-1,024 Entries- DHCPv6 Snooping- Manual Binding- ND Snooping• ARP Inspection (Dynamic ARP Inspection)• ND Detection• IP Source Guard• IPv6 Source Guard• RA Guard: 30 entries• DoS Defend• DHCP Filter• 802.1X- Radius Authentication- Radius Accounting- Guest VLAN- VLAN Assignment- MAB• AAA (including TACACS+)• ACL |
| Management Features | |
|---|---|
| Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI• Command Line Interface (CLI) through console port, telnet• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP Auto Install• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• Password Recovery• SNTP• System Log |
| OTHERS | |
|---|---|

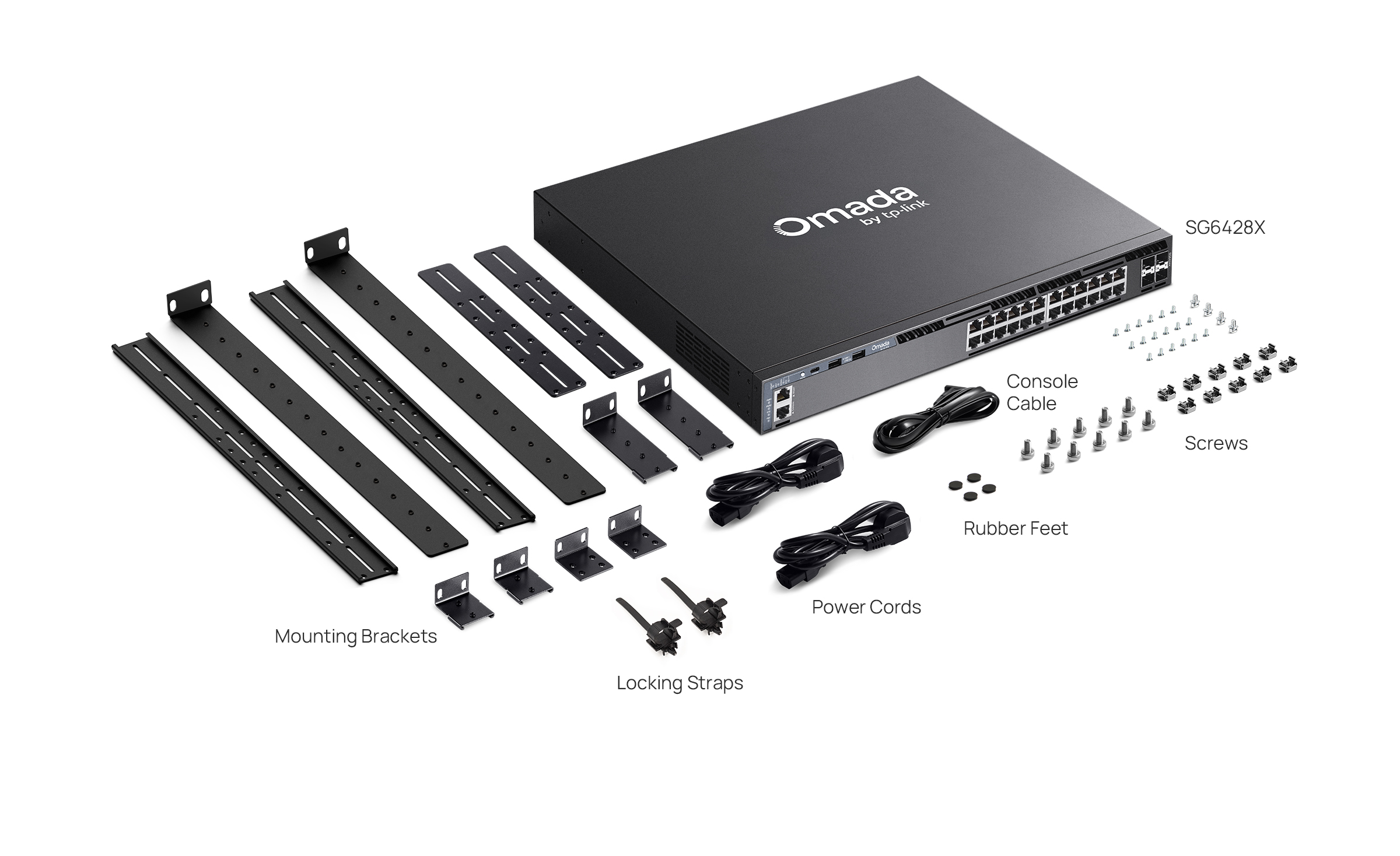

| Package Content | • SG6428X Switch• Power Cords• RJ45 Console Cable• Locking Strap• Rackmount Kit• Rubber Feet• Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature:-5 ℃ to 50 ℃ (23 ℉ to 122 ℉) @ 300 meters-5 ℃ to 45 ℃ (23 ℉ to 113 ℉) @ 2,000 meters-5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 3,000 meters• Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.
*Physical stacking up to 8 units at standalone mode and 4 units at controller mode.
