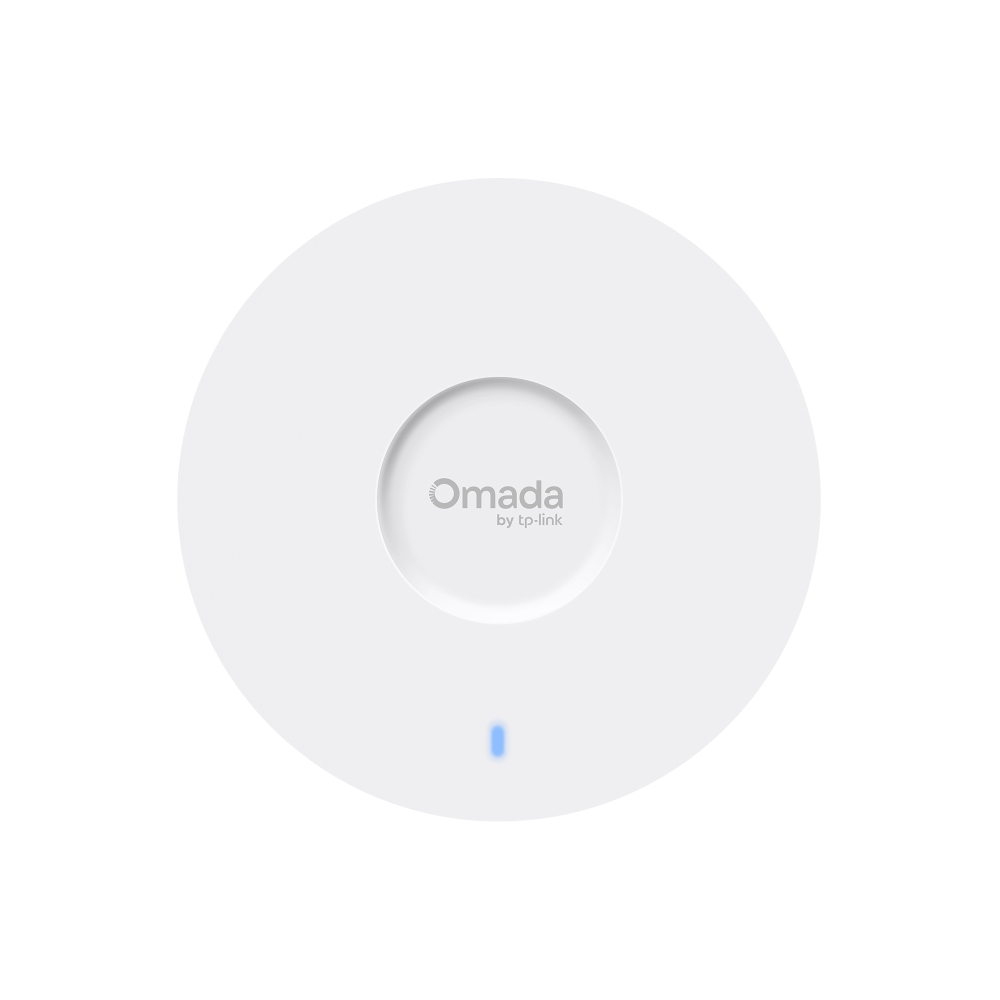

AX3000 Ceiling Mount WiFi 6 Access Point
- Dual-Band Wi-Fi 6: 2,402 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz†
- 1× Gigabit Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, Mesh, and Seamless Roaming.△
- More Connections and Wider Coverage: Supports 250+ concurrent clients** and covers up to 1500 ft² (140 ㎡)* for reliable and extensive wireless connectivity.
Learn more about Omada Cloud SDN>
Omada AX3000
Ceiling Mount
Wi-Fi 6
Access Point
AX3000 Dual-Band
Wi-Fi 6†
1× Gigabit Port
802.3at PoE
Omada Mesh &
Seamless Roaming△
Centralized Cloud Management
Enhanced Security
Easy, Quick Setup
Compact Design
Power Up Your Business
with New-Era Wi-Fi 6
Lightning-Fast AX3000 Wi-Fi 6 Speeds
5 GHz
2402 Mbps
2.4 GHz
574 Mbps
Wi-Fi 6 with OFDMA
Wi-Fi 5 with OFDM
Higher Efficiency with OFDMA
More Simultaneous Connections with
MU-MIMO
Optimized Wired Performance with Gigabit PoE+ Port
Boost overall network efficiency with a
high-performance Gigabit PoE+ port, delivering blazing-fast data speeds.
Compatibility with 802.3at
PoE is ideal for flexible deployment.
Boosted Network
Security
Secure Guest
Network with up
to 16 SSIDs
Boost Your Business
with SMS Login
WPA3 for Worry-Free
Open Public Networks
Rogue AP
Detection
Empowering Businesses
with Reliable Omada SDN
Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount AP EAP653
Wall Plate AP
Outdoor AP
PoE Switch
VPN Gateway
Access
Controllers
(Cloud-Based)
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit Ethernet Port |

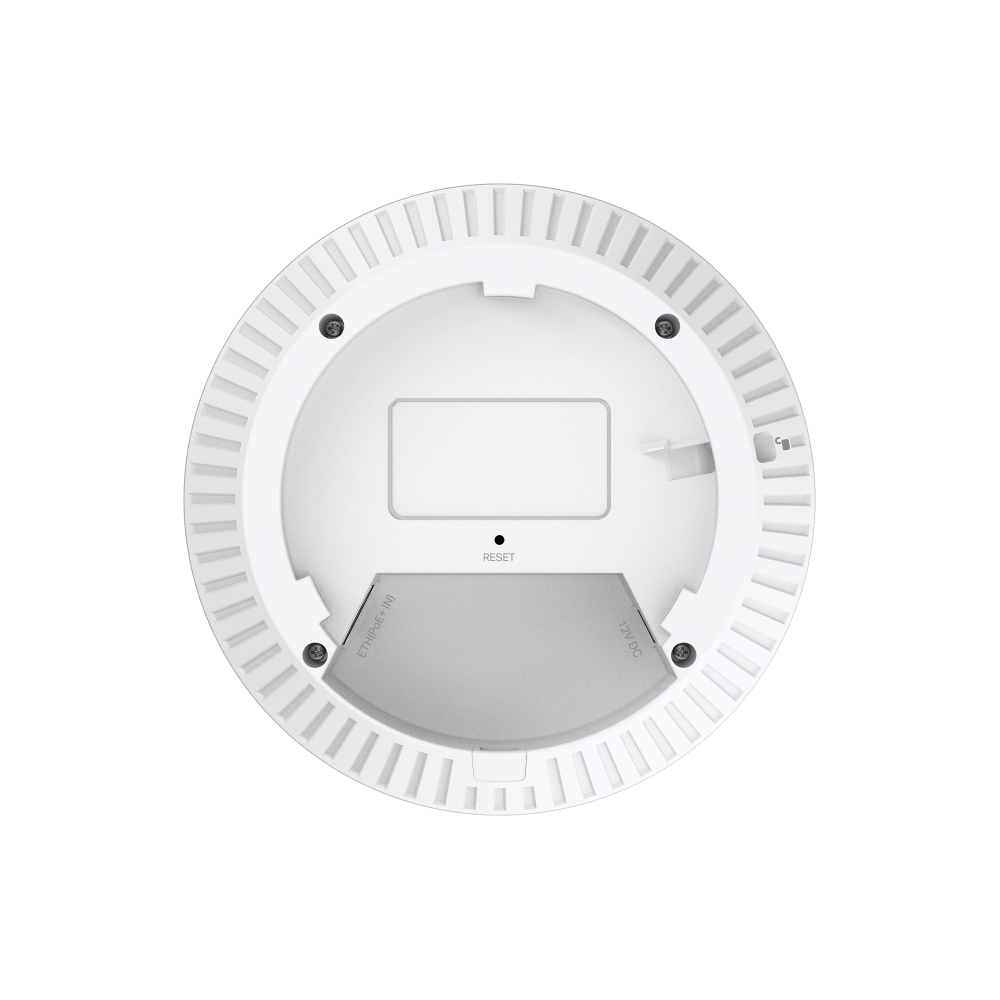

| Button | Reset |
| Power Supply | • 802.3at PoE• 12V DC (Power Adapter Not Included)(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC)• 48V Passive PoE |
| Max. Power Consumption | • EU: 13.5 W• US: 14.7 W |

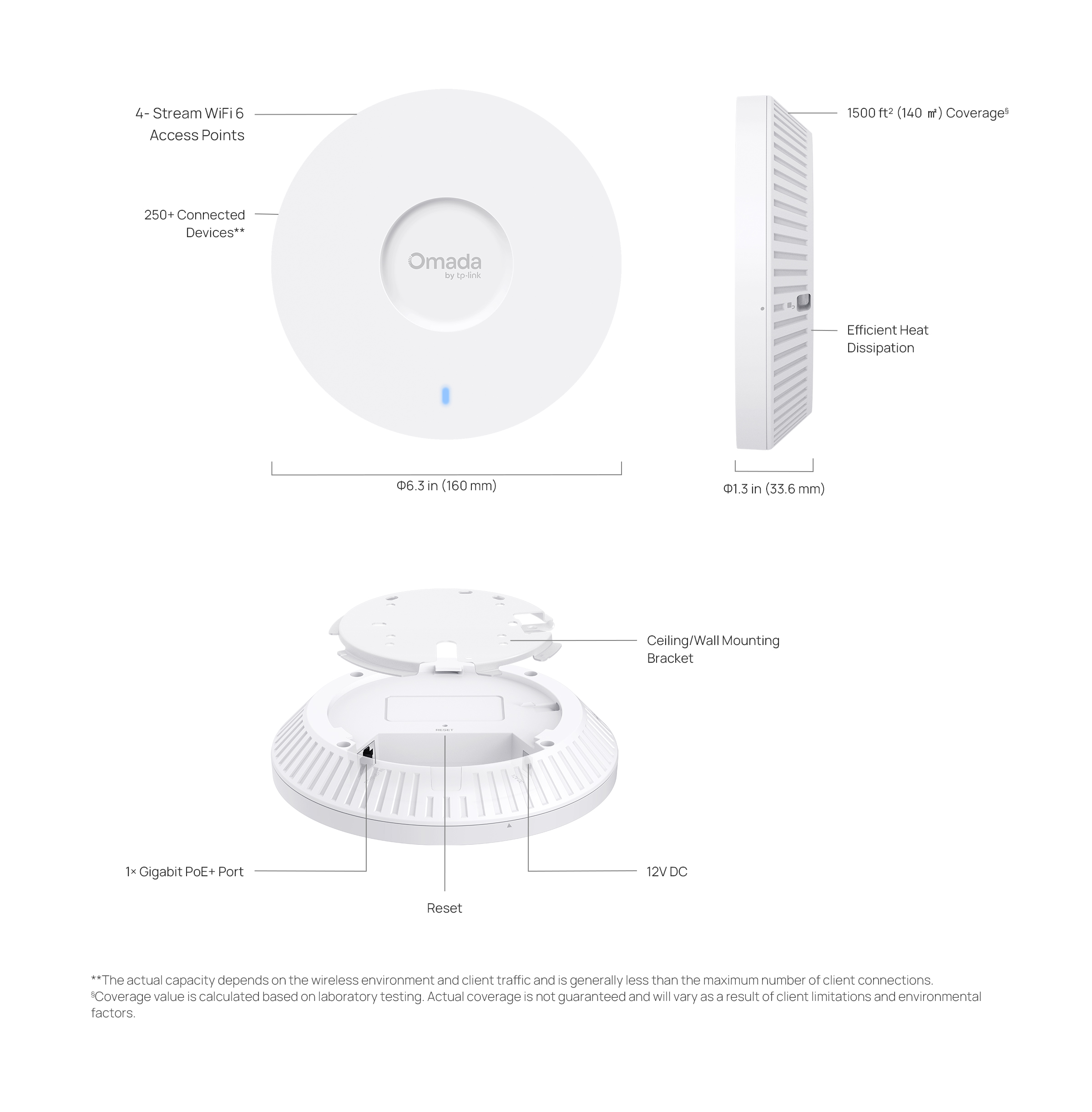

| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna | Internal Dual-Band Antennas• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi |

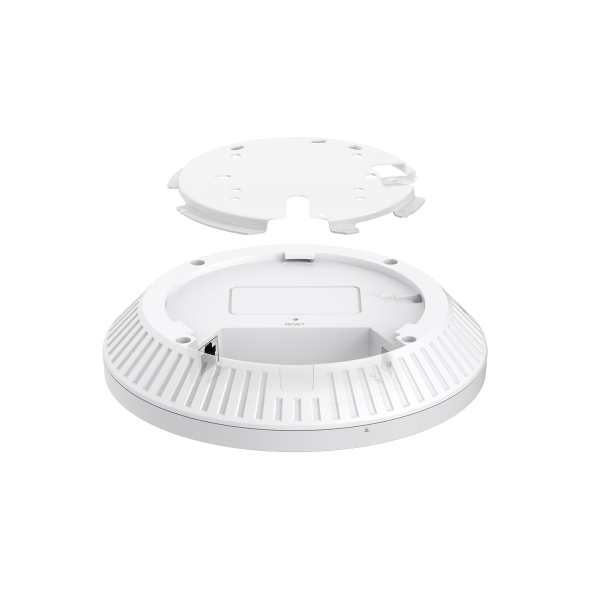

| Mounting | • Ceiling / Wall / Junction Box / T-Bar Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO • HE160 (160 MHz Bandwidth)‡• Seamless Roaming §• Omada Mesh§• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:7-20 dBm(2.4 GHz, EIRP)7-23 dBm5 GHz, U-NII-1, U-NII-2A, EIRP)7-30 dBm(5 GHz, U-NII-2C, EIRP)• FCC:4-25 dBm (2.4 GHz)4-25 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP653• Mounting Kits• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features. The 160 MHz bandwidth is only available on 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△These features require the use of an Omada controller.
ErP Information:
1. Power consumption in networked standby: 4.33 W
2. Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 4.69 W
3. The default period of time after which the power management function switches the equipment automatically into a condition providing networked standby: 20 minutes
4. Recommended POE power supply: T480050-2-POE
Recommended DC power supply: T120100-2C1
5. How to activate and deactivate wireless network: Enter the webpage of product through wired connecting. The wireless function can be turn on/off via ‘Wireless > Wireless Settings > Enable Checkbox’.
