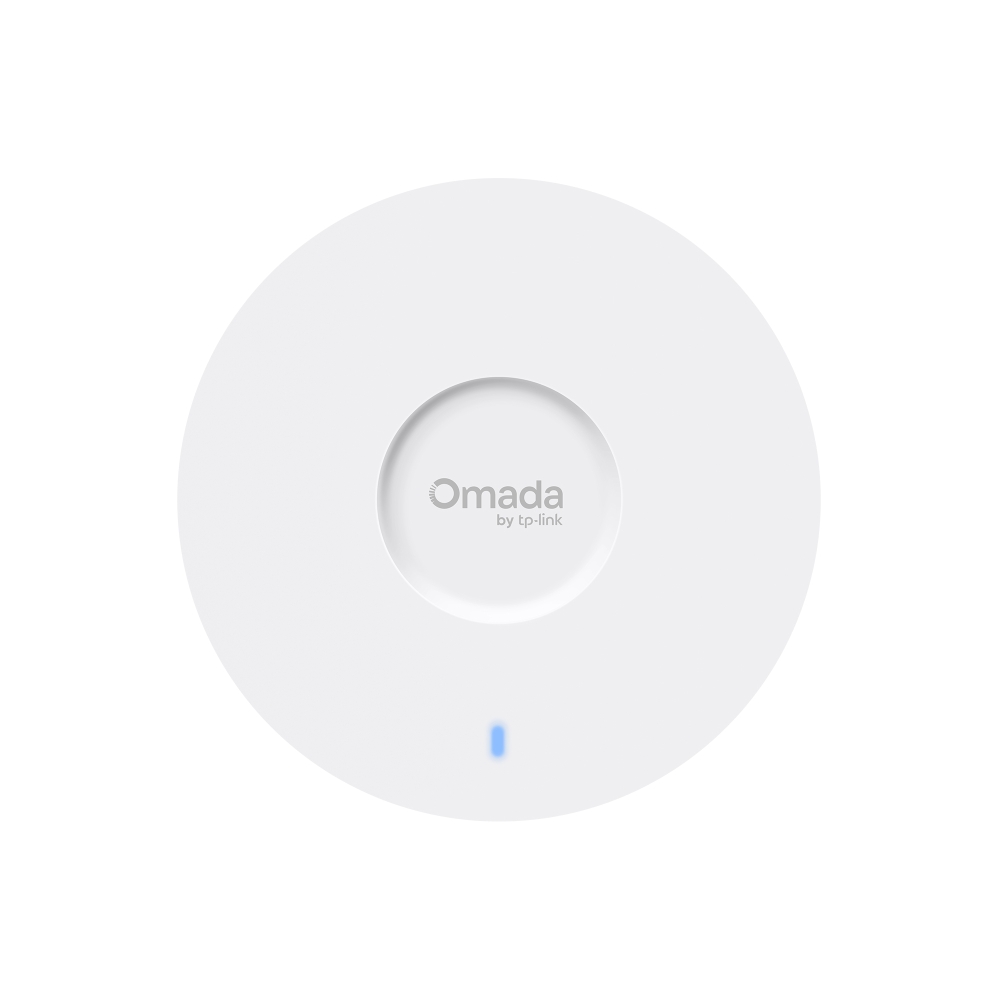

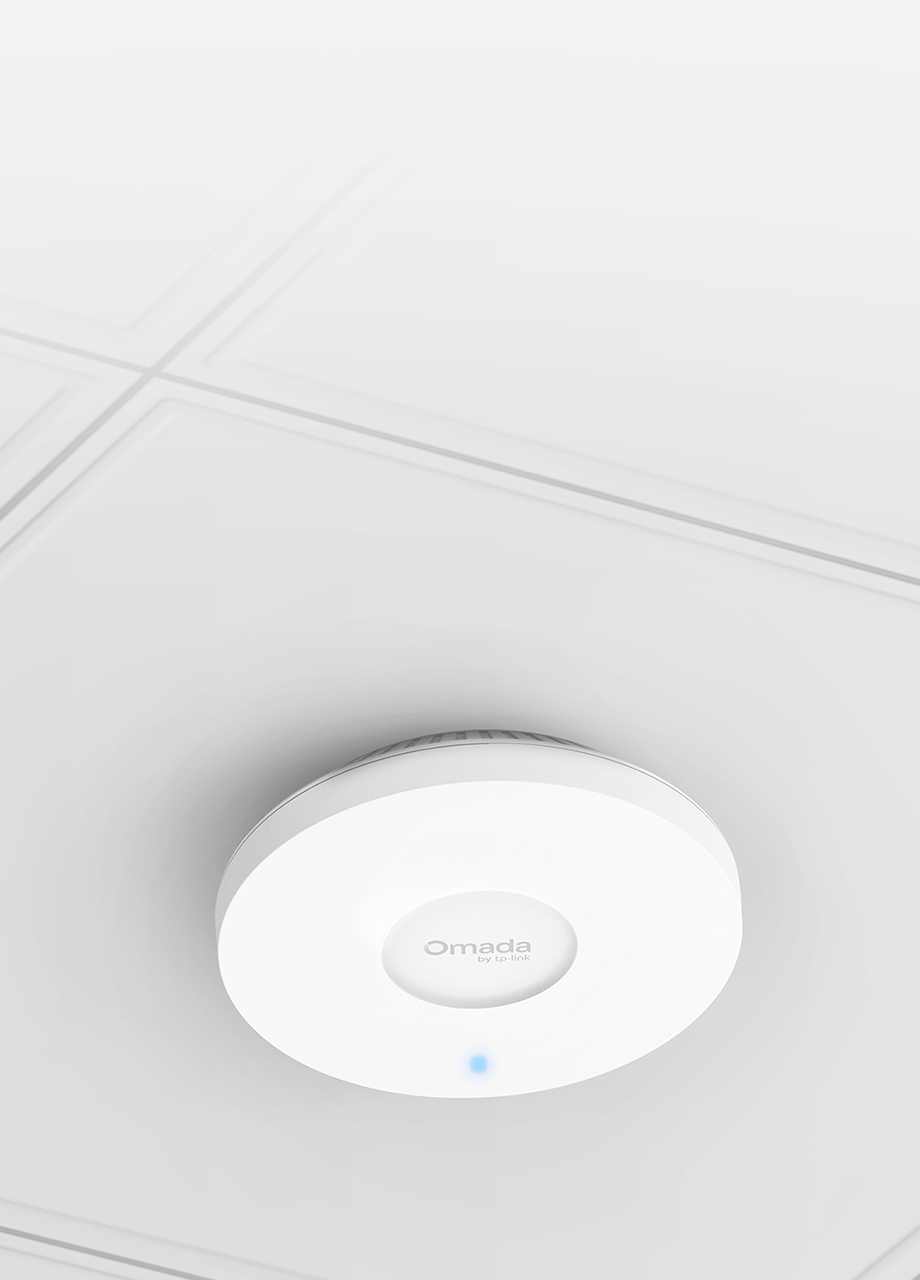

EAP653 UR
AX3000 Ceiling Mount WiFi 6 Access Point
- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz†
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc‡
- Advanced Features: Omada Mesh, Seamless Roaming, etc§
- PoE+ Powered: Supports both 802.3at PoE and DC (adapter not included)

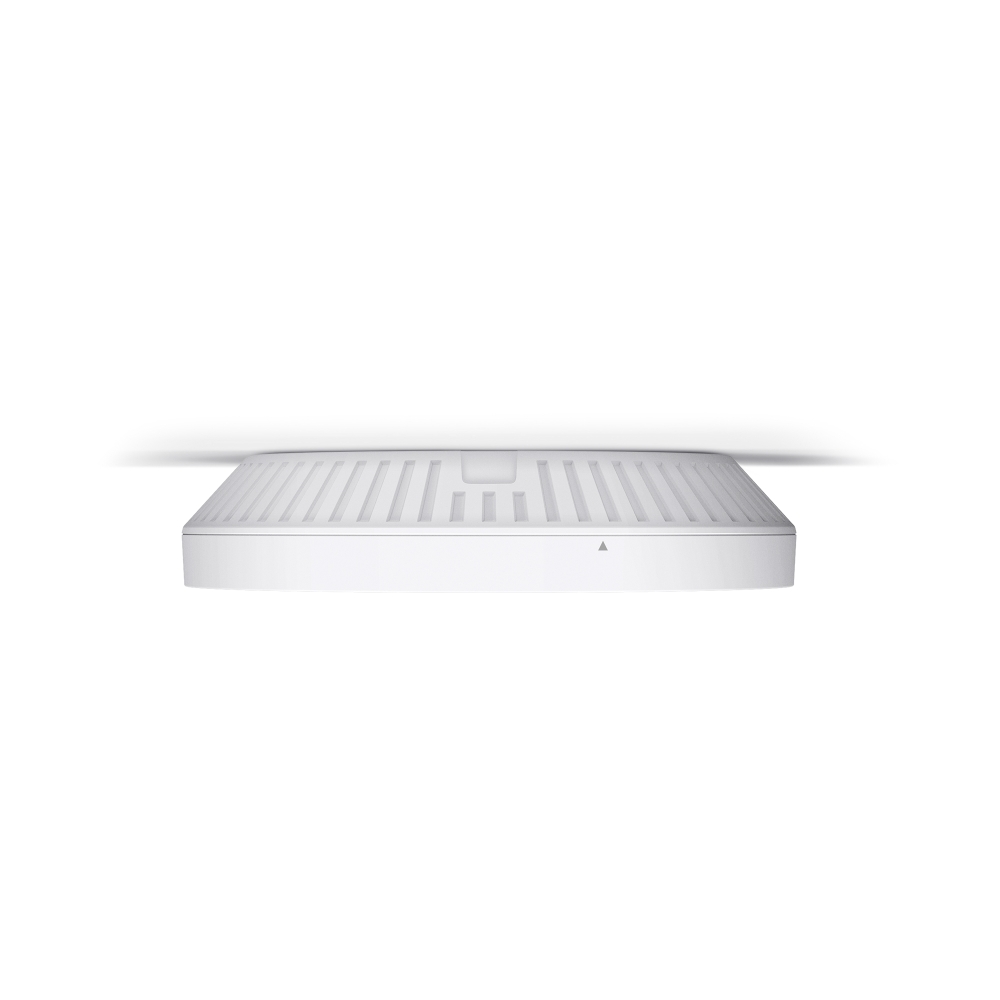

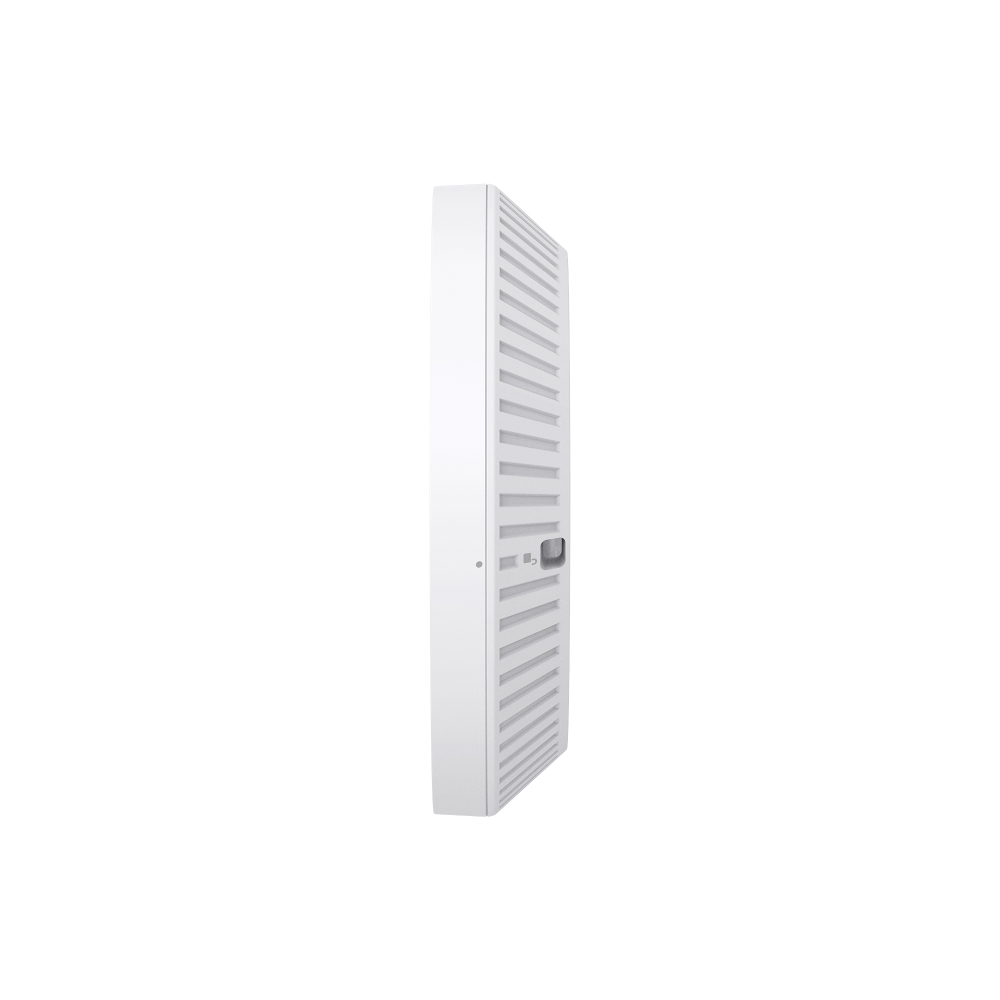

- Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility
- Integrates with the Omada SDN platform for centralized management
Omada AX3000
Ultra-Range
Ceiling
Mount Wi-Fi 6
Access Point
AX3000 Dual-Band
Wi-Fi 6†
Ultra-Range
Coverage
1× Gigabit Port
802.3at PoE
Omada Mesh &
Seamless
Roaming△
Centralized Cloud Management
Enhanced
Security
Easy, Quick Setup

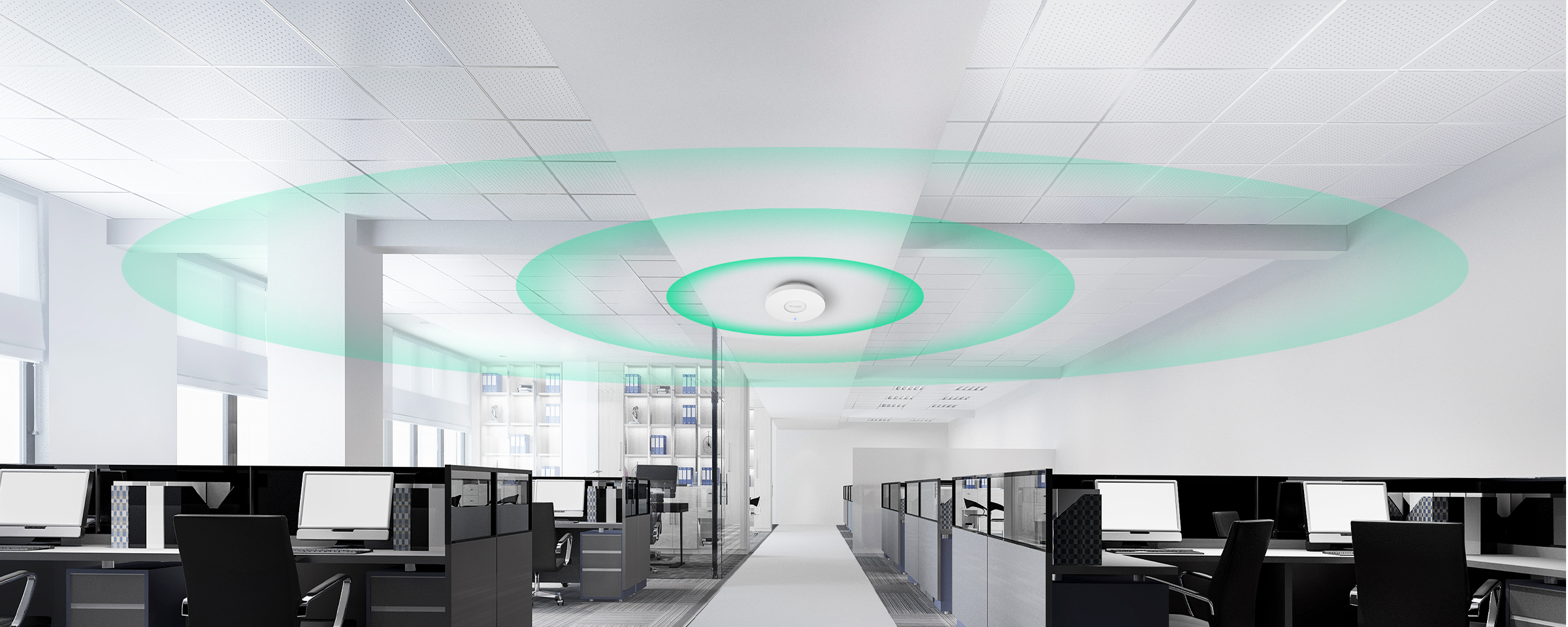

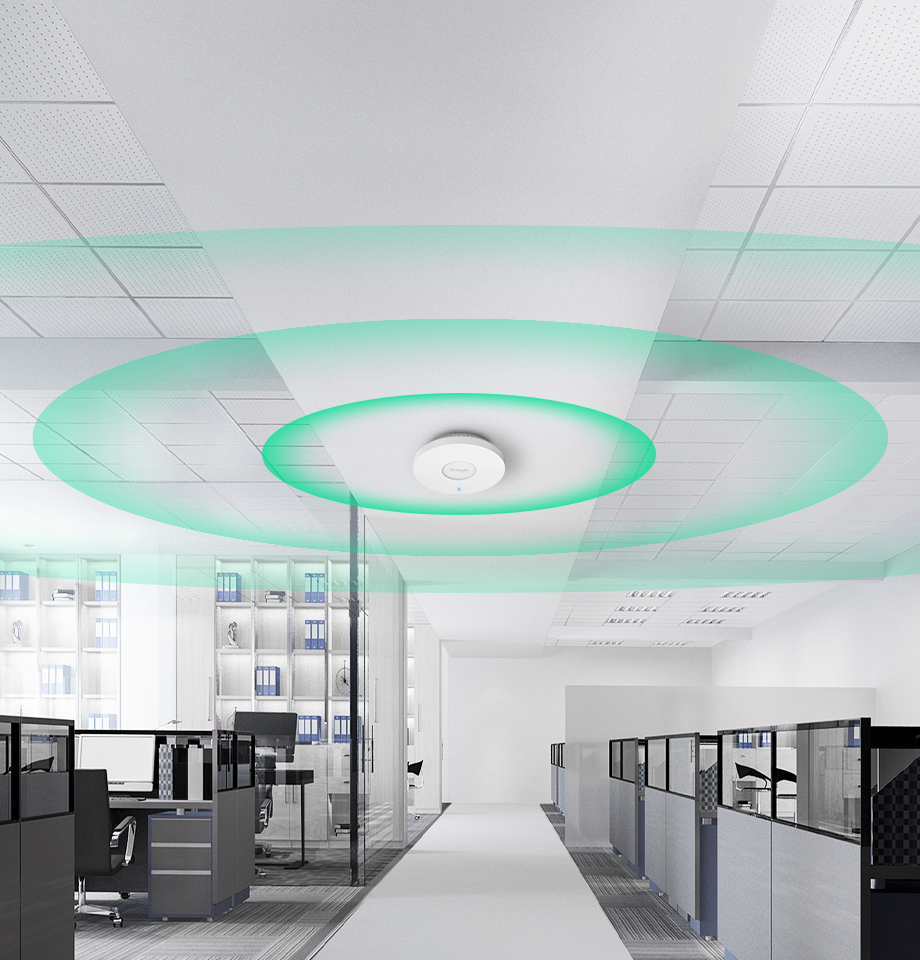

Ultra-Range Wireless Coverage
2 × 2 MIMO dual-band internal antennas with high transmission power offer robust and extensive wireless coverage.
Power Up Your Business
with New-Era Wi-Fi 6
Lightning-Fast AX3000 Wi-Fi 6 Speeds
5 GHz
2402 Mbps
2.4 GHz
574 Mbps
Wi-Fi 6 with OFDMA
Wi-Fi 5 with OFDM
Higher Efficiency with OFDMA

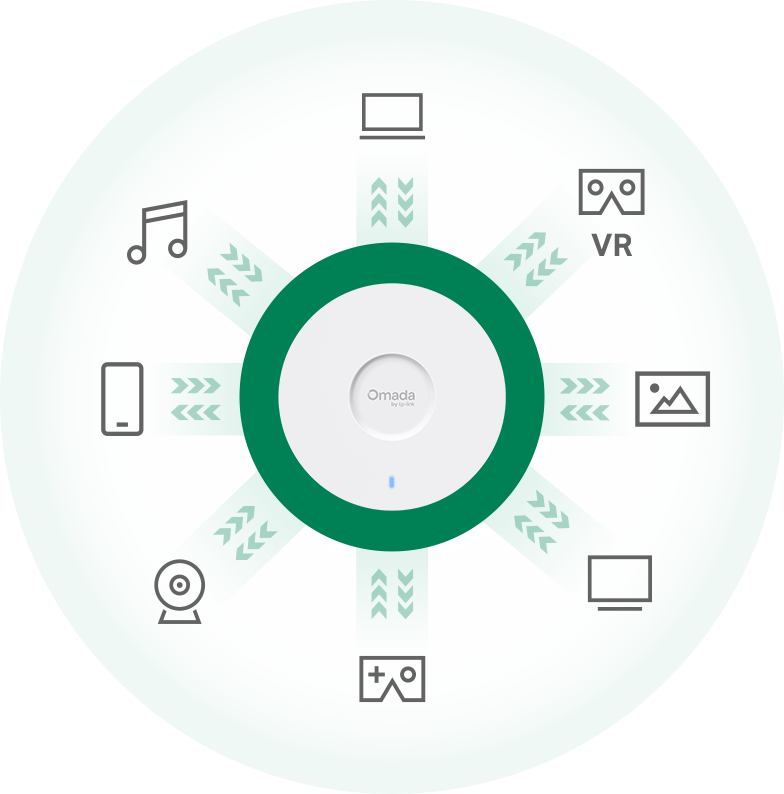

More Simultaneous Connections with
MU-MIMO
Optimized Wired Performance with Gigabit PoE+ Port
Boost overall network efficiency with a
high-performance Gigabit PoE+ port, delivering
blazing-fast data speeds.
Compatibility with 802.3at
PoE is ideal for flexible deployment.
Boosted Network Security
Secure Guest Network
with up to 16 SSIDs
Boost Your Business
with SMS Login
WPA3 for Worry-Free
Open Public Networks
Rogue AP Detection
Empowering Businesses
with Reliable Omada SDN
Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches,
and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount AP
EAP653 UR
Wall Plate AP
Outdoor AP
PoE Switch
VPN Gateway
Access
Controllers
(Cloud-Based)
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit PoE+ Port |

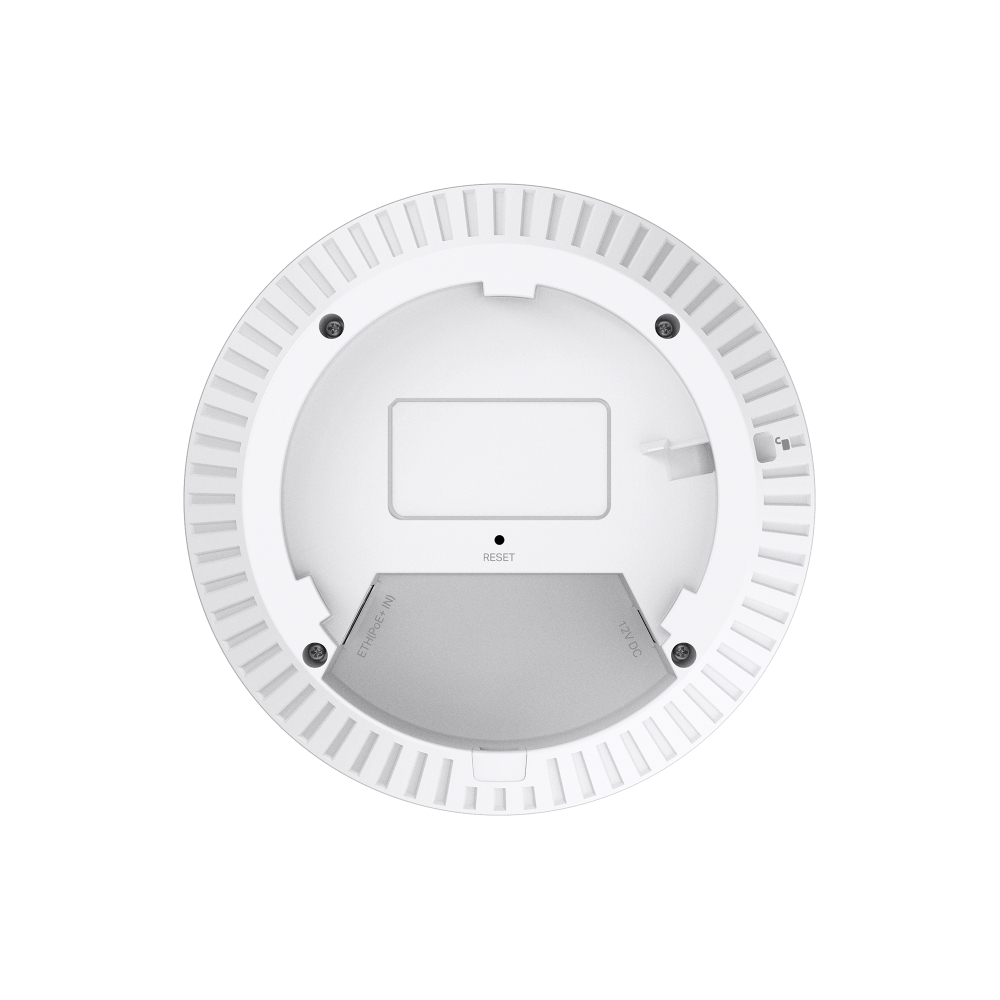

| Button | Reset |
| Power Supply | • 802.3at PoE• 12V DC / 1.5 A• 48V Passive PoENote: DC Power adapter is not included. |
| Max. Power Consumption | • EU: 14.2 W• US: 15.5 W |

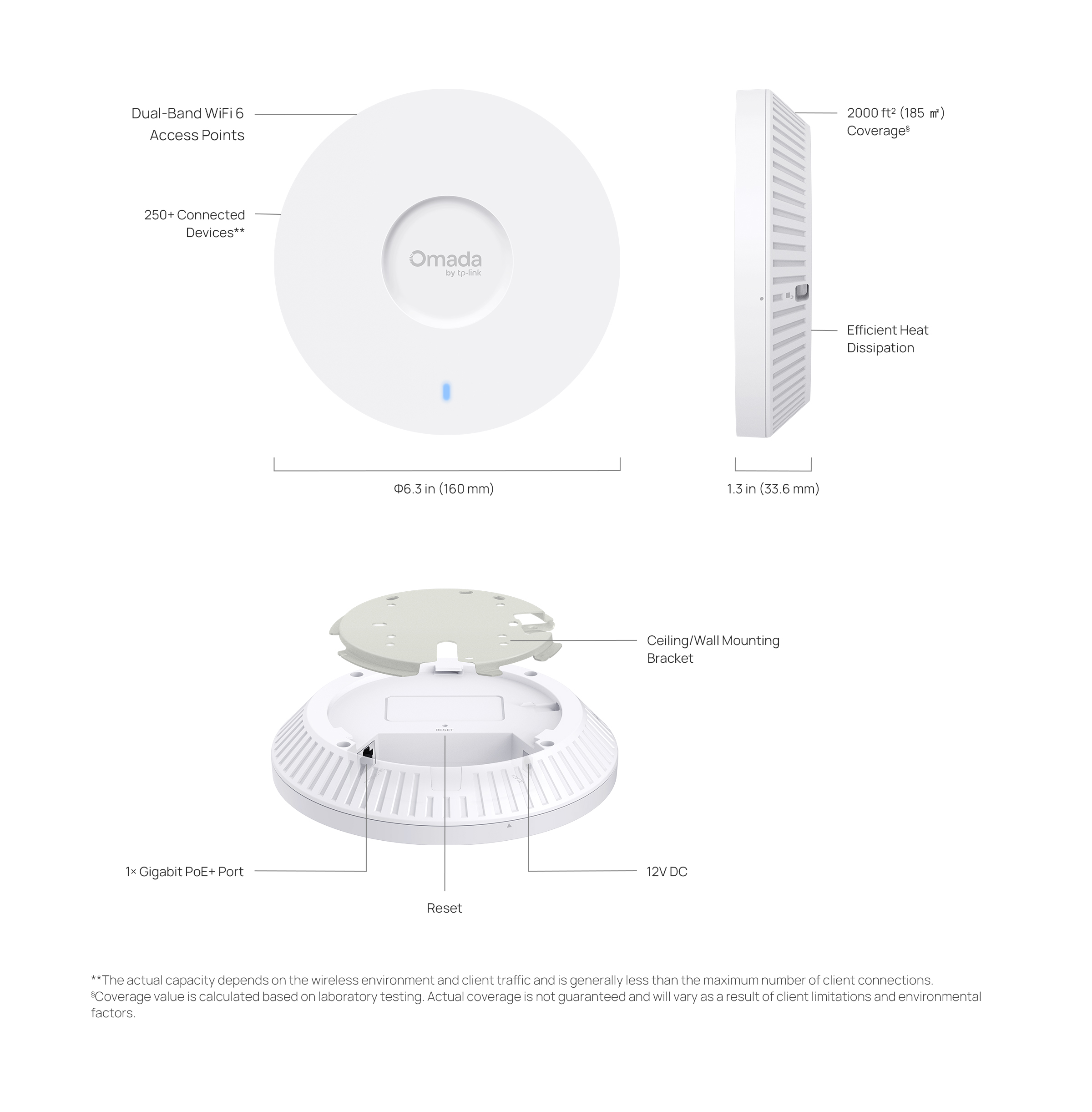

| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna | • 2.4 GHz: 2× 5 dBi• 5 GHz: 3× 5 dBi |

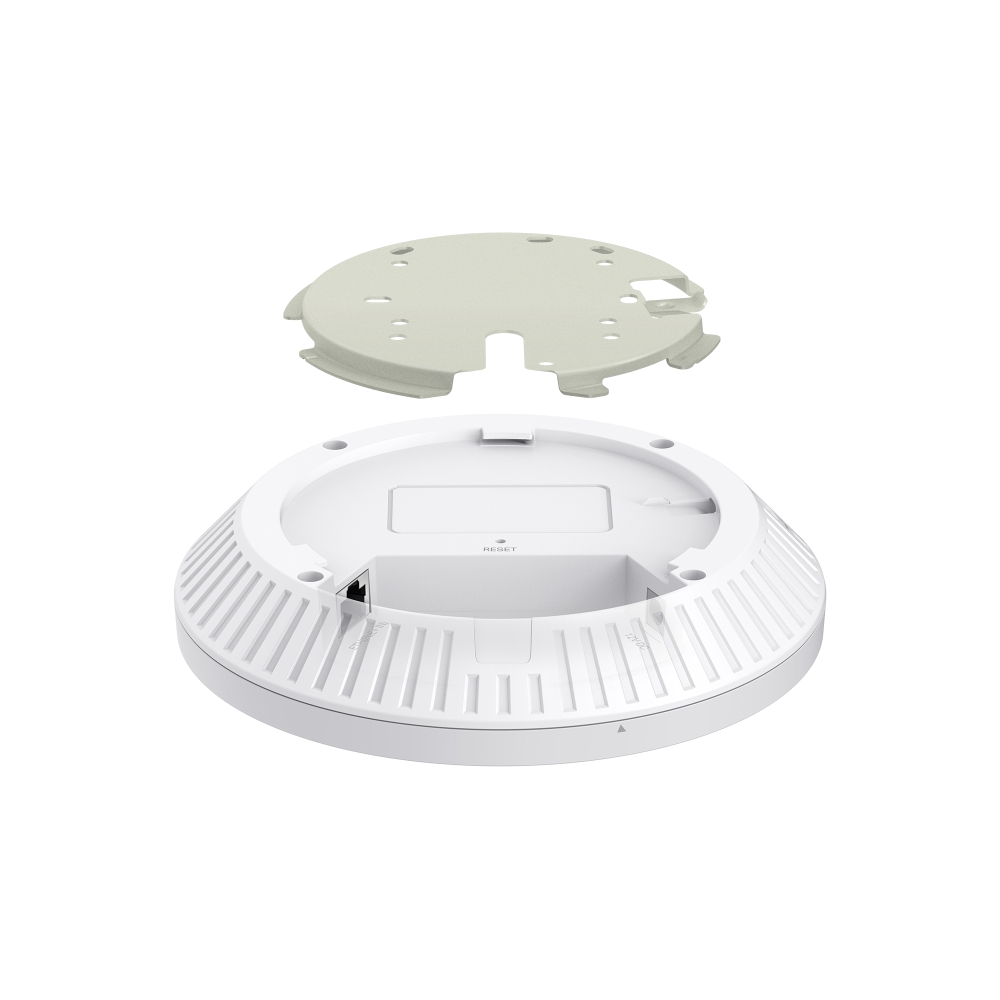

| Mounting | Ceiling/Wall/Junction Box/T-Bar Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 2000 ft² (185 ㎡)* |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps†• 2.4 GHz: Up to 574 Mbps† |
| Wireless Functions | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL) • HE160 (160 MHz Bandwidth)‡• Seamless Roaming(802.11k/v/r)△• Omada Mesh△• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:7-20 dBm(2.4 GHz, EIRP)6-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP)6-29 dBm(5 GHz, U-NII-2C, EIRP)• FCC:4-26 dBm (2.4 GHz)4-27 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of an Omada controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, ISED |
| Package Content | • EAP653 UR• Mounting Kits• Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including 160 MHz Bandwidth, OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features. The 160 MHz bandwidth is only available on 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.
