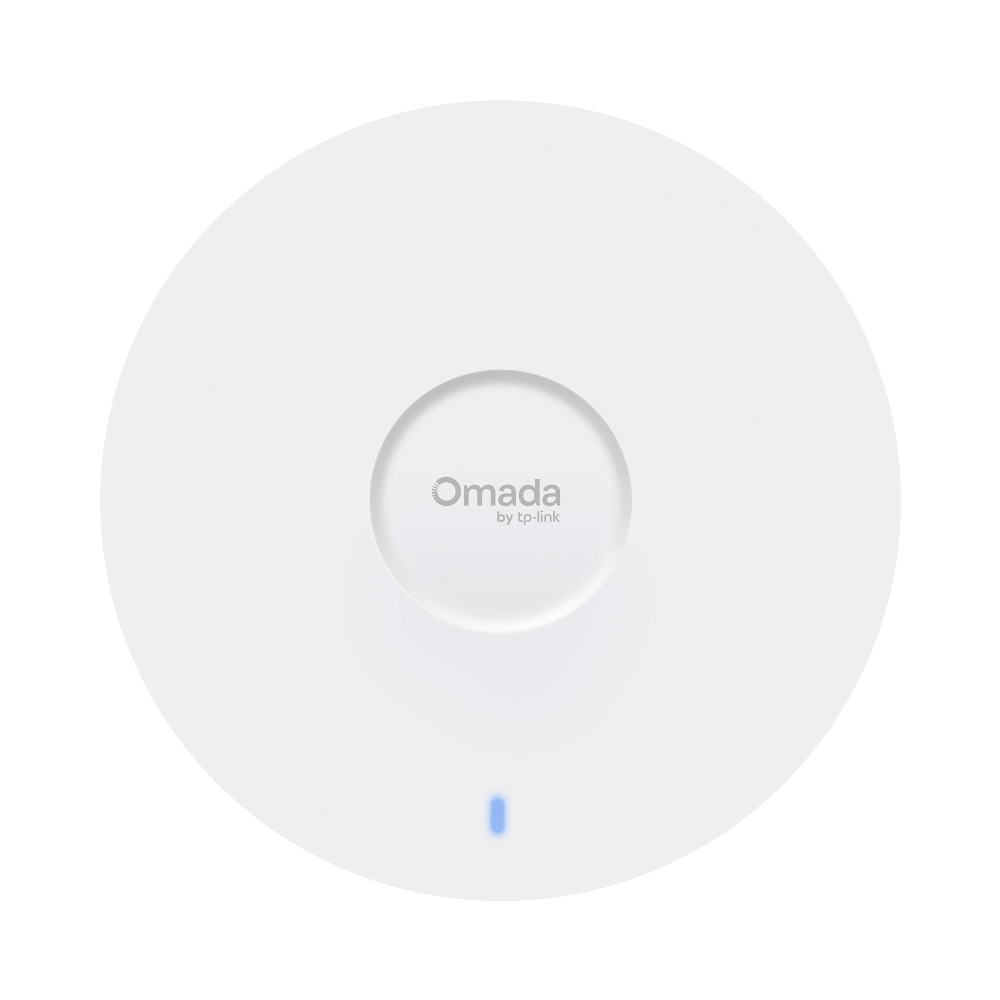

AX5400 Ceiling Mount WiFi 6 Access Point
- 6-Stream Dual-Band Wi-Fi 6: 4,804 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz.†
- 1× 2.5G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: 160 MHz Bandwidth, MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△
- More Connections and Wider Coverage: Supports 250+ concurrent connections** and covers up to 1500 ft² (140 m²)* for reliable and extensive wireless connectivity.
Omada AX5400
Ceiling Mount
Wi-Fi 6
Access Point
AX5400 Dual-Band
Wi-Fi 6†
1× 2.5GbE Port
802.3at PoE
Omada Mesh &
Seamless Roaming△
Centralized Cloud Management
Enhanced Security
Easy, Quick Setup
Compact Design
Power Up Your Business
with New-Era Wi-Fi 6
Lightning-Fast AX5400 Wi-Fi 6 Speeds
5 GHz
4804 Mbps
2.4 GHz
574 Mbps
Wi-Fi 6 with OFDMA
Wi-Fi 5 with OFDM
Higher Efficiency with OFDMA
More Simultaneous Connections
with MU-MIMO
Optimized Wired
Performance with 2.5G
PoE+ Port
With a 2.5 Gigabit Ethernet Port, EAP673 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.
Boosted Network
Security
Secure Guest
Network with up to 16
SSIDs
Boost Your Business
with SMS Login
WPA3 for Worry-Free
Open Public Networks
Rogue AP Detection
Empowering Businesses
with Reliable Omada SDN
Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount AP EAP673
Wall Plate AP
Outdoor AP
PoE Switch
VPN Gateway
Access
Controllers
(Cloud-Based)

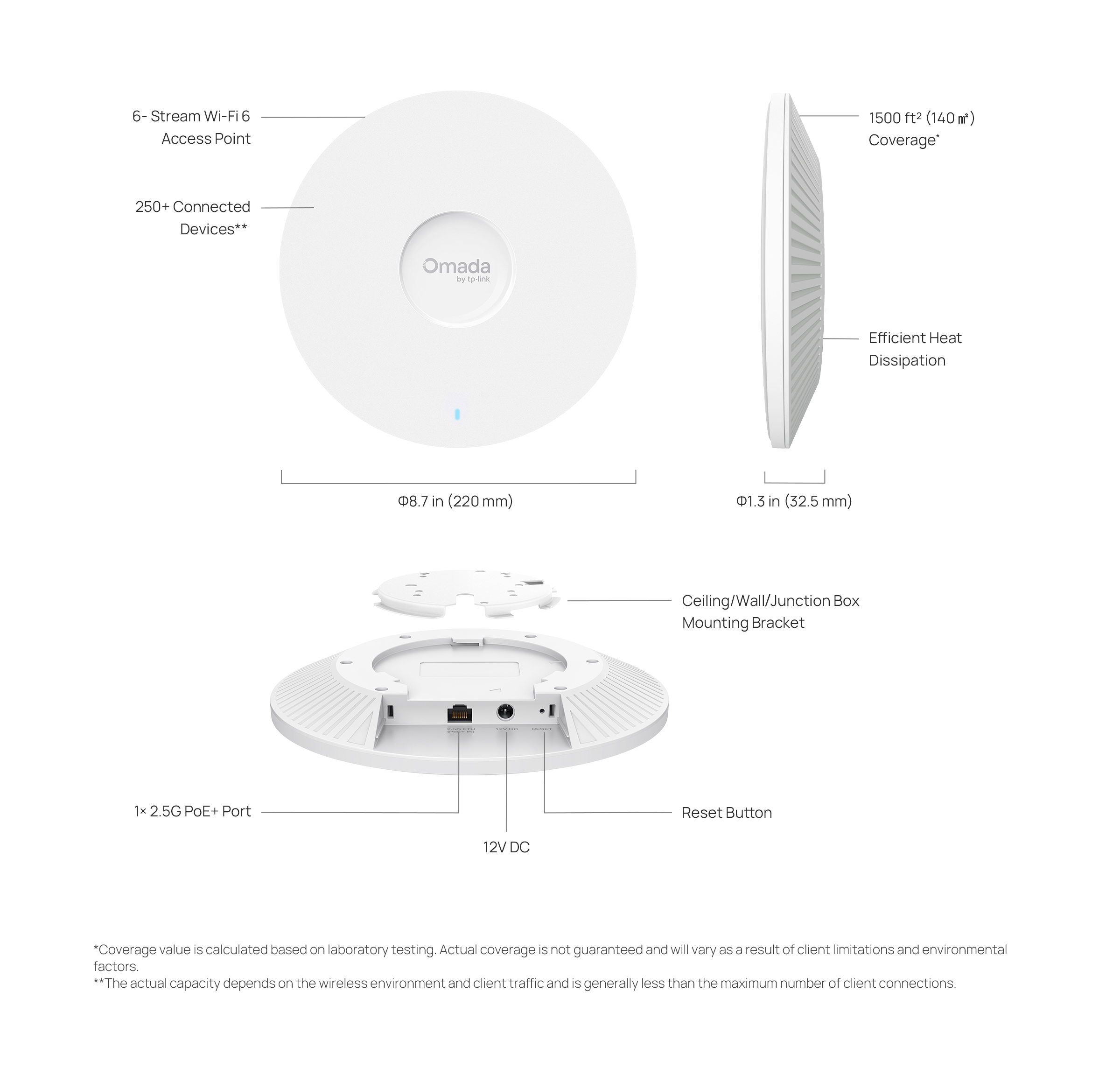

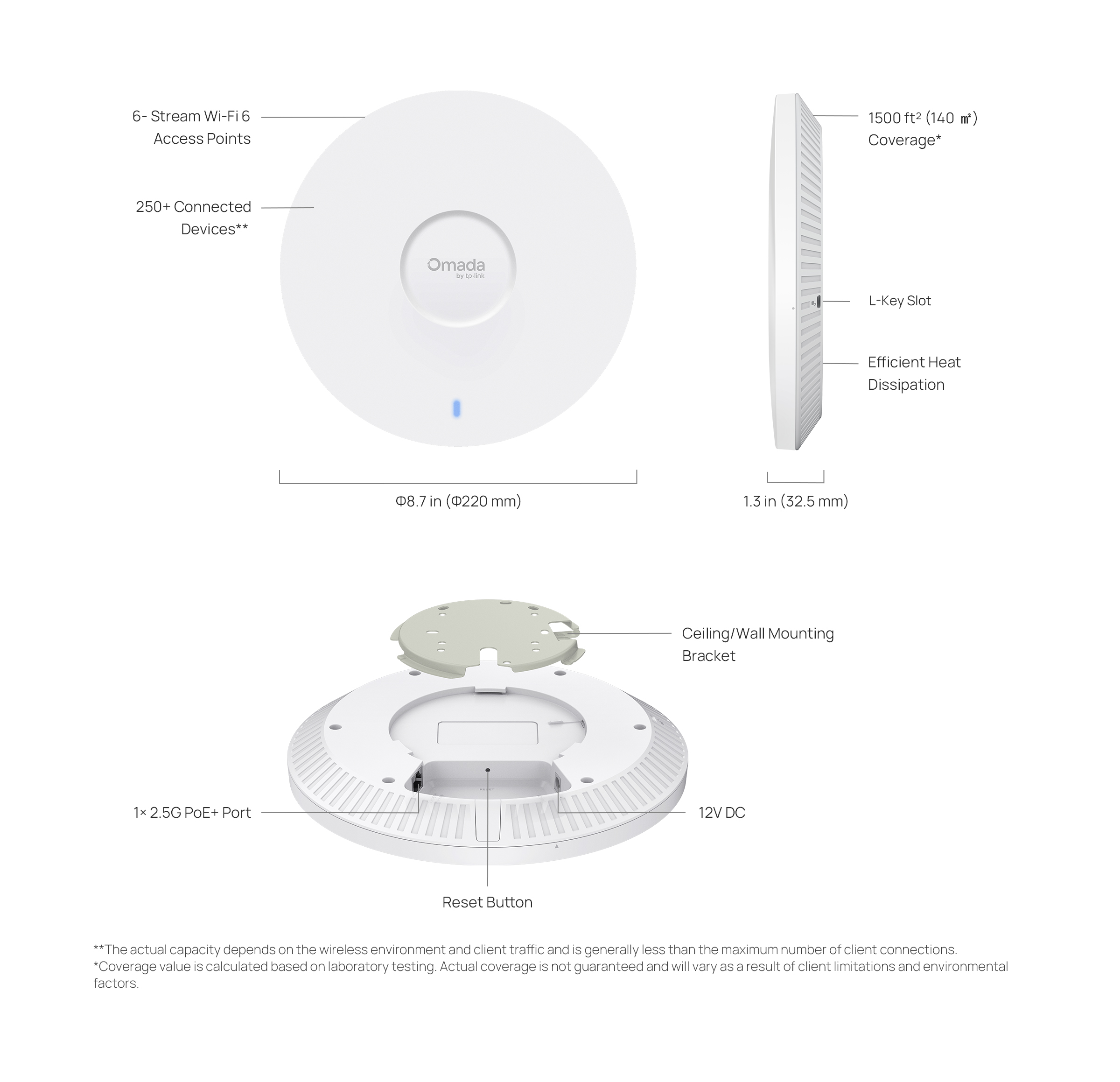

| HARDWARE FEATURES | |
|---|---|

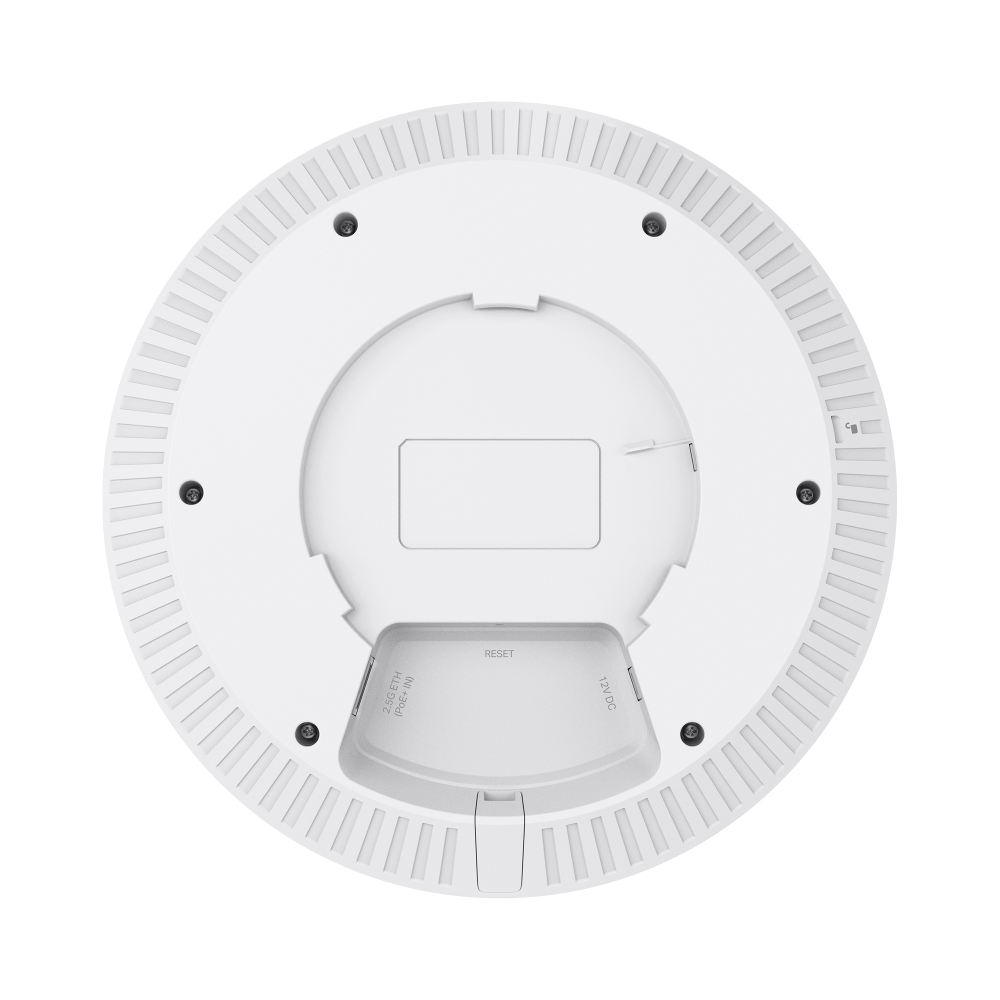

| Interface | 1× 2.5 Gigabit RJ45 Port |
| Button | Reset |
| Power Supply | • 802.3at PoE• 12 V / 2 A DC (Power Adapter Not Included) |
| Max. Power Consumption | • EU: 20.8 W• US: 22.3 W |

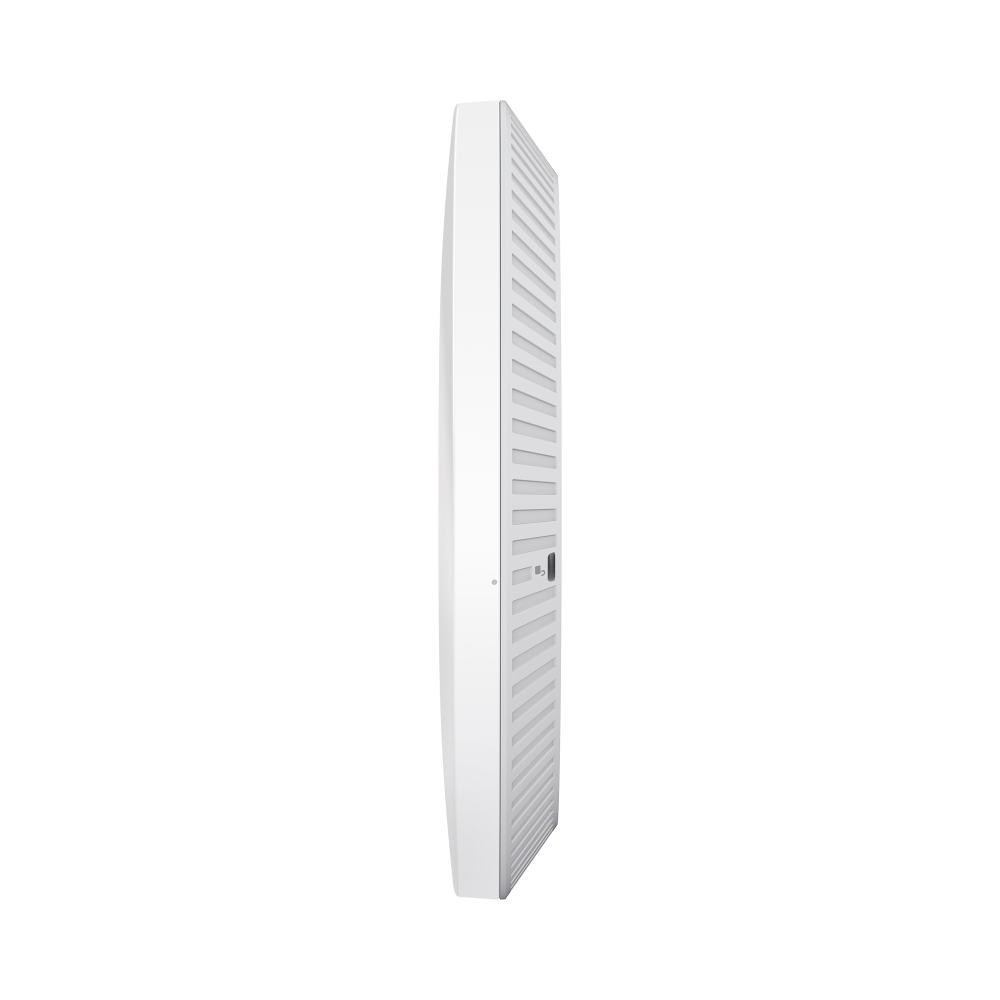

| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | Internal Omni• 2.4 GHz: 2× 4 dBi• 5 GHz: 4× 5 dBi |
| Bluetooth | V5.2 |

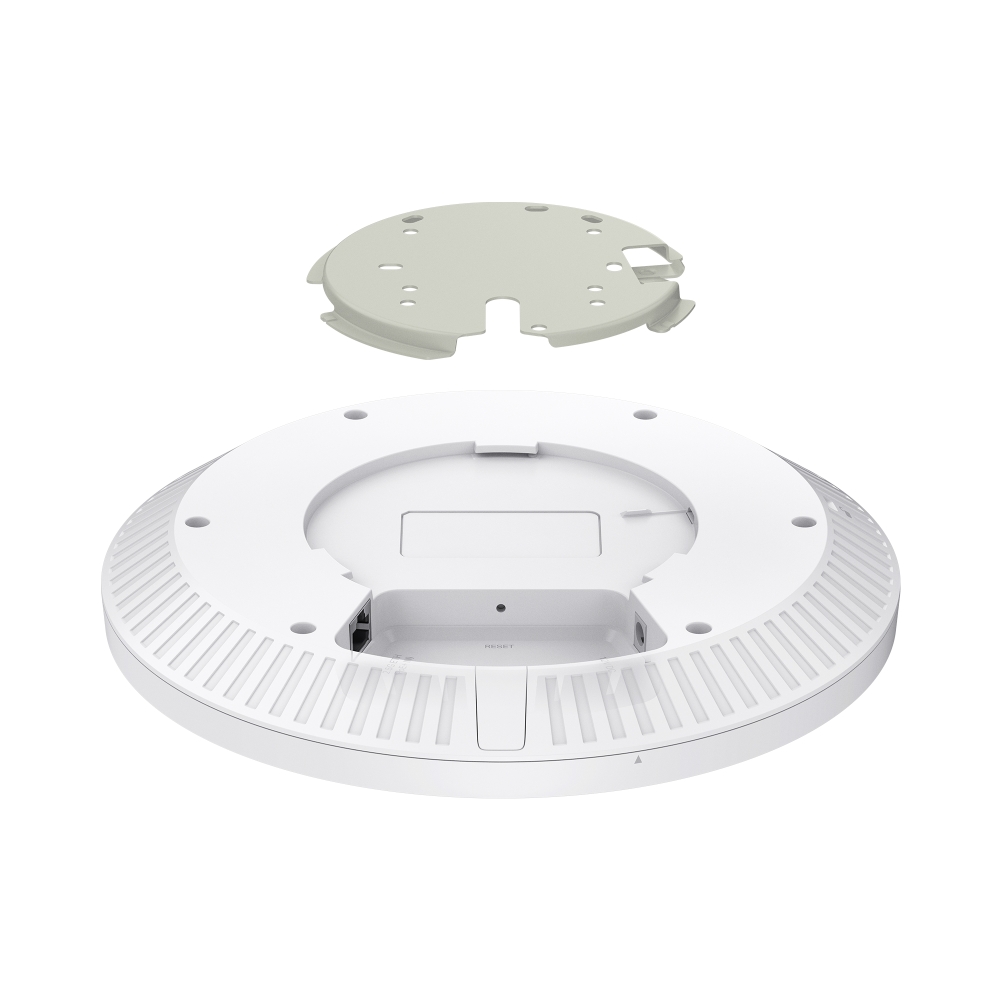

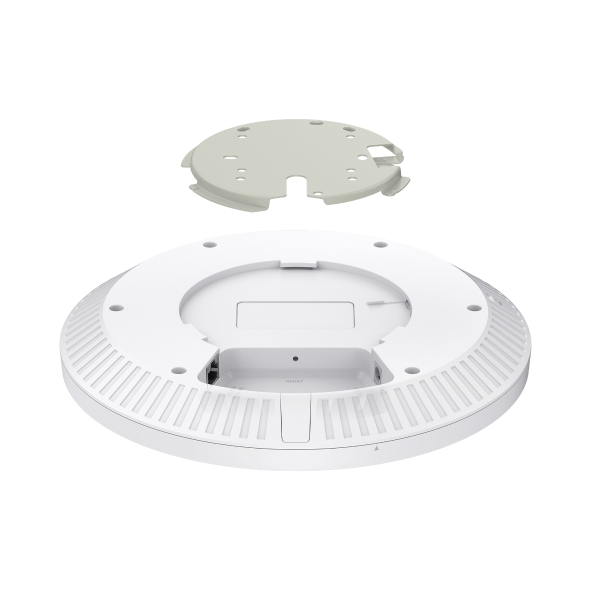

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 1500 ft² (140㎡)* |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps• 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO (5G: 4x4 DL/UL MU-MIMO)• HE160 (160 MHz Bandwidth)‡• Seamless Roaming(802.11k/v/r)△• Omada Mesh△• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:7-20 dBm(2.4 GHz, EIRP)7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP)7-30 dBm(5 GHz, U-NII-2C, EIRP)• FCC:4-22 dBm (2.4 GHz)4-22 dBm (5 GHz, U-NII-1 & U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP673• Ceiling/Wal/Junctionl Mounting Kits• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of Wi-Fi 6 (802.11ax), and features including 160 MHz Bandwidth, OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features. The 160 MHz bandwidth is only available on 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions.
△These features require the use of an Omada controller.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
ErP Information:
1. Power consumption in networked standby: 7 W
2. Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 7.5 W
3. The default period of time after which the power management function switches the equipment automatically into a condition providing networked standby: 20 minutes
4. Recommended POE power supply：T480050-2-POE
Recommended DC power supply: T120200-2C4
5. How to activate and deactivate wireless network: Enter the webpage of product through wired connecting. The wireless function can be turn on/off via ‘Wireless > Wireless Settings > Enable Checkbox’.
