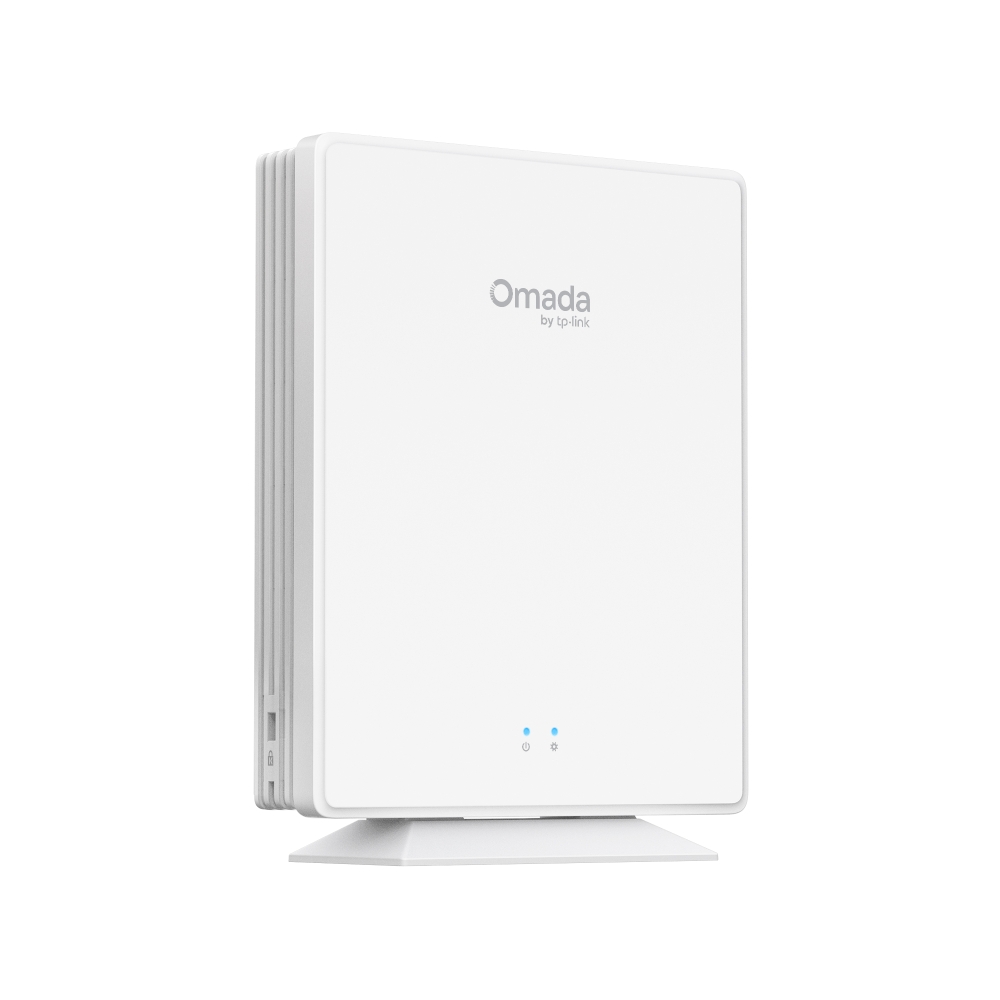

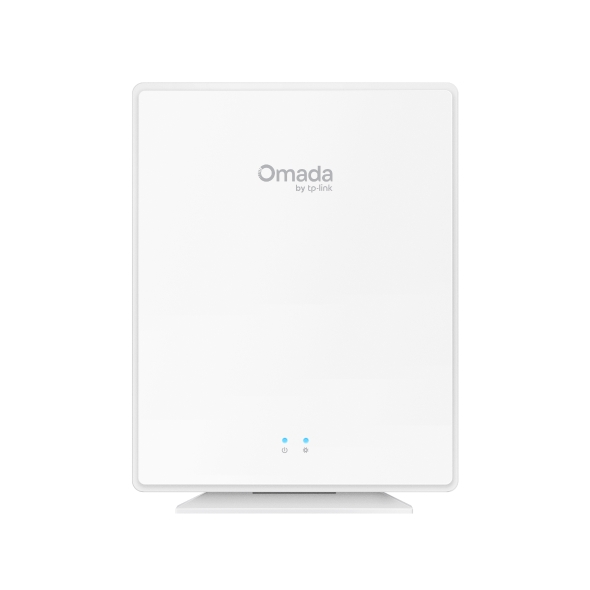

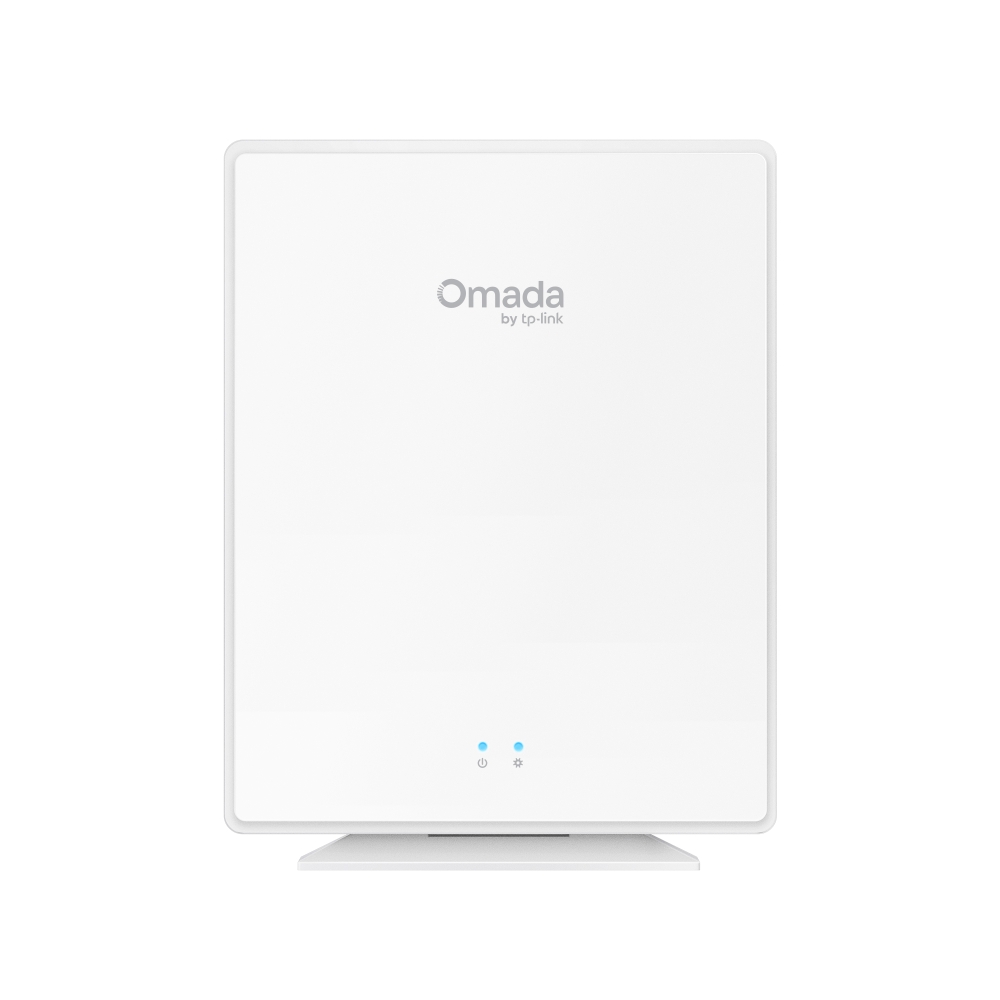

EAP650-Desktop
Omada AX3000 Desktop Wi-Fi 6 Access Point
- Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds. †
- Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
- Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
- No Installation needed:Supports desktop installation without the need for additional setup.
- High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
- Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.§
- Centralized Cloud Management: Integrates with the Omada SDN platform for Centralized Management. §
AX3000 Desktop Wi-Fi 6
Access Point
EAP650-Desktop
-
WiFi 6 Speeds
up to 3.0 Gbps† -
High-Efficiency
WiFi 6 -
No Complex
Installation -
Desktop &
Wall Mounting -
4× Gigabit
Ports -
Seamless Roaming &
Omada Mesh -
802.3at/bt PoE &
DC Power -
Centralized Cloud
Management
No Complex Installation, No Complicated Cabling

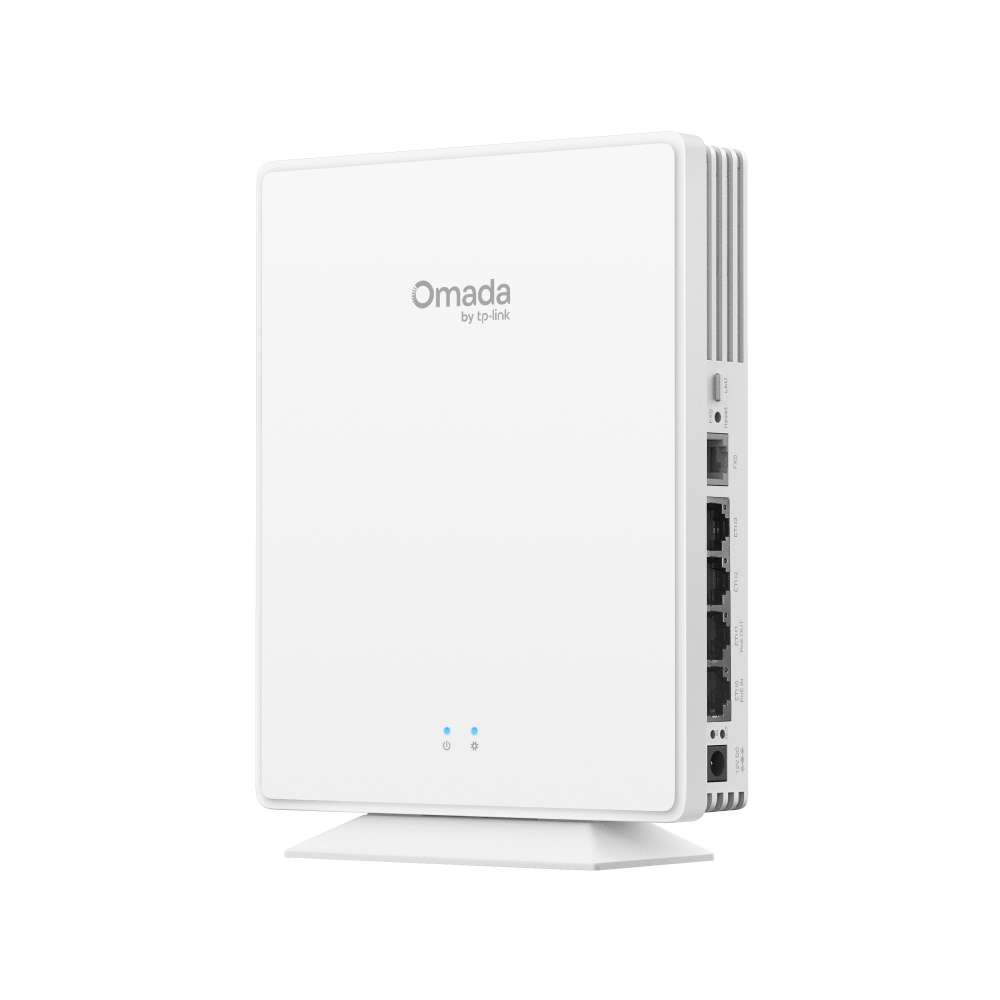

Desktop Mounting
No Additional Installation Needed

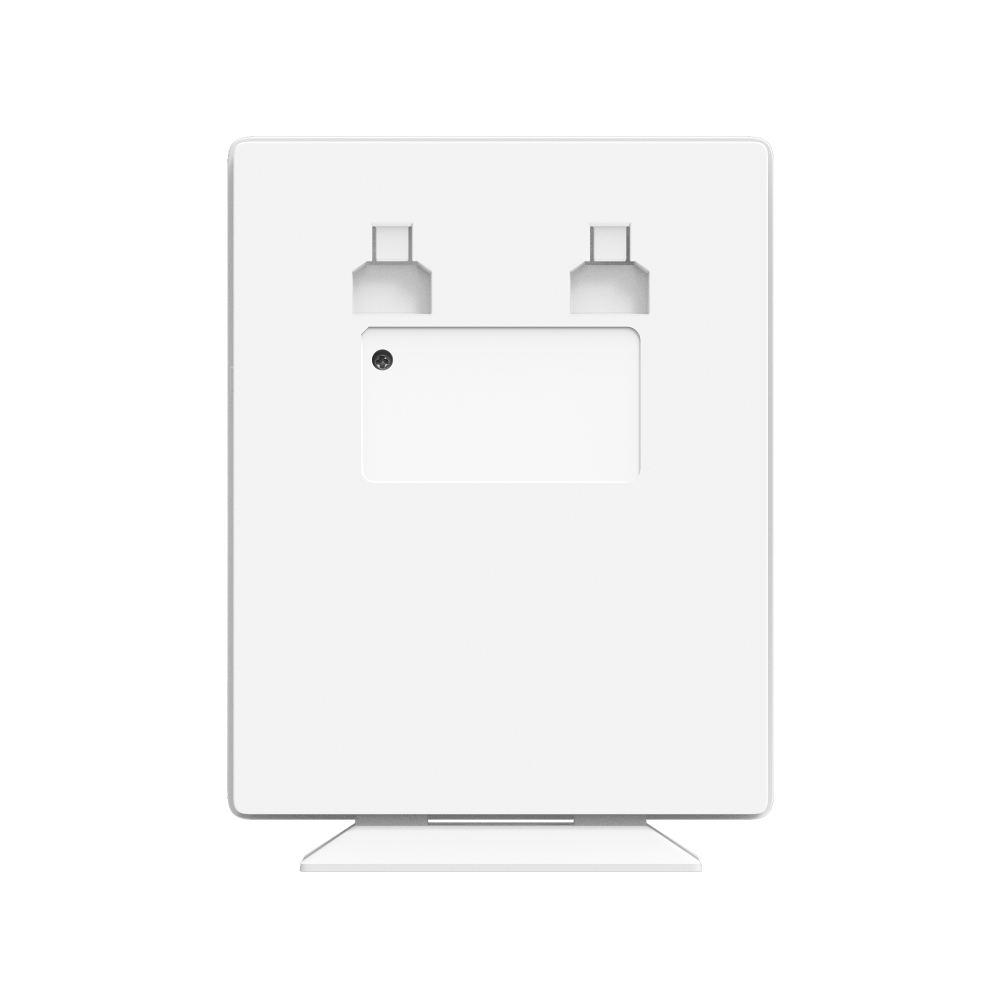

Wall Mounting
Flexible and Space-Saving
Ideal for Versatile Business Environments
Retail
Office
Hotel
Power Up Your Business with New-Era WiFi 6
-
Lightning-Fast AX3000 WiFi 6 Speeds
5 GHz 2402 Mbps2.4 GHz 572 Mbps1024 QAM160 MHz Bandwidth -
Connects Over 250 Devices**
MU-MIMOOFDMA
Gigabit Ports with PoE Support
-
Multiple Ports, Multiple Devices
Copper CableRJ11 CableFXS RJ11 PortPhoneGigabit RJ45 PortsTVPCGigabit PoE Output Port (802.3af)*IP PhoneGigabit PoE Input Port (802.3at)Omada PoE Switch*The PoE-out feature requires 802.3at/bt PoE input. -
Effortless Deployment with PoE
PoEOmada PoE Switch
Seamless WiFi 6 Mesh Networking
Gateway
Software-Defined-Networking (SDN)
with Cloud Access
Remotely manage your access points, switches, and gateway across multiple sites — all from a single interface.
| HARDWARE FEATURES | |
|---|---|

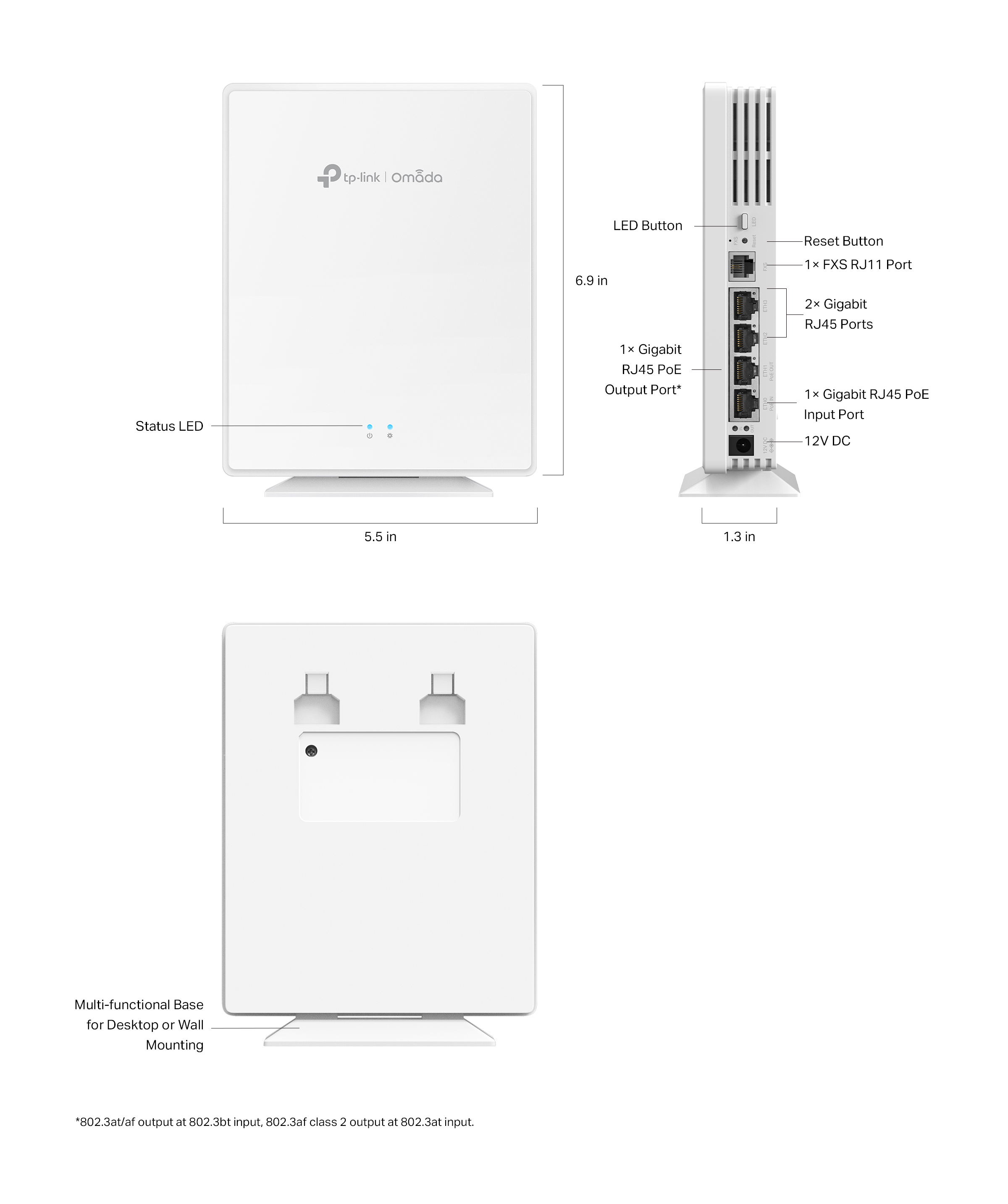

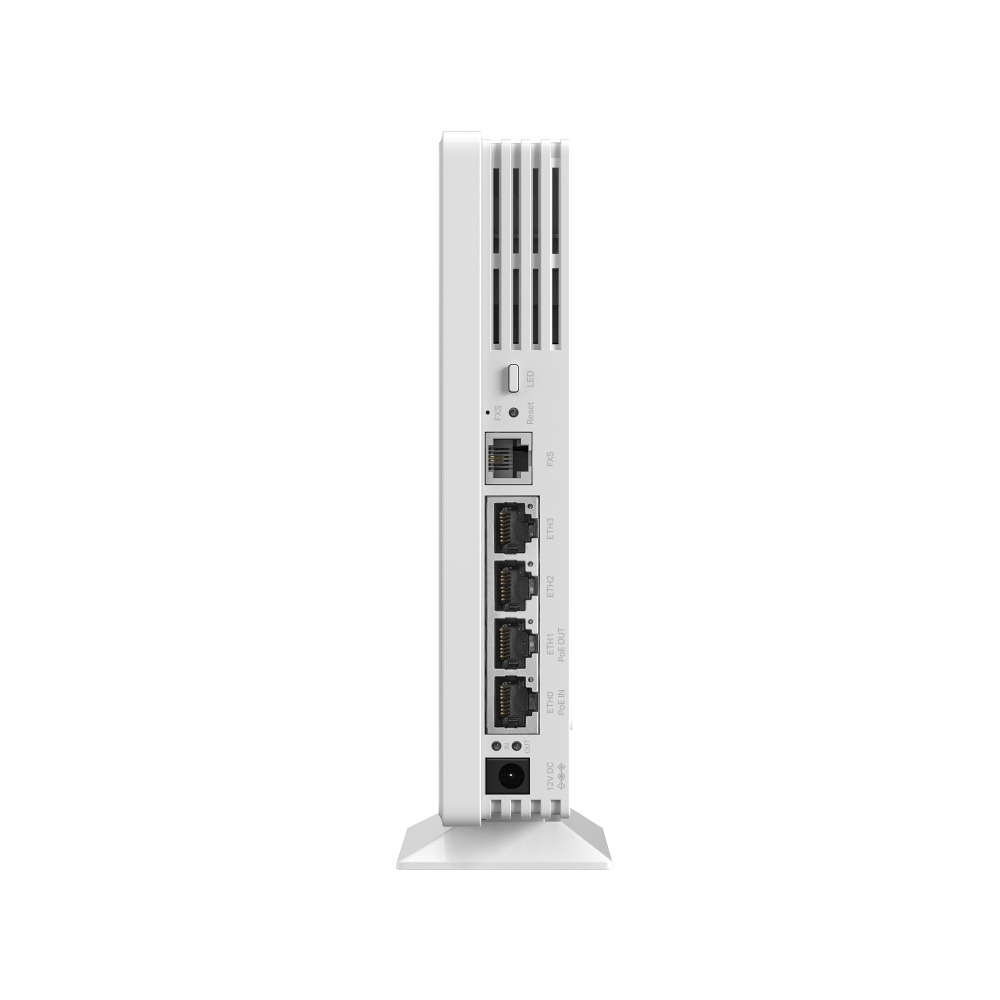

| Interface | 4× 1Gbps Ethernet Ports + 1× FXS Port(One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input) |
| Button | • Reset• LED |
| Power Supply | 802.3 af/at/bt PoE or 12V/1.5A DC*PoE Out requires 802.3at/bt PoE power supply |
| Power Consumption | 17.3W (PoE Out Off) |
| Weight | 452g (excluding mounting base) |

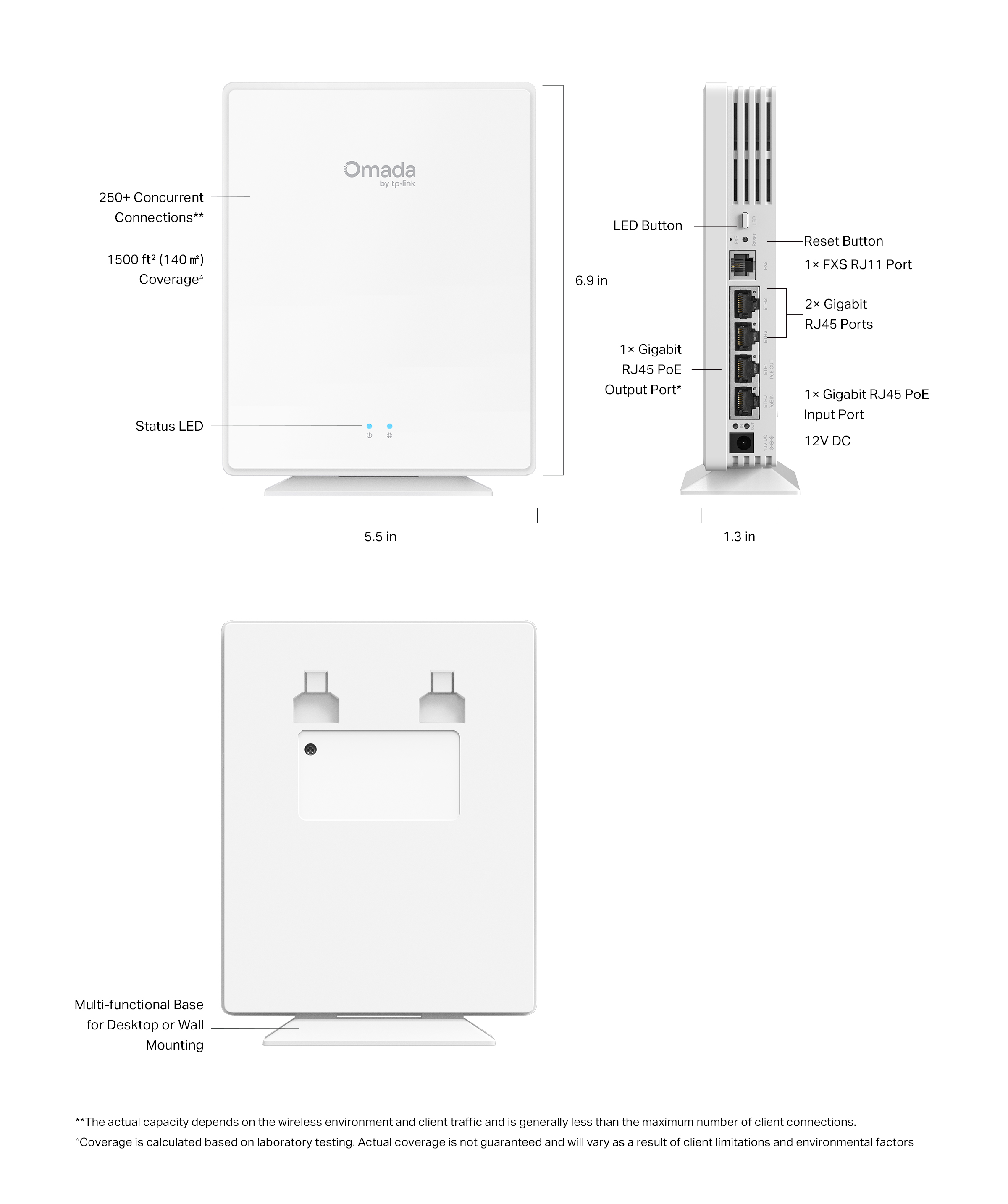

| Dimensions ( W x D x H ) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| Antenna Type | Internal Omni• 2.4 GHz: 2× 5 dBi• 5 GHz: 3× 4.7 dBi |
| Range | 140㎡(1500 ft²)* |
| Mounting | Desktop / Wall mouting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Concurrent Clients | 250+* |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 2402 Mbps†• 2.4 GHz: 574 Mbps |
| Wireless Functions | • 2×2 (2.4G & 5G) MU-MIMO‡• HE160 (160 MHz Bandwidth)‡• OFDMA‡• Seamless Roaming §• Multiple SSIDs (16 SSIDs, 8 on each band)• Enable/Disable SSID Broadcast• Enable/Disable Wireless Radio• Guest Network• Automatic Channel Assignment• Beamforming• Rate Limit (Based on SSID/Client)• Band Steering• Load Balance• Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule and Statistics• Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN • Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, band1 & band2, EIRP)<29 dBm(5 GHz, band3, EIRP)• FCC: <26 dBm (2.4 GHz)<27 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller• Omada Cloud-Based Controller |
| Cloud Access | Yes. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes.Reauire the use of Omada Cloud-Based controller |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |

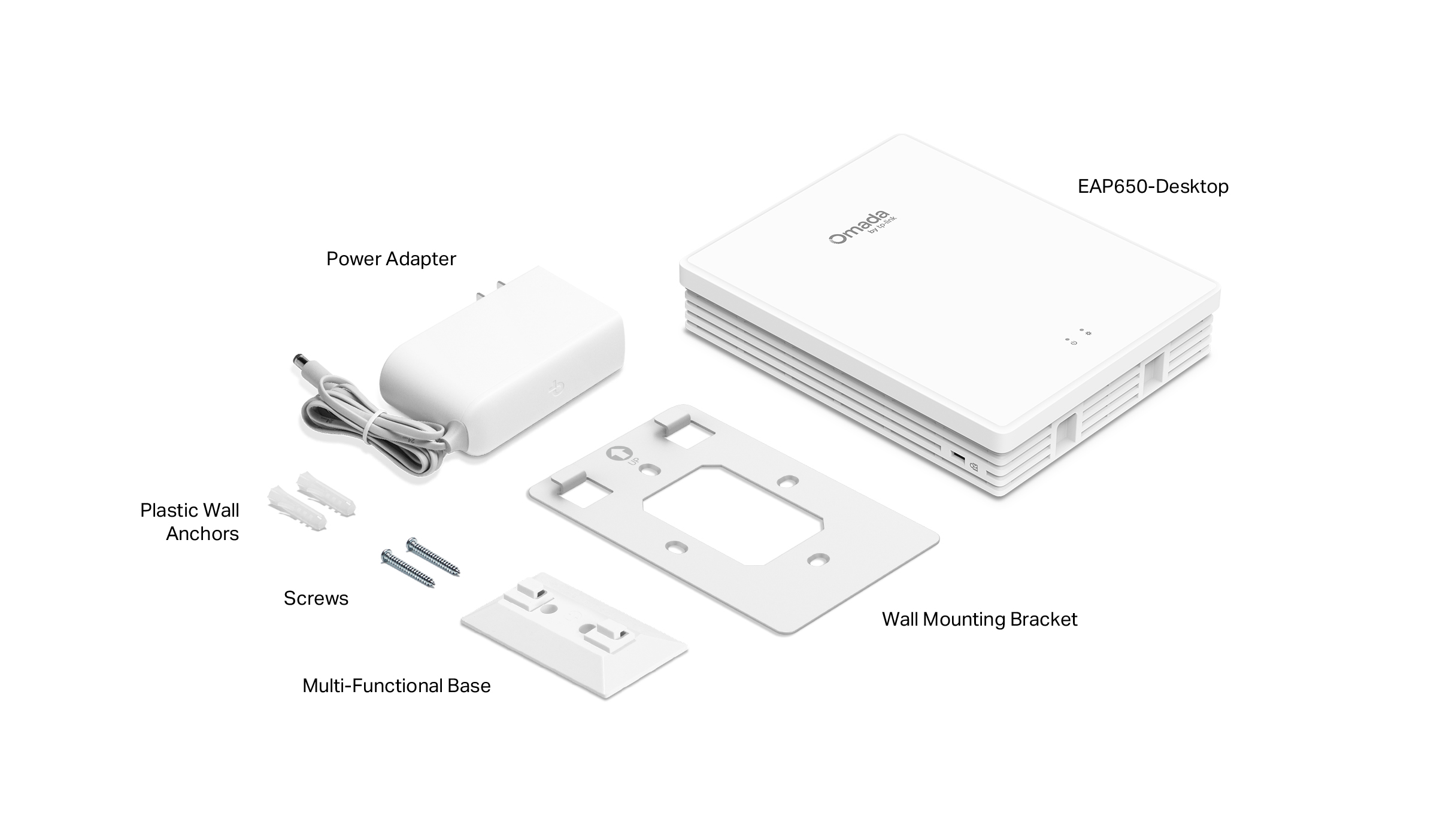

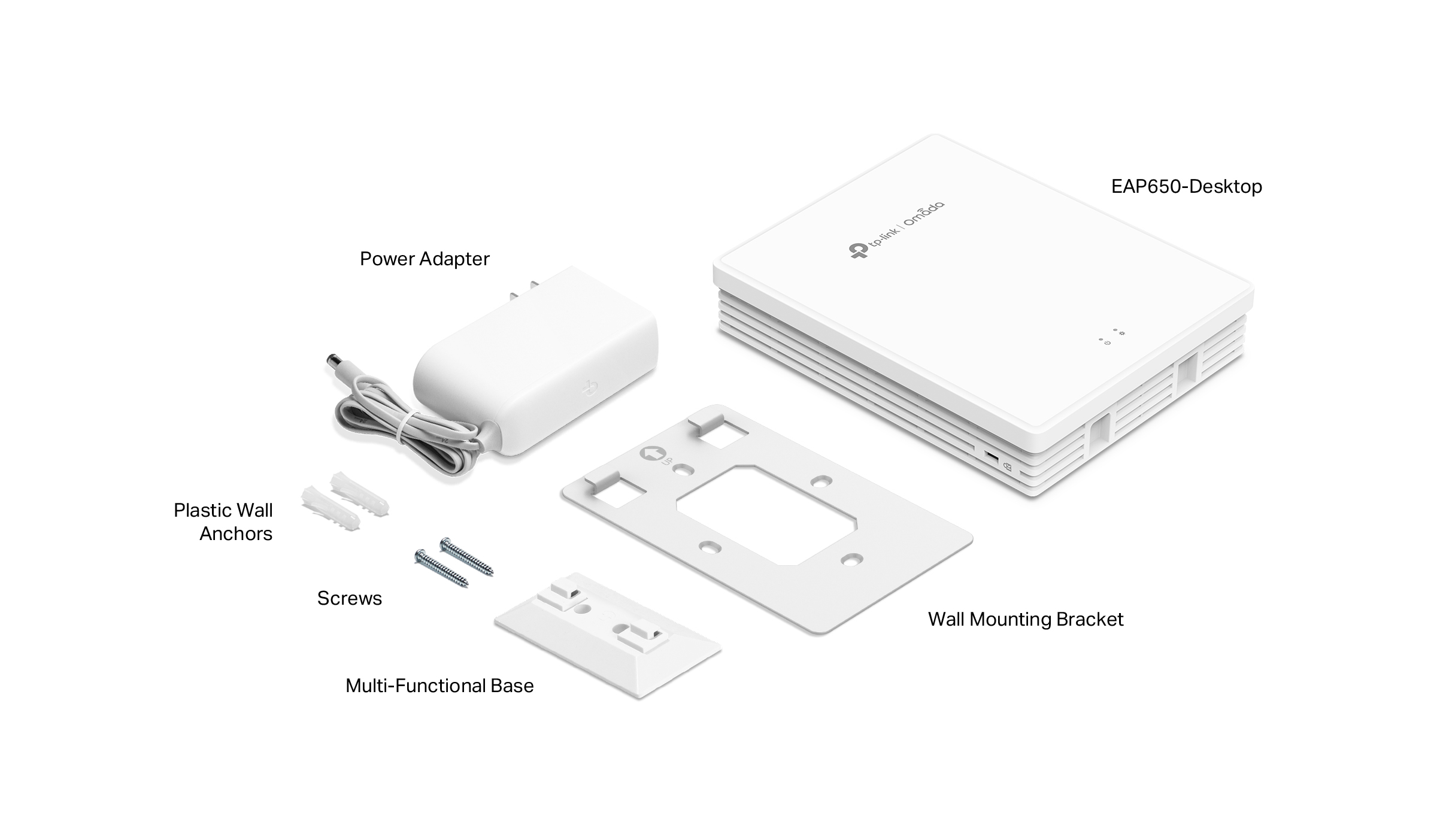

| Package Contents | • EAP650-Desktop• Desktop/Wall Mounting Kit• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of WiFi 6 (802.11ax) and its features like MU-MIMO, requires clients to support the corresponding features.
§Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.
△This feature needs to be used with the switch that supports VPN Server. And at the same time, the Omada controller needs to be used with the switch that supports the Cli Template.
*Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
