EAP610GP-Desktop

New

Omada AX1800 Wi-Fi 6 Desktop GPON Access Point

  • Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
  • 1× GPON Port for High-Speed and Ultra-Range Access
  • Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
  • One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
  • VoIP Calls:  Support multiple VolP accounts and various call features, exceeding traditional landlines
  • Easy Use: One-Click Pairing and Automatic Adoption
  • Smart O&M: PPSKand Multiple Portals§
  • High Flexibility: Support both desktop and wall mounting setups
  • Centralized Management: Integrates with the Unified Optical Solution

tp-link logo

AX1800 Wi-Fi 6 Desktop/Wall Mounting GPON Access Point

EAP610GP-Desktop

  •

    Integrates into Omada Optical Networking

  •

    Omada Centralized Management

  •

    One Fiber,
    Multiple Services

  •

    WiFi 6
    Gigabit ONU

  •

    Seamless Roaming
    & Omada Mesh

  •

    PoE Out for Convenience

  •

    PPSK &
    Captive Portal

  •

    Quick,
    Easy Setup

Complete Omada Optical Networking Solution

The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.

Internet

Web Browser

Omada App

Omada Gateway

Omada Switch

OLT

ODN(Splitter)

SIP Server

Omada Cloud-Based Controller

Omada Software Controller

Omada Hardware Controller

Or

Or

GPON Access Point EAP610GP-Desktop

GPON Access Point EAP610GP-Desktop

GPON Access Point EAP610GP-Desktop

VoIP Phone

TV

CCTV

Door Access

Fiber Optics

Copper Cable

  •

    Omada Centralized
    Management

  •

    Quick, Easy
    Adoption

  •

    Easy
    Setup

  •

    Complete
    Product Types

  •

    Zero-Touch
    Provisioning

  •

    Easy
    Monitoring

One Fiber, Multiple Services

Connect a fiber optic cable to the EAP610GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.

ODN
(Splitter)

1× GPON Port

Fiber Optics

Copper Cable

RJ11 Cable

1× FXS RJ11 Port

3× Gbps RJ45 Ports

1× Gbps PoE Out Port (802.3af)

Phone

TV

CCTV

PC

IP Phone

Seamless WiFi 6 Mesh Networking

Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.* Omada Mesh and 802.11k/v roaming ensure a consistently smooth and reliable connection.

EAP610GP-Desktop

Roaming

EAP610GP-Desktop

Omada VPN Gateway

Flexible Desktop/Wall Installation

Choose a suitable installation method according to your needs.

  •

    Desktop

  •

    Wall Mounting

HARDWARE FEATURES

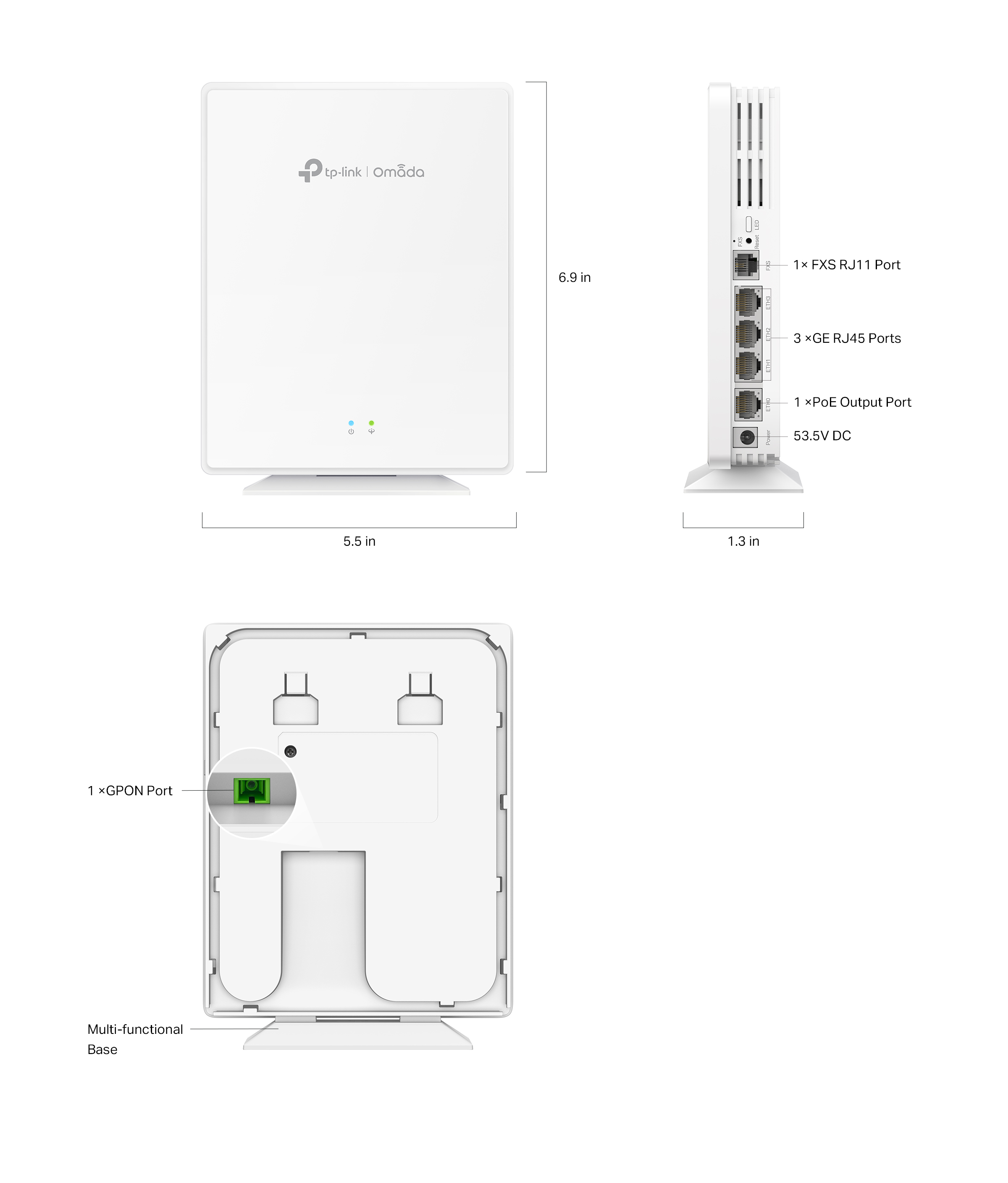

Interface • 1x GPON Port
• 1x FXS Port
• 4x Gigabit RJ45 Ports (One Supporting 802.3af PoE Out)
GPON Interface • Port Type: SC-APC
• Standards and Protocols: ITU-984.x, G.988, Class B+
• Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)
• Fiber Type: 9/125 um Single mode
• Max. Cable Length: 20 km
Button • Reset
• LED
Power Supply 53.5V/0.81A DC
Power Consumption 17.3W (PoE Out Off)
Weight 492g
Dimensions ( W x D x H ) 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 5 dBi
• 5 GHz: 2× 4.5 dBi
Mounting Desktop / Wall mouting (Kits included)
WIRELESS FEATURES
Coverage 140㎡(1500ft²)**
Concurrent Clients 120+*
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: 1201 Mbps
• 2.4 GHz: 574 Mbps
Wireless Functions • 2×2 (2.4G & 5G) MU-MIMO
• HE80 (80 MHz Bandwidth)
• OFDMA
• Seamless Roaming §
• Multiple SSIDs (16 SSIDs, 8 on each band)
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• Guest Network
• Automatic Channel Assignment
• Beamforming
• Rate Limit
• Band Steering
• Load Balance
• Airtime Fairness
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule and Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<27 dBm(5 GHz, band3, EIRP)

• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300, OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog System Log
SSH Yes
Web-based Management Yes
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS, IC

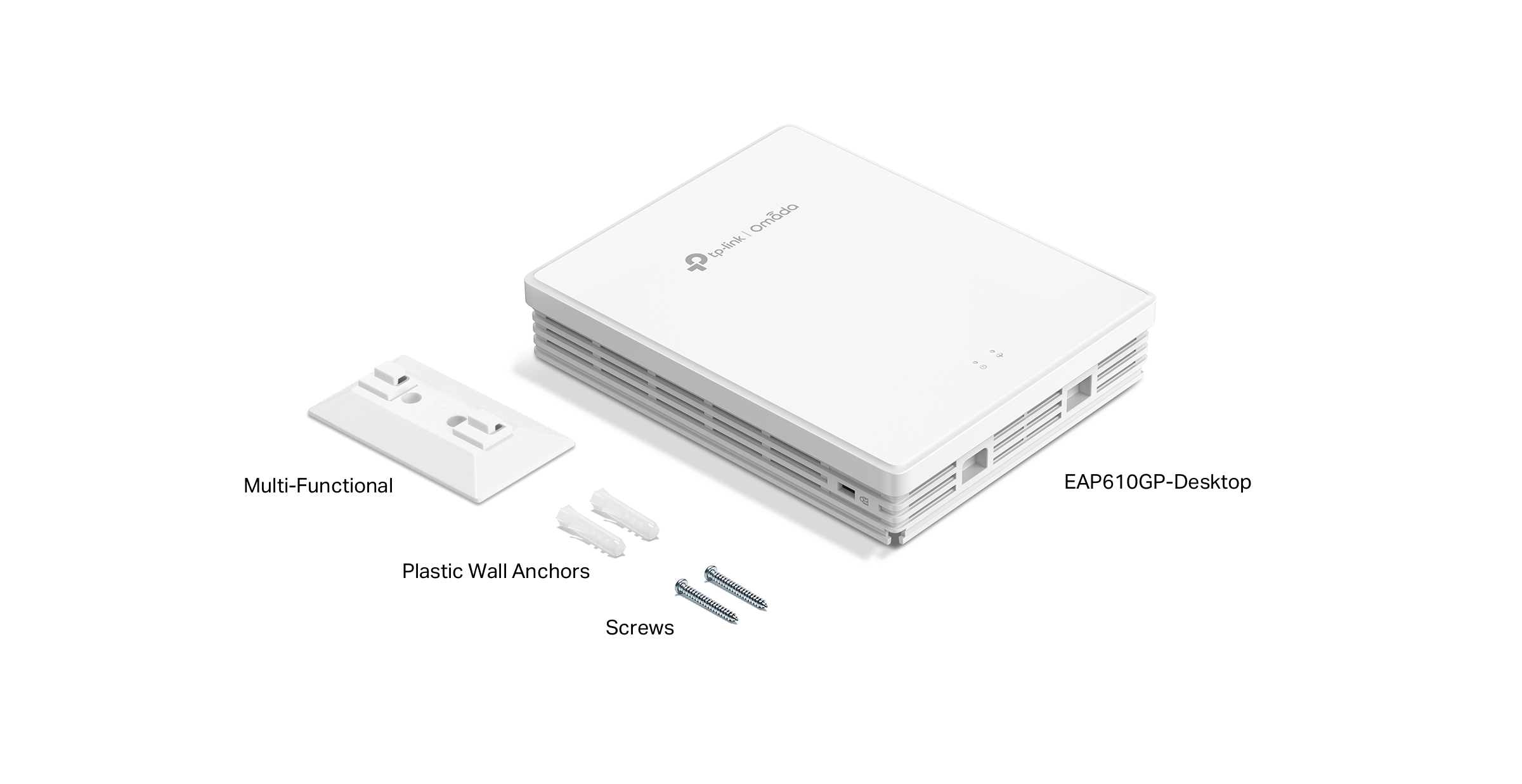

Package Contents • EAP610GP-Desktop
• Desktop/Wall Mounting Kit
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of WiFi 6 (802.11ax) and its features like MU-MIMO, requires clients to support the corresponding features.

§Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.

This feature needs to be used with the switch that supports VPN Server. And at the same time, the Omada controller needs to be used with the switch that supports the Cli Template.

*The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

**Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
