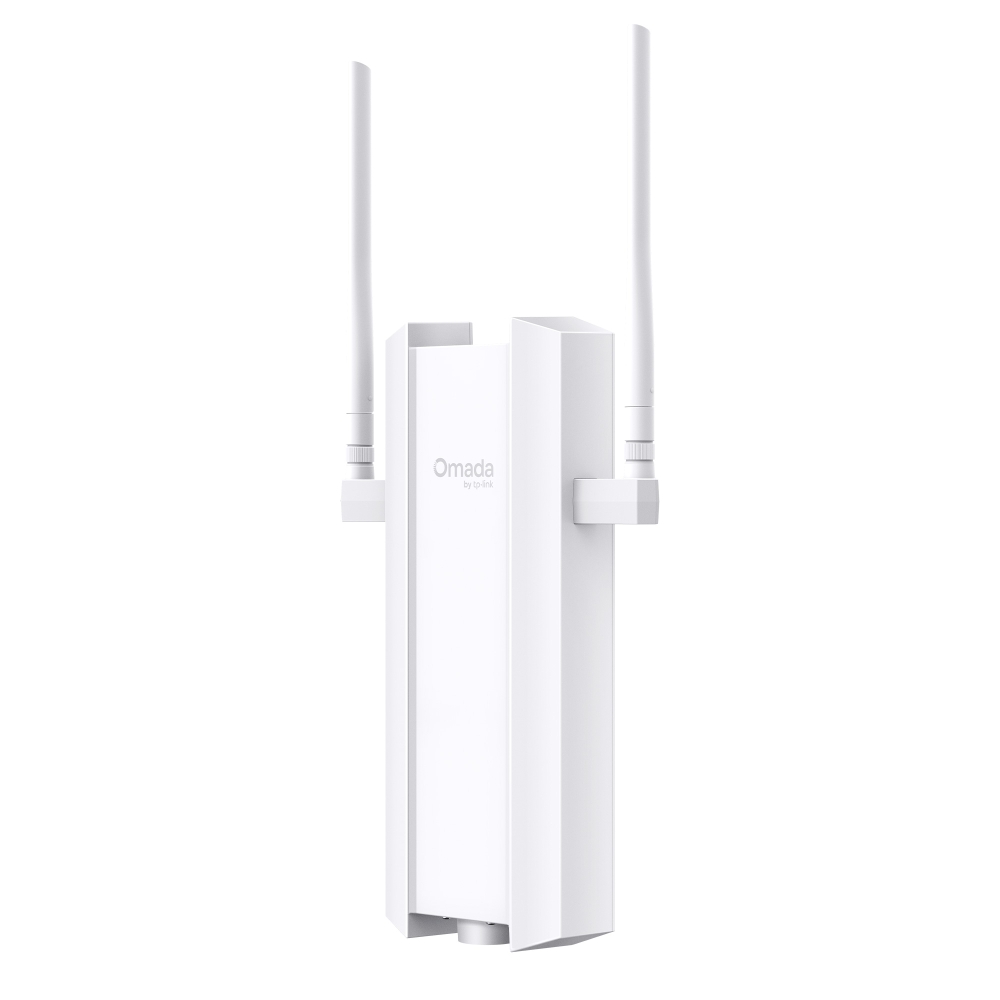

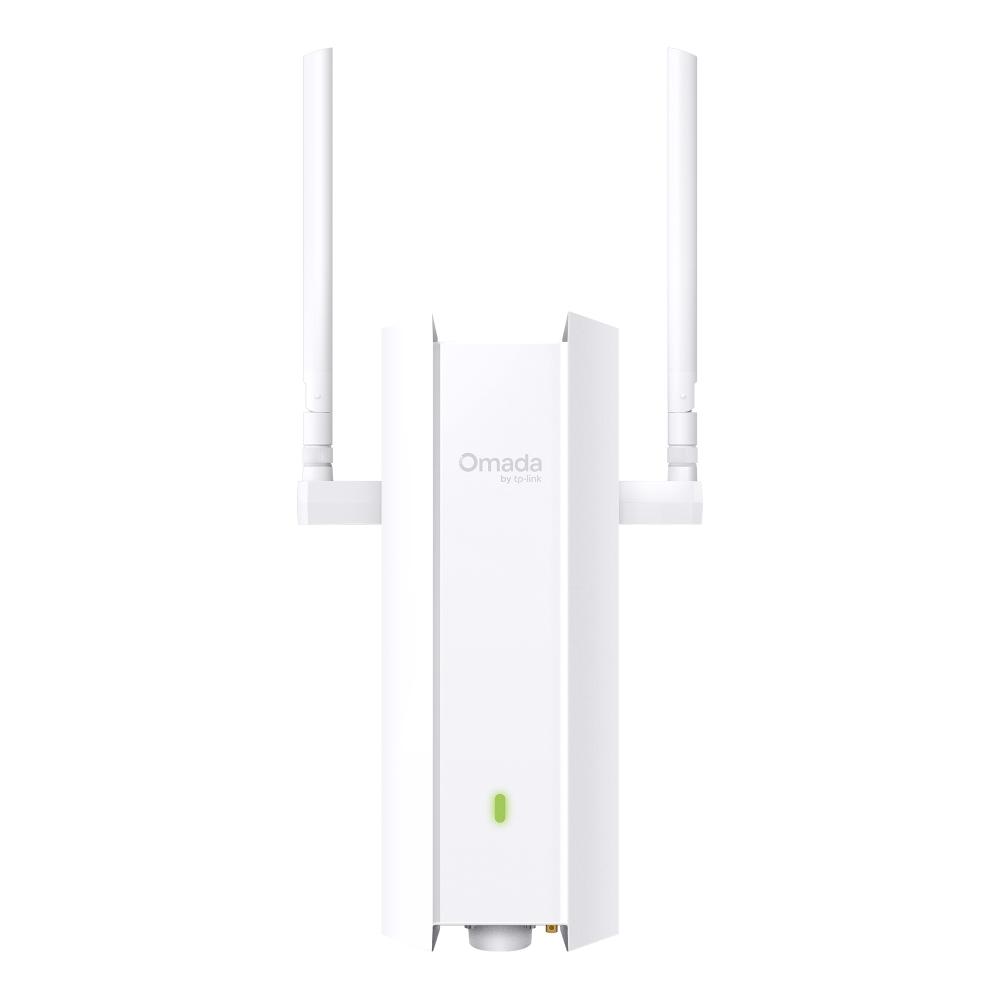

EAP625-Outdoor HD
AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
- High Density Connectivity: Supports up to 1024 devices.*
- Long-Range Omnidirectional Coverage: Features 2× external dual-band antennas with MU-MIMO technology, delivering extended coverage up to 984 ft (300 m).**
- Dual-Band 4-Stream Wi-Fi 6: Up to 1.8 Gbps.†
- Flexible Deployment with PoE Support: 1× Gigabit PoE+ port reduces costs by delivering power and data over a single Ethernet cable.
- Outdoor-Ready Durability: Features an IP68-rated weatherproof enclosure and 6 kV lightning protection.
- Quick and Easy Setup: Features wall/pole mounting with Omada SDN for one-click setup.
- Advanced Features: Centralized cloud management, mesh, and seamless roaming.Δ
| HARDWARE FEATURES | |
|---|---|

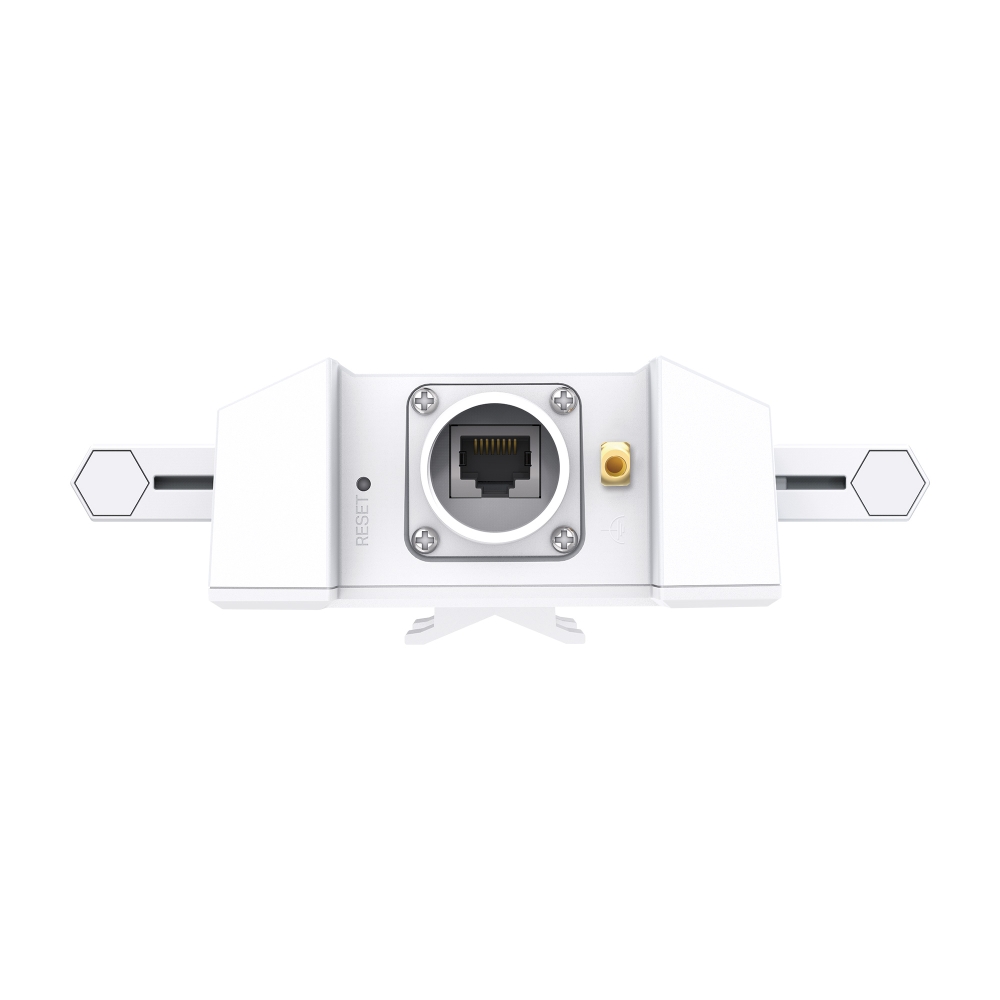

| Interface | 1x Gigabit Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3at PoE• 48V Passive PoENote: PoE adapter is not included. |
| Max. Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE)• US: 14.7W (802.3at PoE or Passive PoE) |

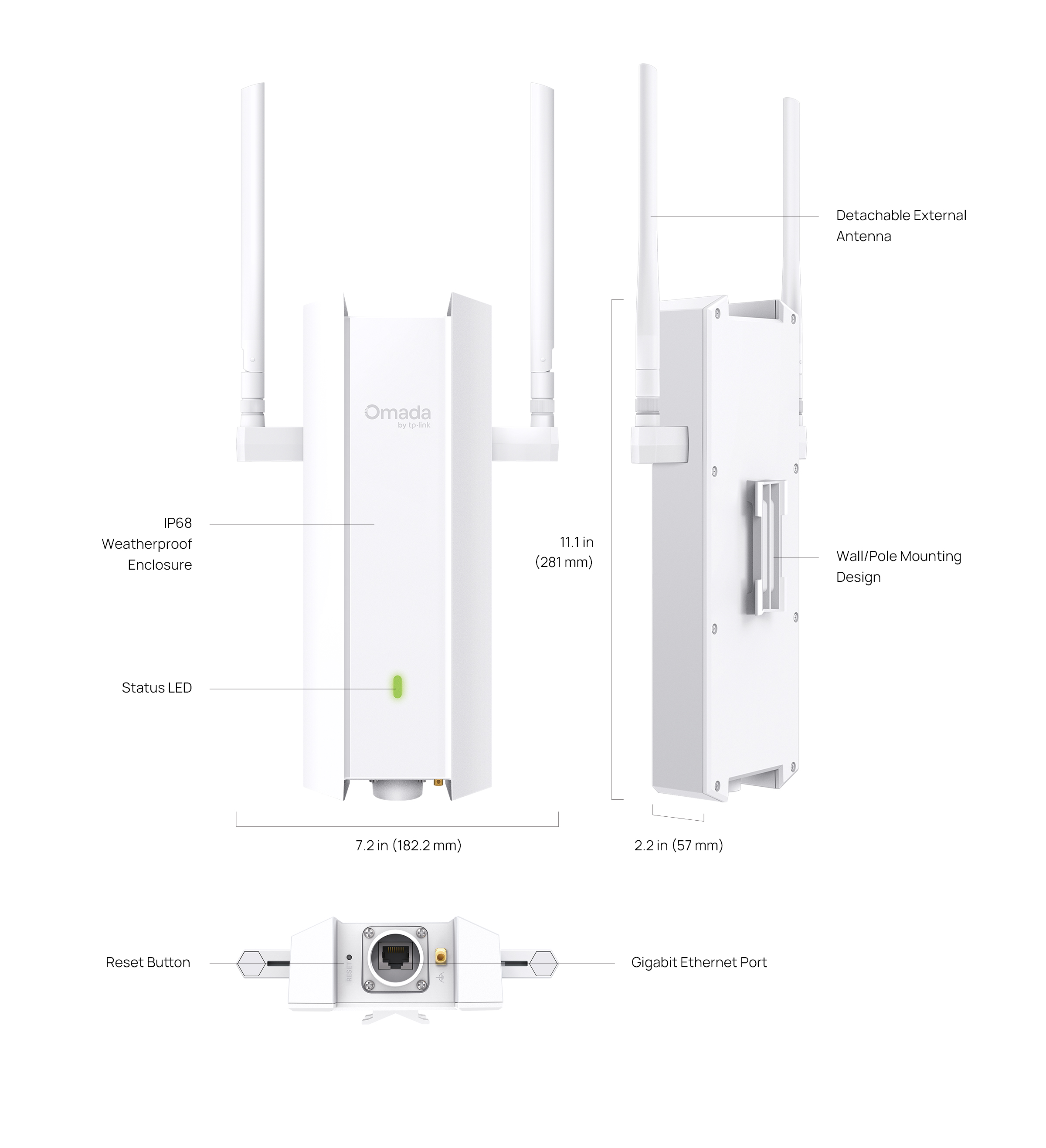

| Dimensions ( W x D x H ) | 7.2 × 2.2 × 11.1 in (182.2 × 57 × 281 mm)*5 |
| Antenna | 2× External Dual-Band Omni Antennas• 2.4 GHz: 3.0 dBi; • 5 GHz: 5.0 dBi |
| Bluetooth | V5.2 |
| Weatherproof Enclosure | IP68 |

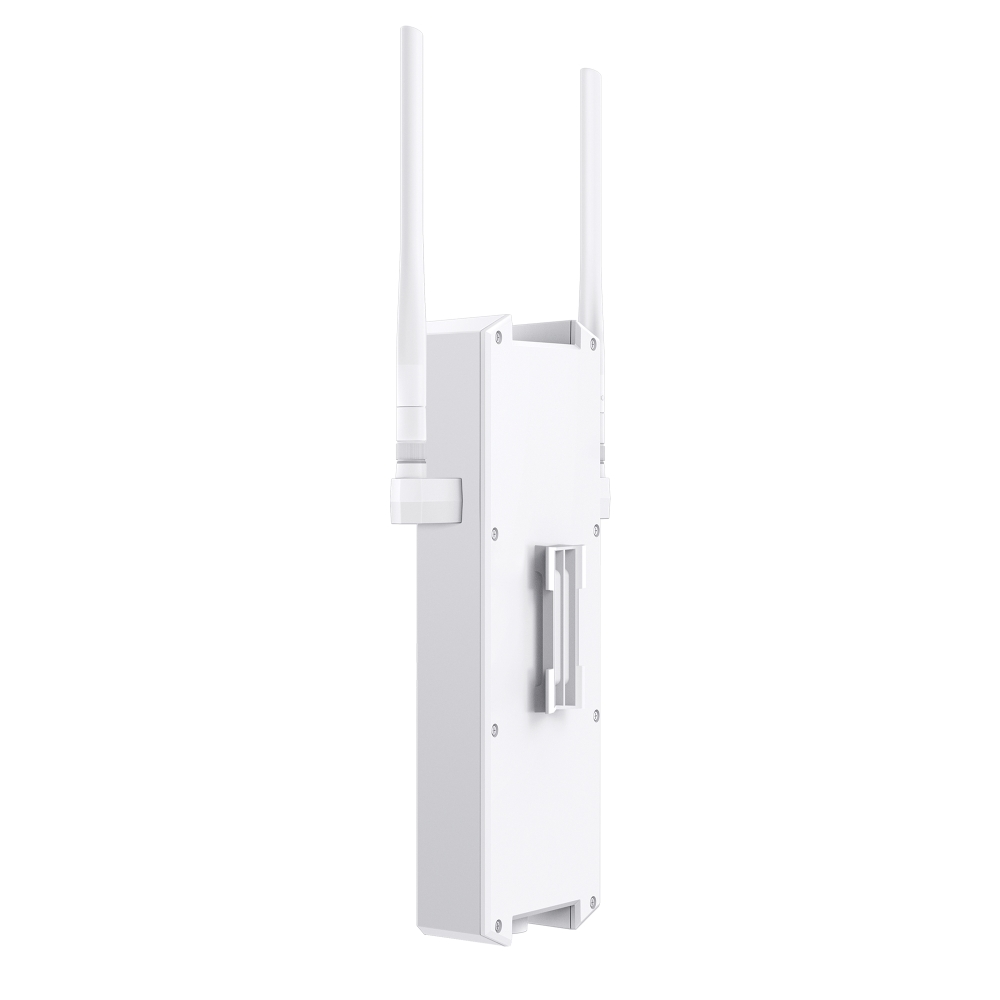

| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Concurrent Clients | 1,020+3 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 5 GHz, and 2.4 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps• 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • Mesh*4• Seamless Roaming(802.11k/v/r)*4• Automatic Channel Assignment• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDs:16 (8 for each band)• MU-MIMO (2x2 MU-MIMO DL)• Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP |
| Wireless Security | • VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication*4• Maximum number of MAC Filter: 4,000• Wireless Isolation between Clients• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise• 802.1X Support |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

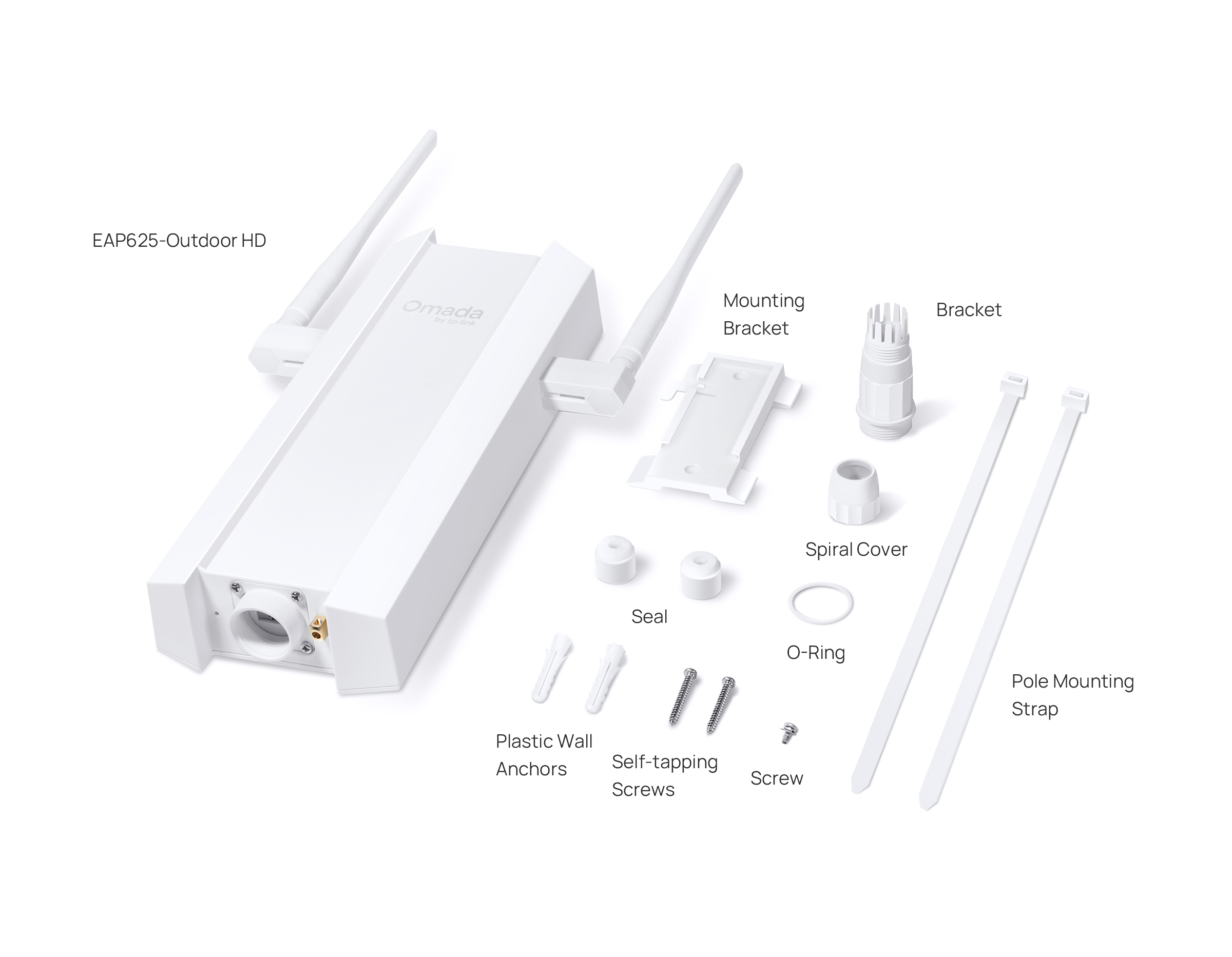

| Package Content | • EAP625-Outdoor HD• 2× Detachable Antennas• Installation Guide• Mounting Kit• Waterproof Kit |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
*The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
‡The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller. Please refer to the user guides of Omada controllers for configuration methods.
§Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA, 1024-QAM, and more, requires clients to support the corresponding features.
