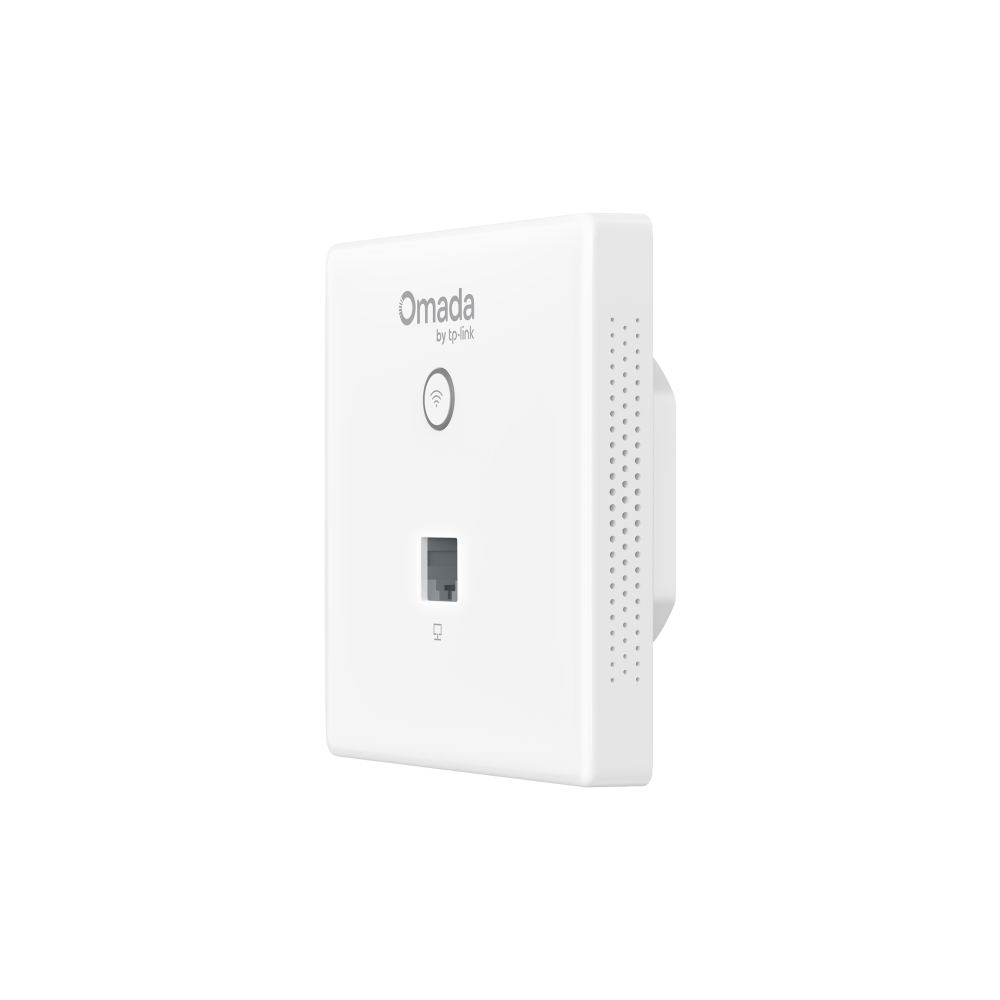

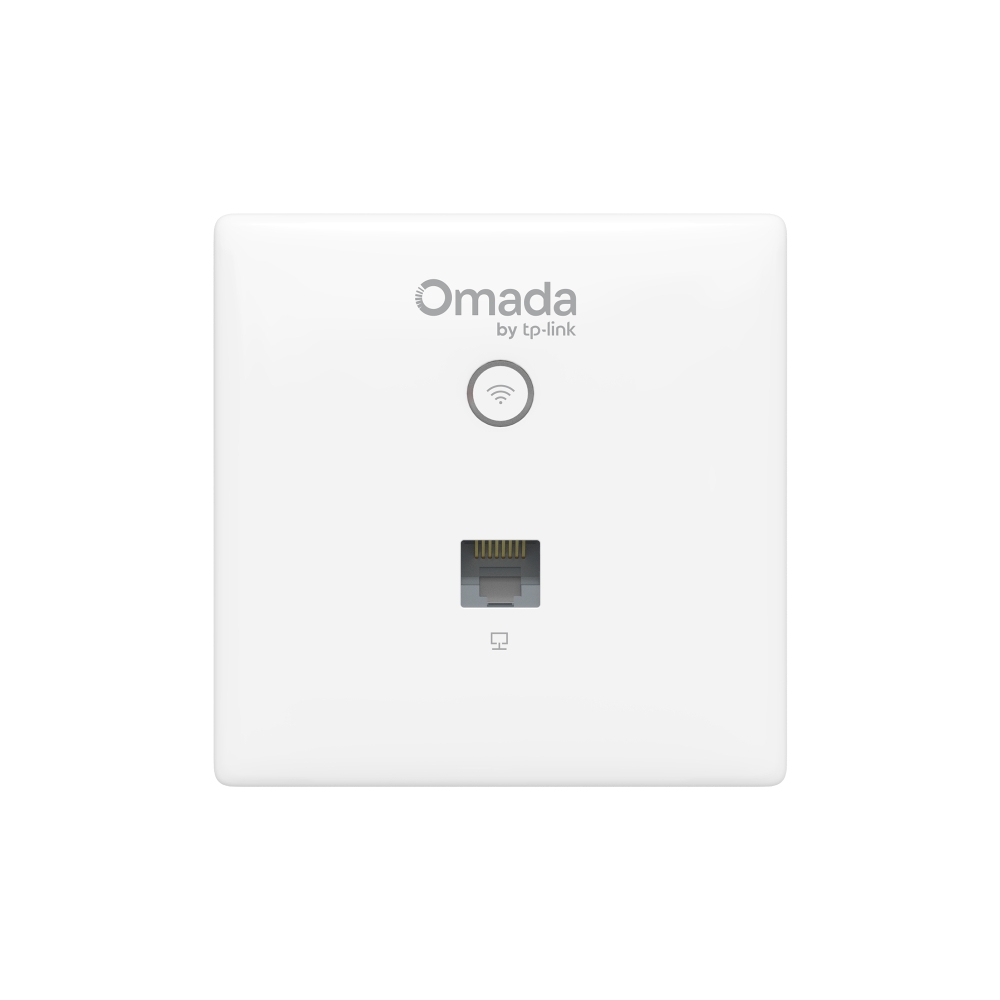

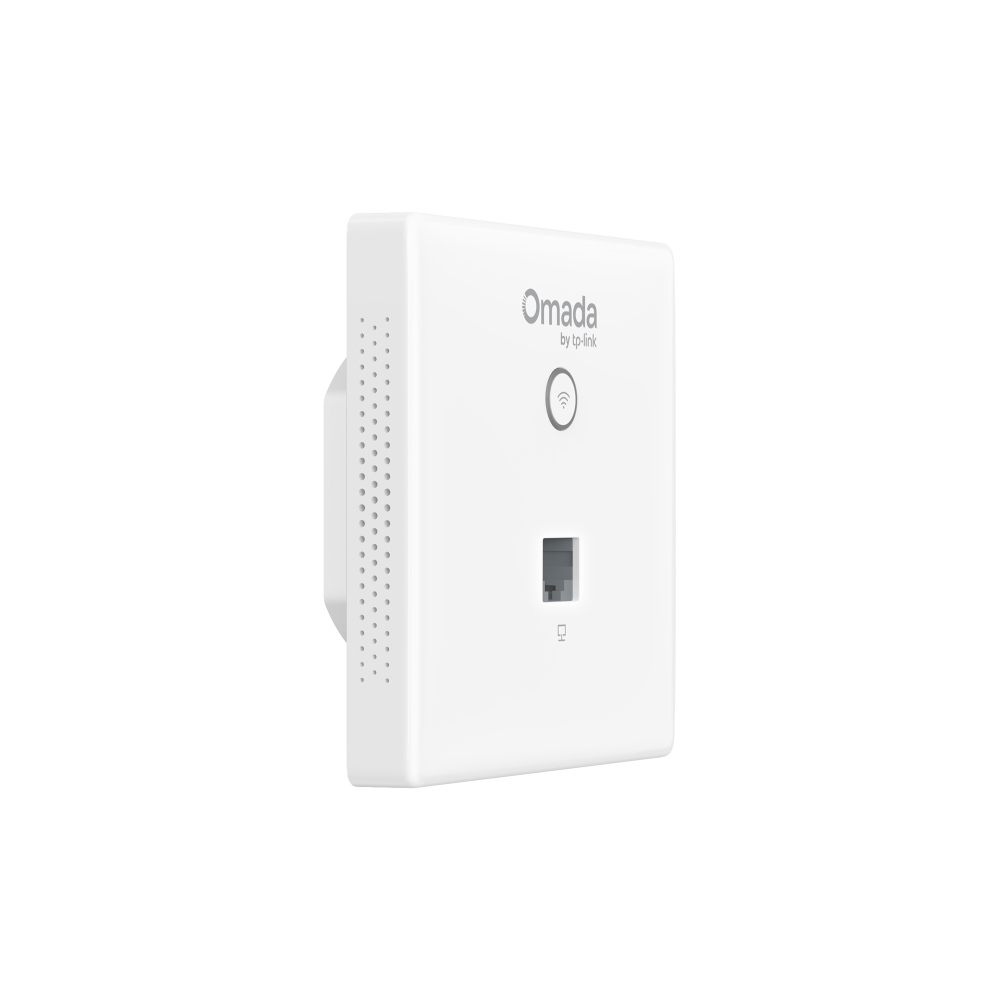

Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
- Dual-Band Wi-Fi 5: 867 Mbps on 5 GHz, and 300 Mbps on 2.4 GHz†

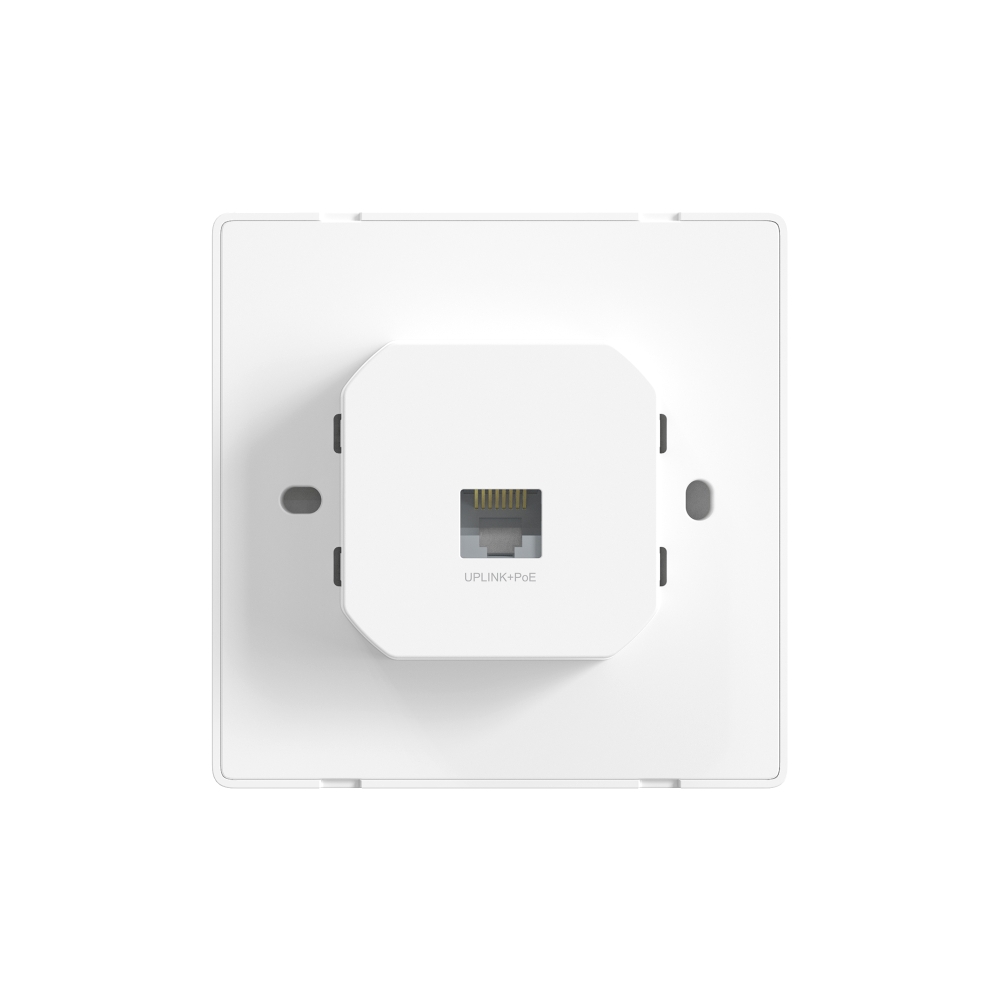

- 2× Gigabit Ports: One for PoE input, one for RJ45 downlink.
- Low Congestion: MU-MIMO allows multiple devices to receive data simultaneously, reducing congestion and improving speed.‡
- Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 300ft² (25 ㎡).*
- Flexible Deployment and Easy Setup: Supports 802.3af/at PoE for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management and seamless roaming.△
- More Connections: Supports 200+ concurrent connections.**
Learn more about Omada Cloud SDN>

| HARDWARE FEATURES | |
|---|---|
| Interface | • Uplink: 1× Gigabit Ethernet Port• Downlink: 1× Gigabit Mbps Ethernet PortNotice: Non-Omada devices connected to the wired LAN ports will not be recognized by the Omada controllers, preventing users from viewing their connection status. To address this issue, connect those non-Omada devices to an Omada switch that links to the AP's wired LAN ports. |
| Physical Security Lock | No |
| Button | LED/Wi-Fi Button, RESET |
| Power Supply | 802.3af PoE |
| Max. Power Consumption | 7W |

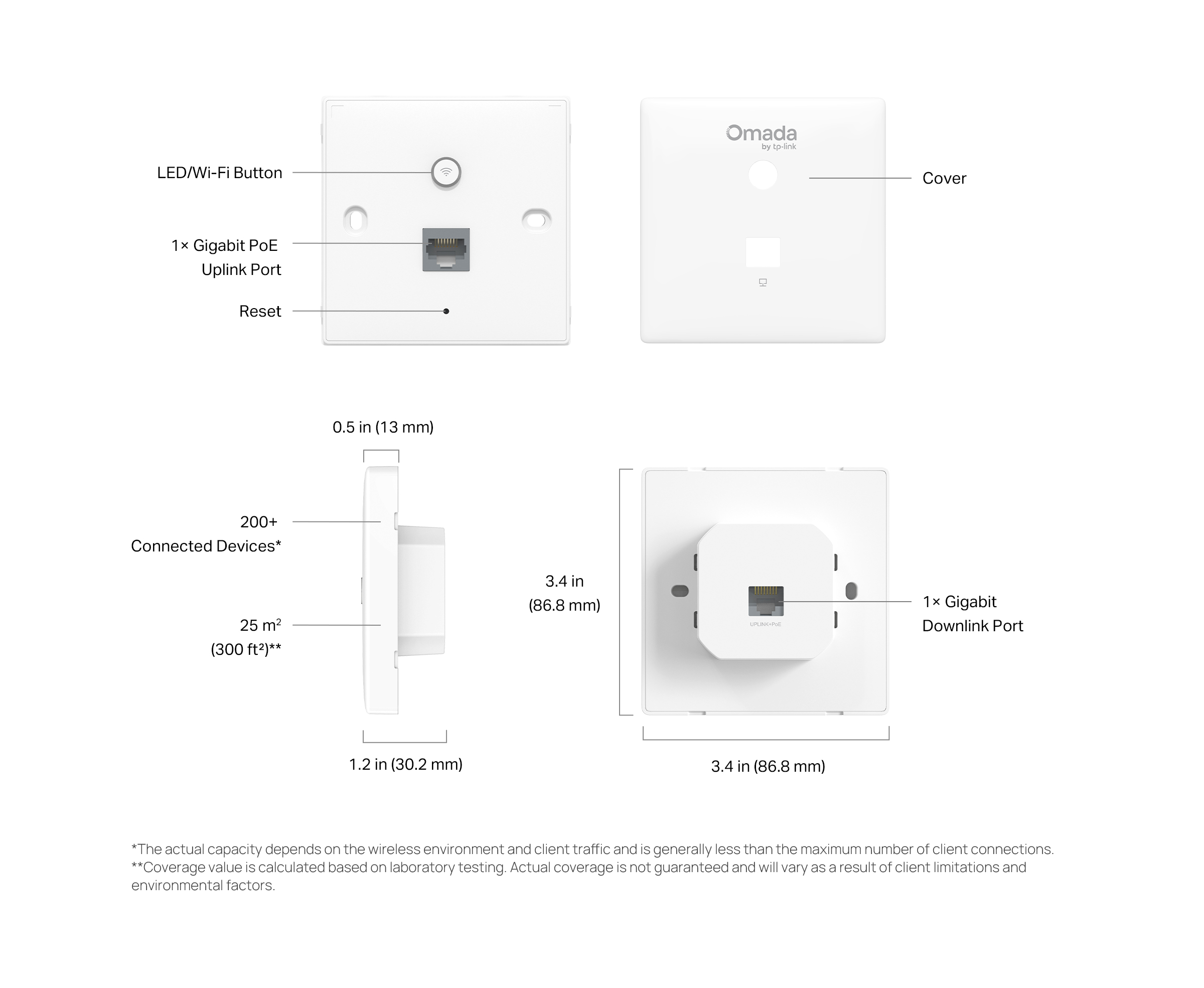

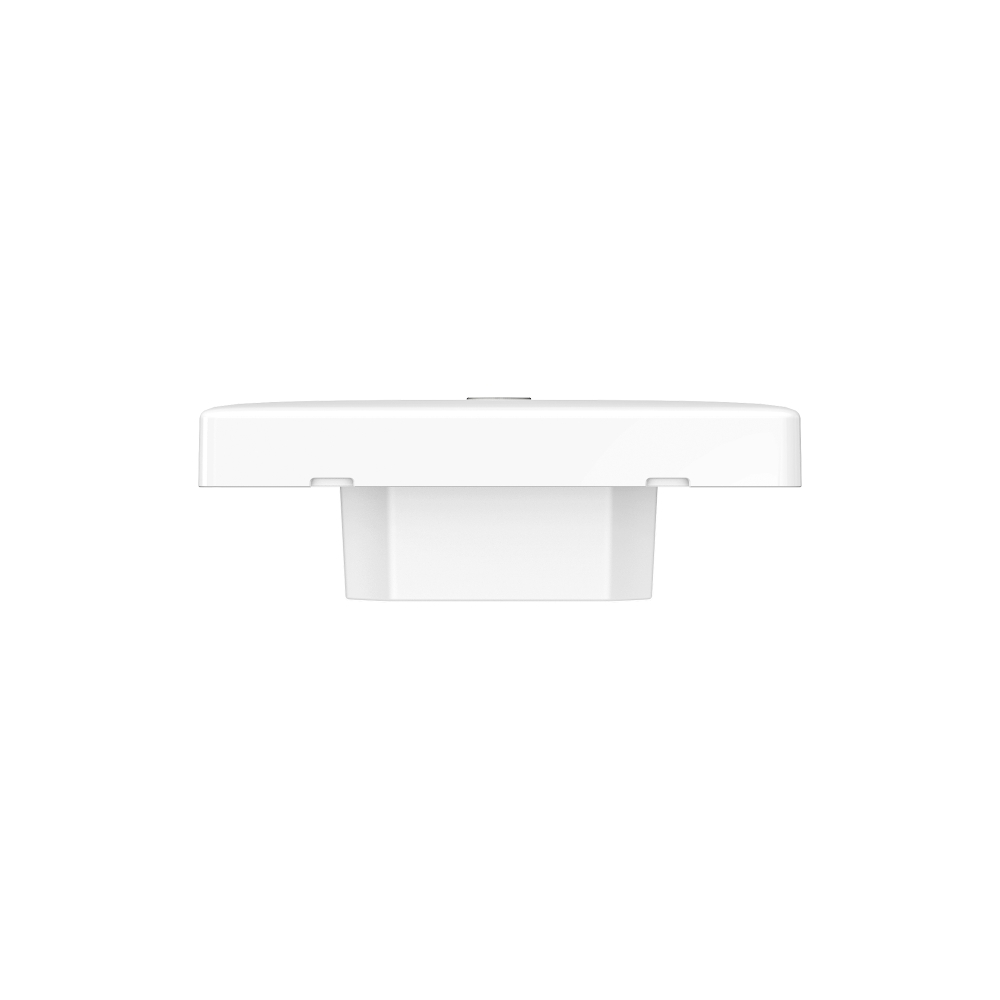

| Dimensions ( W x D x H ) | 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm) |
| Antenna | Dual-Band Antennas:• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 3.6 dBi |
| Mounting | Wall Mounting (Screws included) |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 300 ft² (25㎡)** |
| Concurrent Clients | 200+* |
| Wireless Standards | IEEE 802.11n/g/b/ac |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 867 Mbps• 2.4 GHz: Up to 300 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming(802.11k/v)△• Load Balance• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client• MU-MIMO‡• Band Steering• Beamforming |
| Wireless Security | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Local LAN port based VLAN• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | • 7-20 dBm (2.4 GHz, EIRP)• 8-18 dBm (5 GHz, U-NII-1, EIRP) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller• Omada Software Controller• Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Content | • EAP230-Wall• Installation Guide• Mounting Screws |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡MU-MIMO capability requires client devices that also support MU-MIMO.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△These features require the use of an Omada controller.
