Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

  • Dual-Band Wi-Fi 5: 867 Mbps on 5 GHz, and 300 Mbps on 2.4 GHz
  • Gigabit Ports with PoE Flexibility: 1× PoE Input port, 1× PoE pass-through port, and 2× RJ45 downlink ports.
  • Low Congestion: MU-MIMO allows multiple devices to receive data simultaneously, reducing congestion and improving speed.
  • Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 300ft² (25 ㎡).*
  • Flexible Deployment and Easy Setup: Supports 802.3af/at PoE for flexible installation with Omada SDN for one-click setup.
  • Advanced Features: Supports centralized cloud management and Seamless Roaming.
  • More Connections: Supports 200 concurrent connections.**

Learn more about Omada Cloud SDN>​

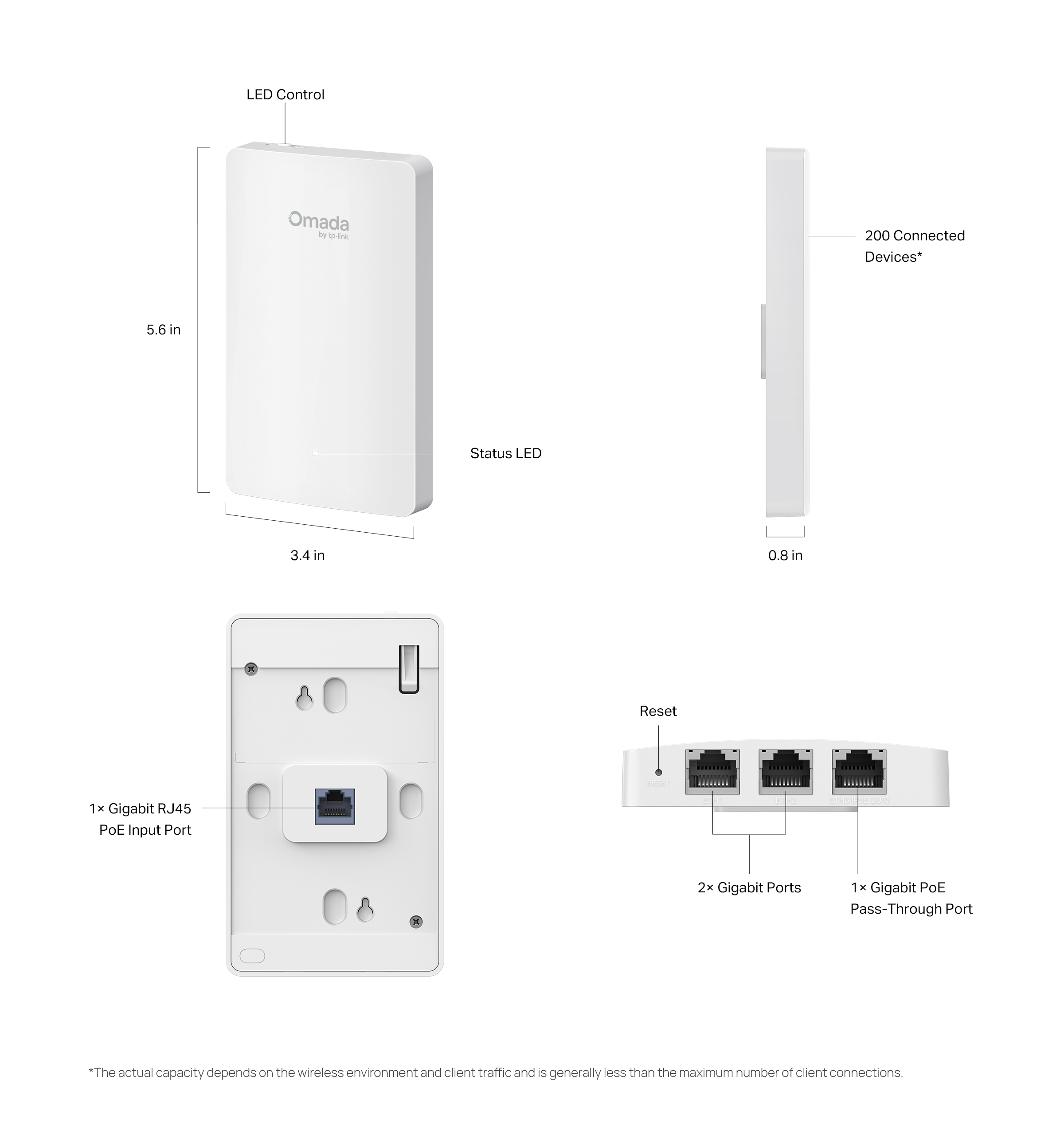

HARDWARE FEATURES
Interface • Uplink: 1× Gigabit Ethernet Port
• Downlink: 3× Gigabit Ethernet Ports (One port supports PoE pass-through.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
PoE Out · PoE Passthrough (Pins 1,2+; 3,6-)
· PoE Out (requires 802.3at PoE input and the maximum output is 13 W)
Max. Power Consumption • 9.8W (PoE Out Not Included)
• 24.4W (PoE Out Included)
Dimensions ( W x D x H ) 5.6 × 3.4 × 0.8 in (143 × 86 × 19.7 mm)
Antenna Dual-Band Antennas:
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
Mounting Wall Mounting
WIRELESS FEATURES
Coverage 300 ft² (25㎡)*
Concurrent Clients 200**
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• Seamless Roaming(802.11k/v)
• QoS(WMM)
• MU-MIMO
• Band Steering
• Beamforming
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power • CE:
7-20 dBm (2.4 GHz, EIRP)
8-24 dBm (5 GHz, U-NII-1, EIRP)

• FCC:
4-21 dBm (2.4 GHz)
4-21 dBm (5 GHz, U-NII-1, U-NII-3)
Management Features
Omada App Yes
Centralized Management • Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of an Omada controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Content • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
• Installation Guide
• Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

MU-MIMO capability requires client devices that also support MU-MIMO.

*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

These features require the use of an Omada controller.
