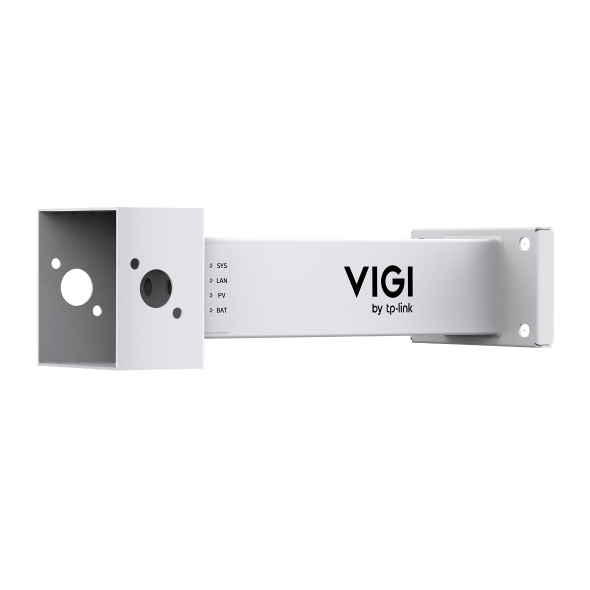

VIGI PS20
NewVIGI Solar System Controller
- 20.8Ah/10.8V Automotive-Grade Lithium Battery
- Remote Management and Maintenance via the VIG app or VIGI Cloud VMS
- Intelligent Auxiliary Heating Technology Ensures Optimal Battery Performance in Extreme Cold Weather
- Maximum Power Point Tracking (MPPT) Charging Controller Increases Charging Efficiency by 20%*
- Over-charge, Over-discharge, Over-current, Overheat, and Short-circuit Protections
- Remaining Capacity > 70%** after 500 Cycles
- IP66 Weatherproof
| Battery | |
|---|---|
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 20.8 Ah |
| Voltage | 10.8 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles△ |
| Dimension | 242×70×55 mm (9.5×2.8×2.2 in) |
| Charging Condition | • 0°C~45°C• -30°C~45°C (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C~60°C• -30°C~60°C (With intelligent auxiliary heating) |
| HARDWARE | |
|---|---|
| Interface | • 1× 10/100 Mbps RJ45• 1× Photovoltaic Panel Connector• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |

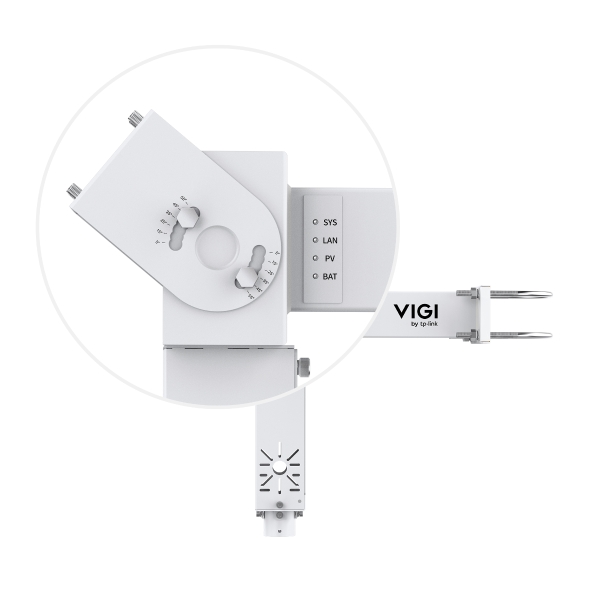

| Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)• Color: Blue |
| SOFTWARE FEATURES | |
|---|---|
| Load Control | Yes |
| High and Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Region Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Smart Charging Control | -30°C~5°C |
| Account Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHERS | |
|---|---|
| Certification | • CB, PSE (Battery)• CE, FCC, VCCI, IC, IP66 Weatherproof |
| Package Contents | • VIGI Solar System Controller• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Box Dimensions (W X D X H) | 580×320×225 mm (22.83×12.60×8.86 in) |
| Weight | Package Weight: 9.2 kg |
| Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)• Operating Humidity: 10%~90%RH, Non-condensing |
*This value is compared to the PWM (Pulse Width Modulation) controller. Actual performance will vary as a result of client limitations and environmental factors.
**Calculations based on laboratory testing. Actual performance will vary as a result of client limitations and environmental factors.
△A cycle represents one full charge and discharge. Based on 30Ah capacity with VIGI C540-4G, 500 cycles approximate a 10-year lifespan.
