Installation & User Guide

About This Guide

This guide provides a brief introduction to the Pan/Tilt AI Home Security Wi-Fi Camera and the Tapo app, as well as regulatory information. Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo Camera experience.

Conventions

In this guide, the following convention is used:

Convention   Description
Blue Key information appears in blue, including management page text such as menus, items, buttons and so on.
Underline  Hyperlinks are in blue and underlined. You can click to redirect to a website.
Note

Ignoring this type of note might result in a malfunction or damage to the device.

More Info

Specifications can be found on the product page at https://www.tapo.com.
Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
The setup video can be found at https://www.tp-link.com/support/setup-video/#cloud-cameras.

Introduction

When you are away home, there are always something you care about. This is where the smart camera functions. No matter your child is climbing the kitchen cabinet, or the pet is stealing snacks, the Pan/Tilt AI Home Security Wi-Fi Camera helps you stay with them anytime, anywhere. Receive a notification whenever your camera detects motion and see a video clip of this motion to check everything.

  • Capture Every Detail in 2K QHD: Delivers crystal-clear footage with razor-sharp resolution..
  • Free Person, Pet & Vehicle Detection: Identifies people, pets, and vehicle to minimize unnecessary notifications.
  • 360° Panoramic Pan/Tilt Control: Eliminate blind spots and enjoy a complete panoramic view.
  • Baby Crying Detection – Notifies you when your baby cries.
  • Two-Way Audio: Enables communication through a built-in microphone and speaker
  • Motion Detection and Tracking: Whenever a camera detects motion, it will automatically follow the subject.
  • Night Vision up to 40 ft: Provides a visual distance of up to 40 ft in total darkness
  • Customizable Block Zones: Set customizable block zones to keep private areas from being monitored.
  • Cloud Storage Supported – Store videos by using cloud storage services.
    *Subscribe for cloud storage at https://www.tapo.com/tapocare/
  • Local microSD Storage – Store up to 512 GB of video on a microSD card.

Appearance

System LED: It shows your camera status.

Lens: For capturing things within its view.

Microphone: For capturing your voice.

Tilt the camera lens up to find the microSD card slot and RESET button.

microSD card slot: Insert a microSD card (not included) and initialize it on the Tapo app for local recording.

RESET: While the camera is on, press and hold for 5 seconds to reset Wi-Fi settings only, and press and hold for 10 seconds to reset to factory settings.

 Tilt the lens up

System LED Indication

LED Status Indication
Solid red Starting up
Blinking red and green Ready for setup
Blinking red slowly Connecting to Wi-Fi
Solid amber Connected to Wi-Fi or wired network
Solid green Connected to the cloud
Blinking red quickly Camera resetting
Blinking green quickly Camera updating

Set Up Your Camera

Follow the steps below to get started with your new camera.

Step 1. Download Tapo App
Get the Tapo app from the App Store or Google Play, or by scanning the QR code below.

Download tapo app image with QR code.

Step 2. Log In
Open the app, and log in with your TP-Link ID. If you don't have an account, create one first.

Login page in the app
Step 3. Add Your Camera
Tap the + button in the app and search for your model. Follow app instructions to set up your camera.

Add device page in the app

Install a microSD Card

Follow the steps below to install the microSD card for local recording.
You can go to Camera Settings > microSD Card in the Tapo app to check the card status or format your card.

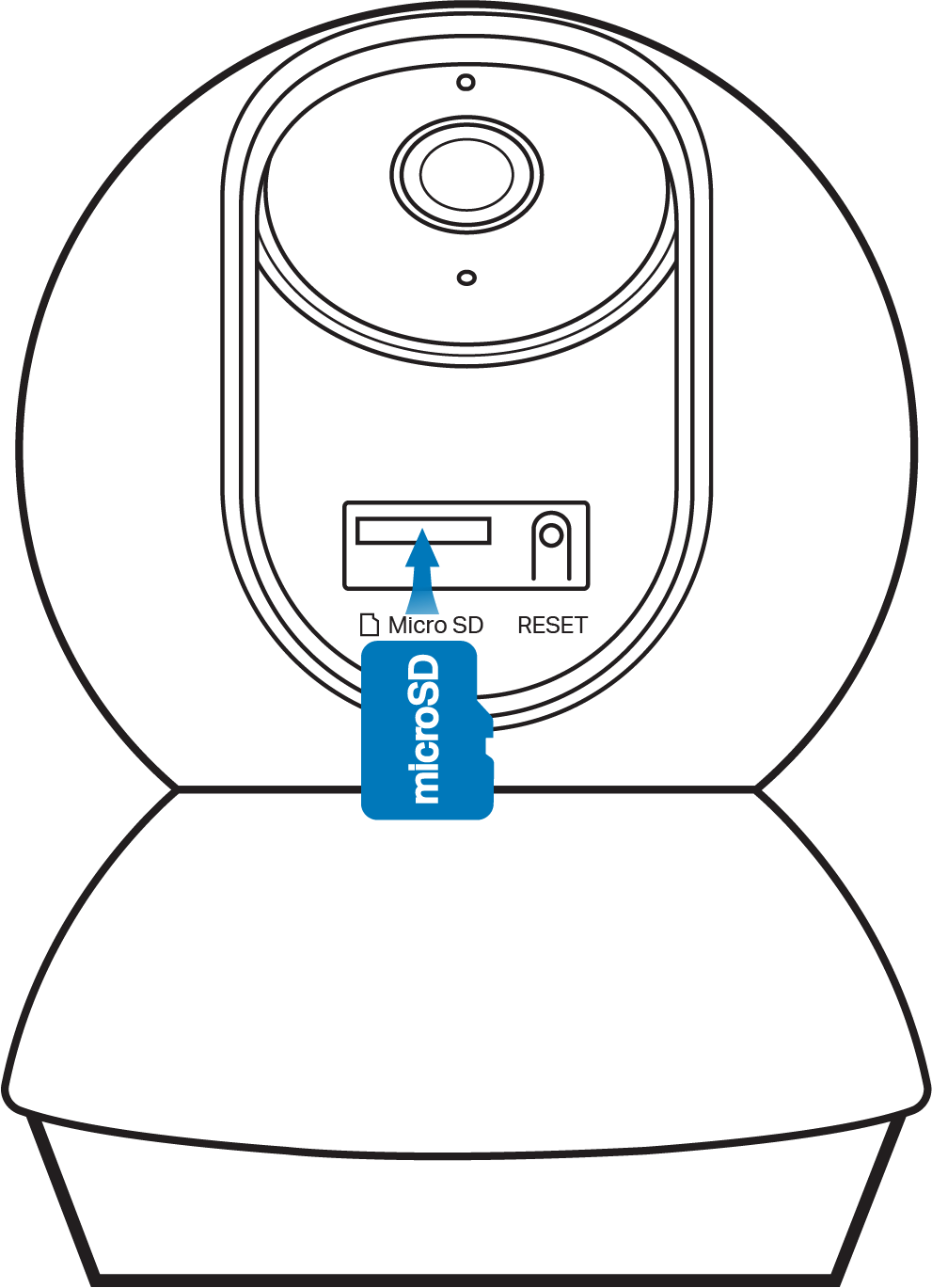

1. Manually rotate the camera upwards and find the microSD card slot.
2. Identify the direction of the microSD card and carefully insert the card into the slot. Push in the card until you hear a clicking sound.

Insert a microSD card



Mount Your Camera

1. Place the mounting template where you want the camera. For wall mounting, drill two holes through two circles.

Dirll homes according to the template

2. Affix the camera base using the screws.
For wall mounting, insert two anchors into the holes and use the screws to affix the camera base over the anchors.

Mount the camera base

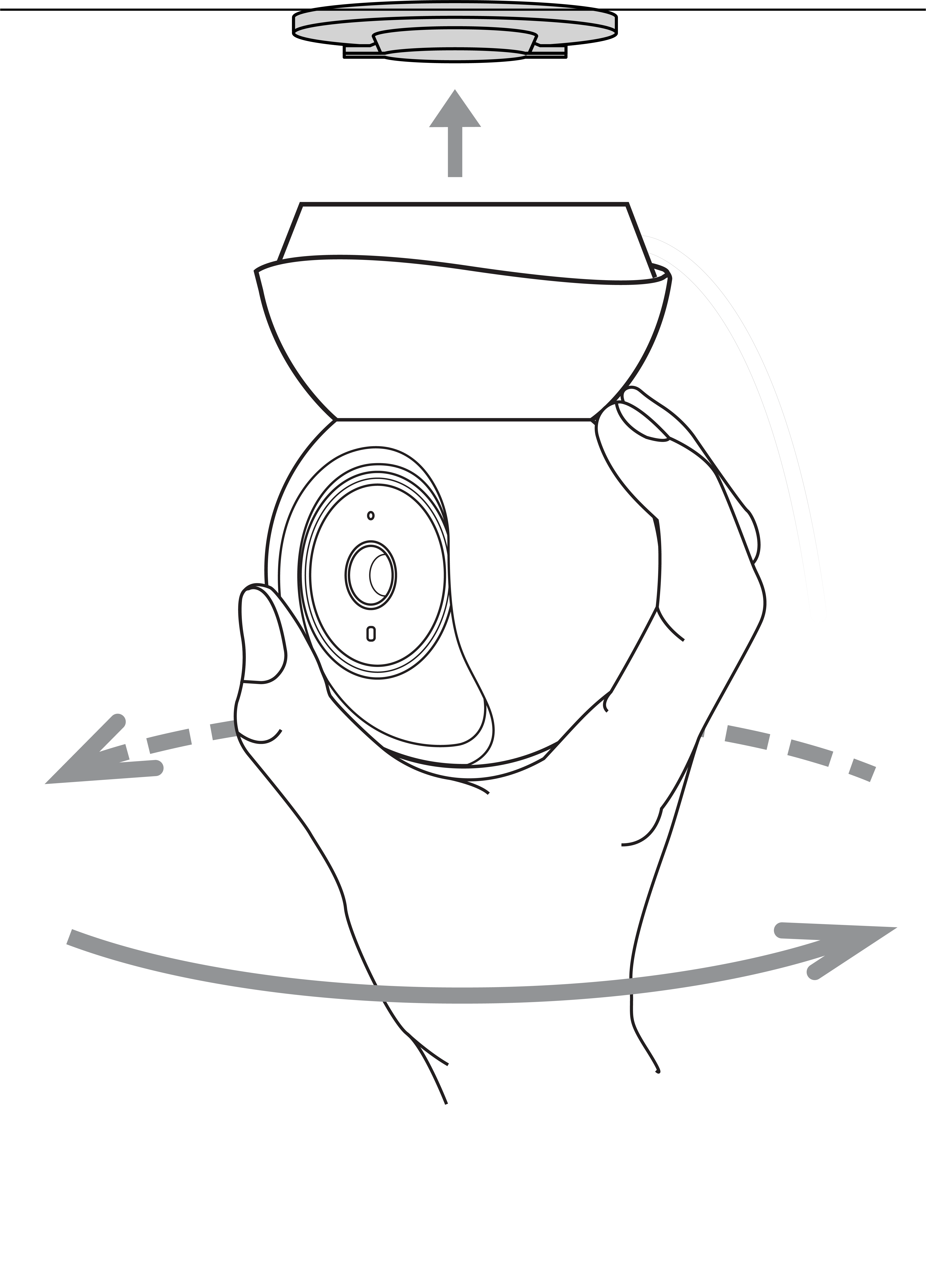

3. Attach the camera on the base and rotate to secure the camera.

Mount the camera to the camera base



Reset Your Camera

Follow the steps below to reset your camera via the Reset button.
You can also go to Camera Settings in the Tapo app and tap Remove Device at the bottom to factory reset your camera.

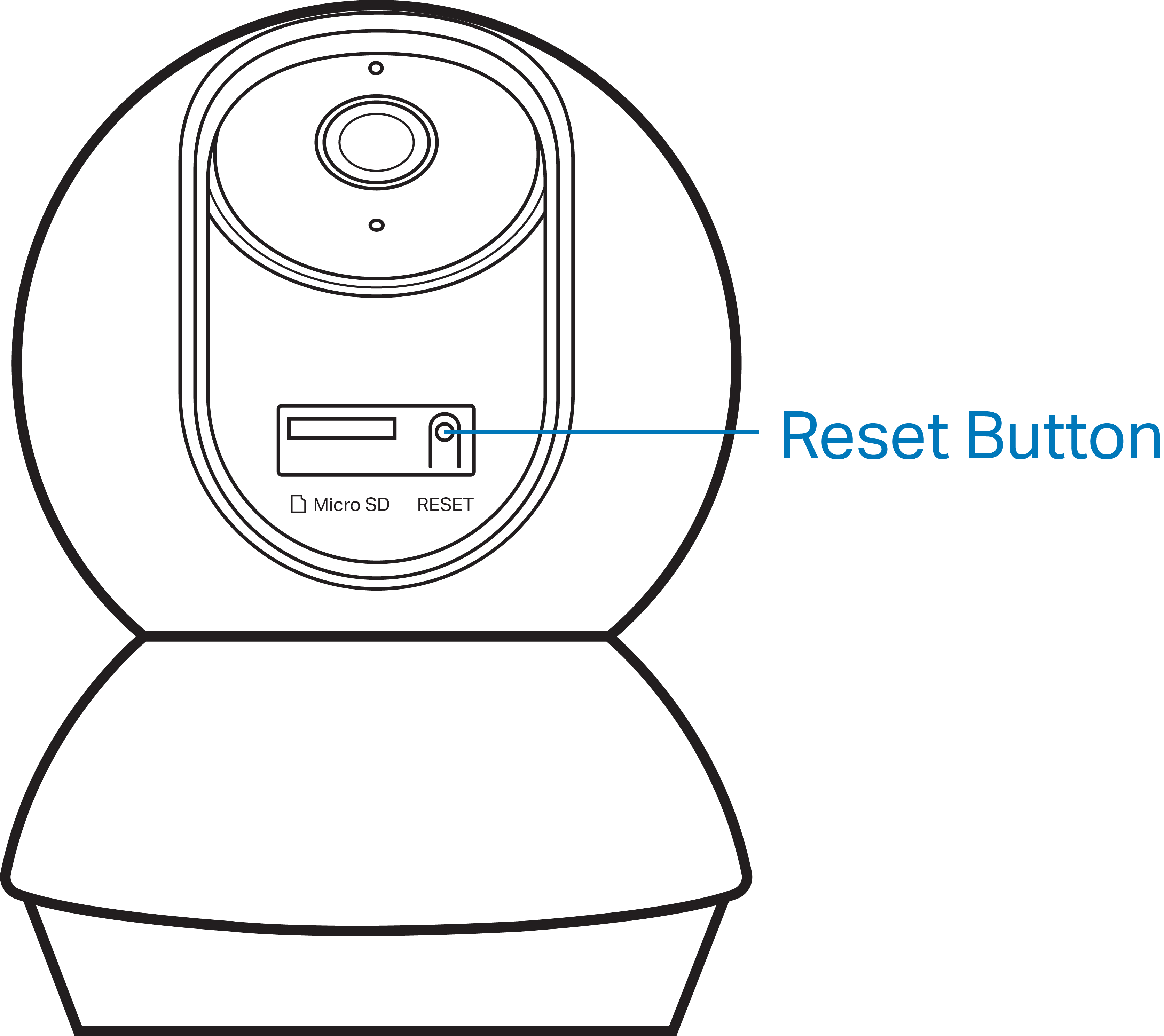

Manually rotate the camera downwards to find the Reset button. Press and hold the RESET button to reset the camera.
• Press and hold for 5 seconds until the LED blinks red slowly: Reset Wi-Fi settings only
• Press and hold for 10 seconds until the LED blinks red quickly: Reset to factory settings

   Press the Reset button





Support

For technical support, the user guide, FAQs, warranty and more, please visit https://www.tapo.com/support/

For help and support, scan this QR code to visit. website: https://www.tapo.com/support/

Authentication

FCC compliance information statement

FCC icon

Product Name: Pan/Tilt AI Home Security Wi-Fi Camera
Model Number: TCB72

Component Name Model
I.T.E. Power Supply T090060-2B1

Responsible Party:
TP-Link Systems Inc.

Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: sales.usa@tp-link.com
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference.
  2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.”
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2025-09-23

FCC compliance information statement
Product Name: I.T.E. Power Supply
Model Number: T090060-2B1
Responsible Party:
TP-Link Systems Inc.

Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: sales.usa@tp-link.com
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference.
  2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2025-09-23

Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

Industry Canada Statement
CAN ICES-003 (B)/NMB-003(B)

Safety Information
Keep the device away from water, fire, humidity or hot environments.
Do not use damaged charger or USB cable to charge the device.
Do not use any other chargers than those recommended.
Do not use the device where wireless devices are not allowed.
Adapter shall be installed near the equipment and shall be easily accessible.
Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don’t hesitate to contact us.
For indoor use only.
Do not disassemble, repair or modify the product.
Do not use the product if the casing has been broken. Danger of electric shock.
Never touch the product with wet hands.
Do not expose to heavy rain or any type of moisture.
Do not place near automatically controlled devices such as fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.
Observe restrictions on using wireless products in fuel depots, chemical plants or when blasting operations are in progress.
Do not use liquid to clean the product. Only use a dry cloth.
Never put metal objects inside the product. If a metal object enters the product turn off the circuit breaker and contact an authorised electrician.
This product is not intended to be used when providing medical care. Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids to determine if they are adequality shielded from external RF (radio frequency) energy.
Do not use this product in health care facilities. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
Do not use this product near water for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
The product should be kept free from excessive smoke, dust or high temperature and vibration.
This product should not be exposed to direct sunlight
Do not place heavy objects on top of the product.
When you leave the product unused for a long time unplug the product from the power outlet.
This product may interfere with other electronic products such as TV, radios, personal computers, phones or other wireless devices.
Operating Temperature: 0 °C ~ 40°C (32°F ~ 104°F)

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanation of the symbols on the product label
Note: The product label is on the bottom of the product and its power supply. Symbols may vary from products.

Symbol         Explanation
authtication icon Class II equipment
authtication icon Class II equipment with functional earthing
authtication icon Alternating current
authtication icon DC voltage
authtication icon Polarity of output terminals
authtication icon Indoor use only
authtication icon Dangerous voltage
authtication icon Caution, risk of electric shock
authtication icon Energy efficiency Marking
authtication icon Protective earth
authtication icon Earth
authtication icon Frame or chassis
authtication icon Functional earthing
authtication icon Caution, hot surface
authtication icon Caution
authtication icon Operator’s manual
authtication icon Stand-by
authtication icon “ON”/”OFF” (push-push)
authtication icon Fuse
authtication icon Fuse is used in neutral N
authtication icon RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
authtication icon Caution, avoid listening at high volume levels for long periods
authtication icon Disconnection, all power plugs
m Switch of mini-gap construction
µ Switch of micro-gap construction (for US version)
Switch of micro-gap / micro-disconnection construction (for other versions except US)
ε Switch without contact gap (Semiconductor switching device)
