Tapo C401 V2_ Datasheet

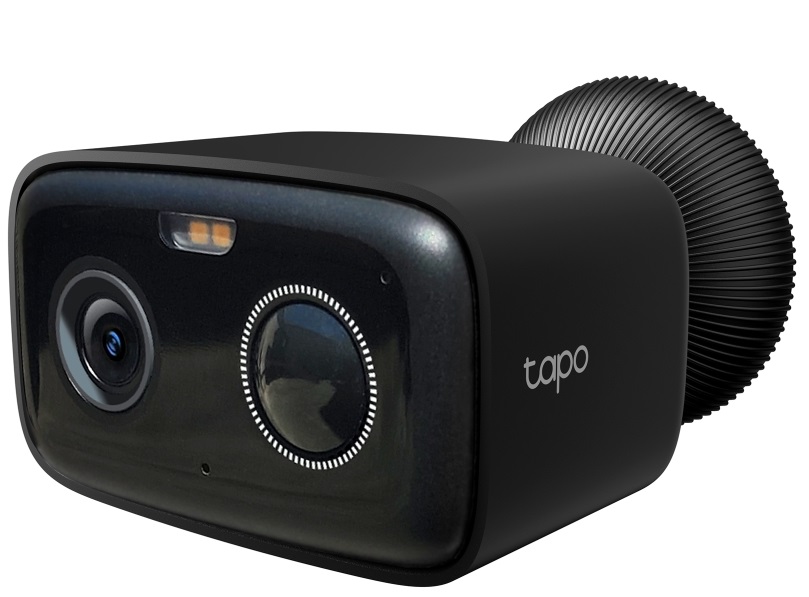

Battery-Powered Outdoor Security Camera
Overview
· Your Property, Protected: Deter package theft, keep an eye on your garden, monitor your driveway for suspicious activity, and safeguard your backyard from potential intruders.
· Up to 180-Day Battery Life: Go wire-free and worry-free. The built-in 5,200mAh battery provides up to 180 days of power before needing to recharge.*
· Person Detection – No Subscription Required: Stay informed with AI-powered person detection and real-time notifications.
· See Clearly, Day & Night: Experience sharp, detailed 1080P Full HD live view and vibrant color night vision for complete home monitoring.
· Local & Cloud Storage: Record locally to a 512GB microSD card (not included) or subscribe to Tapo Care for 30-day cloud storage.**
· Tailored Alerts & Enhanced Privacy: Receive only the alerts you need by creating custom activity zones and maintain privacy with custom privacy zones.
· Year-Round Weather Protection: Built to last, the IP65 weatherproof design protects your camera from the elements, ensuring reliable performance year-round.
 |
1080P Full HD Enhance your home security with crystal-clear 1080p live view. Identify details with exceptional precision. |
 |
Crisp Two-Way Audio Communicate in real time through a built-in microphone and speaker. |
 |
Activity Zones Set up your own activity zones to only receive alerts that matter. |
 |
Year-Round Weather Protection The IP65 weatherproof design protects your camera from the elements, ensuring reliable performance year-round. |
 |
Customizable Alarm Create a completely custom sound and light alarm. |
 |
Local and Cloud Storage Supported** Save recorded videos on the microSD card* (up to 512 GB) or by using Tapo Care cloud storage services. |
 |
Pair with Smart Assistants*** Includes seamless integration with Amazon Alexa and Google Assistant. View live streams on your Echo Show or Chromecast. |
| Camera | |
| Image Sensor | 1/3'' Progressive Scan CMOS Sensor |
| Lens | Focal Length: 3.16 mm Aperture: F1.6 Field of View: 116.7° (Diagonal), 99.7°(Horizontal), 53.8°(Vertical) |
| Night Vision | 2 x 850 nm IR LEDs (32.8 ft / 10 m) Color Night Vision |
| Night Mode | IR-Mode/ Full-Color Mode |
| Day/Night Switch | IR-Cut Filter with Auto-Switching |
| Lighting |
2 x White Lights Motion Activated, App-Controlled |
| Interface & Button | 1× POWER Button 1× RESET Button 1× microSD Card Slot (Up to 512 GB) |
| Video & Audio | |
| Maximum Resolution | 1080P 2MP (1920 × 1080 px) |
| Focal Length | 15fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3D DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 70 dBA (Level measured at 3 m distance) |
| Storage | |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) (SD Card Purchased Separately) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Detection & Notification | |
| Sensor | Single Motion Sensor (FOV: 120° horizontal) |
| Detection | Motion Detection AI Detection (Person Detection) |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| Network | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Transmission Rate | 11b: 11 Mbps 11g: 54 Mbps 11n: 72.2 Mbps |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Security | |
| Security | 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| Power | |
| Power Source | • Built-in Rechargeable Lithium-ion Battery • Optional Solar Panel (Sold separately) |
| Camera Adapter Input | 100-240 V, 50/60 Hz,0.2 A (Not included) |
| Camera Adapter Output | 5.0 V, 1.0 A, Type-C Power (Not included) |
| Power Cord Length | USB Adapter Cable Length: 0.5 m (19.68 in.) |
| Camera Typical Power Consumption | 0.84 W |
| Camera Maximum Power Consumption | 1.94 W |
| General | |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP65 |
| Mounting Options | Wall-Mounted |
| Operating Temperature | -20℃~ 45℃ (-4 ℉~ 113℉ ) |
| Storage Temperature | -40℃~ 60℃ (-40 ℉~ 140℉ ) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Charging Temperature | 0℃ ~ 45℃ (32 ℉~ 113℉ ) |
| Weight | 205 g / 7.23 oz |
| Dimensions | 81*48*58.32 mm (3.19*1.89*2.3 in.) |
| Package Contents |
Tapo Camera ×1 |
| Mounting Screw Size |  |
* 180-day battery life is based on Tapo laboratory tests with 250s of use per day. The time of use includes recording and watching live views. Actual battery life may vary due to device settings, usage, router specifications, and environmental factors.
**microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used. Subscribe for cloud storage at https://www.tapo.com/tapocare/
***Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected device's specifications.
For more information, please visit https://www.tapo.com/
All brands and product names are trademarks or registered trademarks of their respective holders. Specifications are subject to change without notice.
