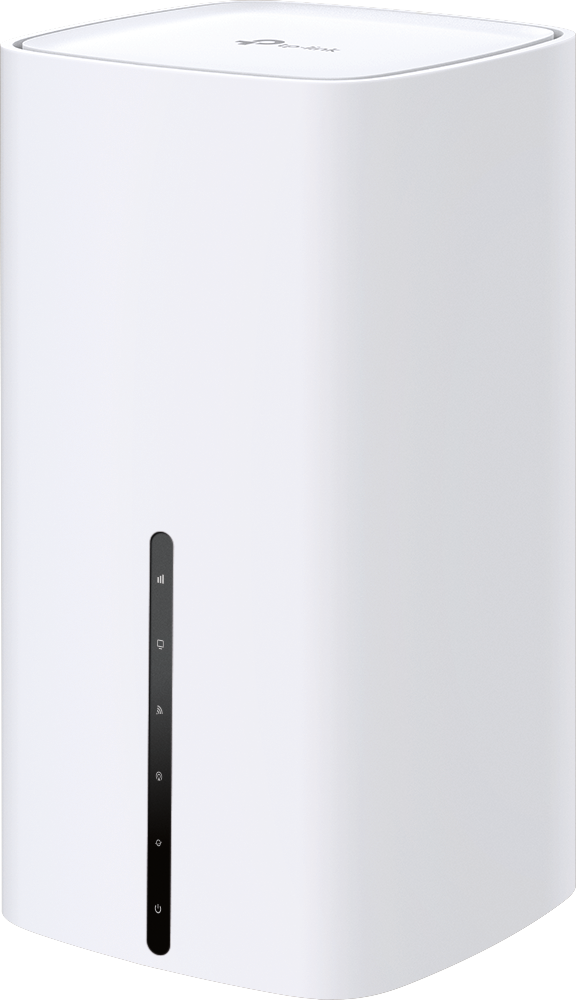

Archer NX200_V3_Datasheet
5G AX1800 Wireless Dual Band Gigabit Router
 |
Superior 5G up to 4.67 Gbps※ |  |
 |
Dual Band Powerful Wi-Fi 6 | |
 |
EasyMesh-Compatible Seamless Wi-Fi☆ | |
 |
SIM Card Plug & Play◇ |
Highlights
Superior 5G – A Revolutionary Experience
Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX200 is backward compatible with 4G mode.※
Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 8 5G/LTE antennas to deliver a smooth connection. Simply plug in a Nano SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remote.◇
AX1800 – Powerful Wi-Fi 6
Up to 1800 Mbps Wi-Fi brings you incredibly fast dual-band speeds up to 3× faster than the previous AC generation of Wi-Fi, perfect for vivid 8K/4K streaming, intense online gaming, and more.†
EasyMesh-Compatible Networking☆
Mesh networking creates smooth, fast, stable roaming. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.
Available WAN Connection
The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.§
Maximum Network Coverage
Advanced 5G/LTE antennas make efficient and stable connections to every device. Power Amplifier and Low Noise Amplifier boost sending and receiving capabilities, creating a wide-coverage Wi-Fi network for your home
Features
 |
5G Network · 5G – Ideal for cutting-edge 5G network |
|---|---|
 |
Wi-Fi Speed · Superior Wireless Speed – Combined wireless speeds up to 574 Mbps over 2.4 GHz, and 1201 Mbps over 5 GHz |
 |
Wi-Fi Range · Great Coverage – Better coverage with integrated Wi-Fi omnidirectional antennas |
 |
Reliability · Simultaneous Dual Band – Separate Wi-Fi bands enable more devices to connect to your network without a drop in performance |
 |
Ease of Use · Intuitive Web UI – Ensures quick and simple installation without hassle |
 |
Security · Guest Network – Keeps your main network secure by creating a separate network for friends and visitors |
Specifications
|
Hardware |
|
|---|---|
|
Interface |
2×Gigabit LAN Ports 1×Gigabit WAN/LAN Port 1×Nano SIM Card Slot 2×SMA ports for 5G/4G External Antennas 1×Power port |
|
Buttons |
Wi-Fi/WPS Button, Reset Button, Power Button |
|
Antennas |
2×Internal Wi-Fi Antennas, 8×Internal NR/LTE Antennas |
|
External Power Supply |
12V/2A |
|
Dimensions (W x D x H) |
3.9 x 3.9 x 7.5 in (99 x 99x 190 mm) |
|
Wireless |
|
|
Network Type |
EU & SE： 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/1500/1500/3700/3500 MHz) 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz) TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) ME： 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/600/3700/3500 MHz) 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28/B71 (2100/1800/850/2600/900/800/700/600 MHz) TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
|
Wireless Standards |
IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz |
|
Frequency |
2.4 GHz and 5 GHz |
|
Signal Rate |
574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
|
EIRP (CE) |
＜20dbm(2.4 GHz); ＜23dbm(5 GHz) |
|
Reception Sensitivity |
• 5 GHz: 11a 54M: -78dBm 11ax HE20: -66 dBm 11ax HE40: -63 dBm 11ax HE80: -60 dBm 11ac VHT20: -73 dBm 11ac VHT40: -69 dBm 11ac VHT80: -66 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm • 2.4 GHz: 11g 54M：-78 dBm 11ax HE20：-65 dBm 11ax HE40：-62 dBm 11ac VHT20：-73 dBm 11ac VHT40：-68 dBm 11n HT20：-75 dBm 11n HT40：-72 dBm |
|
Wireless Function |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
|
Wireless Security |
WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3 encryptions |
|
Software |
|
|
Operating Modes |
3G/4G/5G Router, Wireless Router |
|
WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
|
DHCP |
Server, DHCP Client List, Address Reservation |
|
Quality of Service |
Bandwidth Control |
|
Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
|
Dynamic DNS |
TP-Link, DynDns, NO-IP |
|
VPN Server |
PPTP VPN, IPSec VPN, OpenVPN |
|
Firewall Security |
DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control |
|
Protocols |
IPv4, IPv6 |
|
Management |
Access Control, Local Management, Remote Management, reboot schedule |
|
Guest Network |
2.4 GHz guest network x 1, 5 GHz guest network x 1 |
|
Others |
|
|
Certification |
CE, RoHS |
|
Requirements |
• Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version • Nano SIM Card |
|
Environment |
• Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
|
Package Contents |
• 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200 • RJ45 Ethernet Cable • Power Adapter • Quick Installation Guide |
Disclaimer
Attention: This device may only be used indoors in all EU member states, EFTA countries and Northern Ireland.
Attention: This device may only be used indoors in Great Britain.
Specifications are subject to change without notice. TP-Link is a trademark of TP-Link Systems Inc. or its affiliates. Other brands and product names are trademarks or registered trademarks of their respective holders. ©2025 TP-Link Systems Inc. All rights reserved.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax) and its features including OFDMA, MU-MIMO, 1024-QAM require clients to also support the corresponding features.
§Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
△Use of WPA3 requires clients to also support the corresponding feature.
☆TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent software updates.
※Maximum 5G download and upload speeds depend on external factors such as the local 5G network coverage, data plan, real-time network capacity, client limitations, and environmental factors. Actual supported frequency bands may vary slightly in different regions due to certification.
◇This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the quick installation guide for unlocking instructions.
