Installation & User Guide
About This Guide
This guide provides a brief introduction to the Smart IoT & IR Hub and the Tapo app, as well as regulatory information. Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo Hub experience.
Conventions
In this guide, the following convention is used:
| Convention | Description |
|---|---|
| Blue | Key information appears in blue, including management page text such as menus, items, buttons and so on. |
| Underline | Hyperlinks are in blue and underlined. You can click to redirect to a website. |
| Note |
Ignoring this type of note might result in a malfunction or damage to the device. |
More Info
Specifications can be found on the product page at https://www.tapo.com.
Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
Introduction
The Smart IoT & IR Hub is your all-in-one smart universal remote control.
- All-in-One Infrared Remote Control: Take control of all your infrared appliances. Eliminate the hassle of juggling multiple remotes.
- Superior Compatibility: Supports 18 device types and over 8,000 brands to cover all your needs even your older appliances. The Compatibility database is updated every 3 months to support the latest models.
- Hands-Free Voice Control: Use simple voice commands via Siri, Alexa, or Google Assistant, to control your appliances without looking for your phone or remote control.
- Control Anytime, Anywhere via the App: Control your devices from the app anytime, anywhere, such as turning off the air conditioner you forgot to turn off when you're out.
- Set Custom Schedules: Create smart schedules for your appliances to fit your daily routine for further convenience.
- Location Control: Use GPS to detect your proximity and control appliances to ensure a comfortable home as soon as you arrive.
- Matter-Certified Connection Center: Connects and controls IR appliances and Tapo sensors, integrating them into the Matter ecosystem.*
- Even More Convenient with Tapo Smart Actions: Work seamlessly with Tapo smart devices such as sensors and cameras for a better smart life.
- Paring Home Appliances Made Easy: Press any button on the remote, and complete a few quick button tests in the app to pair your devices.
- Offline Control: Even if the external network disconnects, the hub remains controllable via the Tapo app as long as your smartphone and hub are on the same LAN.

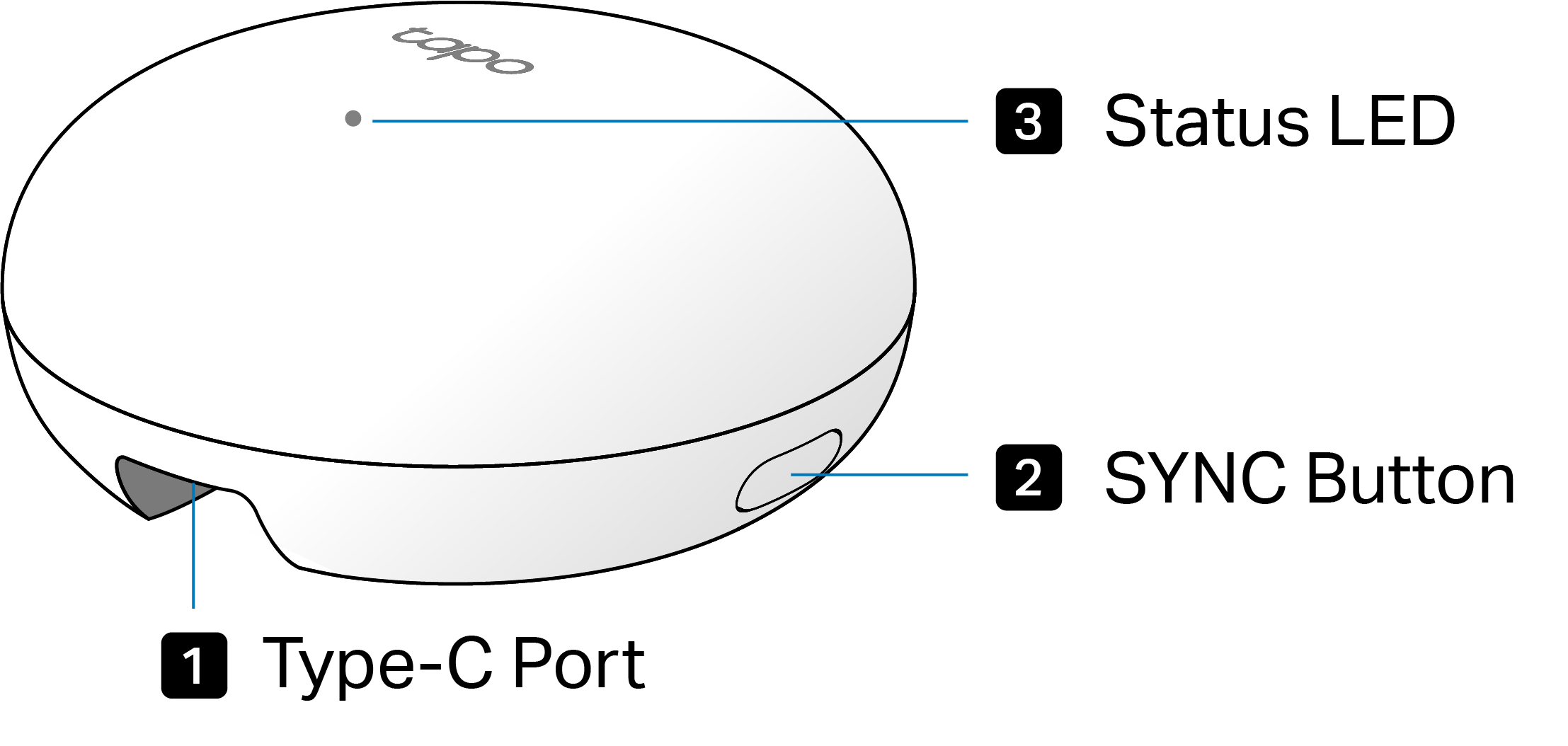

Appearance
1. USB Type-C Power Port
2. SYNC button:
• Press for 1 second: Enter pairing mode to connect your Tapo accessory.
• Press and hold for 5 seconds: Reset Wi-Fi settings while retaining other configurations.
• Press and hold for 10 seconds: Restore all settings to factory defaults.
3. System LED: Indicates device status.
LED Indications:
| Indicator Display | Situation |
|---|---|
| Solid white |
Starting up; Connected to Cloud |
| Blinking white & amber slowly | Ready for setup |
| Blinking amber quickly |
Connecting to Wi-Fi; Offline |
| Solid amber | Connected to Wi-Fi |
| Blinking white slowly | Hub updating |
| Blinking white & amber quickly | Hub resetting |
| Blinking white once | Emitting IR signal |
| Blinking white twice | Learning button succeeded |
| Blinking white slowly | Pairing with Tapo accessory |
Set Up Your Hub
Follow the steps below to get started with your new hub.
Step 1. Download Tapo App
Get the Tapo app from the App Store or Google Play, or by scanning the QR code below.
Step 2. Log In
Open the app, and log in with your TP-Link ID. If you don't have an account, create one first.
Step 3. Add Your Camera
Tap the + button in the app and search for your model. Follow the app instructions to complete setup.
Mount Your Hub

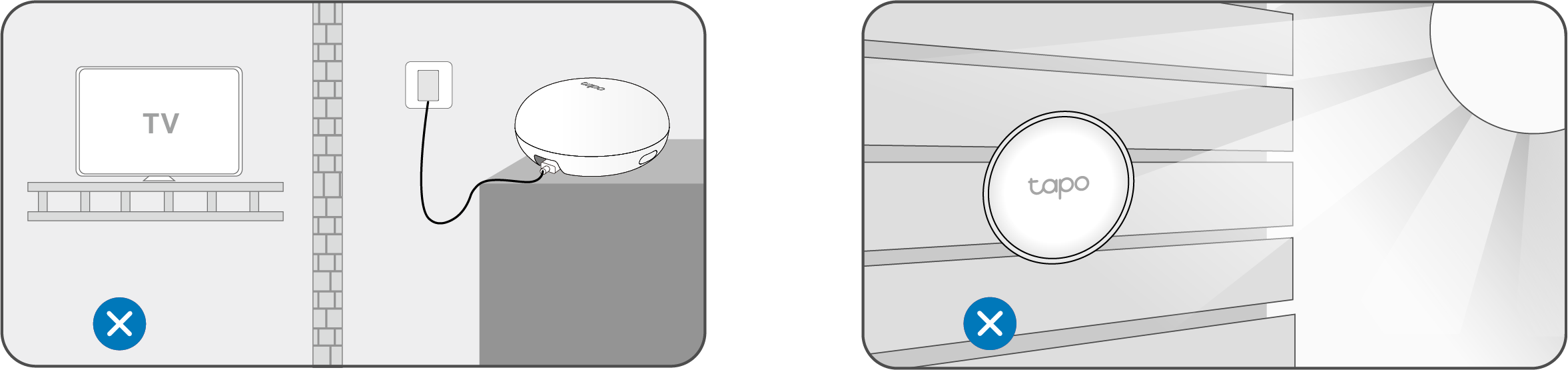

Placement Tips
- Keep the hub and your appliances free from walls or obstacles that may block infrared signals.
- Avoid direct sunlight or placing the front of the hub too close to incandescent lamps to prevent interference.
- Keep the hub away from large metal surfaces, as they may weaken the Sub-1G signal strength.
Position your hub within the infrared signal range. You can place it on a flat surface or mount it on a wall. There are two mounting options for wall installation:

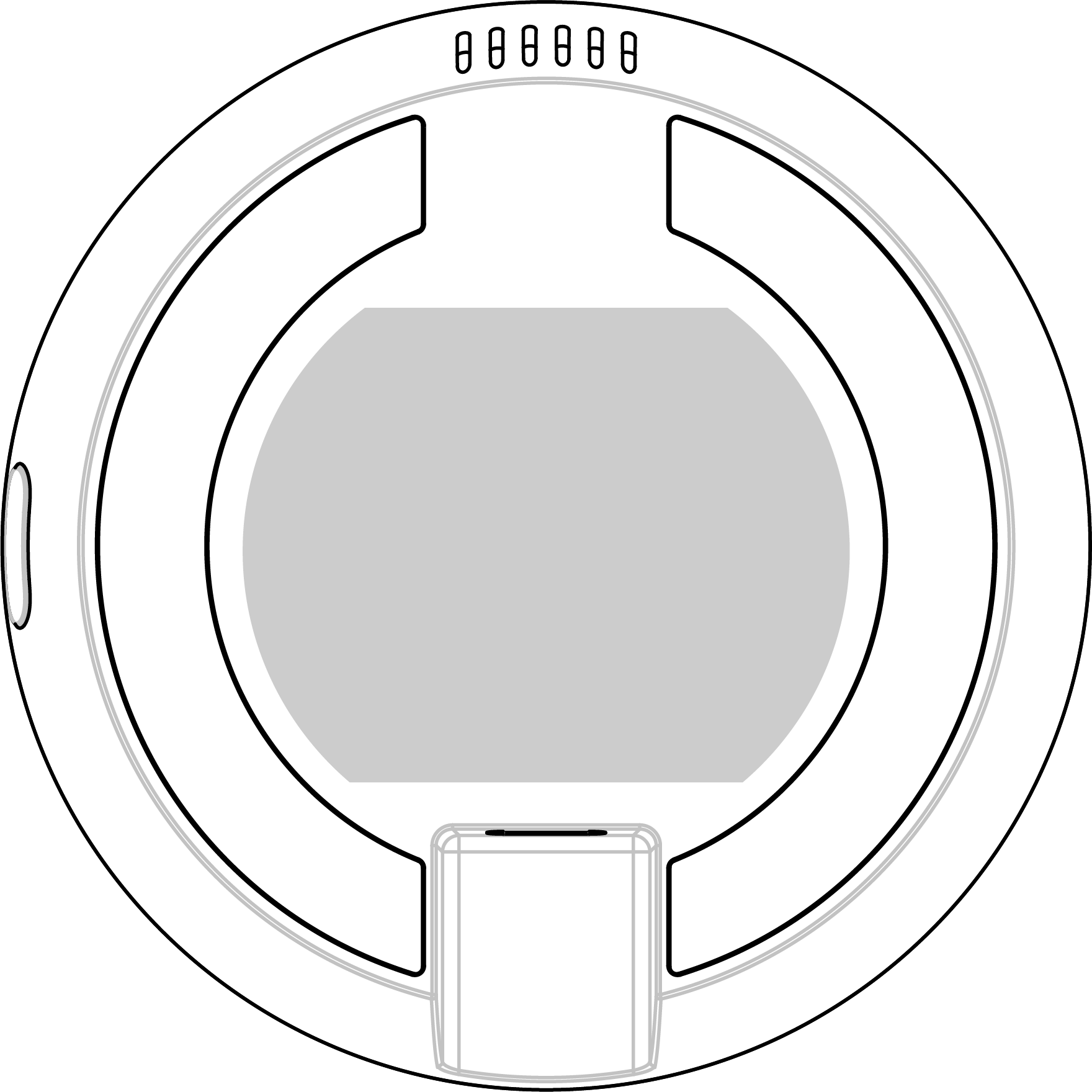

Option 1: Adhesive Mount
1. Attach the included adhesive to the back of the Tapo Hub.
2. Clean the wall surface, then firmly press the hub with the adhesive onto the clean wall.

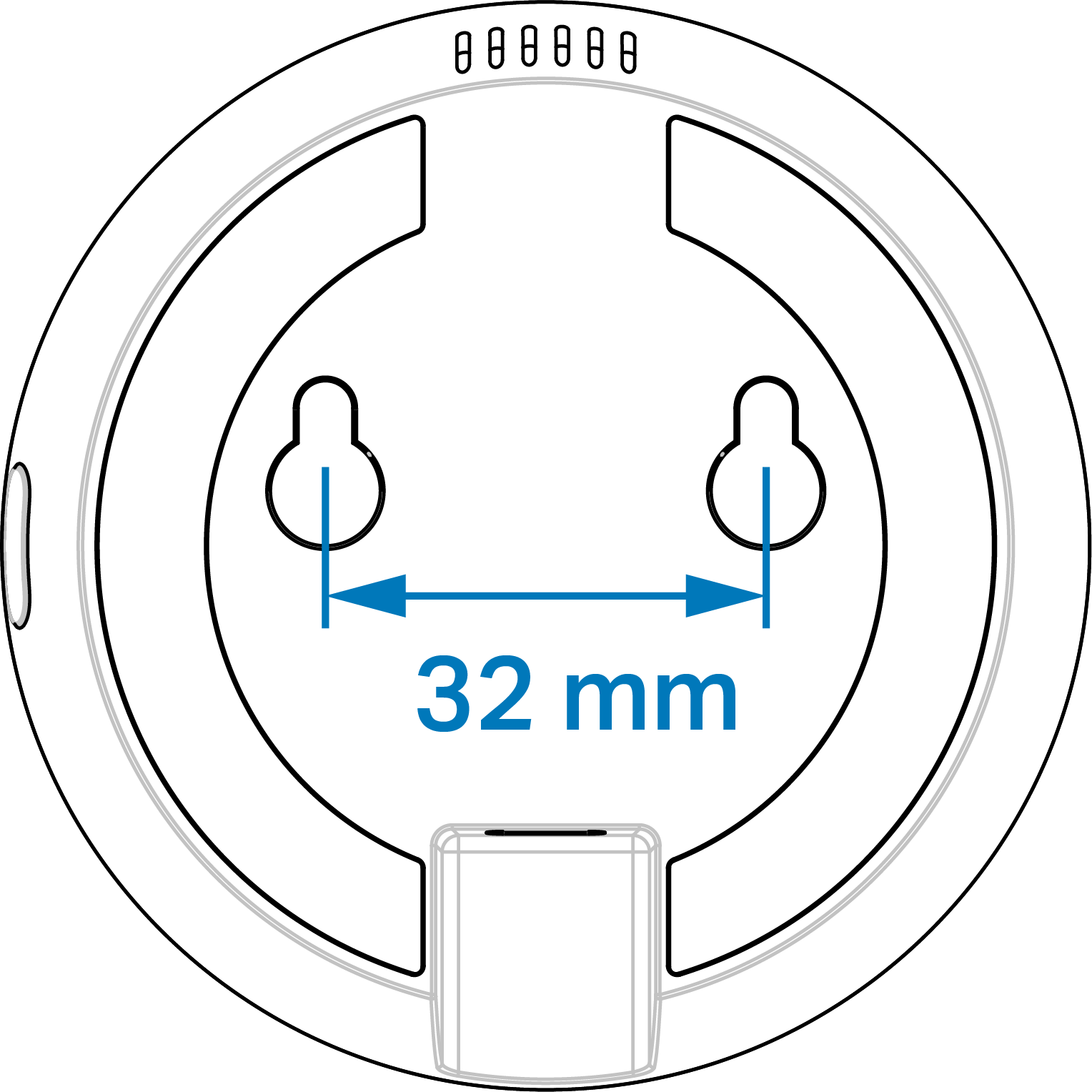

Option 2: Screw Mount
1. Mark two screw hole locations on the wall, spaced 32 mm apart.
2. Drill two screws (M3-M4 size) into the wall, then securely attach the hub.

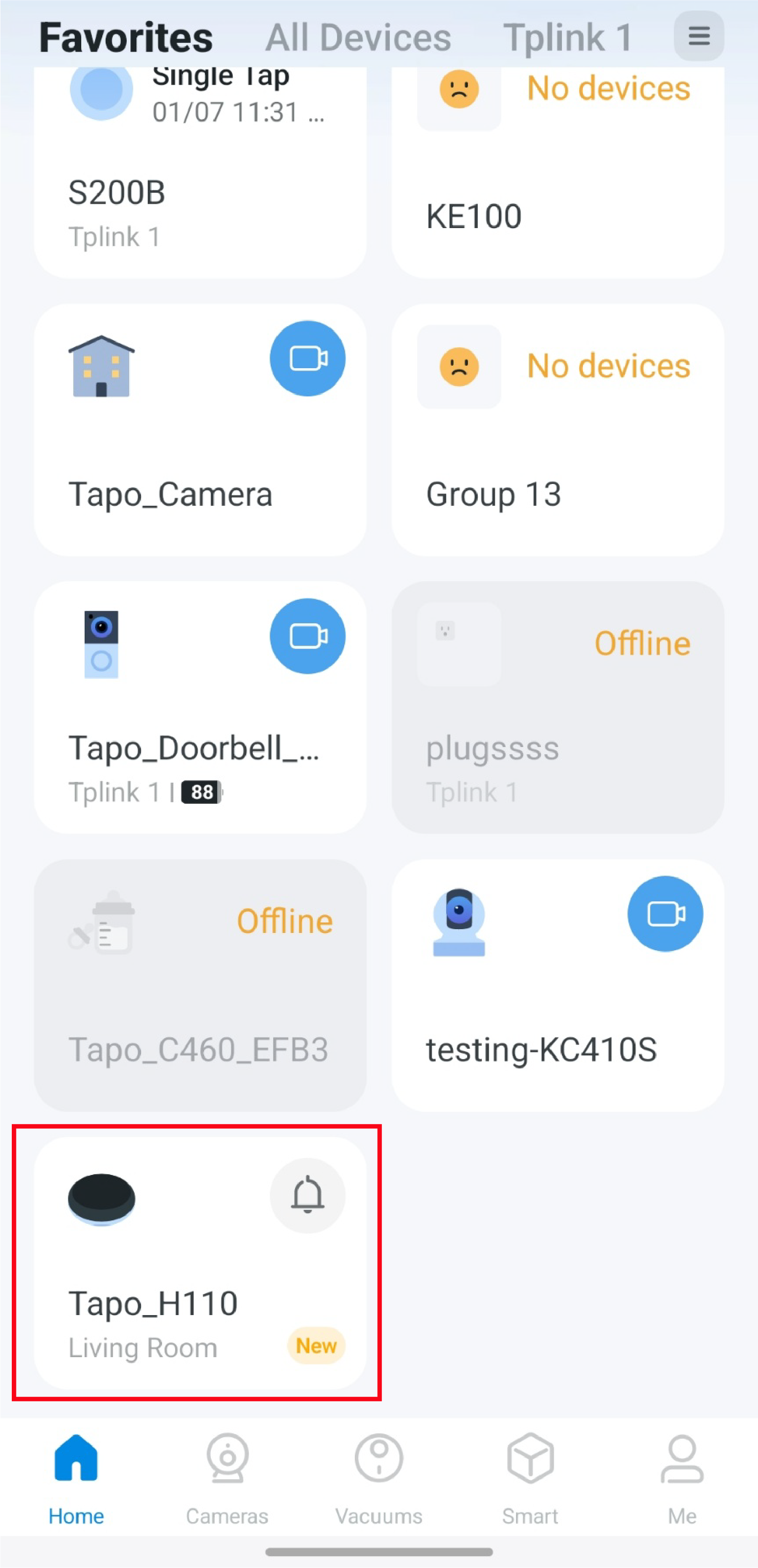

Main Device Control
After setup, your device will be listed on the Home page. You can tap your device to manage it.

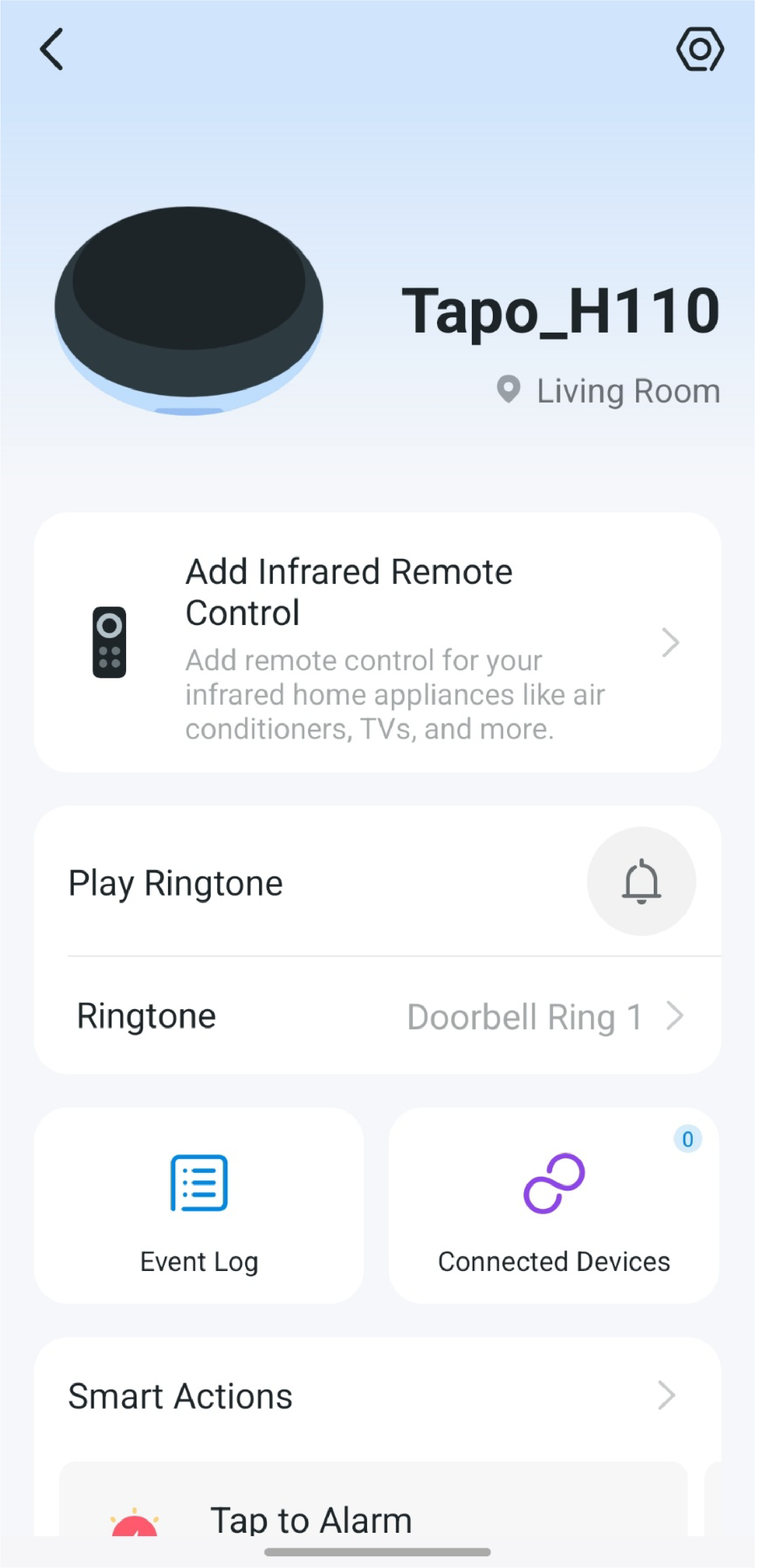

Home Page Status Page

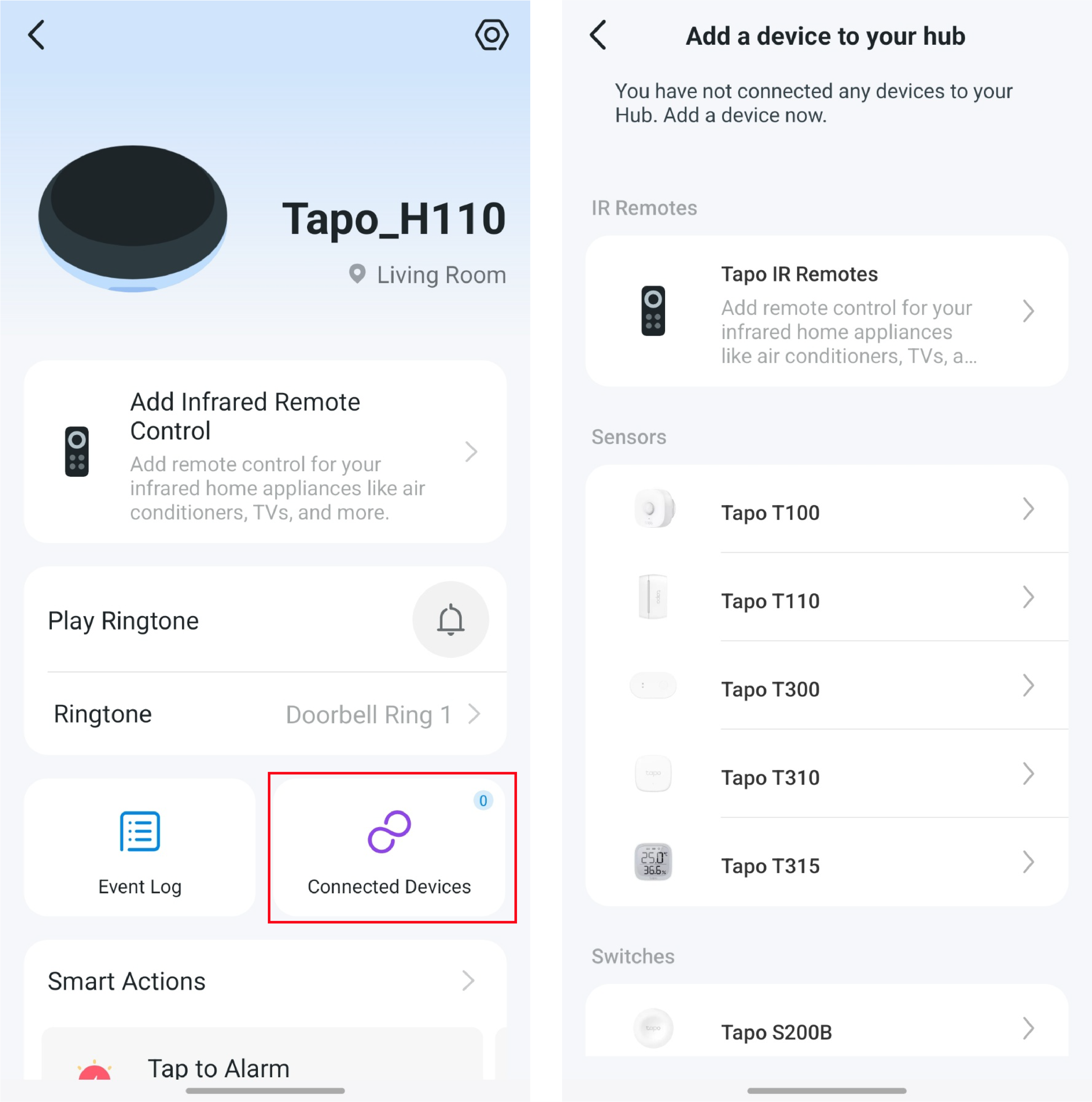

Add Tapo Accessories
Tap Connected Devices in the Status page and select your device type and follow app instructions to add a Tapo sensor, sub-1G light switch, or a thermostat to your Hub.
You can also find your already connected Tapo devices and IR remote controls on this page.

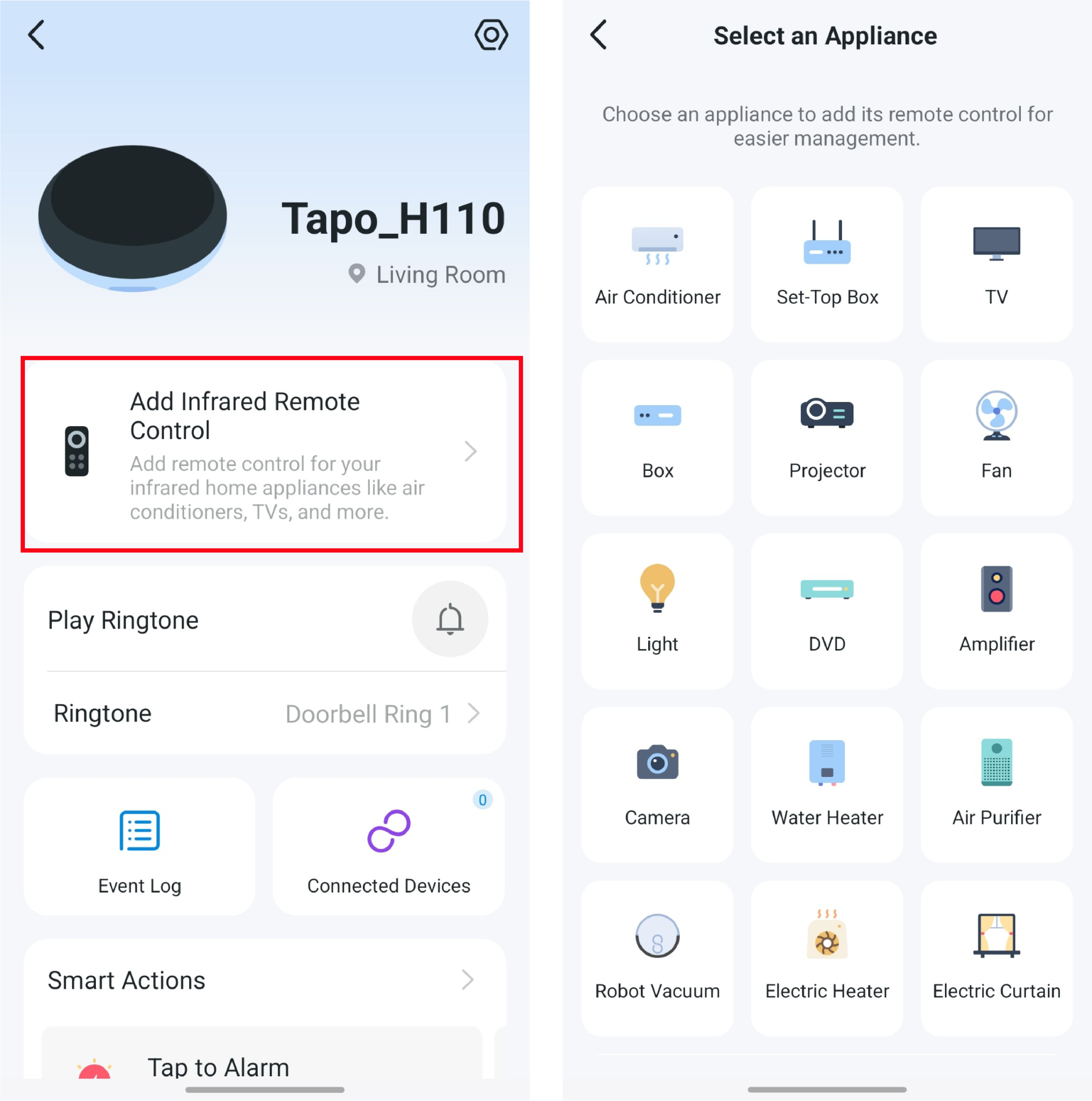

Add IR Remote Controls
1. Tap Add Infrared Remote Control on the Status page. Or tap Connected Devices and then Tapo IR Remotes.

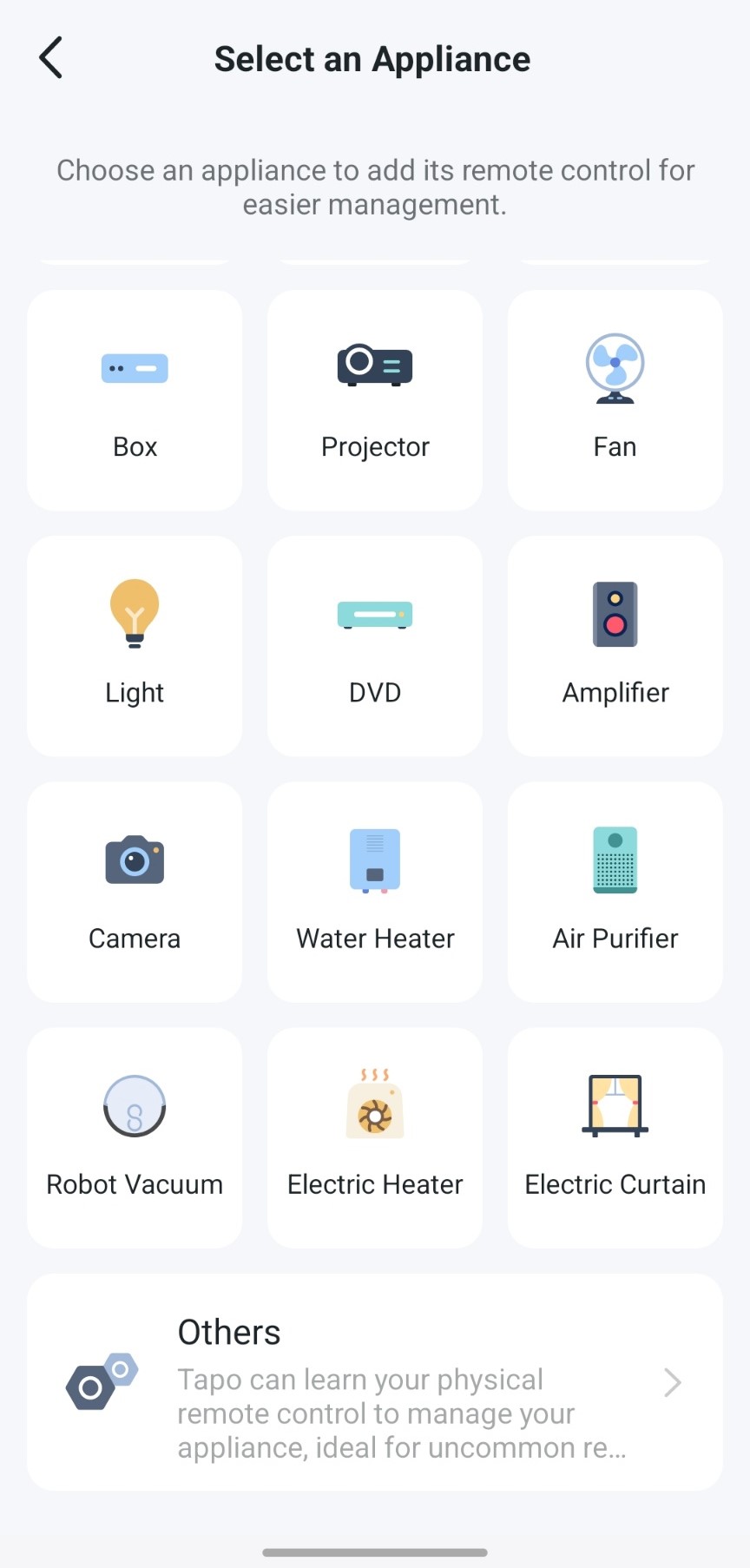

2. Select your appliance type, adding method, and the brand, then follow app instructions to pair your IR remote controls.

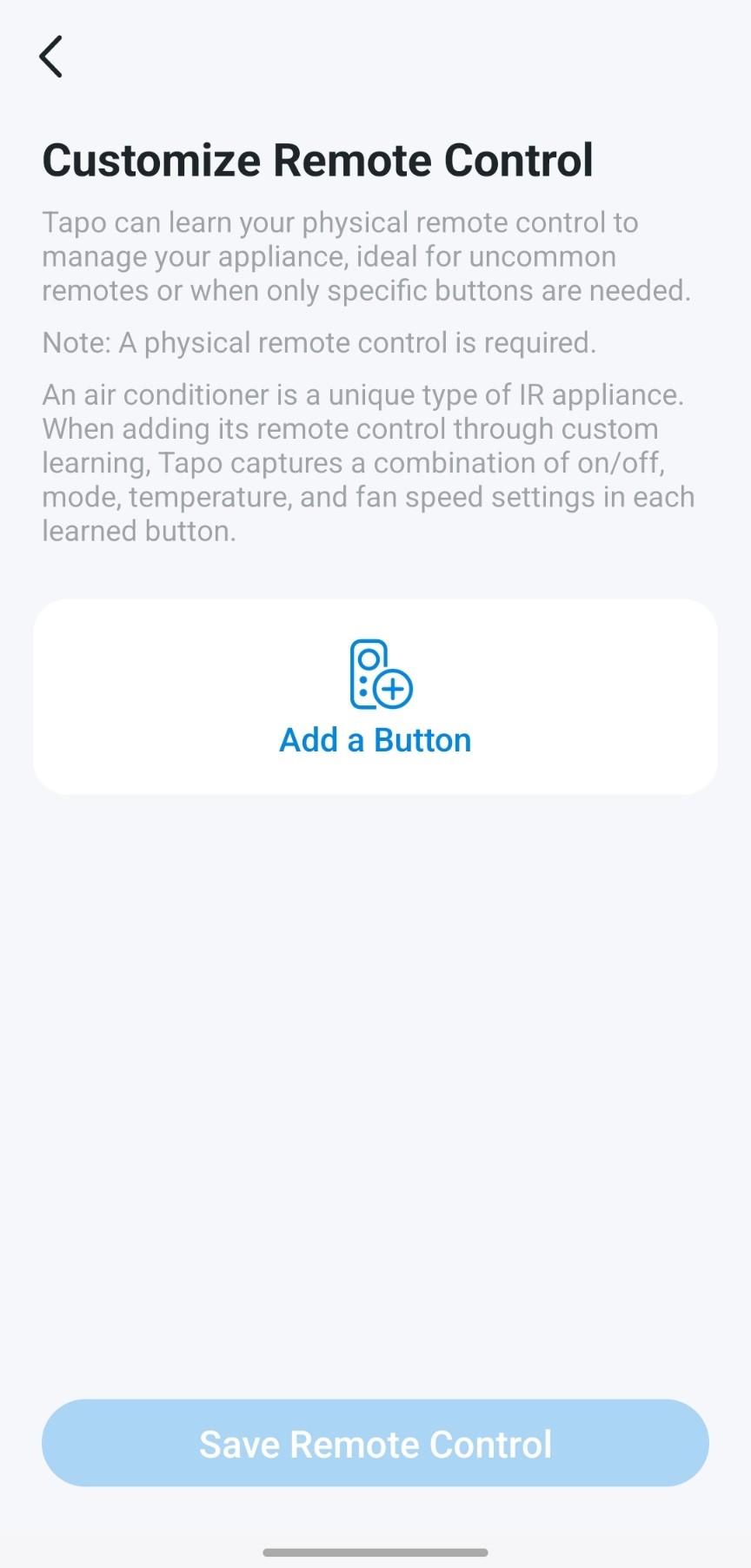

If your appliance's brand is not listed, tap Didn't find your brand? at the bottom and follow app instructions to pair your IR remote controls.
3. If you want to add remote controls for your other appliances than those listed, select Others at the bottom. You can add a remote control by learning the buttons one by one.
Note: A physical remote control is required.

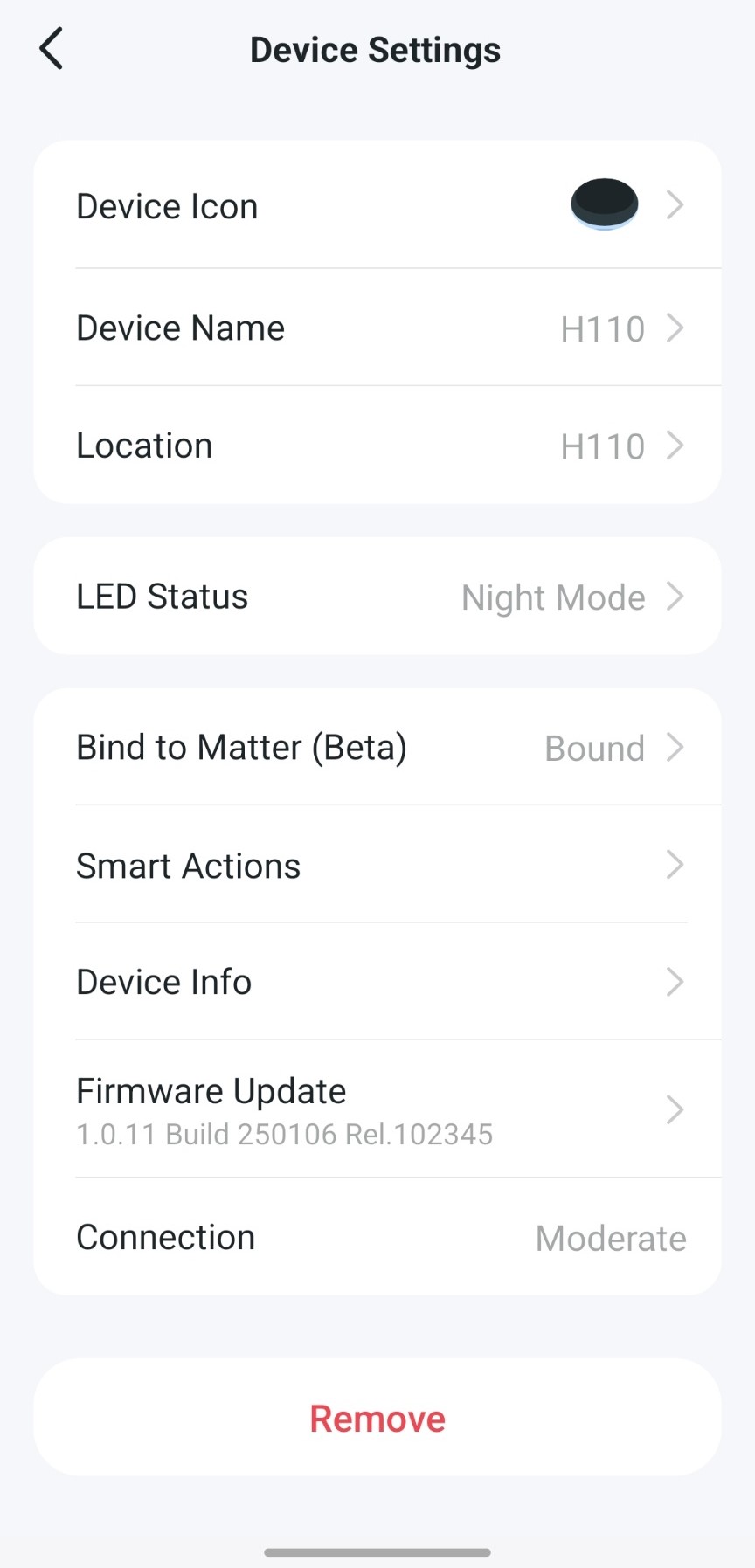

Manage Device Settings
Tap the icon on the upper right corner on the Status page to enter the Device Settings page.

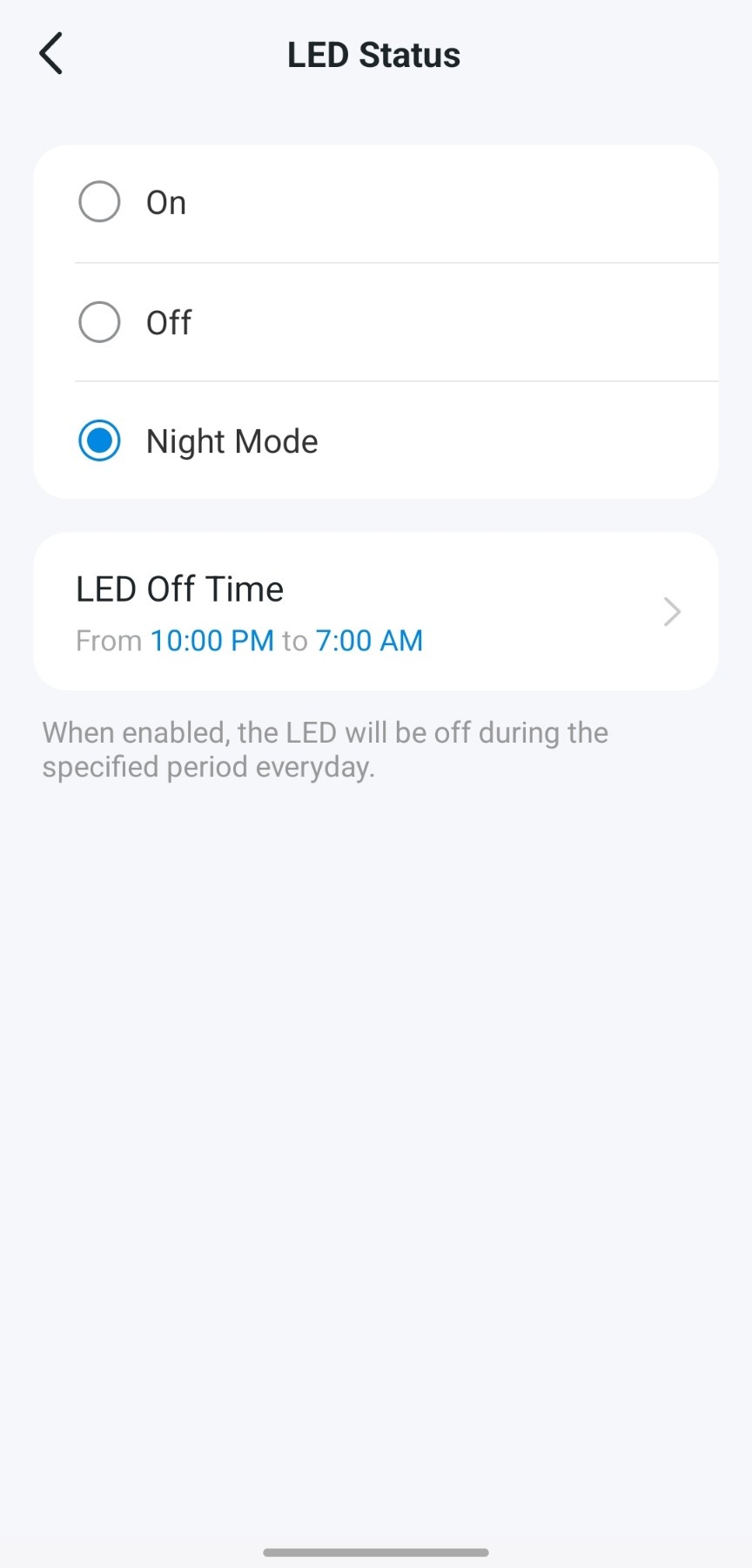

1. Set LED Status
Tap LED Status and select LED status you want.

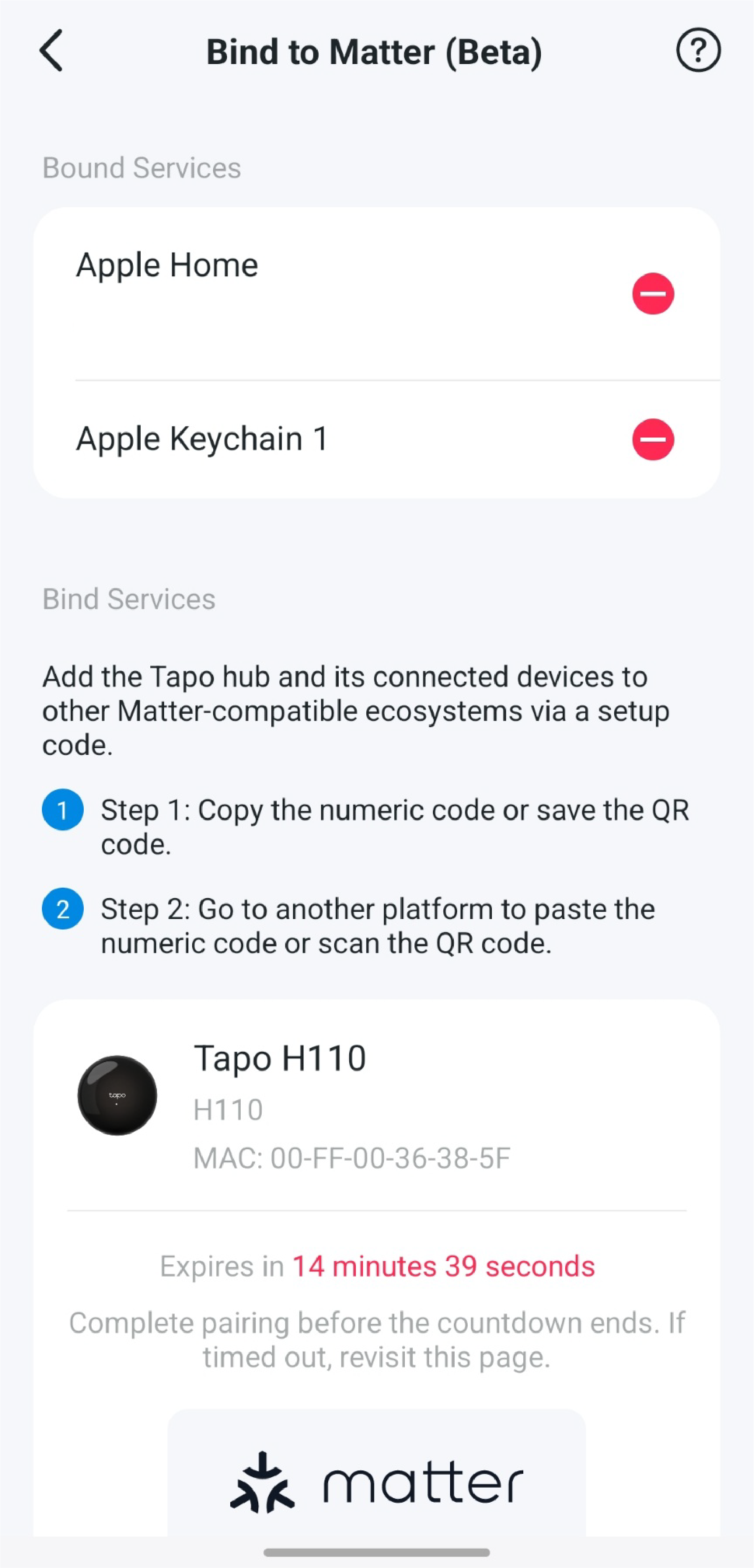

2. Bind to Matter
Tap Bind to Matter and scan the QR code via your Matter-compatible smart home app to add the hub and its connected devices to other ecosystems.
Support
For technical support, the user guide, FAQs, warranty and more, please visit https://www.tapo.com/support/
Authentication
FCC compliance information statement
Product Name: Smart IoT & IR Hub
Model Number: Tapo H110
Responsible Party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: sales.usa@tp-link.com
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
"To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2025-11-12
CE Mark Warning
OPERATING FREQUENCY (the maximum transmitted power)
2400MHz~2483.5MHz / 20dBm
863~865MHz / 863.35MHz / 25mW (e.r.p)
863~865MHz / 864.35MHz / 25mW (e.r.p)
868~868.6MHz / 868.35MHz / 25mW (e.r.p)
EU Declaration of Conformity
TP-Link hereby declares that Smart IoT and IR Hub is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU Declaration of Conformity may be found at https://www.tapo.com/support/ce/
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.
UKCA Mark
UK Declaration of Conformity
TP-Link hereby declares that Smart IoT and IR Hub is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.
The original UK Declaration of Conformity may be found at https://www.tapo.com/support/ukca/.
Industry Canada Statement
CAN ICES-003 (B)/NMB-003(B)
Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
為避免本器材影像畫面遭偷窺或擷取，本器材使用者應先修改預設密碼，並定期更新密碼。
安全諮詢及注意事項
請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
注意防潮，請勿將水或其他液體潑灑到本產品上。
插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
限用物質含有情況標示聲明書
| 設備名稱：Smart IoT & IR Hub 型號（型式）：Tapo H110 Equipment name Type designation (Type) |
||||||
|---|---|---|---|---|---|---|
| 單元 Unit |
限用物質及其化學符號 Restricted substances and its chemical symbols |
|||||
| 鉛 Lead (Pb) |
汞 Mercury (Hg) |
鎘 Cadmium (Cd) |
六價鉻 Hexavalent chromium (Cr+6) |
多溴聯苯 Polybrominated biphenyls (PBB) |
多溴二苯醚 Polybrominated diphenyl ethers (PBDE) |
|
| PCB | ○ | ○ | ○ | ○ | ○ | ○ |
| 外殼 | ○ | ○ | ○ | ○ | ○ | ○ |
| USB線 | ○ | ○ | ○ | ○ | ○ | ○ |
| 其他及其配件 | − | ○ | ○ | ○ | ○ | ○ |
| 備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值 Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition. 備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝－〞係指該項限用物質為排除項目。 Note 3：The “−” indicates that the restricted substance corresponds to the exemption. |
||||||
Продукт сертифицировано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних>Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України.
Safety Information
Do not use the device where wireless devices are not allowed.
Keep the device away from water, fire, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
Do not place near automatically controlled devices such as fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.
Observe restrictions on using wireless products in fuel depots, chemical plants or when blasting operations are in progress.
Do not use liquid to clean the product. Only use a dry cloth.
Never put metal objects inside the product. If a metal object enters the product turn off the circuit breaker and contact an authorised electrician.
This product is not intended to be used when providing medical care. Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids to determine if they are adequality shielded from external RF (radio frequency) energy.
Do not use this product in health care facilities. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
Do not place heavy objects on top of the product.
When you leave the product unused for a long time unplug the product from the power outlet.
Product should be kept away from heat sources such as radiators, cookers etc. - it should not be placed in places where the temperature is less than -10 degrees or greater than 40 degrees.
This product may interfere with other electronic products such as TV, radios, personal computers, phones or other wireless devices.
This equipment can be powered only by equipment that complies with Power Source Class 2 ( PS2) or Limited Power Source(LPS) defined in the standard of IEC 62368-1.
Operating Temperature: -10 °C ~ 40°C (14°F ~ 104°F)
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
