Installation and User Guide

About This Guide

This guide provides a brief introduction to the Outdoor Pan/Tilt Security Wi-Fi Camera and the Tapo app, as well as regulatory information. Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo Camera experience.

Conventions

In this guide, the following convention is used:

More Info

Specifications can be found on the product page at https://www.tapo.com.
Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
The setup video can be found at https://www.tp-link.com/support/setup-video/#cloud-cameras.

Introduction

The Outdoor Pan/Tilt Security Wi-Fi Camera offers advanced 4K security features powered by on-device AI, ensuring smarter and safer surveillance. With compatibility for Alexa and Google Home, it integrates seamlessly into smart home environments.
Key features include a 360°viewing angle, starlight color night vision, and support for both 2.4GHz and 5GHz Wi-Fi, enhancing connectivity and image quality. Users benefit from free pet/person detection and local storage options, making it a reliable choice for outdoor security needs.

• Facial Recognition with 4K Ultimate Clarity – The camera delivers 4K 8MP resolution and 18× digital zoom for sharper details, precise detection, and high-quality recording. Its advanced algorithms distinguish between strangers, family, and friends, triggering alarms selectively to enhance accuracy and reduce false alerts.
• Facial Recognition with the Tapo App – The camera features free, advanced AI that recognizes and tags family, friends, and strangers.
• 360° AI Tracking – The camera provides 360° coverage, accurately identifying and tracking people, pets, and vehicles to stay focused on what truly matters.
• Starlight Color Night Vision – Enhances your security by revealing brighter, full-color images and vivid details even in low-light conditions with builtin spotlights and the starlight sensor.
• Improved Wi-Fi 6 Connectivity – Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability, and reduced congestion in heavy bandwidth usage scenarios.
• Smart Playback – Swiftly find and download moments of interest by choosing the event type or sliding the timeline.
• Flexible Dual-Band Connection – Enjoy smooth, lag-free 4K streaming with lightning-fast 5 GHz or enhanced stability on 2.4 GHz.
• Patrol Mode – Assign points for the camera to patrol for dynamic monitoring.
• Customizable Sound and Light Alarm – Record custom audio for alarms and adjust the brightness of the spotlights to suit your needs.
• Local* and Cloud** Storage – Save all your important moments to a microSD card* (Up to 512 GB) or subscribe to Tapo Care** for cloud serviceafter a free trial.
  *microSD card must be purchased separately.
  **Subscribe for cloud storage at https://www.tapo.com/tapocare/
• Two-Way Audio – Enables communication through a built-in microphone and speaker.

Appearance

1 IR LED

2 White Light LED

3 Lens: For capturing things within its view.

4 System LED: It shows your camera status.

5 Microphone: For capturing your voice.

6 Speaker

7 microSD card slot: Open the cover to find the microSD card slot. Insert a microSD card (not included) and initialize it on the Tapo app for local recording.

8 Silicone Cover

9 Reset Button: Open the cover to find the Reset Button. While the camera is powered on, press and hold the RESET button to reset the camera.

• Press and hold for 5 seconds: Reset Wi-Fi while preserving the other.
• Press and hold for 10 seconds: Reset to factory settings.

10 Ethernet Port

11 DC Power Connector

System LED Indication

Set Up Your Camera

Follow the steps below to get started with your new camera.

Step 1. Download Tapo App
Get the Tapo app from the App Store or Google Play, or by scanning the QR code below.

Step 2. Log In
Open the app, and log in with your TP-Link ID. If you don't have an account, create one first.

Step 3. Add Your Camera
Tap the ＋ button > Add Device in the app and search for your model. Follow the app instructions to complete the setup.

Set Up Using Amazon Frustration-Free Setup

What is Amazon Frustration-Free Setup?

Note: Only Tapo C560WS supports Amazon frustration-free setup.

Amazon Frustration-Free Setup can help connect and set up Tapo smart devices in fewer steps, without having to remember and re-enter your Wi-Fi password on each device.
To use this feature, confirm the following:
● The new Tapo device supports Amazon FFS.
● The new Tapo device is purchased from Amazon.
● You have an Amazon FFS enabled Alexa device or router.
● You have saved your Wi-Fi information to Amazon by using Alexa echo.
● Your Tapo device and router are on the same network as your Alexa echo.

LED Indications during Amazon Frustration-Free Setup

If the LED does not turn solid blue after a long time, you can try to add the Tapo device manually. (Press the Reset button on your Tapo device once. Then open the Tapo app, tap the + button on the page, select your device model, and follow the app instructions. )

How to use Amazon Frustration-Free Setup with Tapo devices

1. Open the Amazon Alexa app. Then tap More and select Skills & Games.

2. Enter Tapo in the search bar and choose Tapo.

3. Tap the ENABLE TO USE button.

4. Log in with your TP-Link ID that has bound to your Tapo device, and tap Authorize. After authorized successfully, the message Tapo has been successfully linked will come up.

5. Plug in your Tapo device and the setup will complete automatically in two minutes.
For setting up more Tapo devices, just plug in and enjoy!
Done!
If this device displays on the Home page in the Tapo app, it indicates this device has been successfully associated with your Amazon account and joined your Wi-Fi network automatically.
If this device does not display on the Home page in the Tapo app, try setting it up manually. (Tap the + button on the page, select your device model, and then follow the app instructions.)

Mount Your Camera

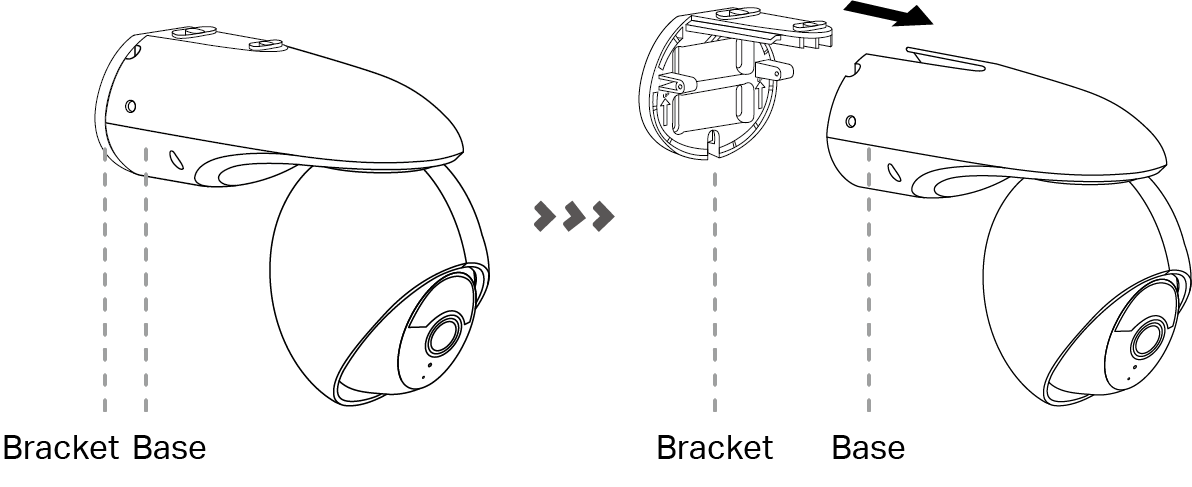

Before You Start

Separate the mounting bracket from the camera base before you start.

Mount Your Camera

Note: The mounting distance from the side wall should be greater than 70 cm (2.3 ft) to allow enough space for tightening the side bracket screws.

Option 1: Wall Mount

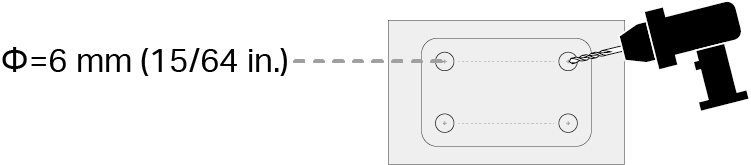

1. Drill Holes
Stick the mounting template for the wall mount to the desired place. Drill four screw holes according to the mounting template.

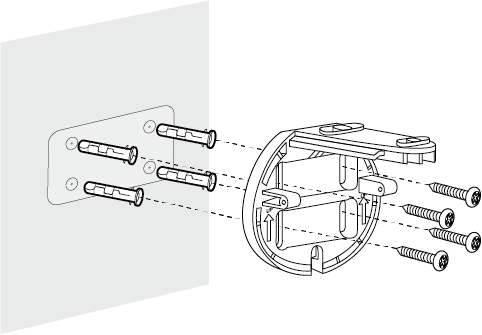

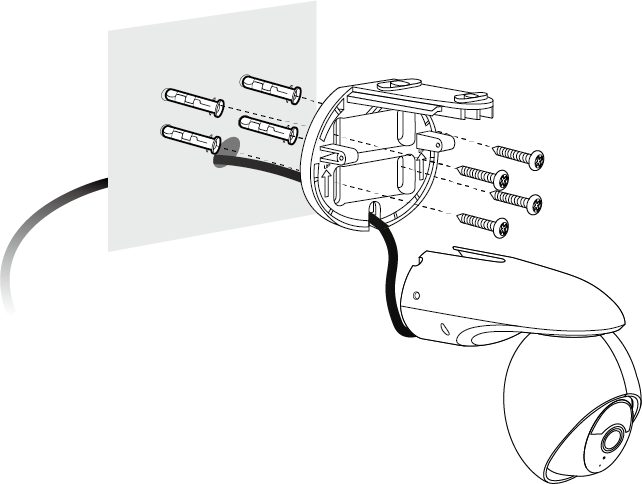

2. Install the Bracket
Insert four anchors into the holes and use the screws to affix the bracket over the anchors.

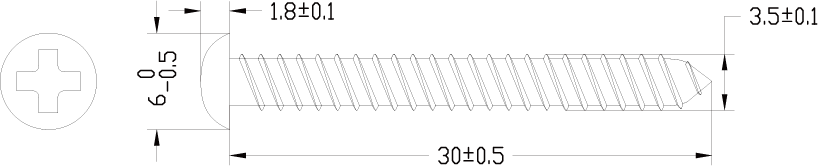

Mounting Screw Size:

Note: The bracket design allows you to route the cable through the hole in the wall to prevent the cable and the hole from exposing to the outside.

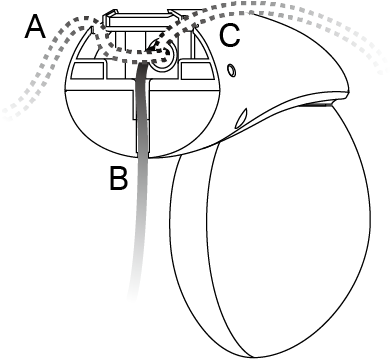

3. Route the Cable
Route the cable through one of the base's three notches according to the direction of your power outlet.

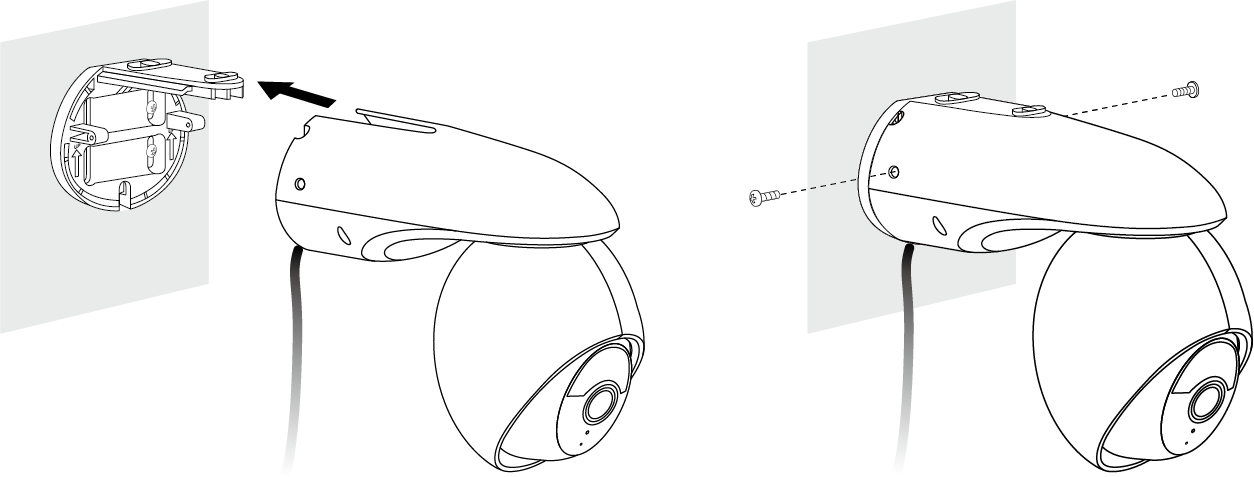

4. Secure the Camera
Align and slide the camera base onto the bracket from the outside in. Then use two bracket screws to affix the bracket and camera base.

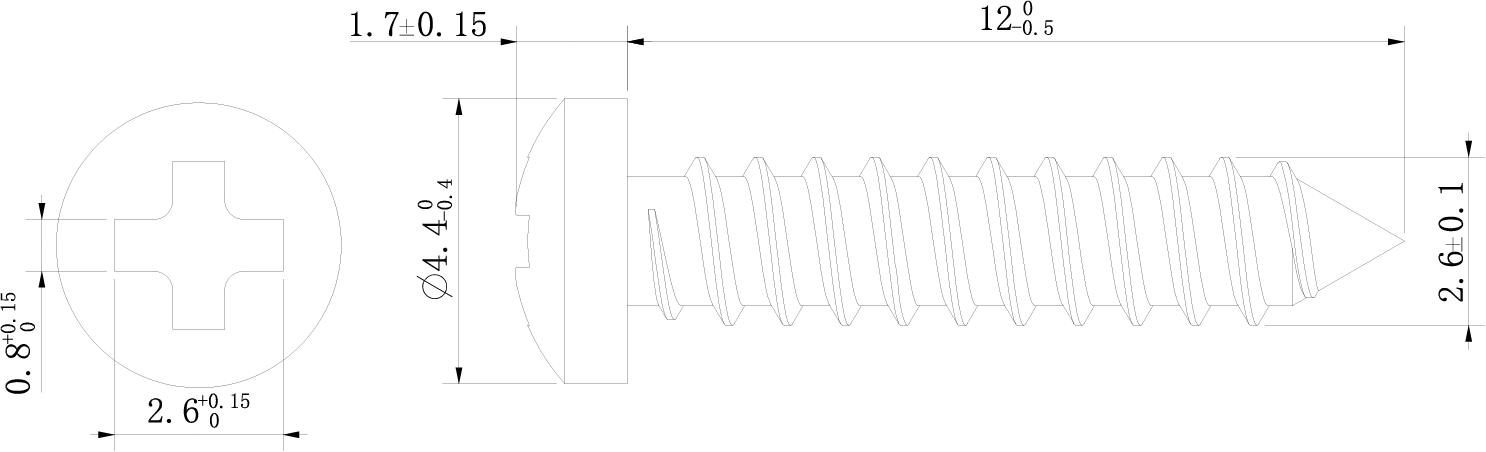

Bracket Screw Size:

Option 2: Eave Mount

1. Drill Holes
Stick the mounting template for the eave mount to the desired place. Drill two screw holes according to the template.

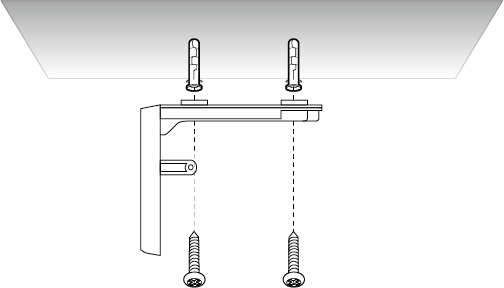

2. Install the Bracket
Insert four anchors into the holes and use the screws to affix the bracket over the anchors.

Mounting Screw Size:

3. Route the Cable
Route the cable through one of the base's three notches according to the direction of your power outlet.

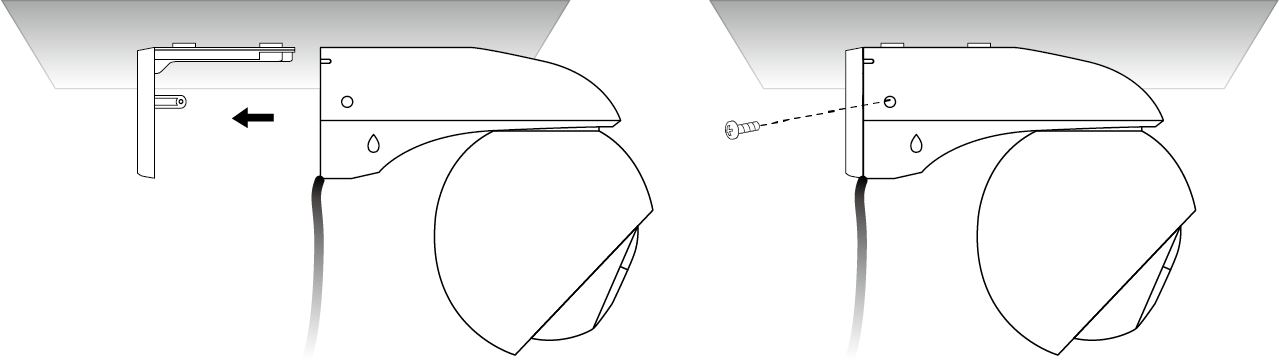

4. Secure the Camera
Align and slide the camera base onto the bracket from the outside in. Then use two bracket screws to affix the bracket and camera base.

Bracket Screw Size:

Option 3: Pole Mount

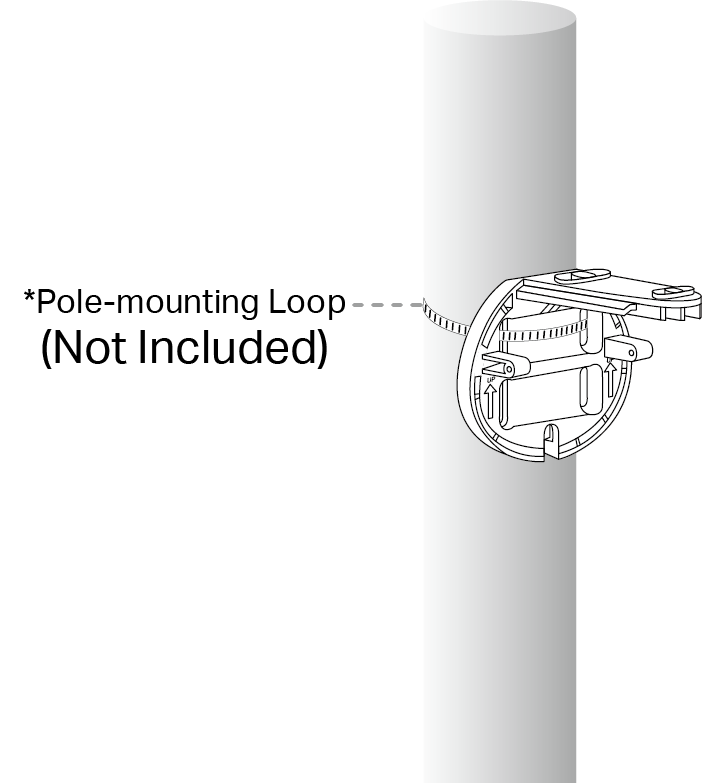

1. Install the Bracket
Mount the bracket on the pole using one pole-mounting loop (loop width ≤ 12 mm).

Note: The pole-mounting loop is not included.

2. Route the Cable
Route the cable through one of the base's three notches according to the direction of your power outlet.

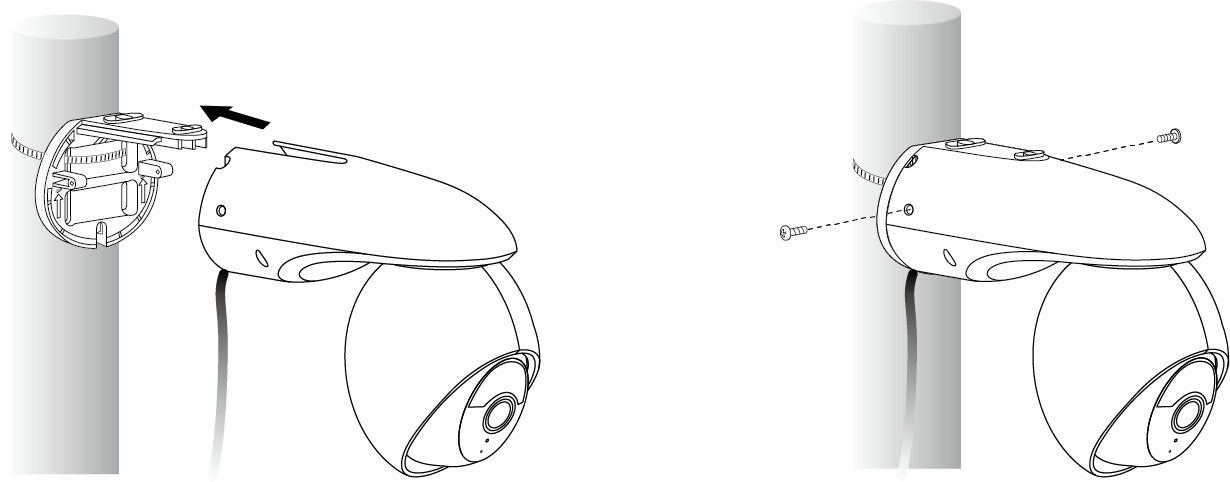

3. Secure the Camera
Align and slide the camera base onto the bracket from the outside in. Then use two bracket screws to affix the bracket and camera base.

Install Waterproof Accessories

After mounting the camera, please install accessories to waterproof your camera outdoors. Make sure each part is securely attached and flush to keep out water.
Follow the steps below to install waterproof accessories.

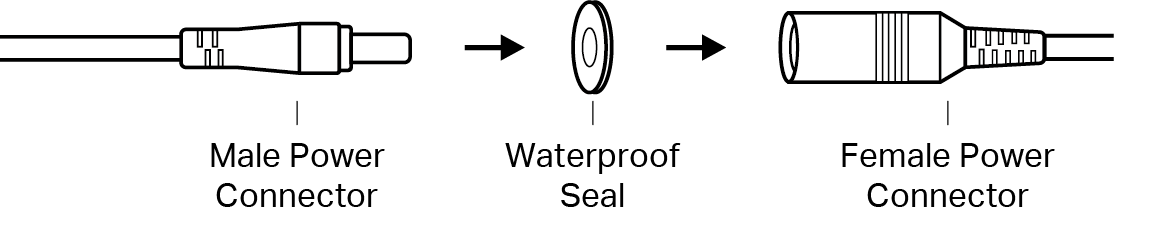

1. Install Waterproof Seal for Power Connectors

Connect the camera to a power outlet using the provided power adapter. Install the waterproof seal for the power connectors when the camera is installed outdoors.

2. Install Waterproof Cable Attachments

Install the waterproof cable attachments for the network interface. Make sure each part is securely attached and the waterproof rings are flush to keep out water.

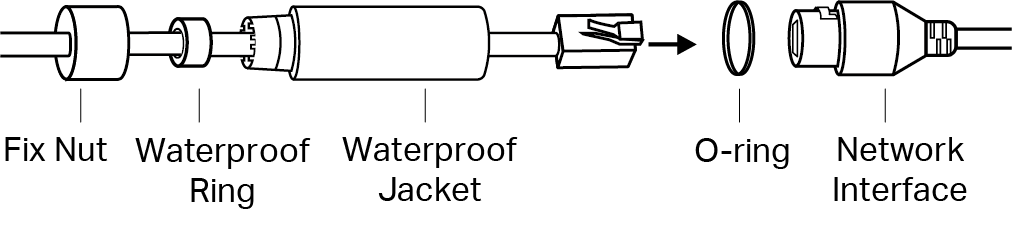

Scenario 1: When the Ethernet port connects to a network device

1) Route the network cable through the following components in order: fix nut, waterproof ring, and then the waterproof jacket.
2) Insert the waterproof ring into the waterproof jacket.
3) Fix the O-ring to the network interface of the camera and connect the network cables.
4) Attach the network interface with the waterproof jacket, then twist to lock. Rotate the fix nut to secure it to the waterproof jacket.

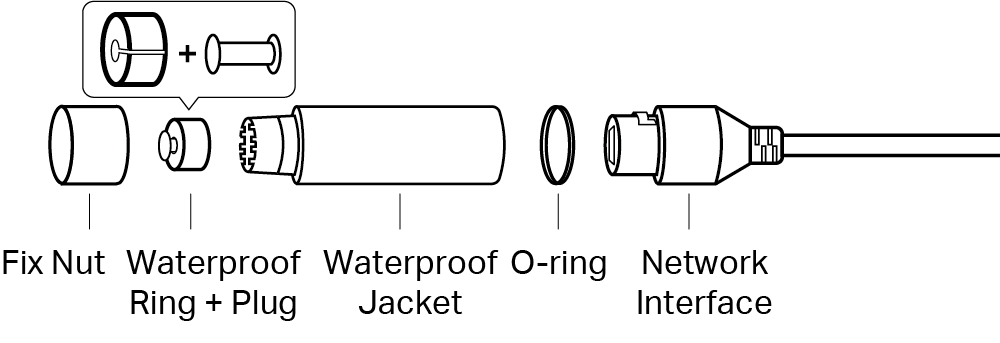

Scenario 2: When the Ethernet port does not connect to a network device

1) Insert the waterproof plug into the waterproof ring, then insert them into the waterproof jacket.
2) Fix the O-ring to the network interface of the camera. Attach the network interface with the waterproof jacket, then twist to lock. Rotate the fix nut to secure it to the waterproof jacket.

Support

For technical support, the setup videos, FAQs, warranty and more, please visit https://www.tapo.com/support/

Authentication

FCC compliance information statement

Product Name: Outdoor Pan/Tilt Security Wi-Fi Camera
Model Number: Tapo C560WS/TC46

Responsible Party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: sales.usa@tp-link.com
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
"To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2025-08-14

FCC compliance information statement
Product Name: I.T.E. Power Supply
Model Number: T120100-2B1
Responsible Party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: sales.usa@tp-link.com
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2025-08-14

CE Mark Warning

OPERATING FREQUENCY (the maximum transmitted power)

2400 MHz-2483.5 MHz (20 dBm)

5150 MHz-5250 MHz (23 dBm)

5250 MHz-5350 MHz (23 dBm)

5470 MHz-5725 MHz (23 dBm)

Frequency band: 5150 - 5250 MHz:

Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band.

Frequency band: 5250 - 5350 MHz:

Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted.

Frequency band: 5470 - 5725 MHz:

Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted.

EU Declaration of Conformity
TP-Link hereby declares that the Outdoor Pan/Tilt Security Wi-Fi Camera is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU Declaration of Conformity may be found at https://www.tapo.com/en/support/ce/
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.

UKCA Mark

UK Declaration of Conformity
TP-Link hereby declares that the Outdoor Pan/Tilt Security Wi-Fi Camera is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.
The original UK Declaration of Conformity may be found at https://www.tapo.com/support/ukca/.

Attention: In Great Britain, the operation in the frequency range 5150MHz - 5350MHz is only permitted indoors.

Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licenceexempt
RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d' exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-003 (B)/NMB-003(B)

Caution:
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350 MHz, 5470-5600MHz, and 5650-5725MHz.
Avertissement:
Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
Les produits utilisant la technique d'atténuation DFS (sélection dynamique des fréquences) sur les bandes 5250- 5350 MHz, 5470-5600MHz et 5650-5725MHz.

Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.

NCC Notice & BSMI Notice
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
應避免影響附近雷達系統之操作。
為避免本器材影像畫面遭偷窺或擷取，本器材使用者應先修改預設密碼，並定期更新密碼。
安全諮詢及注意事項
請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
請勿將本產品浸入水或者其他液體中。
電源供應器应使用在环境温度低於或等於40℃的室內。

限用物質含有情況標示聲明書

Продукт сертифицировано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних>Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України.

Safety Information

Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
Do not use damaged charger or USB cable to charge the device.
Do not use any other chargers than those recommended
Do not use the device where wireless devices are not allowed.
Adapter shall be easily accessible.
Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don't hesitate to contact us.
This product uses radios and other components that emit electromagnetic fields. Electromagnetic fields and magnets may interfere with pacemakers
and other implanted medical devices. Always keep the product and its power adapter more than 15 cm (6 inches) away from any pacemakers or
other implanted medical devices. If you suspect your product is interfering with your pacemaker or any other implanted medical device, turn off
your product and consult your physician for information specific to your medical device.
Operating Temperature: -30 ºC ~ 60 ºC (-22 °F ~ 140 °F )
Adapter should be used indoors where the ambient temperatureis lower than or equal to 40°C.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Use only the power supplies listed below.

Explanation of the symbols on the product label
Note: The product label is on the bottom of the product and its power supply. Symbols may vary from products.

Symbol         符號解釋	Explanation 解釋
	Class II equipment Class II 設備
	Class II equipment with functional earthing 具有功能接地的Class II 設備
	Alternating current 交流電
	DC voltage 直流電壓
	Polarity of output terminals 輸出端子極性
	Indoor use only 僅限室內使用
	Dangerous voltage 危險電壓
	Caution, risk of electric shock 注意，有觸電危險
	Energy efficiency Marking 能源效率標示
	Protective earth 保護地線
	Earth 地線
	Frame or chassis 機架接地
	Functional earthing 功能地線
	Caution, hot surface 警告，表面高溫
	Caution 警告
	Operator’s manual 操作手冊
	Stand-by 待機
	“ON”/”OFF” (push-push) 「開」/「關」 ( 按壓式)
	Fuse 保險絲
	Fuse is used in neutral N 保險絲用於中性線N
	RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment. 回收利用 本產品標示有「廢棄電氣電子設備（WEEE）」的分類回收標誌。這表示本產品必須依據歐盟指令 2012/19/EU 進行妥善回收或拆 解，以減少對環境的影響。 使用者可選擇將本產品交給合格的回收機構，或在購買新電器或電子設備時，交回給零售商進行回收處理。
	Caution, avoid listening at high volume levels for long periods 注意，避免長時間以高音量收聽
	Disconnection, all power plugs 斷開所有電源插頭
