DS-ETPA-1U_Datasheet
DeltaStream Chassis Embedded Telecom Power
MODEL: DS-ETPA-1U
Highlights
-
Supports up to 3 pluggable modules, with an input range of 100-240V~ 50/60Hz
-
All power supply modules support current sharing or redundancy.
-
Two independently controlled DC outputs, with an output voltage of 53.5V. Single DC output max power is 1550W; total for two DCs is 2400W.
-
Supports functions of input and output overcurrent protection, overvoltage protection, undervoltage protection, overpower protection, overtemperature protection, etc.
-
Supports remote monitoring for output's port voltage and current power, and port power allocation control.
-
Suitable for DS-P8000-X7 and other rack-mount DC power input devices

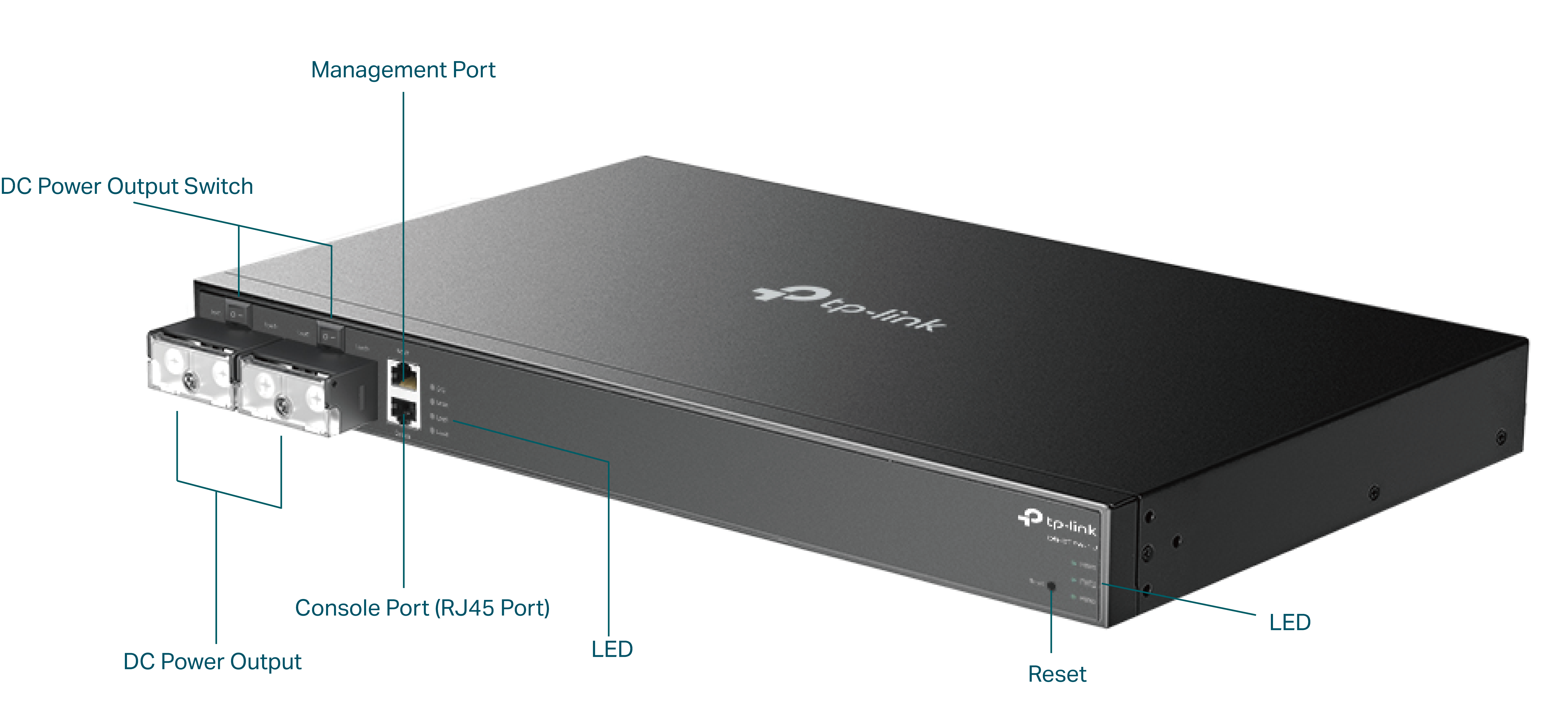

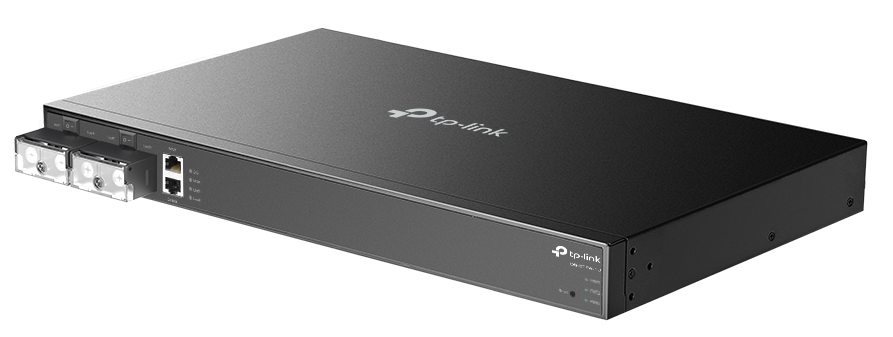

Product Pictures
Specifications
| Model | DS-ETPA-1U | |
| General | Power Input | Supports up to 3 power supply modules 100V - 240V ~ 50/60Hz |
| Output Voltage/Current | Output1: +53.5V ⎓ 29.0A Output2: +53.5V ⎓ 29.0A |
|
| Total Output Power | 2400W MAX | |
| Interface | A RJ45 MGMT port to connect to a management terminal like a PC via an Ethernet cable. A RJ45 Console port to connect with a computer for monitoring and configuring the power system |
|
| LEDs | 1 × SYS, 1 × MGMT, 2 × Load, 3 × PWR Multi-function indication. The indication iincludes the status of standy, normal, alarm and fault. |
|
| Button | 1 × Reset button | |
| Grounding Terminal | 1 × Grounding Terminal | |
| Processor | MCU ARM Cortex-M33 | |
| Environmental & Physical | Dimensions | 440mm*260mm*44mm |
| Installation | Rackmount | |
| Operating Temperature & Altitude | -10 °C to 50 °C (14 °F to 122 °F) (sea level to 4000 m) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Operating Humidity | 10% to 90% RH Non-condensing | |
| Storage Humidity | 5% to 90% RH Non-condensing | |
| Certification | CE, FCC | |
| Power Supply Model | PSM900-AC | |
| General | Power Input | 100-120V (included)~ 50/60Hz 12A (for locations using low voltage, see specifications for specific countries/regions) 120 (not included)-240V~ 50/60Hz 10A (for other locations) |
| Output Voltage/Current | Primary: +53.5 V ⎓ 16.5 A | |
| Output Power | 900 W MAX | |
Specifications are subject to change without notice. All brands and product names are trademarks or registered trademarks of their respective holders.
