5G/4G Routers TL-MR100-Outdoor

TL-MR100-Outdoor

New

4G 300 Mbps Wi-Fi Outdoor Router

4G LTE and Fast Wi-Fi Speed : supports LTE up to 150 Mbps and Wi-Fi up to 300 Mbps on 2.4 GHz .*
Durable Outdoor Enclosure: Robust outdoor connectivity and reliability with IP65 weatherproof protection** and ±6kV lightning protection & ±15kV ESD protection^§.
Multiple Mounting Installation: Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.
PoE/DC Power Supply: Supports 802.3af/802.3at PoE and passive PoE, enabling easy deployment.
Plug and Play: Plug in a SIM card to get instant internet access anywhere.
Simplified Setup: Easily set up and manage your network with the Tether app.

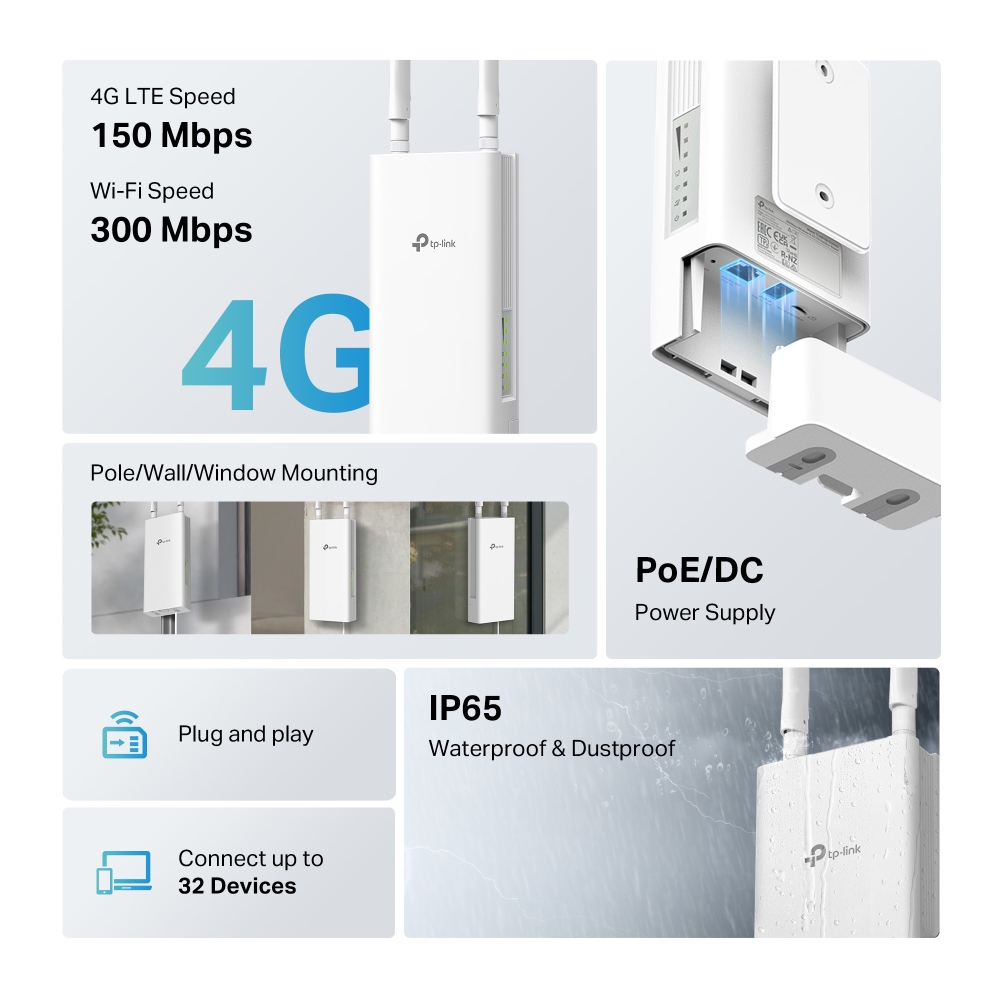

Overview

4G LTE Speed 150 Mbps

Wi-Fi Speed 300 Mbps

IP65 Waterproof & Dustproof

Pole/Wall/Window Mounting

PoE/DC Power Supply

Plug and play

Connect up to 32 Devices

Take Wi-Fi Further, Beyond Your Walls

Connects up to 32 Devices

Dependable 4G Wi-Fi Internet Connectivity

The TL-MR100-Outdoor supports 4G LTE for internet download speeds up to 150 Mbps, paired with fast Wi-Fi speeds of up to 300 Mbps, enabling seamless networking experience.* Simply insert your SIM card to enjoy reliable internet indoors and outdoors. ^◇

4G LTE

Download Speed 150 Mbps

Wireless

300 Mbps on 2.4 GHz

◇ This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the quick installation guide for unlocking instructions.

Durable Outdoor Design for Stable Performance

Engineered for extreme environments, TL-MR100-Outdoor features IP65 waterproofing, operates from -30°C to 60°C, and 6kV lightning & 15kV ESD protection. Maintains uninterrupted connectivity in harsh weather conditions, delivering stable outdoor network performance.

6kV Lightning Protection and 15kV ESD Protection^§

Dust Resistant**

Water Resistant**

-30°C~+60°C Operating Temperature

Versatile Installation for Diverse Environments

The TL-MR100-Outdoor offers versatile installation options—mount on a pole or a wall, or adhesive to a window. This flexibility allows for installation in a wide range of environments, from urban areas to rural settings. Easily find the best location for optimal signal, ensuring reliable connectivity.

Pole Mounting

Wall Mounting

Window Mounting

PoE/DC Power Support: Simplified Outdoor Setup

The TL-MR100-Outdoor features PoE and DC power supply, simplifying outdoor setup with flexible power options and ensuring reliable connectivity in diverse outdoor environments.

Router

PoE Injector

Passive PoE

DC Power

Solar Power Sysytem

△ The TL-MR100-Outdoor also supports IEEE 802.3af/802.3at PoE or can be powered using a 12V DC 1A adapter.

Easy Setup and Management

Set up TL-MR100-Outdoor in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

Learn more about Tether app

Specifications

4G
Network Type	4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz)
Speed	Download Speed 150 Mbps Upload Speed 50 Mbps
SIM Type	1×Nano SIM Card

HARDWARE
Interface	1× 100 Mbps WAN/LAN Port (PoE In) 1× Nano SIM Card Slot 1 × DC Port
Buttons	1× Reset Button
Power	12V/1A DC 48V/0.375A Passive PoE 44-57V/0.35A 802.3af
Dimensions (W x D x H)	8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm)
Antennas	2 × Detachable LTE Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Signal Rate	300 Mbps
Reception Sensitivity	11g 54M: -74 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm
Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

SOFTWARE FEATURES
Security	DoS, IPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes	3G/4G Router, Wireless Router
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features	Local Management, Remote Management
DHCP	Server, DHCP Client List, Address Reservation
Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	TP-Link, DynDns, NO-IP
Protocols	IPv4, IPv6
Guest Network	2.4 GHz guest network
Administration	Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS
Package Content	1× TL-MR100-Outdoor Unit 1× 10-meter RJ45 Ethernet Cable 1× PoE Adapter 1× AC Power Cord 1× Quick Installation Guide Window/Pole/Wall Mounting Kits
Requirements	Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version
Certifications	CE, RoHS
Environment	Operating Temperature: -30°C~60°C (-22°F~140°F) Storage Temperature: -40°C~70°C (-40 °F~158 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH

For additional version information, please go to the support page.
