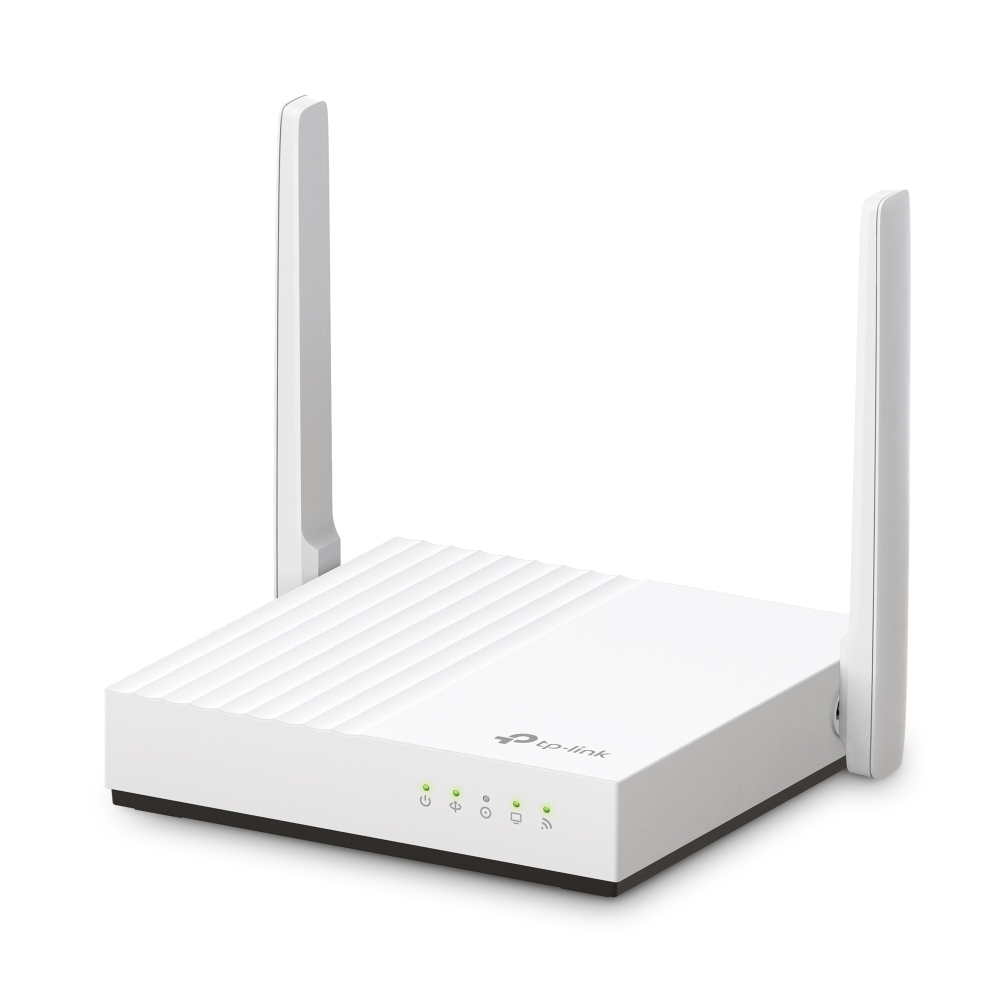

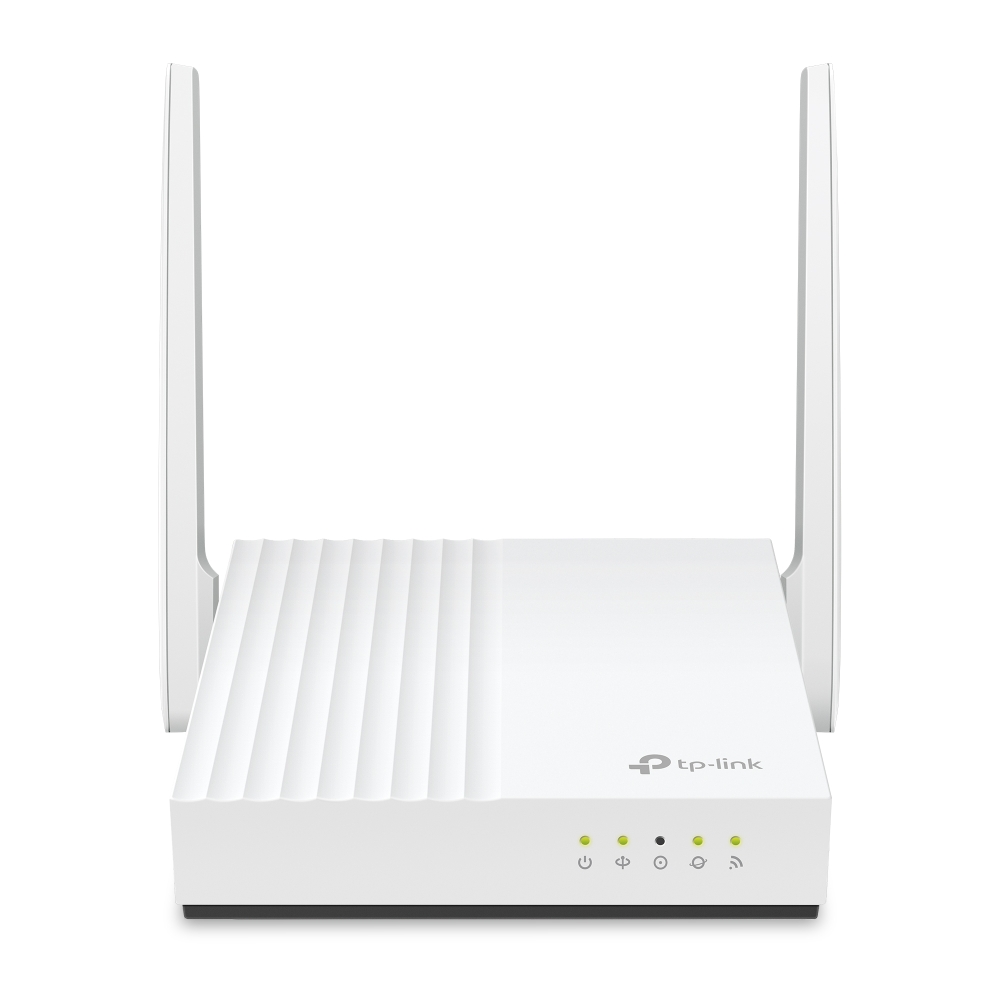

XN020-G3
300Mbps Wireless N Gigabit XPON Router
- High Speed WiFi: Up to 300 Mbps WiFi speeds on the 2.4 GHz band.*
- XPON Dual Modes: Supports both GPON and EPON dual modes with automatic switching for flexible fiber internet access.
- Gigabit Wired Connectivity: One Gigabit Ethernet LAN port offers fast wired internet access.
- Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- Enhanced Security: Multi-SSID and parental controls provide personalized and safer online experiences.
- Easy Setup and Use: Simplifies network and WiFi control and management via the robust Aginet app.
- Remote Management: OMCI (ONT Management and Control Interface) and TR-069 protocols are supported.
300Mbps Wireless N
Gigabit VoIP XPON Router
XN020-G3
Bring Home Fiber-to-the-Home
TP-Link’s N300 Wireless XPON router is a X Passive Optical Network (XPON) terminal, the ideal Fiber-to-the-Home (FTTH) solution. Enjoy a high-speed internet connection via the XPON port or wireless speeds of 300Mbps. XN020-G3 is the perfect terminal and future-oriented service, with full capabilities for FTTH deployment.
High-Speed XPON Service
Compliant with the ITU-T G.984 XPON standards, XN020-G3 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream. Along with a 10/100/1,000Mbps LAN port, users can enjoy high-speed GPON services and bandwidth-intensive multimedia applications—such as interactive gaming, streaming, and real-time audio—much faster and easier than ever before.
All-in-One Device
With a XPON modem, 300Mbps wireless AP and 1-port Switch, the XN020-G3 is everything your home or office needs to be fully connected.
Easy Remote Management
TR-069 protocol enables an operator to remotely configure and manage end-user devices.

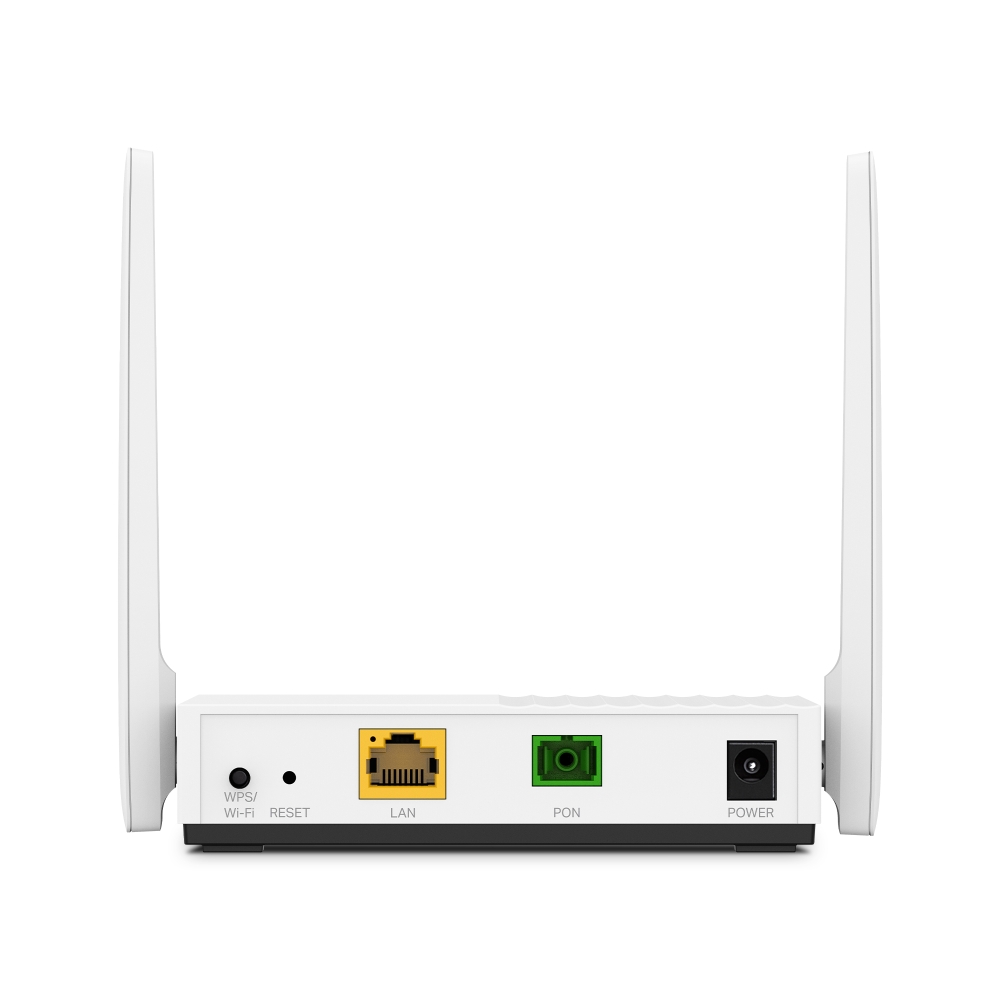

| Interface | 1× SC/APC PON Port 1× GbE LAN Port |
|---|---|
| Button | Reset Button |
| External Power Supply | 12V/0.6A |
| Wireless Standards | IEEE 802.11g, 802.11b,802.11n |
| IEEE Standards | IEEE 802.3, IEEE 802.3u, 802.3ab |
| Data Rates | Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)† |
| Dimensions ( W x D x H ) | 4.5×4.2×1.0 in. (115×106.7×24.3mm) |
| Antenna | 2× External |
| GPON Standards | ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4, ITU G.988 |
| Wireless Standards | IEEE 802.11g, 802.11b,802.11n |
|---|---|
| Frequency | 2.4GHz |
| Signal Rate | 300Mbps at 2.4GHz |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Transmission Power | <20dBm (2.4GHz) |
| Wireless Schedule | Support 2.4GHz Schedule |
| Quality of Service | ATM QoS, QoS |
|---|---|
| Advanced Features | SN, Password, SN + Password Authentication Mode, Upstream and Downstream FEC, AES encryption, Dynamic Bandwidth, Allocation(DBA) support NSR/SR, 802.1Q VLAN, Static Routing, IGMP v1/v2/v3, 16 T-CONTs, 256 GEM Ports |
| Security | NAT Firewall, SPI Firewall, Access Control, MAC/URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
| Management Features | OMCI, Web Based Configuration, Command Line Interface, SSL for TR-069, OMCI Based Firmware Upgrade |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding | Virtual Server, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| Protocols | Supports IPv4 and IPv6 |
| Certification | CE |
|---|---|
| Package Content | XN020-G3 Unit RJ45 Ethernet Cable Quick Installation Guide Power Adapter |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 , or other Java-enabled browser |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†Multi-gig or 1000 Mbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
