DR3650v-4G
Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
- AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*1
- 4G+ Cat6 up to 300Mbps

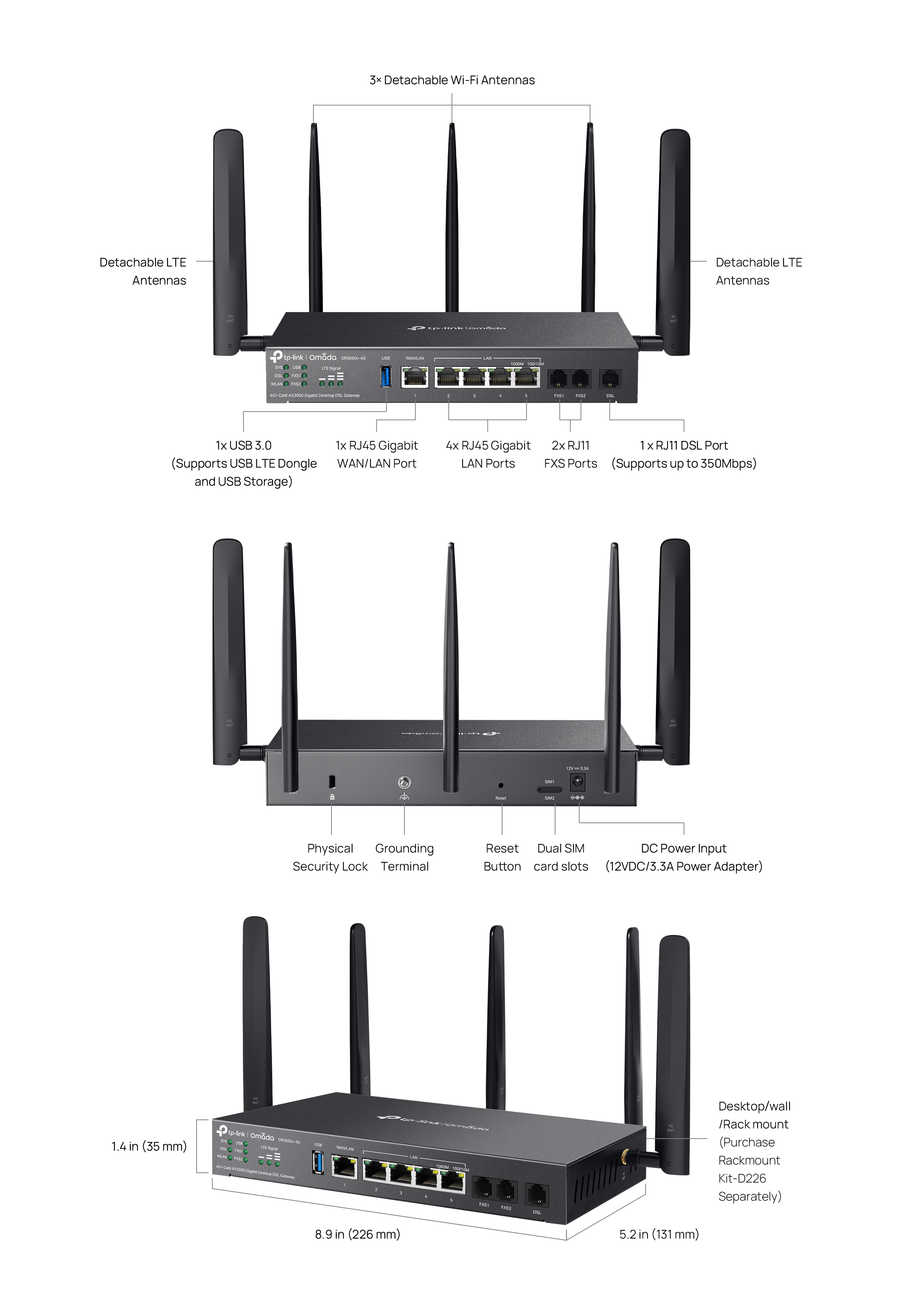

- 3× RJ11 Ports (2× FXS, 1× DSL) & 5× RJ45 Gigabit Ports & 1× USB 3.0 Port
- 2× Embedded SIM Card Slots for 4G/LTE Failover
- VDSL2 35b: Supports 350Mbps DSL Access*2
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
- Centralized Cloud Management
- Desktop/Wall/Rack Mounting (Purchase Rackmount Kit-D226 Separately)
| SICUREZZA | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering*5• URL Filtering• Web Security*5 |
| ARP inspection | • Sending GARP Packets• ARP Scanning*5• IP-MAC Binding |
| Attack defence | • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN |
| CARATTERISTICHE HARDWARE | |
|---|---|
| Interfaccia | • 1× Gigabit WAN/LAN Port • 4× Gigabit LAN Ports • 1× DSL Port • 2× FXS Ports • 1× USB 3.0 (supports USB LTE dongle and USB Storage) • 2× Nano SIM slots (4G+ Cat6) |
| Tasto | Reset Button |
| Alimentazione | 12V DC / 3.3A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| Dimensioni ( L x P x A ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are notincluded) |
| Antenna | • Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas • LTE: 2× 4.0dBi omnidirectional detachable antennas |
| Tipo di montaggio | Desktop / Wall / Rack mount (Purchase Rackmount Kit-D226 Separately) |
| Max. Power Consumption | Power adapter not included: 28.482 W (Full load + USB) Power adapter included: 31.42 W (Full load + USB) |
| PRESTAZIONI | |
|---|---|
| GRE | • Unencrypted: 541.8Mbp • Encrypted: 289.2Mbps |
| WireGuard VPN | 311.6Mbps |
| Sessioni concorrenti | 150,000 |
| New Sessions /Second | 3,800 |
| NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
| NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
| Throughput VPN IPsec | • ESP-SHA1-AES256: 569.9Mbps • ESP-SHA256-AES256: 543.3Mbps • ESP-SHA384-AES256: 549.0Mbps • ESP-SHA512-AES256: 539.3Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | • Unencrypted: 909.4 Mbps • Encrypted: 494.9Mbps |
| PPTP VPN Throughput | • Unencrypted: 897.5 Mbps • Encrypted: 190.8 Mbps |
| SSL VPN Throughput | 126.7Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
| CARATTERISTICHE WIRELESS | |
|---|---|
| Funzionalità avanzate | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • MU-MIMO • Load Balance • Automatic Channel Selection Algorithm • Airtime Fairness • Rate Limit: Based on SSID/Client • Transmit Power Control: Adjust transmit Power on dBm • Multiple SSIDs: 16 in total (8 per radio) • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Rete ospiti | Support |
| FUNZIONI DI BASE | |
|---|---|
| Tipo connessione WAN | • Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP |
| MAC clone | Modify WAN Address |
| DHCP | • DHCP Server• DHCPv6 PD Server (only in Standalone Mode)• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| FUNZIONALITA' AVANZATE | |
|---|---|
| Routing avanzato | • Static Routing• Policy Routing• RIP*5• OSPF*5 |
| Bandwidth control | IP-Based Bandwidth Control |
| Load balance | • Intelligent Load Balance• Application Optimized Routing• Link Backup(Timing, Failover)• Online Detection |
| NAT | • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering*5• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP |
| Session Limit | IP-Based Session Limit |
| VPN | |
|---|---|
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| VPN IPsec | • 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) |
| VPN PPTP | • PPTP VPN Server• PPTP VPN Client (10)*6• 50 Tunnels• PPTP with MPPE Encryption |
| VPN L2TP | • L2TP VPN Server• L2TP VPN Client (10)*6• 50 Tunnels• L2TP over IPSec |
| OpenVPN | • OpenVPN Server• OpenVPN Client (5)*6• 55 OpenVPN Tunnels• "Certificate + Account" Mode• Full Mode |
| WireGuard VPN | Yes |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication• Simple Password*6• Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6)• External Radius Sever• External Portal Sever*6• LDAP |
| GESTIONE | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Servizio | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Manutenzione | • Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)*5• NTP Synchronize*5• Port Mirroring• CLI (only in Standalone Mode)• Syslog Support• TR-069 (data models of TR-098 and TR181 are supported) |
| Zero-Touch Provisioning | Yes.Require the use of Omada Controller. |
| Management Features | • Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration |
| ALTRO | |
|---|---|
| Certificazione | CE, RoHS |
| Contenuto della confezione | • DR3650v-4G • Power Adapter • Ethernet Cable • Phone Cable • Rubber Feet, • SIM Card Eject Pin • Quick Installation Guide |
| Requisiti di sistema | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux |
| Ambiente | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10% to 90% non-condensing• Storage Humidity: 5% to 90% non-condensing |
*1Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.
*2Maximum wired signal rates are the physical rates. Actual data throughput is not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors.
*3Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W also supports standalone Mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the models that support standalone Mesh.
*4Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.
*5Supported only in Standalone Mode.
*6Supported only in Controller Mode.
*7The Omada cloud-based controller offers the Essentials version of cloud services for free, while the Standard version, which includes advenced features, requires a license.
