Switch Serie Campus

Gli switch della serie Campus sono progettati per aziende, campus e ISP. Supportano velocità 10G e 25G con un budget PoE fino a 1440W. Offrono stacking fisico e funzionalità avanzate Layer 3 per affidabilità e scalabilità.


	SX6632YF	SG6654XHP	SG6654X	SG6428XHP	SG6428X	SG5452XMPP	SG5452X	SG5428XMPP	SG5428X
Porte Totali	32	54	54	28	28	52	52	28	24
Porte Downlink	(26) Porte 10G SFP+	(48) Porte GbE PoE+	(48) Porte GbE	(24) Porte GbE PoE+	(24) GbE Ports	(8) Porte GbE PoE++ (40) Porte GbE PoE+	(48) Porte GbE	(8) Porte GbE PoE++ (16) Porte GbE PoE+	(24) Porte GbE
Porte Uplink	(6) Porte 25G SFP28	(6) Porte 10G SFP+	(6) Porte 10G SFP+	(4) Porte 10G SFP+	(4) Porte 10G SFP+	(4) Porte 10G SFP+	(4) Porte 10G SFP+	(4) Porte 10G SFP+	(4) Porte 10G SFP+
Budget PoE	-	Max 1440W*	-	Max 720W*	-	770W	√	500W	√
Porta Console	√	√	√	√	√	√	√	√	√
Porta Management	√	√	√	√	√	-	-	-	-
Stacking fisico	√ (Max 8pcs)	√ (Max 8pcs)	√ (Max 8pcs)	√ (Max 8pcs)	√ (Max 8pcs)	√ (Max 4pcs)	√ (Max 4pcs)	√ (Max 4pcs)	√ (Max 4pcs)
Alimentazione ridondata	√ (Hot-swappable)	√ (Hot-swappable)	√ (Internal Fixed)	√ (Hot-swappable)	√ (Internal Fixed)	-	-	-	-
Installazione	Rackmount	Rackmount	Rackmount	Rackmount	Rackmount	Rackmount	Rackmount	Rackmount	Rackmount

*Il power budget PoE totale varia in base al modulo di alimentazione.

Numero di Porte
1. 5-11
2. 16-20
3. 24-32
4. 48-54
Velocità Porte Principali
1. 10 Gb/s SFP+
2. 10 Gb/s RJ45
3. 2.5 Gb/s RJ45
4. 1 Gb/s SFP
5. 1 Gb/s RJ45
6. 100 Mb/s RJ45
Porte di Uplink
1. 25 Gb/s SFP28
2. 10 Gb/s SFP+
3. 10 Gb/s RJ45
4. 2.5 Gb/s RJ45
5. 1 Gb/s SFP
6. 1 Gb/s RJ45
7. 100 Mb/s RJ45
Supporto PoE
1. Yes
2. No
PoE Type / Max PoE Budge per Port
1. 802.3af/at PoE+ (30W)
2. 802.3af/at/bt PoE++ (60W)
3. 802.3af/at/bt PoE++ (90W)
Numero di Porte PoE
1. 4
2. 8
3. 16
4. 24
5. 48
Tipologia
1. Desktop
2. Wall Mounting
3. Pole Mounting
4. Rackmount
Cloud Centralized Management
1. Yes
2. No
Funzionalità
1. Physical Stacking
2. VRRP
3. OSPF
4. ERPS
5. PBR
6. PIM-SM/DM
7. Perpetual PoE
8. Fast PoE
9. Static Routing
10. STP/RSTP/MSTP
11. ACL
12. 802.1x
13. CLI Configuration
14. SNMP
Surveillance-Related Features
1. VLAN
2. QoS
3. PoE Auto Recovery
4. 250m (820ft) PoE Transmission under Extend Mode
5. Port Isolation
6. Auto Loop Detection
7. Cable Test
8. Port Management for Remote Camera Reboot
9. Physical Surveillance DIP Switch
Special Hardware Design
1. Fanless Design
2. Redundant Power Supply (RPS)
3. Console Port
4. Outdoor

New

Confronta
SG5428XF

Campus

Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots
20× Gigabit SFP Slots, 4× Gigabit RJ45/SFP Combo Ports

4× 10 Gbps SFP+ Slots

Stackable

Centralized Cloud Management
New

Confronta

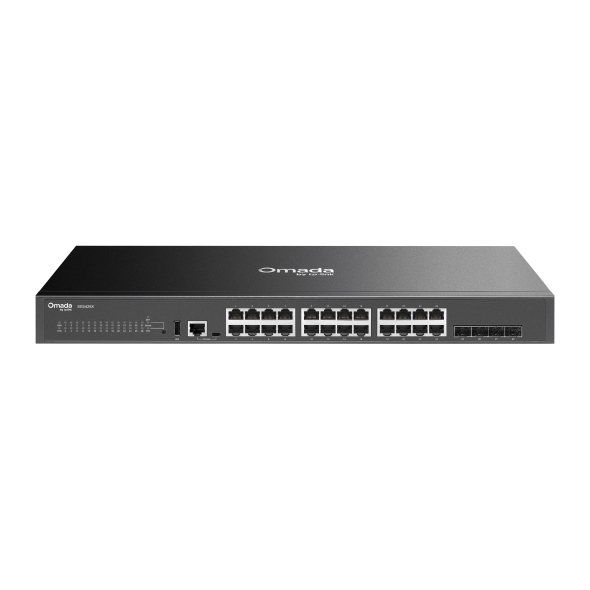

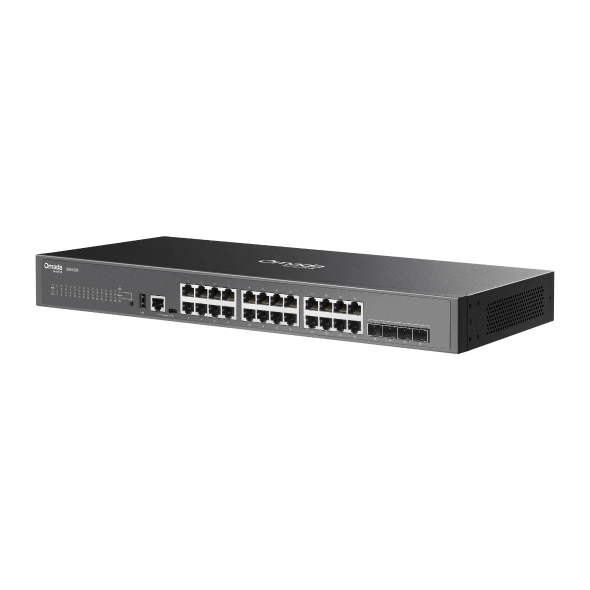

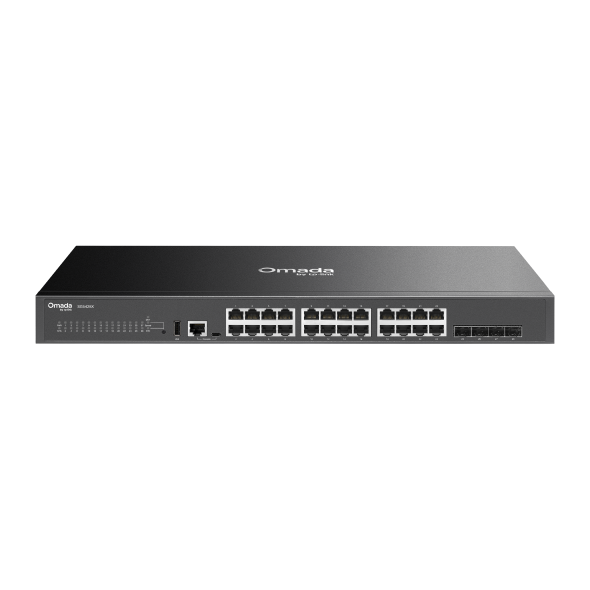

SG5428X

Campus

Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
24× Gigabit RJ45 Ports

4× 10 Gbps SFP+ Slots

Stackable

Centralized Cloud Management
New

Confronta
SG5452X

Campus

Omada 48-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
24× Gigabit RJ45 Ports

4× 10 Gbps SFP+ Slots

Stackable

Centralized Cloud Management
New

Confronta
SG5452XMPP

Campus

Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots
8× Gigabit PoE++ Ports

40× Gigabit PoE+ Ports

4× 10 Gbps SFP+ Slots

770W Total PoE Budget

Stackable

Centralized Cloud Management
New

Confronta
SG5428XMPP

Campus

Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots
24× Gigabit PoE+ Ports

4× 10 Gbps SFP+ Slots

Up to 500W total PoE budget

Stackable

Centralized Cloud Management
New

Confronta
SX6632YF

Campus

Omada Aggregation Switch Managed L3 Stackable con 26 Porte 10G con 6 Slot 25G
26× Slot SFP+ 10G

6× Slot SFP28 10/25G

Stackable

Doppia alimentazione ridondata

Gestione Cloud Centralizzata
New

Confronta
SG6654X

Campus

Omada Switch Managed L3 Stackable con 48 Porte Gigabit e 6 Slot 10G
48 Porte RJ45 Gigabit

6 Slot SFP+ 10 Gbps

Stackable

Due Alimentatori Ridondati

Gestione Cloud Centralizzata Omada SDN
New

Confronta
SG6428X

Campus

Omada Switch Managed L3 Stackable con 24 Porte Gigabit e 4 Slot 10G
24× Gigabit RJ45 Ports

4× 10 Gbps SFP+ Slots

Stackable

Dual Redundant Power Supplies

Centralized Cloud Management
New

Confronta
SG6654XHP

Campus

Omada Switch Managed L3 Stackable con 48 Porte Gigabit PoE+ e 6 Slot 10G
48× porte Gigabit PoE+

6× slot 10 Gbps SFP+

Stackable

Doppia alimentazione ridondata opzionale

Gestione Cloud centralizzata Omada SDN
New

Confronta
SG6428XHP

Campus

Omada Switch Managed L3 Stackable con 24 Porte Gigabit PoE+ e 4 Slot 10G
24× porte Gigabit PoE+

4× slot 10 Gbps SFP+

Fino a 720W budget PoE totale

Stackable

Doppia alimentazione ridondata opzionale

Gestione Cloud centralizzata
