AX5400 Ceiling Mount WiFi 6 Access Point
- 6-Stream Dual-Band Wi-Fi 6: 4,804 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz.†
- 1× 2.5G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: 160 MHz Bandwidth, MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△
- More Connections and Wider Coverage: Supports 250+ concurrent connections** and covers up to 1500 ft² (140 m²)* for reliable and extensive wireless connectivity.
-
AX5400 Dual-Band
WiFi 6† -
1× 2.5GbE Port
-
802.3at PoE
-
Omada Mesh &
Seamless Roaming△ -
Centralized Cloud Management
-
Enhanced
Security -
Easy, Quick Setup
-
Ultra-Thin Design
Power Up Your Business with New-Era Wi-Fi 6
Lightning-Fast AX5400 Wi-Fi 6 Speeds
-
5 GHz 4804 Mbps
-
2.4 GHz 574 Mbps
-
Wi-Fi 6 with OFDMAWi-Fi 5 with OFDM
Higher Efficiency with OFDMA
-
More Simultaneous Connections with MU-MIMO
Optimized Wired Performance with 2.5G PoE+ Port
With a 2.5 Gigabit Ethernet Port, EAP673 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.
Boosted Network Security
-
Secure Guest Network
with up to 16 SSIDs -
Boost Your Business
with SMS Login -
WPA3 for Worry-Free
Open Public Networks -
Rogue AP Detection
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount AP
EAP673
Wall Plate AP
Outdoor AP
PoE Switch
VPN Gateway
(Cloud-Based)
| 하드웨어 사양 | |
|---|---|
| 인터페이스 및 주요 사양 | 1× 2.5 Gigabit RJ45 Port |
| 버튼 | Reset |
| 전원 공급 | • 802.3at PoE• 12 V / 2 A DC (Power Adapter Not Included) |
| 전력 소모 | • EU: 20.8 W• US: 22.3 W |

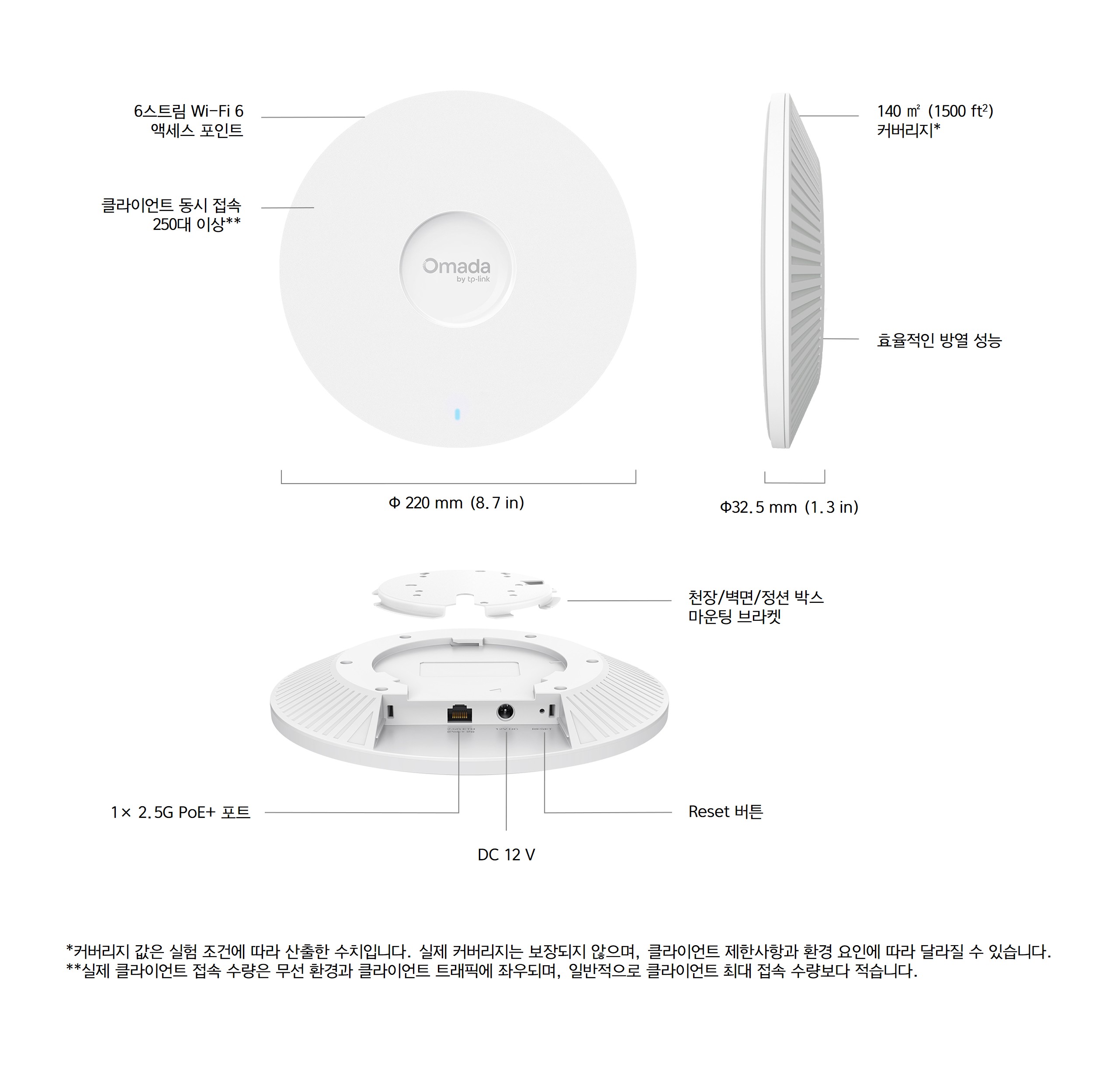

| 크기 ( 가로 x 세로 x 높이 ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| 안테나 | Internal Omni• 2.4 GHz: 2× 4 dBi• 5 GHz: 4× 5 dBi |
| 블루투스 | V5.2 |
| 마운트 | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| 무선 기능 | |
|---|---|
| 커버리지 | 1500 ft² (140㎡)* |
| 동시 접속 클라이언트 | 250+** |
| 무선 표준 | IEEE 802.11ax/ac/n/g/b/a |
| 주파수 | 2.4 GHz and 5 GHz |
| 신호 속도 | • 5 GHz: Up to 4804 Mbps• 2.4 GHz: Up to 574 Mbps |
| 무선 기능 | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO (5G: 4x4 DL/UL MU-MIMO)• HE160 (160 MHz Bandwidth)‡• Seamless Roaming(802.11k/v/r)△• Omada Mesh△• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| 무선 보안 | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| 전송 강도 | • CE:7-20 dBm(2.4 GHz, EIRP)7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP)7-30 dBm(5 GHz, U-NII-2C, EIRP)• FCC:4-22 dBm (2.4 GHz)4-22 dBm (5 GHz, U-NII-1 & U-NII-3) |
| 관리 | |
|---|---|
| Omada 앱 | Yes |
| 중앙 집중식 관리 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 클라우스 액세스 | Yes. Require the use of an Omada controller. |
| 이메일 경보 | Yes |
| LED 켜기/끄기 제어 | Yes |
| 관리 MAC 액세스 컨트롤 | Yes |
| SNMP | v1, v2c, v3 |
| 시스템 로깅 로컬/리모트 시스로그 | Local/Remote Syslog |
| SSH | Yes |
| 웹기반 관리기능 | HTTP/HTTPS |
| L3 관리 | Yes |
| 멀티 사이트 관리 | Yes |
| VLAN 관리 | Yes |
| 제로 터치 프로비저닝 | Yes. Require the use of Omada Cloud-Based Controller. |
| 기타 | |
|---|---|
| 인증 | CE, FCC, RoHS |
| 구성품 | • EAP673• Ceiling/Wal/Junctionl Mounting Kits• Installation Guide• Cable Compartment Cover |
| 운영 체제 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| 사용 환경 | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of Wi-Fi 6 (802.11ax), and features including 160 MHz Bandwidth, OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features. The 160 MHz bandwidth is only available on 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions.
△These features require the use of an Omada controller.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
