Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
- Dual-Band Wi-Fi 5: 867 Mbps on 5 GHz, and 300 Mbps on 2.4 GHz†
- Gigabit Ports with PoE Flexibility: 1× PoE Input port, 1× PoE pass-through port, and 2× RJ45 downlink ports.
- Low Congestion: MU-MIMO allows multiple devices to receive data simultaneously, reducing congestion and improving speed.‡
- Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 300ft² (25 ㎡).*
- Flexible Deployment and Easy Setup: Supports 802.3af/at PoE for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management and Seamless Roaming.△
- More Connections: Supports 200 concurrent connections.**
Learn more about Omada Cloud SDN>
| 하드웨어 사양 | |
|---|---|
| 인터페이스 및 주요 사양 | • Uplink: 1× Gigabit Ethernet Port• Downlink: 3× Gigabit Ethernet Ports (One port supports PoE pass-through.) |
| 물리적 보안 잠금 장치 | Yes |
| 버튼 | Reset |
| 전원 공급 | 802.3af/at PoE |
| PoE Out | · PoE Passthrough (Pins 1,2+; 3,6-)· PoE Out (requires 802.3at PoE input and the maximum output is 13 W)△ |
| 전력 소모 | • 9.8W (PoE Out Not Included)• 24.4W (PoE Out Included) |

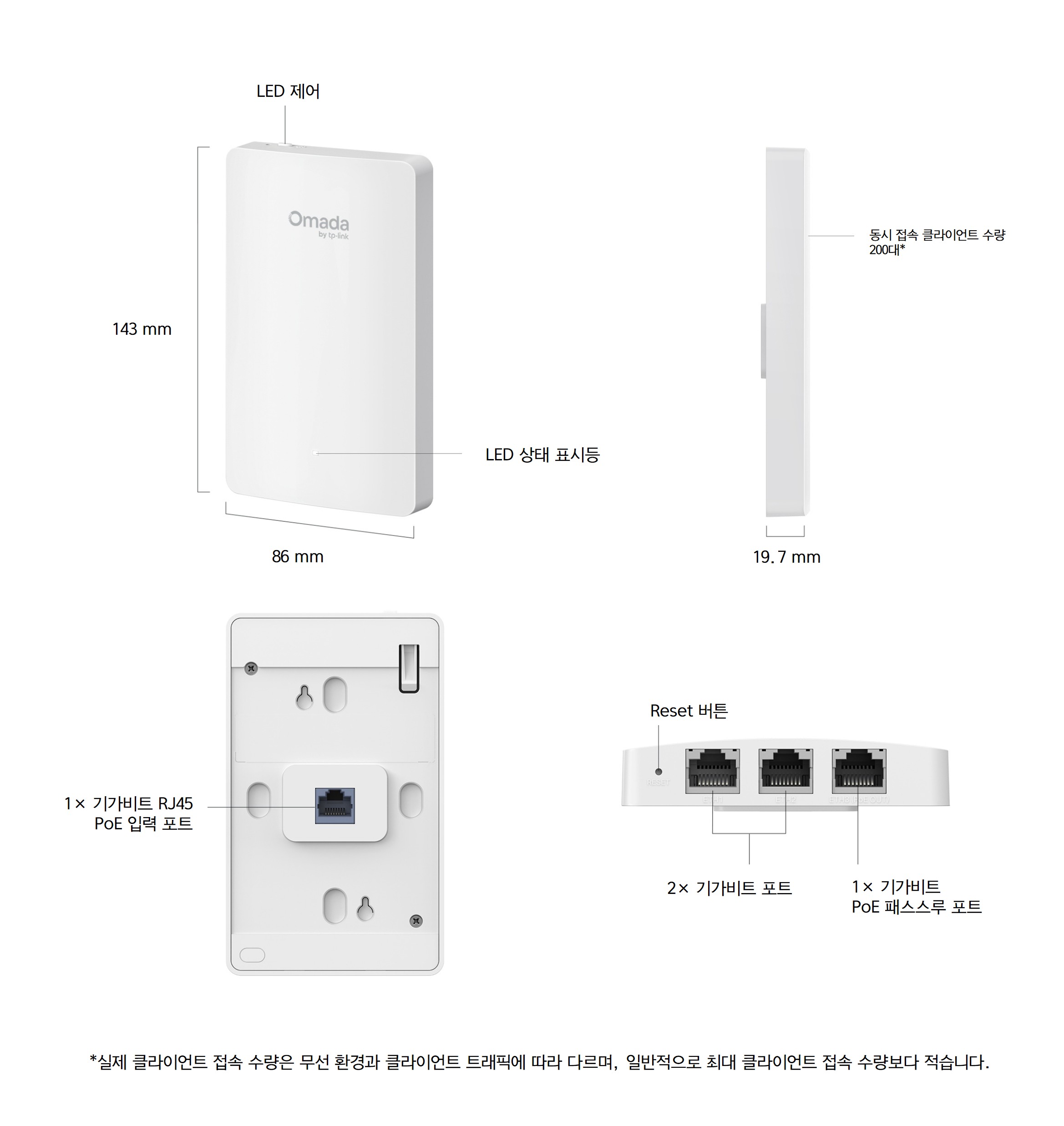

| 크기 ( 가로 x 세로 x 높이 ) | 5.6 × 3.4 × 0.8 in (143 × 86 × 19.7 mm) |
| 안테나 | Dual-Band Antennas:• 2.4 GHz: 2× 3 dBi• 5 GHz: 2× 4 dBi |
| 마운트 | Wall Mounting |
| 무선 기능 | |
|---|---|
| 커버리지 | 300 ft² (25㎡)* |
| 동시 접속 클라이언트 | 200** |
| 무선 표준 | IEEE 802.11a/b/g/n/ac |
| 주파수 | 2.4 GHz and 5 GHz |
| 신호 속도 | • 5 GHz: Up to 867 Mbps• 2.4 GHz: Up to 300 Mbps |
| 무선 기능 | • 16 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• Seamless Roaming(802.11k/v)• QoS(WMM)• MU-MIMO• Band Steering• Beamforming• Load Balance• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static IP/Dynamic IP |
| 무선 보안 | • Captive Portal Authentication• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Local LAN port based VLAN• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise |
| 전송 강도 | • CE:7-20 dBm (2.4 GHz, EIRP)8-24 dBm (5 GHz, U-NII-1, EIRP)• FCC:4-21 dBm (2.4 GHz)4-21 dBm (5 GHz, U-NII-1, U-NII-3) |
| 관리 | |
|---|---|
| Omada 앱 | Yes |
| 중앙 집중식 관리 | • Omada Hardware Controller• Omada Software Controller• Omada Cloud-Based Controller |
| 클라우스 액세스 | Yes. Require the use of an Omada controller. |
| 이메일 경보 | Yes |
| LED 켜기/끄기 제어 | Yes |
| 관리 MAC 액세스 컨트롤 | Yes |
| SNMP | v1,v2c |
| 시스템 로깅 로컬/리모트 시스로그 | Local/Remote Syslog |
| SSH | Yes |
| 웹기반 관리기능 | HTTP/HTTPS |
| L3 관리 | Yes |
| 멀티 사이트 관리 | Yes |
| VLAN 관리 | Yes |
| 제로 터치 프로비저닝 | Yes. Requiring the use of Omada Cloud-Based Controller. |
| 기타 | |
|---|---|
| 인증 | CE, FCC, RoHS |

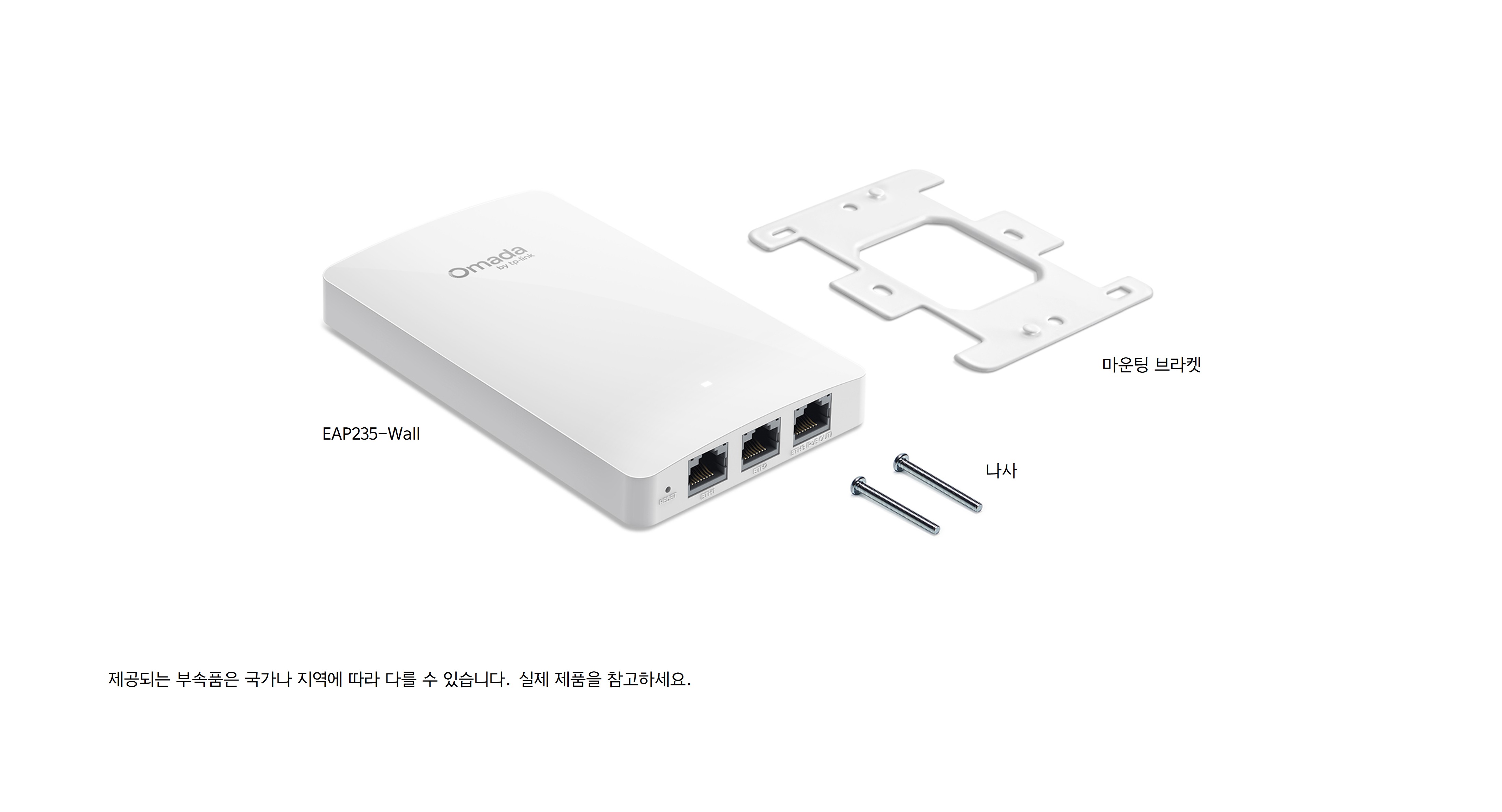

| 구성품 | • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall• Installation Guide• Mounting Screw |
| 운영 체제 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| 사용 환경 | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡ MU-MIMO capability requires client devices that also support MU-MIMO.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△These features require the use of an Omada controller.
