Omada 16-Port Gigabit Easy Managed Switch
- 16× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
Omada 16-Port Gigabit
Easy Managed Switch
16× Gigabit RJ45 Ports
Fanless Design for Silent Operation
Easy Centralized Management†
Omada App†
Traffic Separation
Traffic Prioritization△
Automatic Loop Prevention
Cable Test

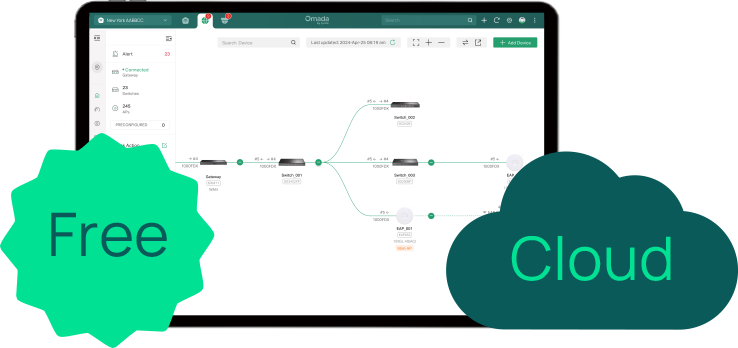

Works with Omada Central Essentials
for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use cloud centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Cost-Performance Solution
Looking for free, worry-free cloud management for life?
Omada Central Essentials
Lifetime Free Cloud without Additional Fees

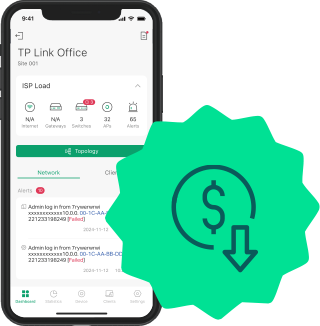

On-site work eating up time and resources?
Reduce Maintenance Costs
Manage and Maintain from Anywhere
Compact and Durable Metal Casing, Featuring
Desktop/Wall Mounting and a Fanless Design
| HARDWARE FEATURES | |
|---|---|
| Interface | • 16× 10/100/1000 Mbps RJ45 Ports• Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop• Rackmountable |
| Physical Security Lock | √ |
| Power Supply | 100-240 V~50/60 Hz |
| Weight | 1.14 kg (2.51 lbs) |
| Dimensions ( W x D x H ) | 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
|---|---|
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mpps |
| MAC Address Table | 8K |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | • Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • ES216G• Power Cord• Rubber Feet• Mounting Brackets• Screws• Installation Guide |
| Environment | • Operating Temperature: -5℃~50℃ (23℉~122℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
△Port-based/802.1p/DSCP QoS are supported under Standalone Mode. VLAN QoS is supported under Controller Mode.
