How to configure IPTV function on TP-Link Wi-Fi router

Configuration Guide
Updated 03-13-2026 08:05:32 AM Number of views for this article750980
This Article Applies to:

Introduction

This article will introduce the IPTV configuration and guide you through configuring it correctly on the TP-Link Wi-Fi router.



Requirements

  • TP-Link Router
  • Set‑top box
  • An active IPTV subscription from your Internet Service Provider (ISP)
  • IPTV configuration details provided by your ISP



Configuration

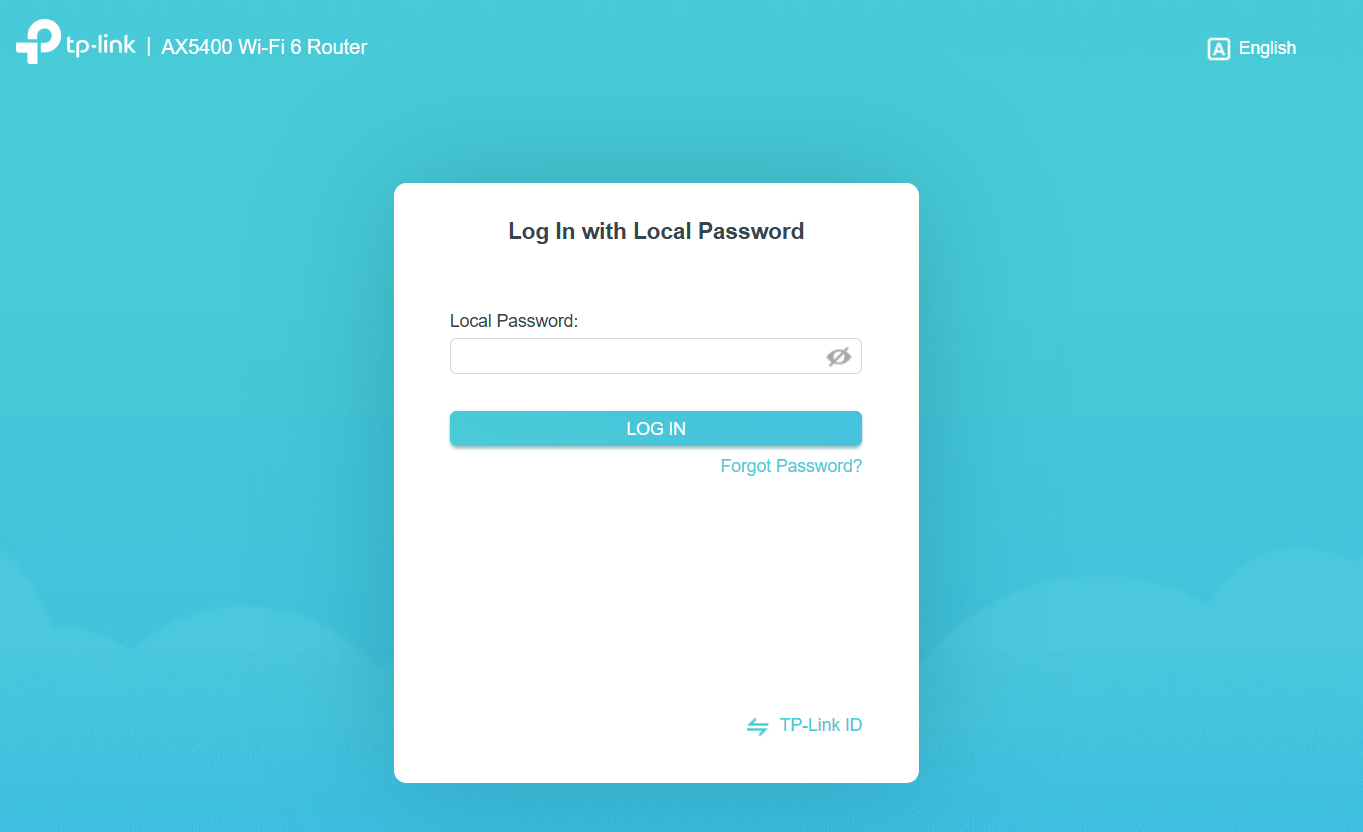

Step 1. Log in to the TP-Link device by typing http://tplinkwifi.net in the address bar of any web browser (such as Chrome or Firefox).

The login page of the web management interface.

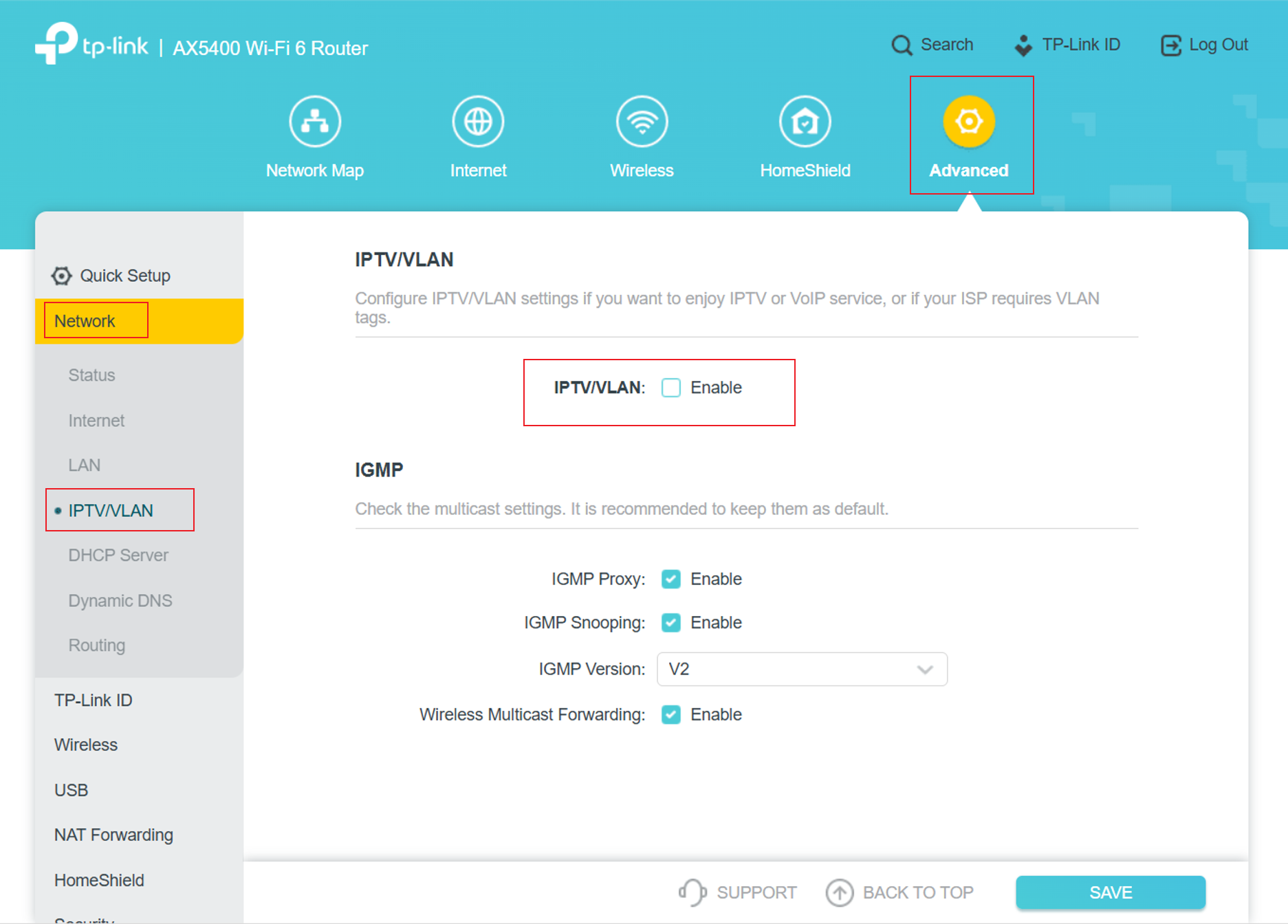

Step 2. Navigate to Advanced > Network > IPTV/VLAN and enable IPTV/VLAN.

Interface showing where to enable the IPTV/VLAN option.

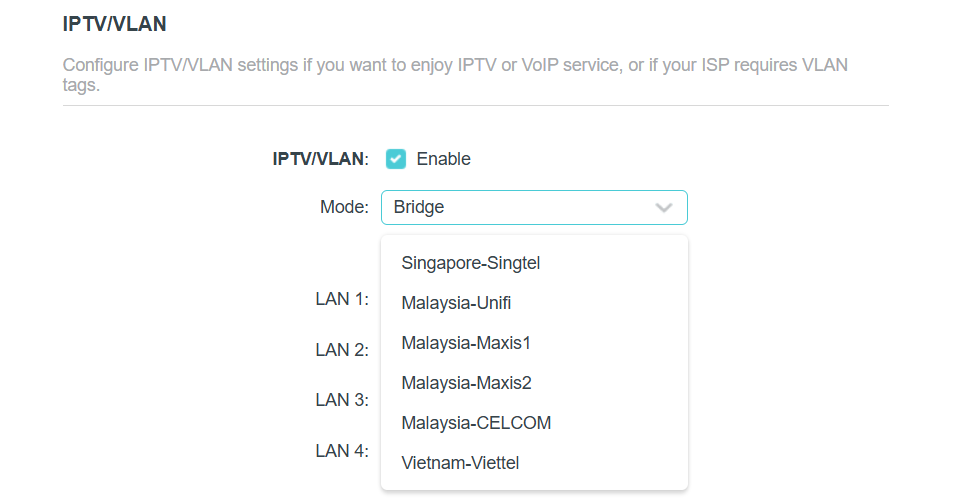

Step 3. Select the built-in profile when your ISP is in the list. Otherwise, select Custom to configure the IPTV settings.

Interface showing how to select the IPTV mode in the IPTV/VLAN settings.



Step 4. If you need to use Custom Mode, please follow these steps to configure it:

1) Enter the VLAN IDs according to your ISP.

Example:

  • Internet: VLAN 40
  • VOIP: VLAN 45
  • IPTV: VLAN 50

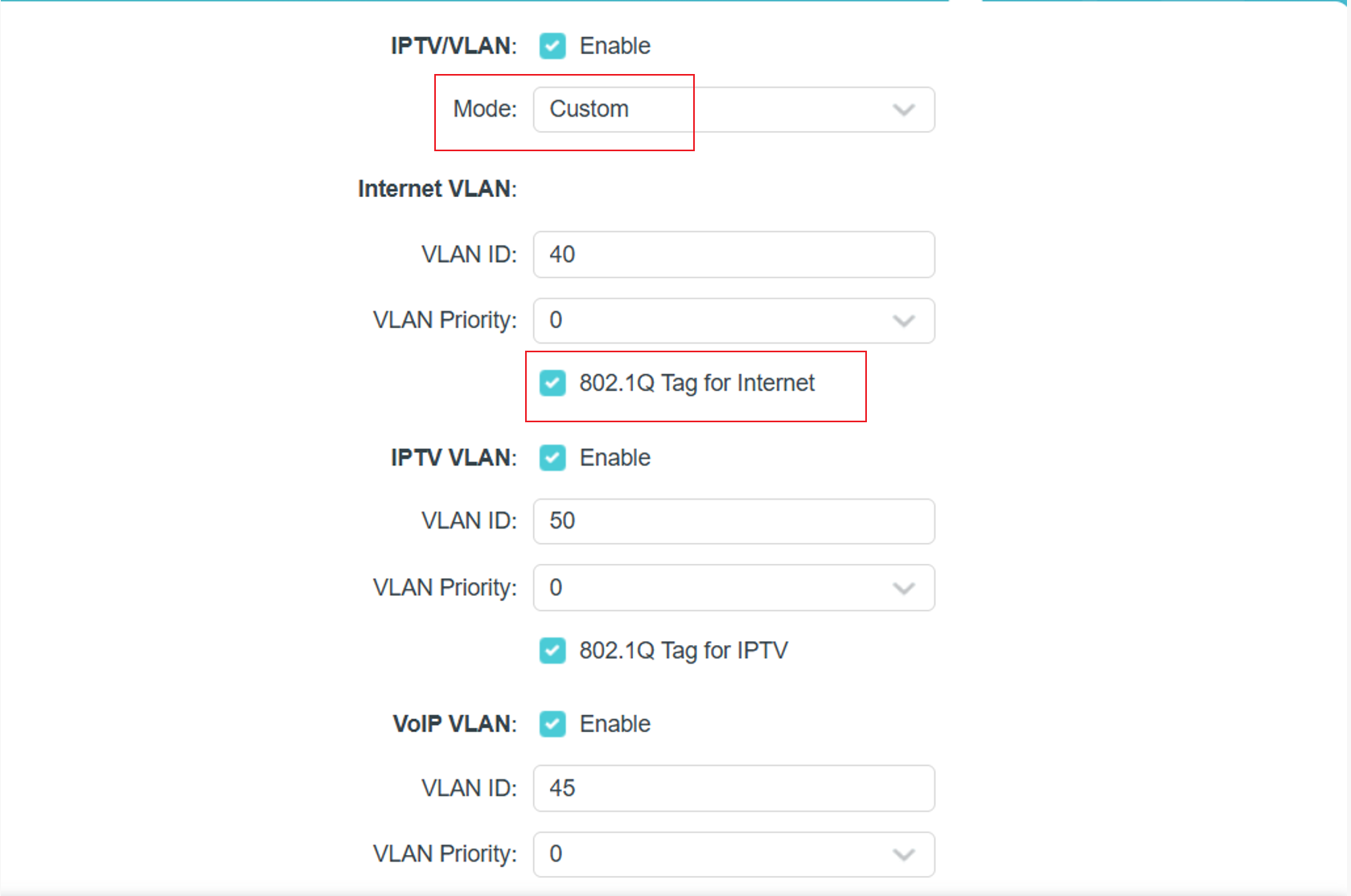

2) 802.1Q Tag and IPTV Multicast VLAN ID should follow your ISP’s requirements.

IPTV Settings Page.

3) Assign LAN ports to each service.

Example:

  • Internet: LAN1, LAN4
  • VOIP: LAN2
  • IPTV: LAN3

Interface showing how to assign LAN ports to different services when configuring IPTV.



Step 5. After saving the settings, connect your set‑top box (STB) to the selected LAN port.
