AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz△ and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.†
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
- PoE Support: Support both standard 802.3af and Passive PoE (PoE adapter included)△ for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.△
Learn more about Omada Cloud SDN>
AC1350 Wireless
MU-MIMO
Gigabit
Ceiling Mount
Access
Point
AC1350 Dual-Band Wi-Fi 5
MU-MIMO
1× Gigabit Port
802.3af PoE
Omada Mesh & Seamless Roaming△
Centralized Cloud Management
Enhanced Security
Easy, Quick Setup
Premium AC1350
Dual-Band WiFi 5 Speeds
5 GHz
867 Mbps
2.4 GHz
450 Mbps
MU-MIMO
Beamforming
Band Steering
Load Balance

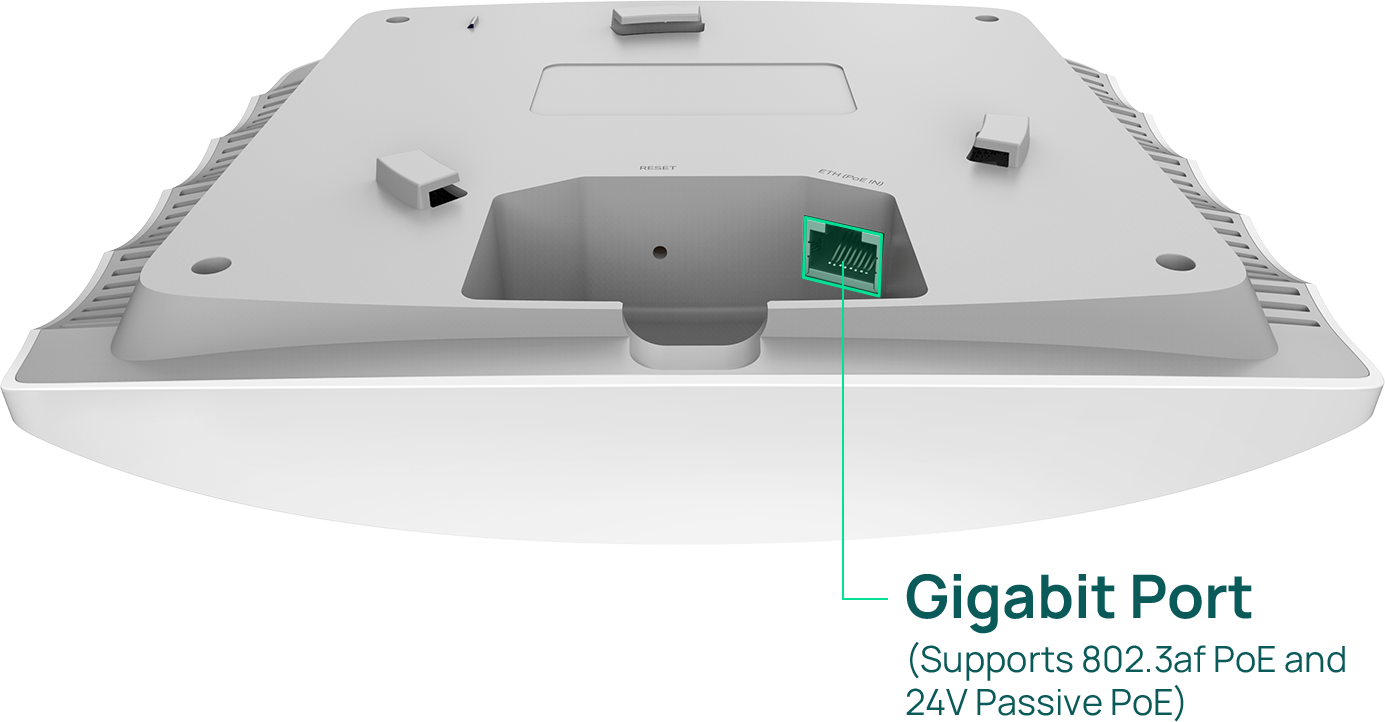

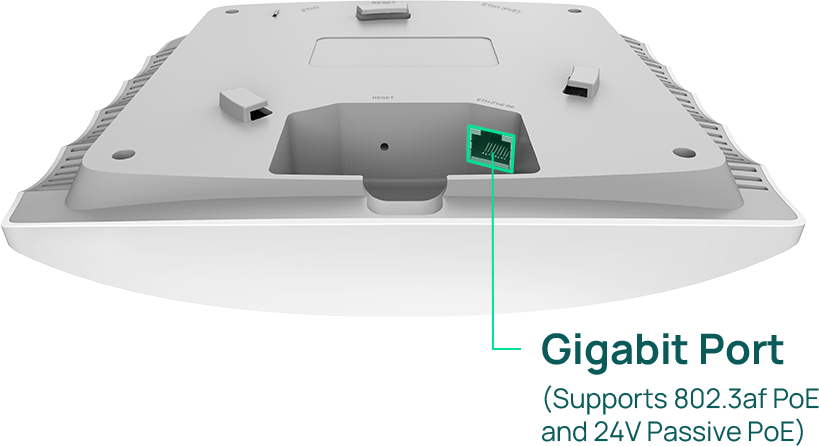

Multiple PoE Options for
Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, which can be
either powered by a PoE switch or the provided PoE adapter, making
deployment effortless and flexible.
Boosted Network
Security
Secure Guest Network
with up to 16 SSIDs
Boost Your Business
with SMS Login
WPA2 for Worry-Free
Open Public Networks
Rogue AP Detection
Seamless Integration into
Omada SDN
Ceiling Mount AP EAP225
Wall Plate AP
Outdoor AP
PoE Switch
VPN Gateway
Access
Controllers
(Cloud-Based)
or Essentials
version
| HARDWARE FEATURES | |
|---|---|
| Interface | Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | • 802.3af PoE• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption | 12.6 W |
| Dimensions ( W x D x H ) | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Antenna | 3 Internal Omni• 2.4 GHz: 4 dBi• 5 GHz: 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz:Up to 867 Mbps• 2.4 GHz:Up to 450 Mbps |
| Wireless Functions | • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming*• Omada Mesh*• Band Steering• Load Balance• MU-MIMO• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication*• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support |
| Transmission Power | • CE:≤20 dBm(2.4 GHz, EIRP)≤23 dBm(5 GHz, EIRP)• FCC:≤24 dBm(2.4 GHz)≤22 dBm(5 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225• Passive PoE Adapter• Power Cord• Mounting Kits• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Note that EAP225 v3.20 doesn't support Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.
*Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
△The functions of MU-MIMO, Airtime Fairness and Beamforming, specifications of 3 Internal Omni antenna, 450 Mbps on 2.4 GHz and Passive PoE are only supported by EAP225 v3 and above.
