Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch

5× 2.5G RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)
1× 10G SFP+ Slot
120W PoE++ Budget, with up to 90W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app^†
VLAN, Port Isolation, Cable Test^△, QoS^△for reliable surveillance networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

What this product does

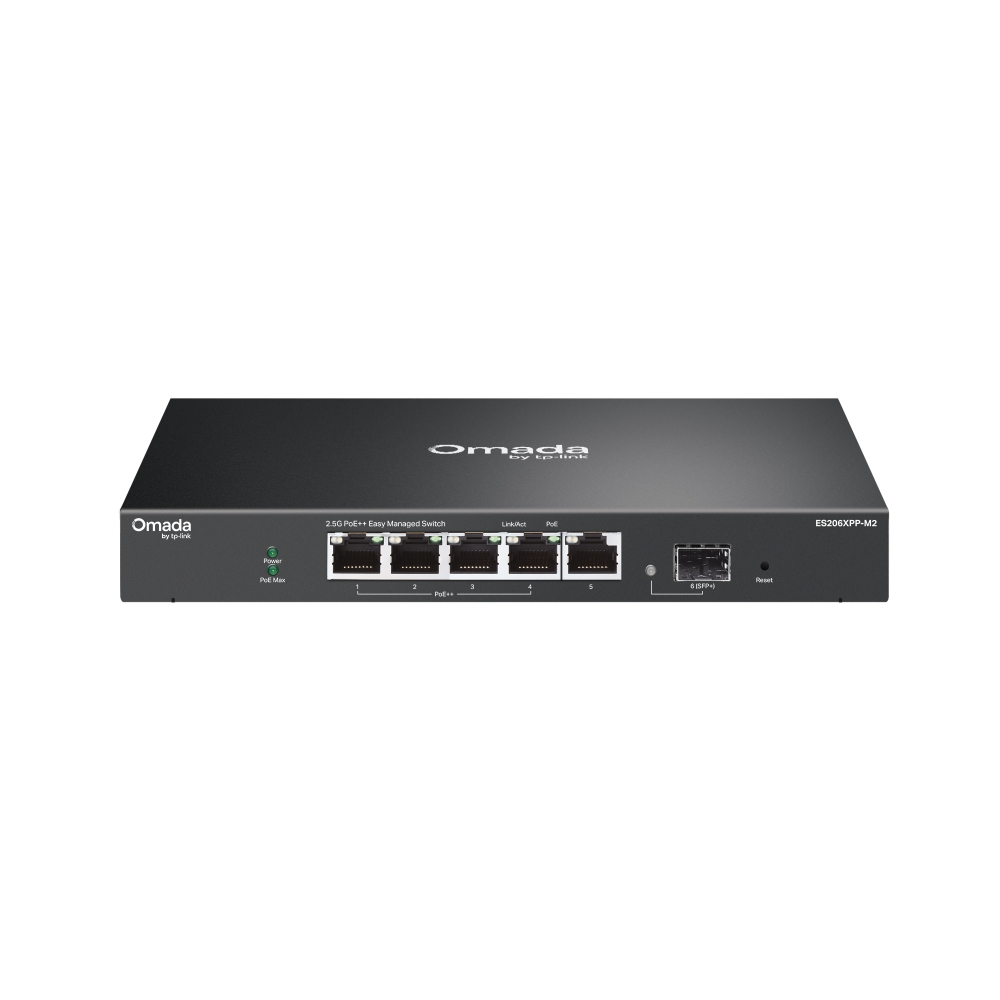

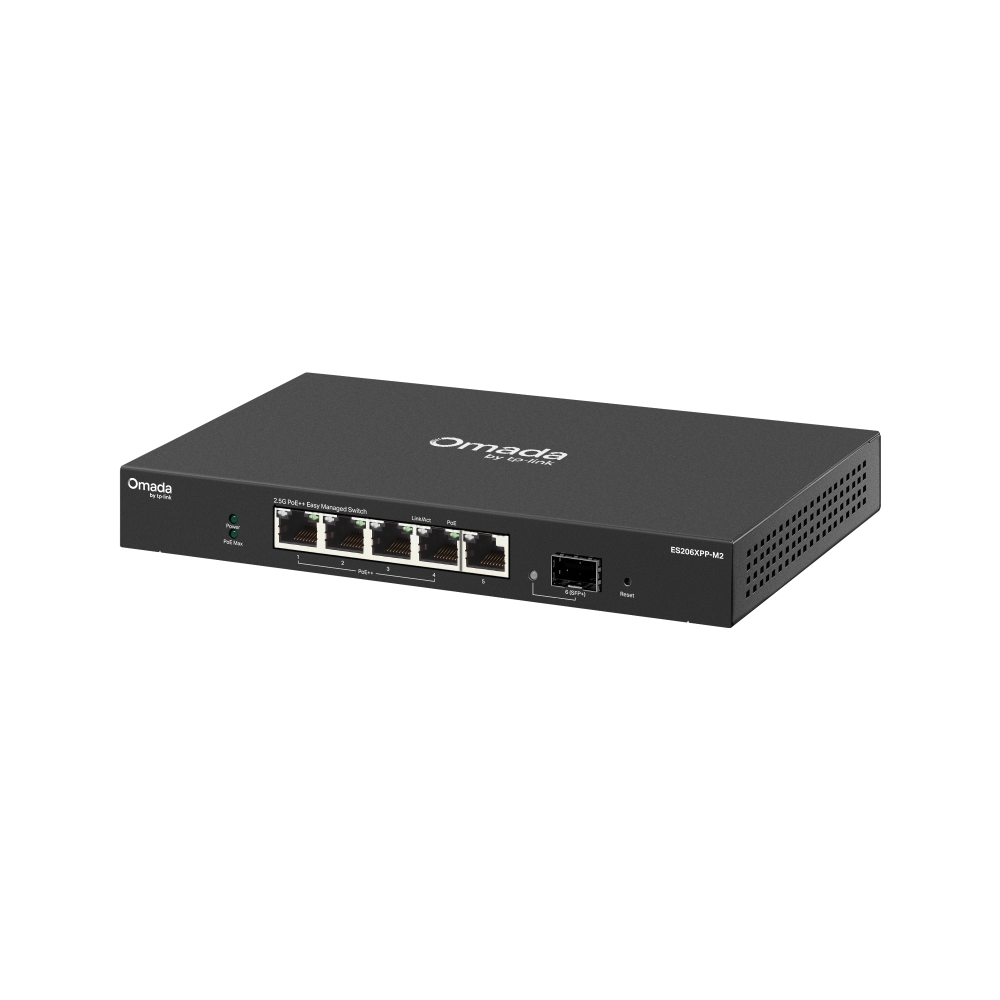

The Omada ES206XPP-M2 is an Agile Easy Managed switch designed to deliver high-speed connectivity and robust power for modern business networks. It offers multi-gigabit speeds, high-power PoE++, and seamless integration into the Omada SDN platform, catering to the demands of high-performance devices like Wi-Fi 7 APs, 2.5G NAS, and workstations. It comes equipped with 5× 2.5 Gbps RJ45 ports—four of which are 802.3bt PoE++ compliant—and a 10 Gbps SFP+ slot for high-speed uplinking. With centralized cloud management, a fanless design for silent operation, and value-added features like QoS and VLANs, this switch ensures a powerful and optimized network experience for small to medium-sized businesses.

HARDWARE FEATURES
Interface	• 5× 2.5G RJ45 Ports (4× 802.3af/at/bt-compliant PoE++) • 1× 10G SFP+ Slot • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• Desktop • Wall Mounting
Physical Security Lock	√
Power Supply	100-240V, 50-60Hz
PoE Ports (RJ45)	• Standard：802.3bt PoE、802.3at PoE and‘ 802.3at PoE+ compliant • PoE Port：4 ports • PoE Budget：120W available for all PoE+ ports，90W max per port • Fast PoE&Perpetual PoE • PoE Auto Recovery
Dimensions ( W x D x H )	8.2 × 5.0 × 1.0 in (209× 126 × 26 mm)

PERFORMANCE
Switching Capacity	45 Gbps

SOFTWARE FEATURES
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES206XPP-M2 • Power Cord • Power Adapter • Rubber Feet • Installation Guide

For additional version information, please go to the support page.

^†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
