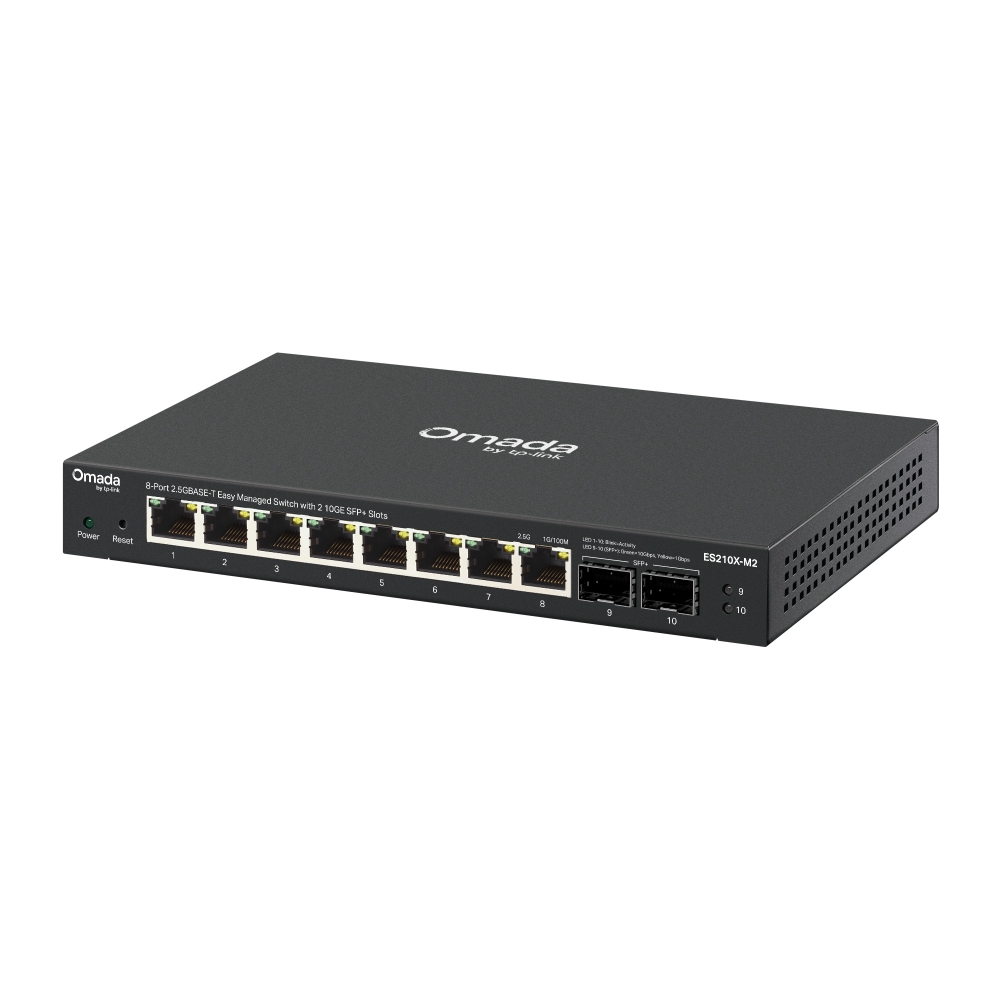

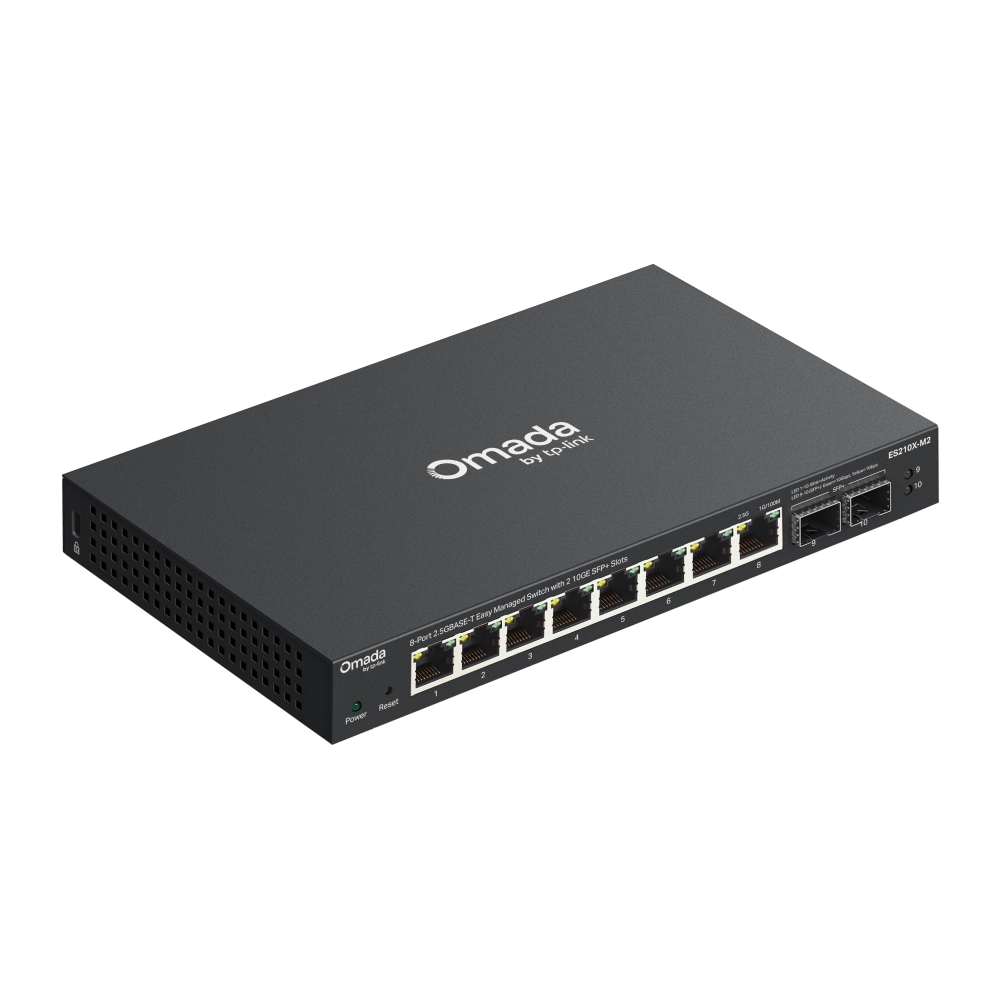

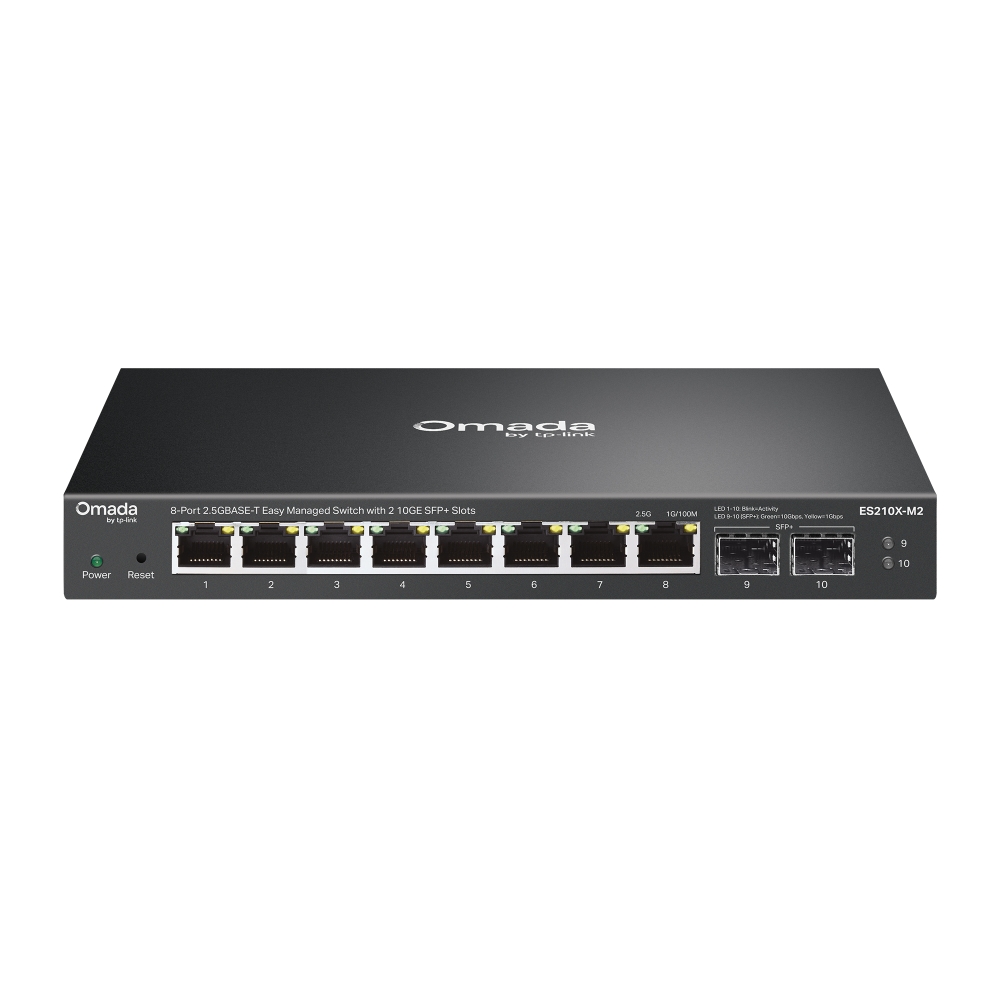

ES210X-M2
Coming SoonOmada 8 -Port 2.5G Easy Managed Switch with 2× 10G SFP+ Slots
- 8× 2.5 Gbps RJ45 Ports
- 2× 10 Gbps SFP+ Slots
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
What this product does
The Omada ES210X-M2 is an Easy Managed switch designed to deliver high-speed connectivity and performance for modern business networks. It offers multi-gigabit speeds and seamless integration into the Omada SDN platform, catering to the demands of high-performance devices like Wi-Fi 6/7 APs, 2.5G NAS, and workstations. It comes equipped with 8× 2.5 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots for high-speed uplinking. With centralized cloud management, a fanless design for silent operation, and value-added features like QoS and VLANs, this switch ensures a powerful and optimized network experience for small to medium-sized businesses.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 8× 2.5 Gbps RJ45 Ports• 2× 10 Gbps SFP+ Slots |
| Fan Quantity | Fanless |

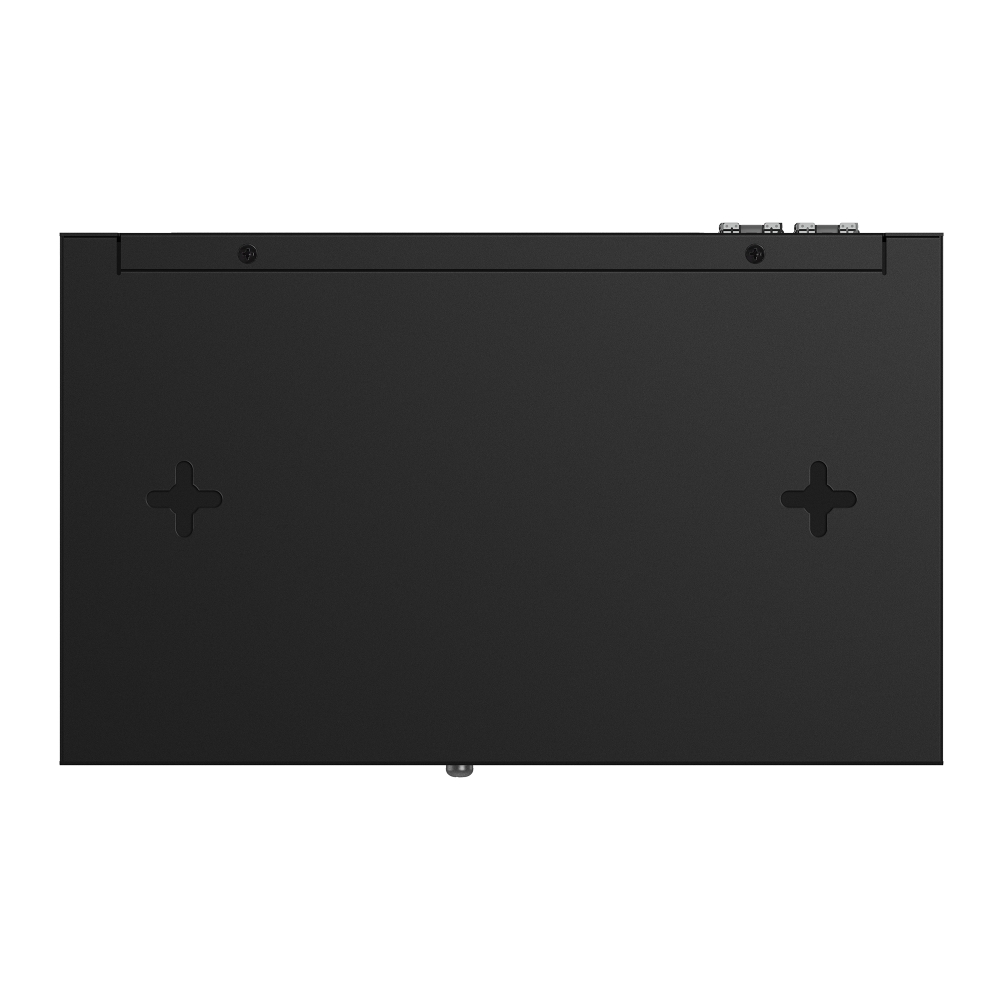

| Installation | • Desktop• Wall Mounting |
| Physical Security Lock | √ |
| Power Supply | 12 VDC / 1.5 A |
| Dimensions ( W x D x H ) | 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection | ±6 kV in common mode for Ethernet ports ±2 kV in differential mode for DC power input port |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 640 KB |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 802.1p DSCP Priority• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin) • Queue Weight Conffg• Bandwidth Control - Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation- Static Link Aggregation- Up to 6 aggregation groups and up to 4 ports per group • Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Trafffc Statistics• 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI• DHCP Client• Cable Diagnostics |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • ES210X-M2• Power Adapter• Rubber Feet• Installation Guide |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
△Cable Test and Port Qos are supported under Standalone Mode.
