VIGI NVR2016H-16MP-4TB
NewVIGI 16 Channel PoE+ Network Video Recorder
- 16-Channel Live View and 4K HDMI Video Output
- 16× 10/100 Mbps PoE+ Ports with 140 W PoE Budget△
- Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
- 16-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth

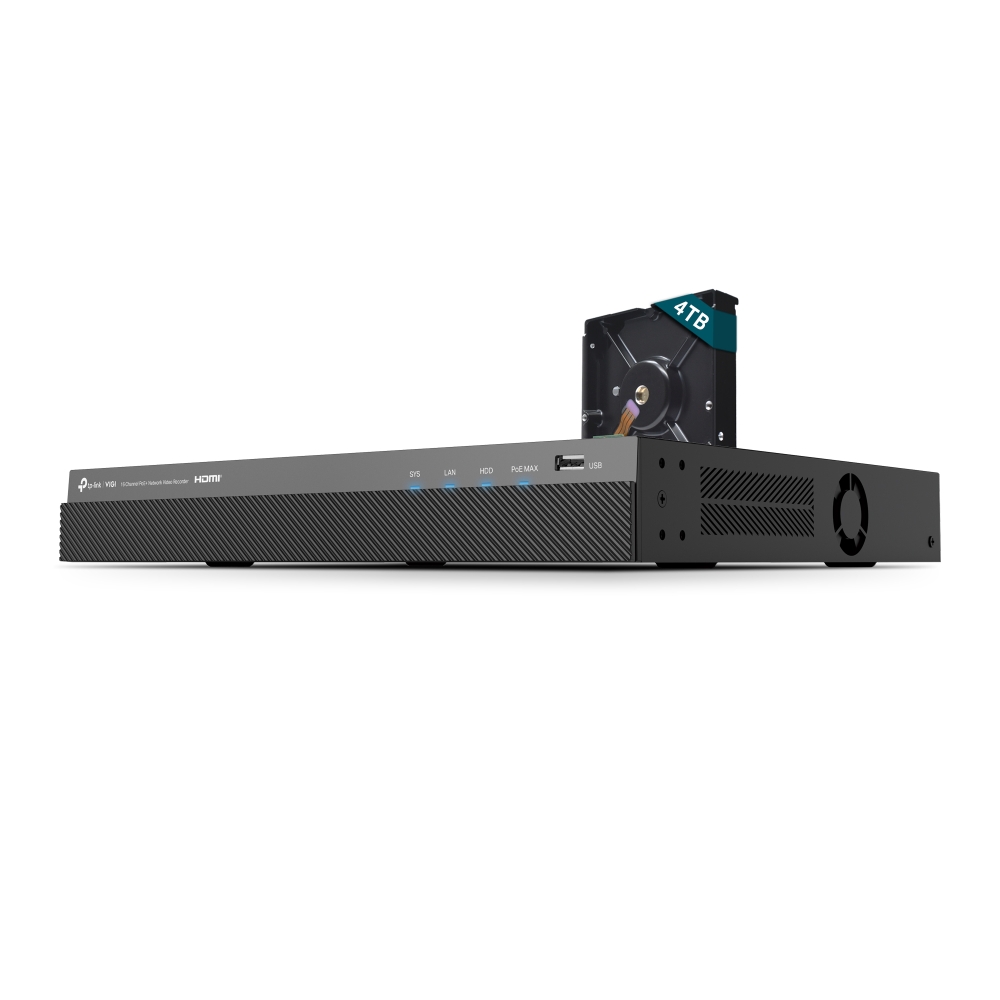

- 2× SATA Interfaces and 1 Up to 16 TB (1× 4TB HDD Preinstalled)
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
-
16-Channel
Live View -
4K HDMI
Video Output -
140W PoE
Budget△ -
16-Channel
Synchronous Playback† -
Smart Video
Coding -
Comprehensive
Compatibility‡ -
Auto
Initialize -
2× SATA Interfaces
(1 Up to 16 TB)
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
Click “Auto Initialize”
Initializing
Done
| Video and Audio | |
|---|---|
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16 |
| DECODING | |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel† |
| Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP• 30fps: 4-ch @ 3MP, 2-ch @ 5MP |
| Record Management | |
|---|---|
| Record Mode | • Manual Recording• Scheduling Recording• Motion Detection Recording |
| Playback Mode | • Instant Playback• Regular Playback• Tag Playback• Event Playback |
| Backup Mode | • Regular Backup• Video Clip Backup |
| Playback Function | • Play• Pause• Stop• Fast Forward• Fast Backward• Play By Frame• Full Screen• Video Clip• Export Clip• Digital Zoom• Lock Recording• Audio On/Off |
| NETWORK | |
|---|---|
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |
| External Interface | |
|---|---|
| Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 2 SATA Interfaces |
| Capacity | • Up to 16 TB Capacity for Each HDD• 1 × 4TB HDD Preinstalled |
| PoE | |
|---|---|
| Standard | 802.3at/af Compliant |
| Interface | 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 140 W△ Available for All PoE+ Ports, 30 W Max per Port |
| Alarm | |
|---|---|
| General Alarm | • Motion Detection• Video Tampering• Scene Change Detection• Line-Crossing Detection• Intrusion Detection• Region Entering Detection• Region Exiting Detection• Loitering Detection• Object Abandoned/Removal Detection• Vehicle Detection• Human Detection• Abnormal Sound Detection• Smart FrameNote: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss• Offline and IP Conflict• Disk Exception• Login Exception• Fan ExceptionNote: The alarm function requires the use of a camera. |
| Alarm Linkage | • Recording• White Light Alarm• Buzzer• Log• Audible AlarmNote: The alarm function requires the use of a camera. |
| GENERAL | |
|---|---|
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | • VIGI Network Video Recorder• Power Adapter• Power Cables• HDD Power Cables• HDD Data Cables• Mounting Accessories• Mouse• Quick Installation Guide |
| Working Temperature | • NVR: -10–55 °C• Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 330 × 285 × 45 mm |
| Net Weight | 2.1 Kg§ |
| Gross Weight | 4.1 Kg§ |
| Power Supply | 53.5V DC/3.37A |
| Power Consumption | • 6.2 W (Without Disk)• 40 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
△Calculations based on laboratory testing using VIGI cameras. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
†The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 16MP.
‡This model currently supports ONVIF Profile S.
§Due to the weight of this model, it is recommended to use a tray when mounting the rack with angle iron. Please note that the tray is not included.
